Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

33 part groups · 10 illustrations

Illustrations

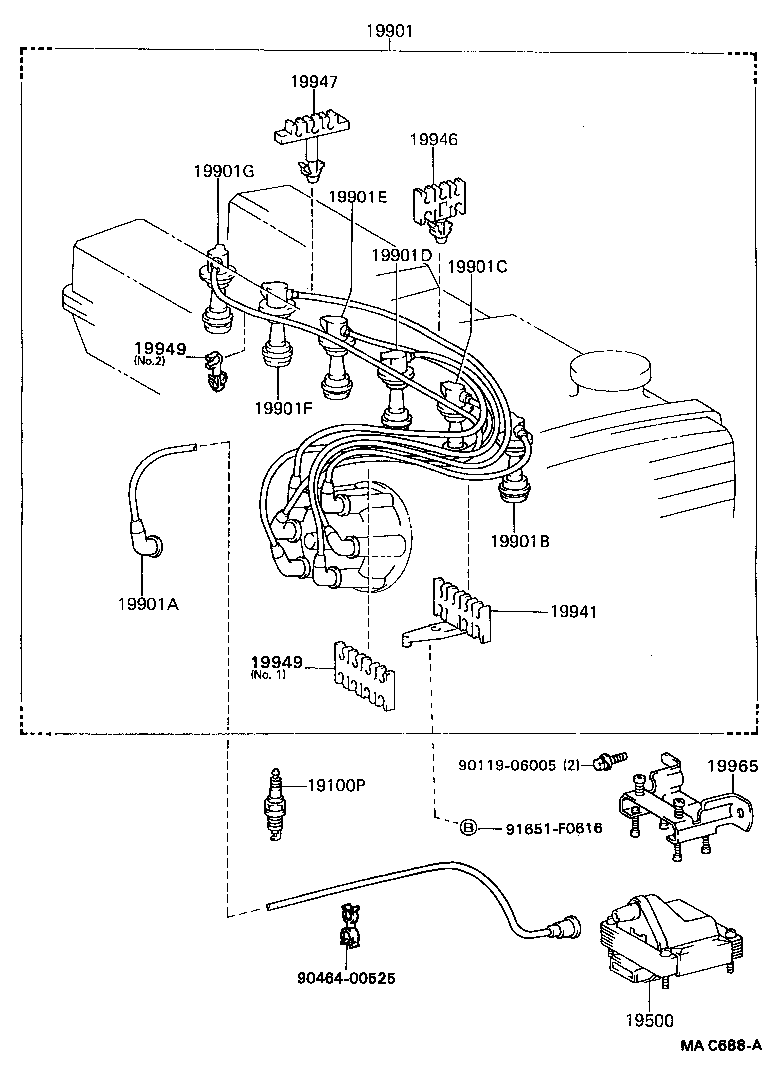

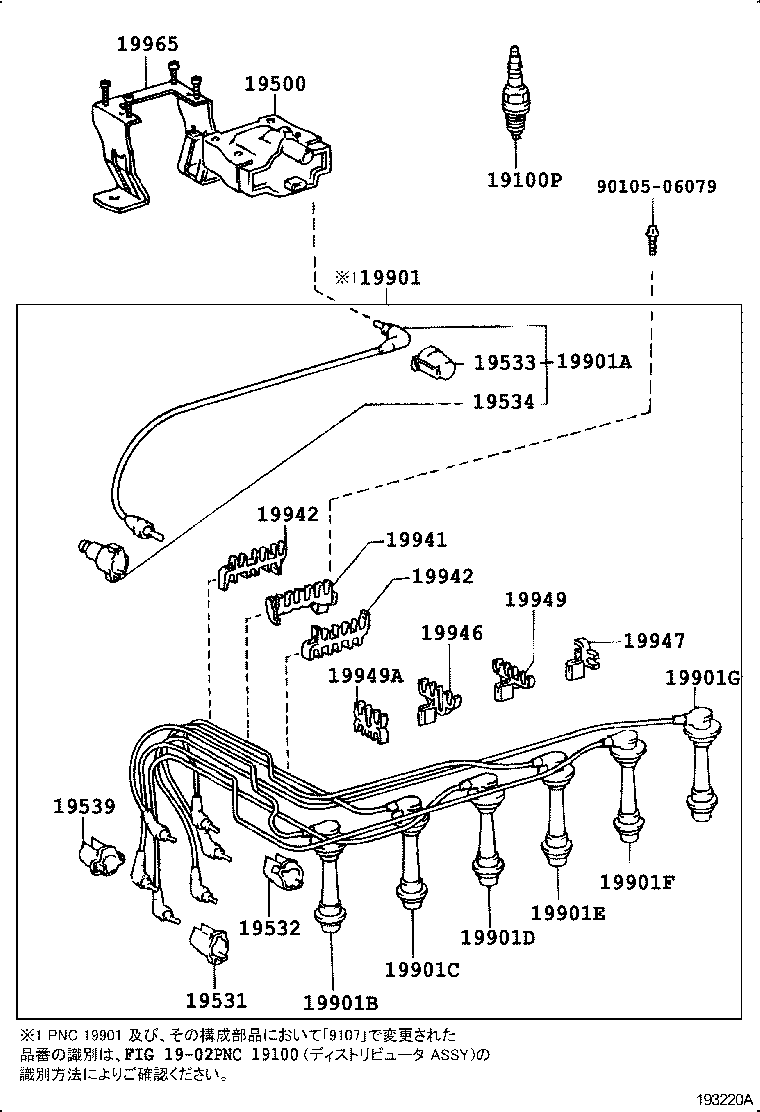

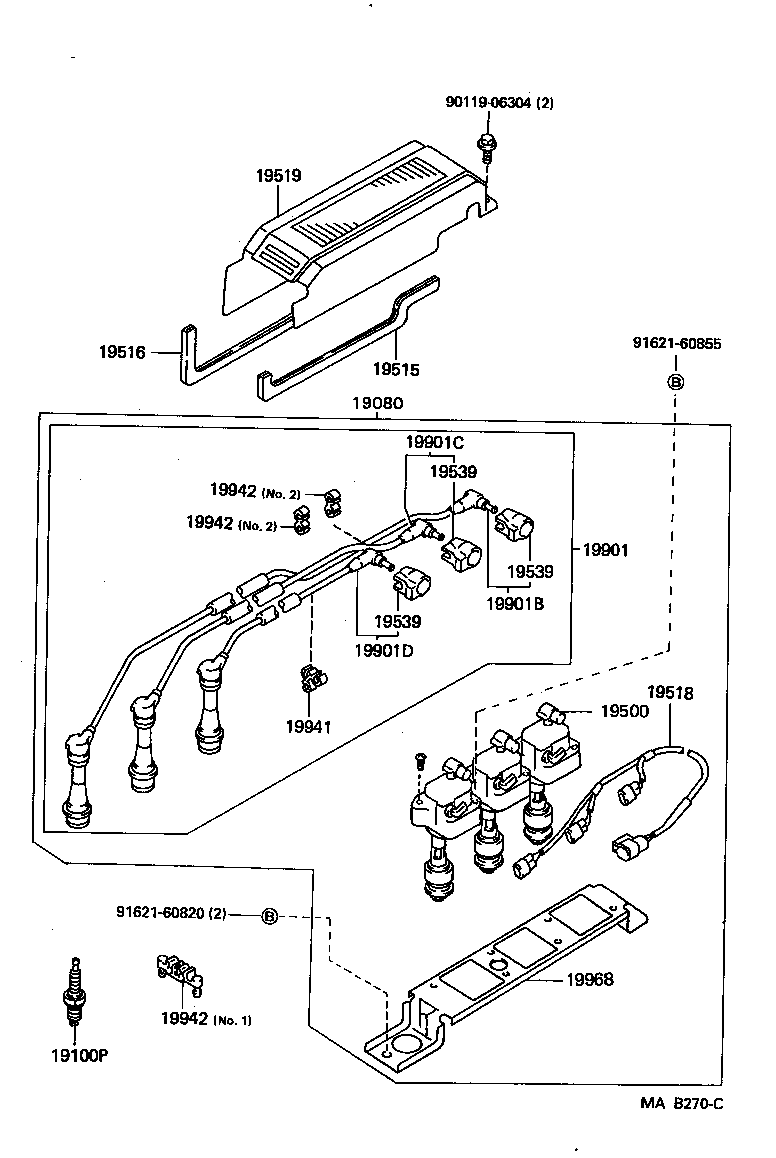

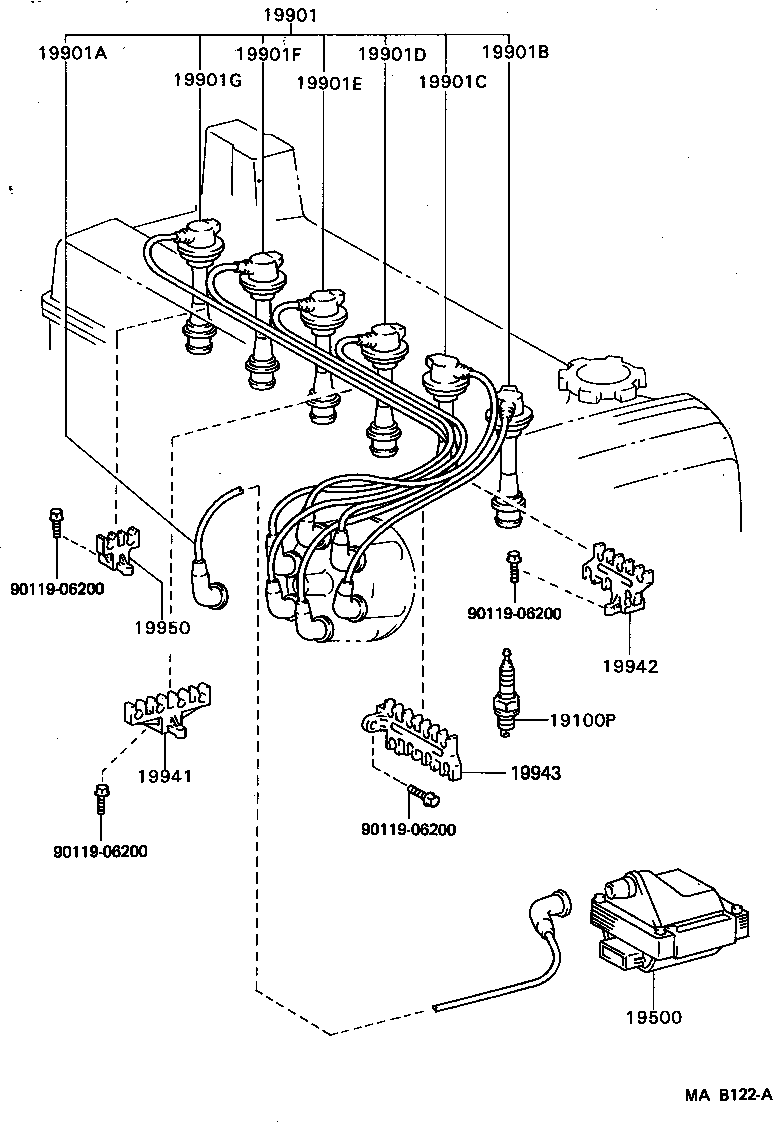

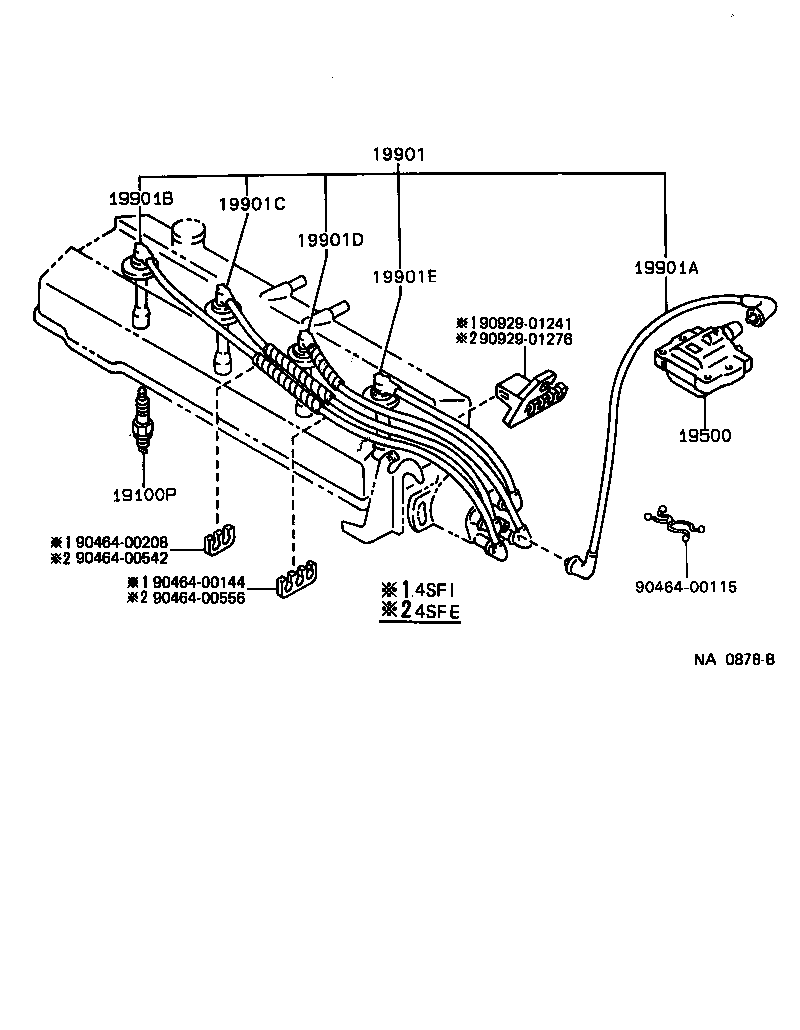

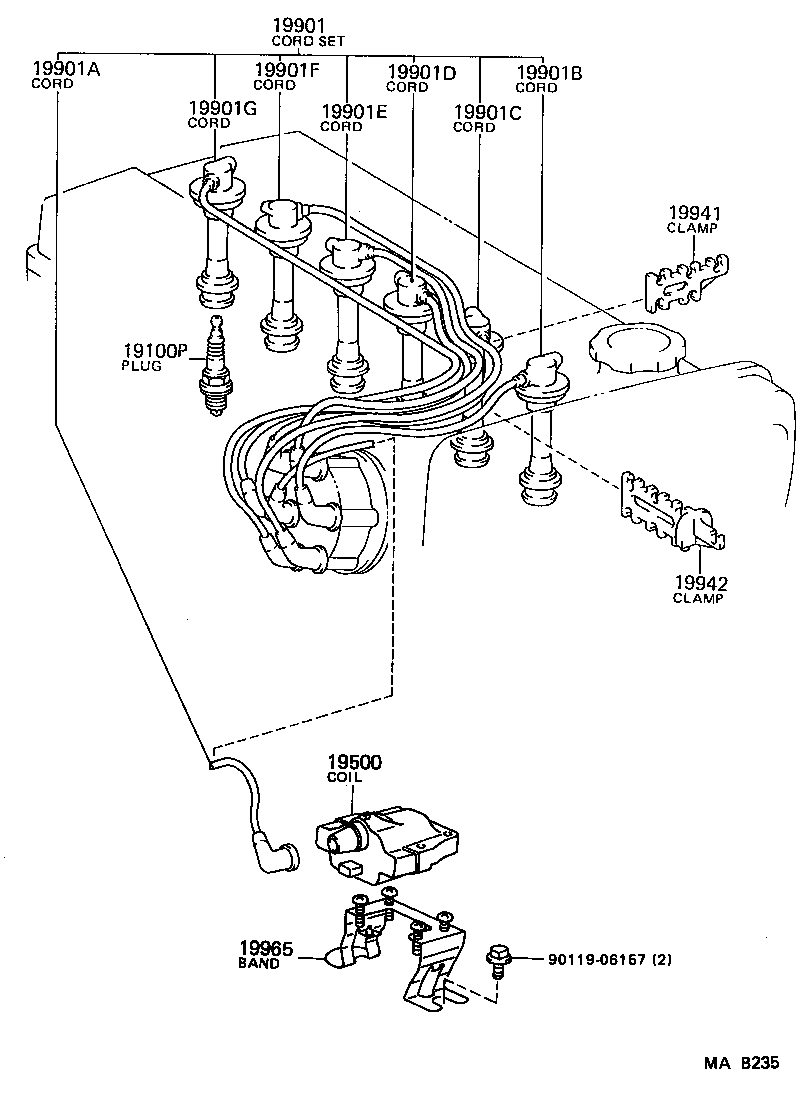

Figure NA0833A NA0833A 1988-08 → — Figure MAB235 MAB235 1988-08 → — Figure MAB122A MAB122A 1988-08 → 1990-08 Figure MAB270C MAB270C 1988-08 → 1990-08 Figure 193220A 193220A 1990-08 → — Figure 191108 191108 1990-08 → — Figure MAB443B MAB443B 1988-08 → — Figure MAC688A MAC688A 1989-08 → — Figure NA0878B NA0878B 1988-08 → — Figure MAB069B MAB069B 1988-08 → —

Part groups

PNCDescription
19080 Coil Assy, W/Bracket & Cord
19100P Plug, Spark
19500 Coil Assy, Ignition
19515 Gasket, Ignition Coil Cover, NO.1
19516 Gasket, Ignition Coil Cover, NO.2
19518 Wire, Ignition Coil
19519 Cover, Ignition Coil
19531 Holder, Resistive Cord, NO.1
19532 Holder, Resistive Code, NO.2
19533 Holder, Resistive Cord, NO.3
19534 Holder, Resistive Cord, NO.4
19539 Holder, Resistive Code, NO.4
19850 Plug Assy, Glow
19856 Nut, Connecting(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901F Cord, Spark Plug Resistive, NO.5
19901G Cord, Spark Plug Resistive, NO.6
19941 Clamp, Resistive Cord, NO.1
19942 Clamp, Resistive Cord, NO.2
19943 Plate, Resistive Cord Clamp Support NO.1
19946 Clamp, Resistive Cord, NO.3
19947 Clamp, Resistive Cord, NO.4
19949 Clamp, Resistive Cord, NO.5
19949A Clamp, Cord, NO.6
19950 Clamp, Resistive Cord, NO.6
19965 Band, Ignition Coil, NO.1
19968 Bracket, Ignition Coil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
