Toyota Cresta
1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan
Discontinued model
Data version 1993-06
Fuel Injection System
90 part groups · 20 illustrations

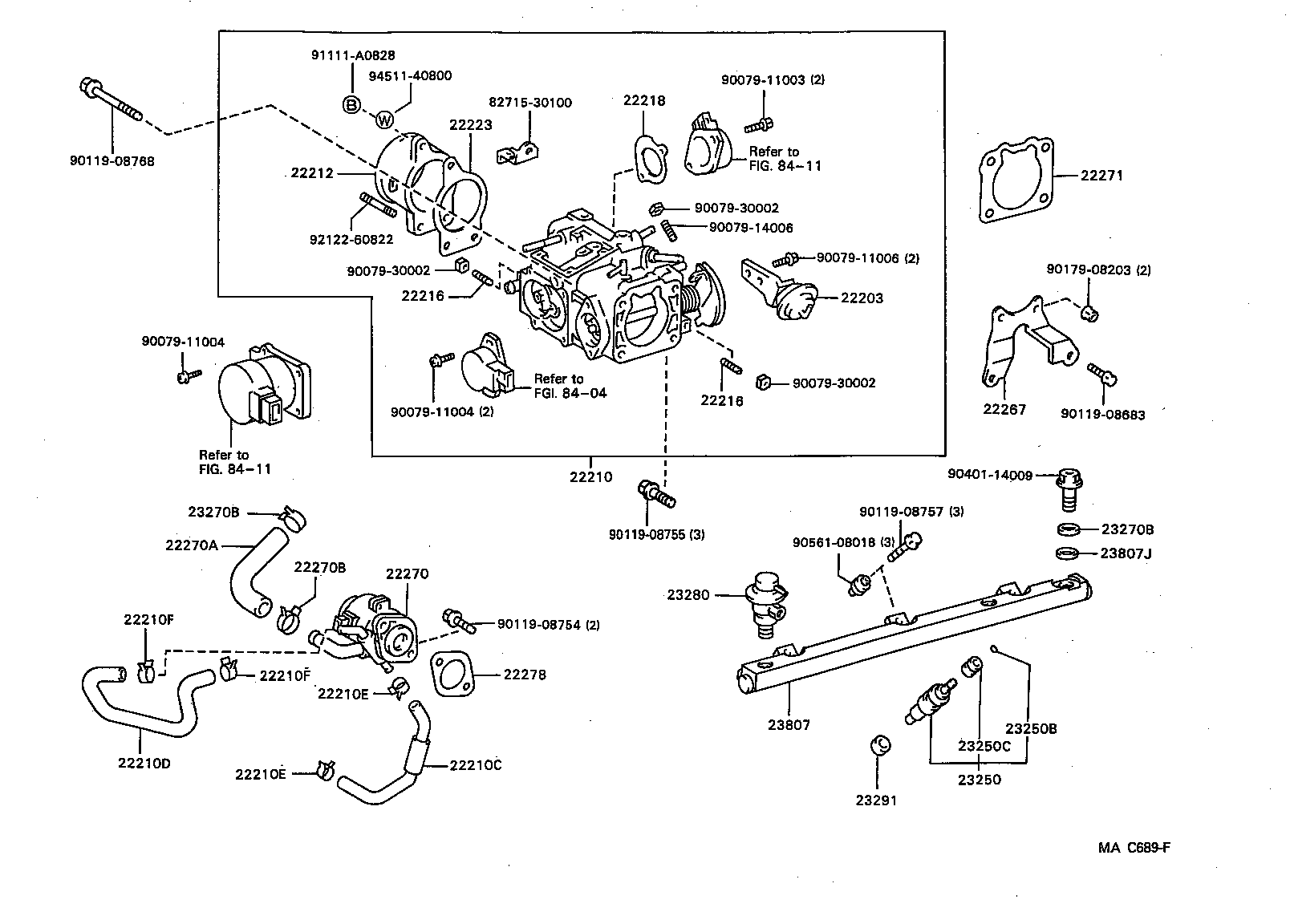

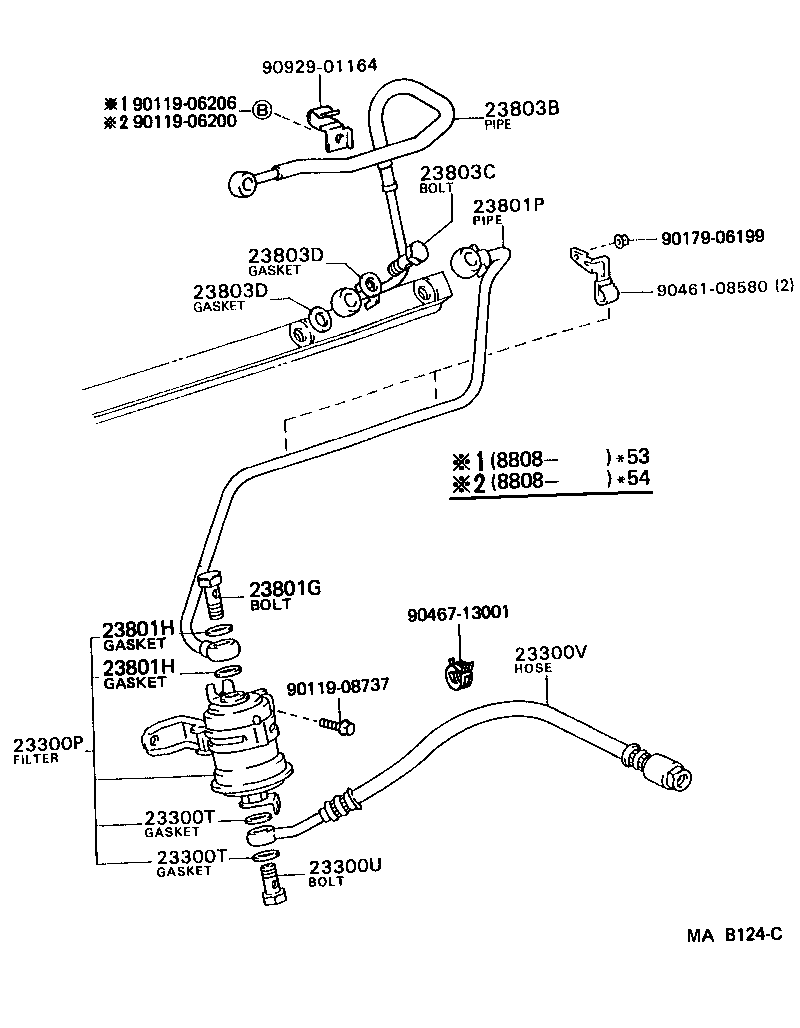

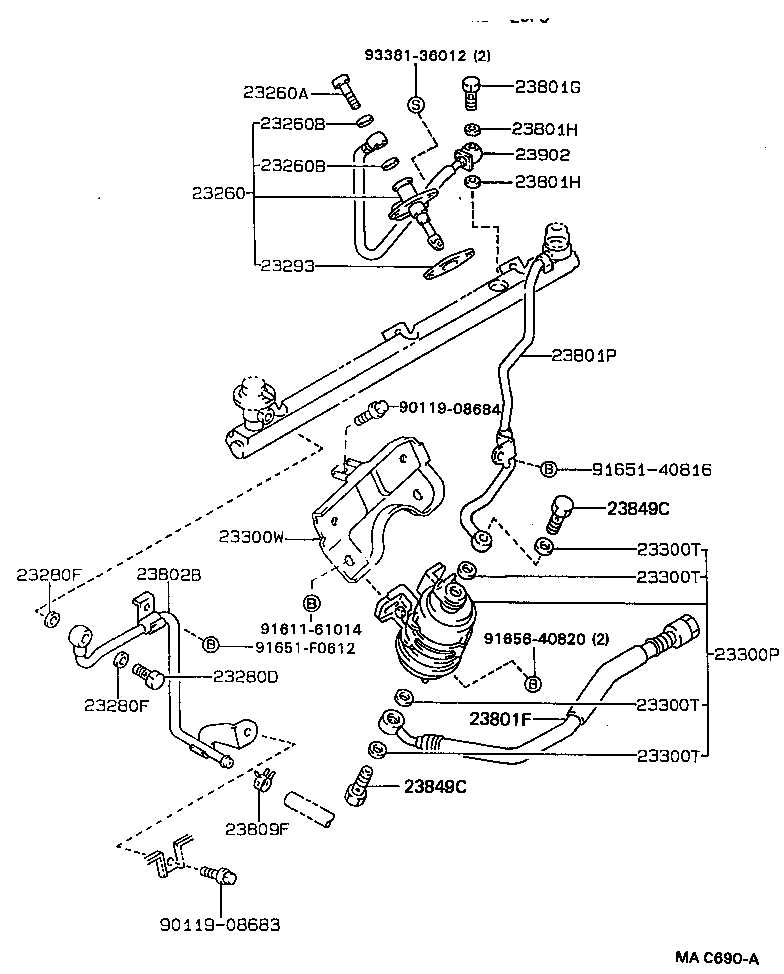

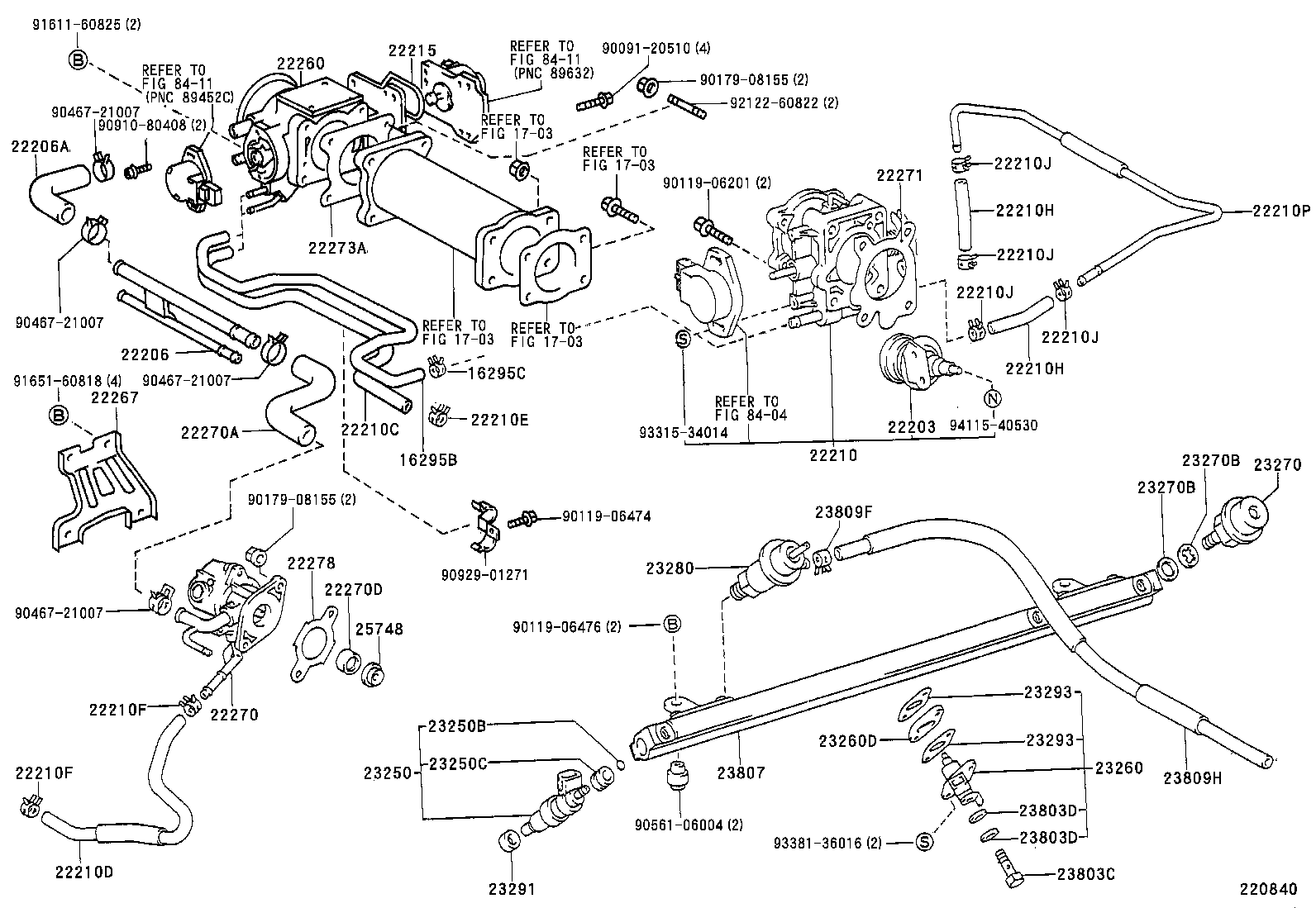

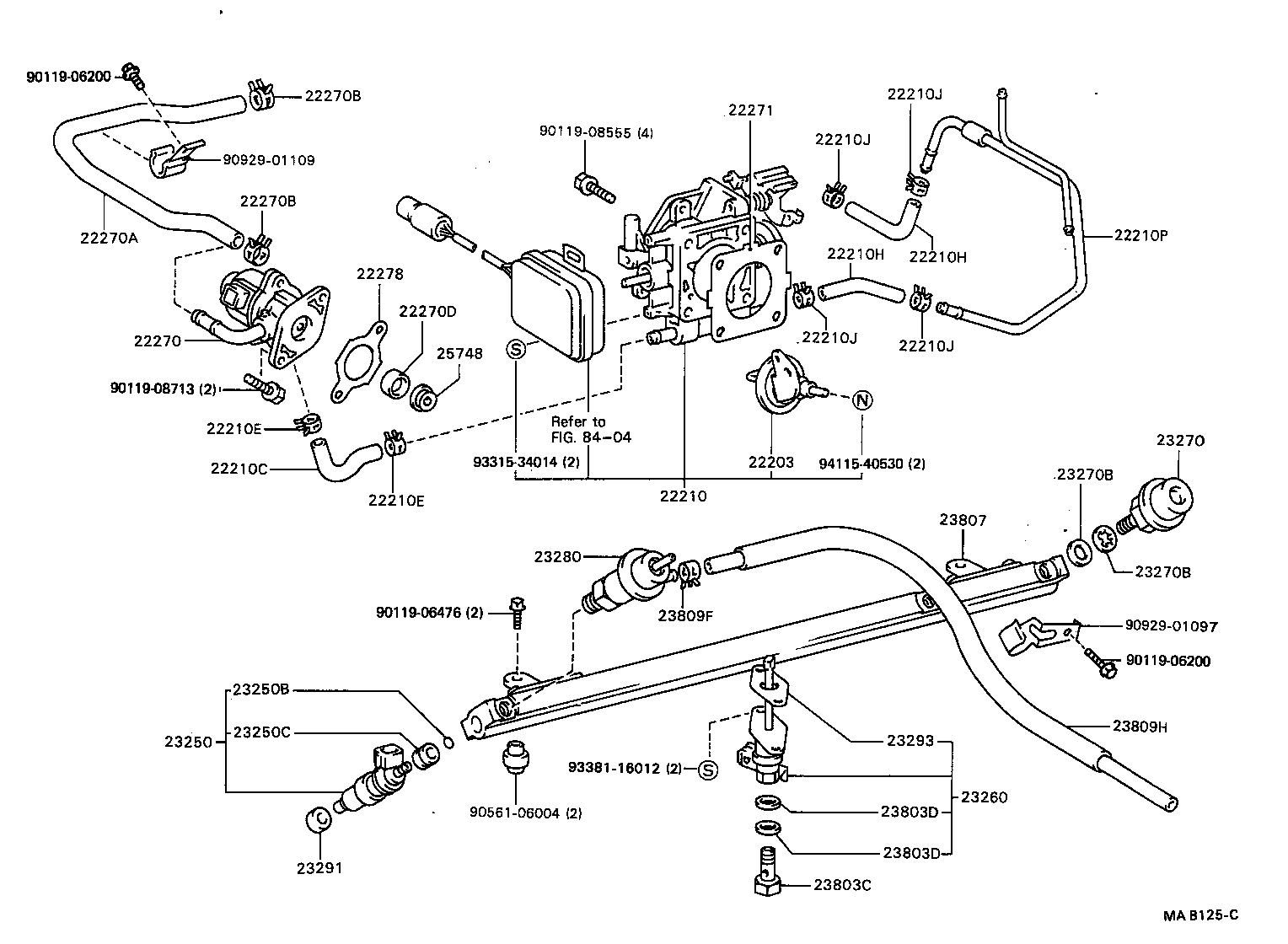

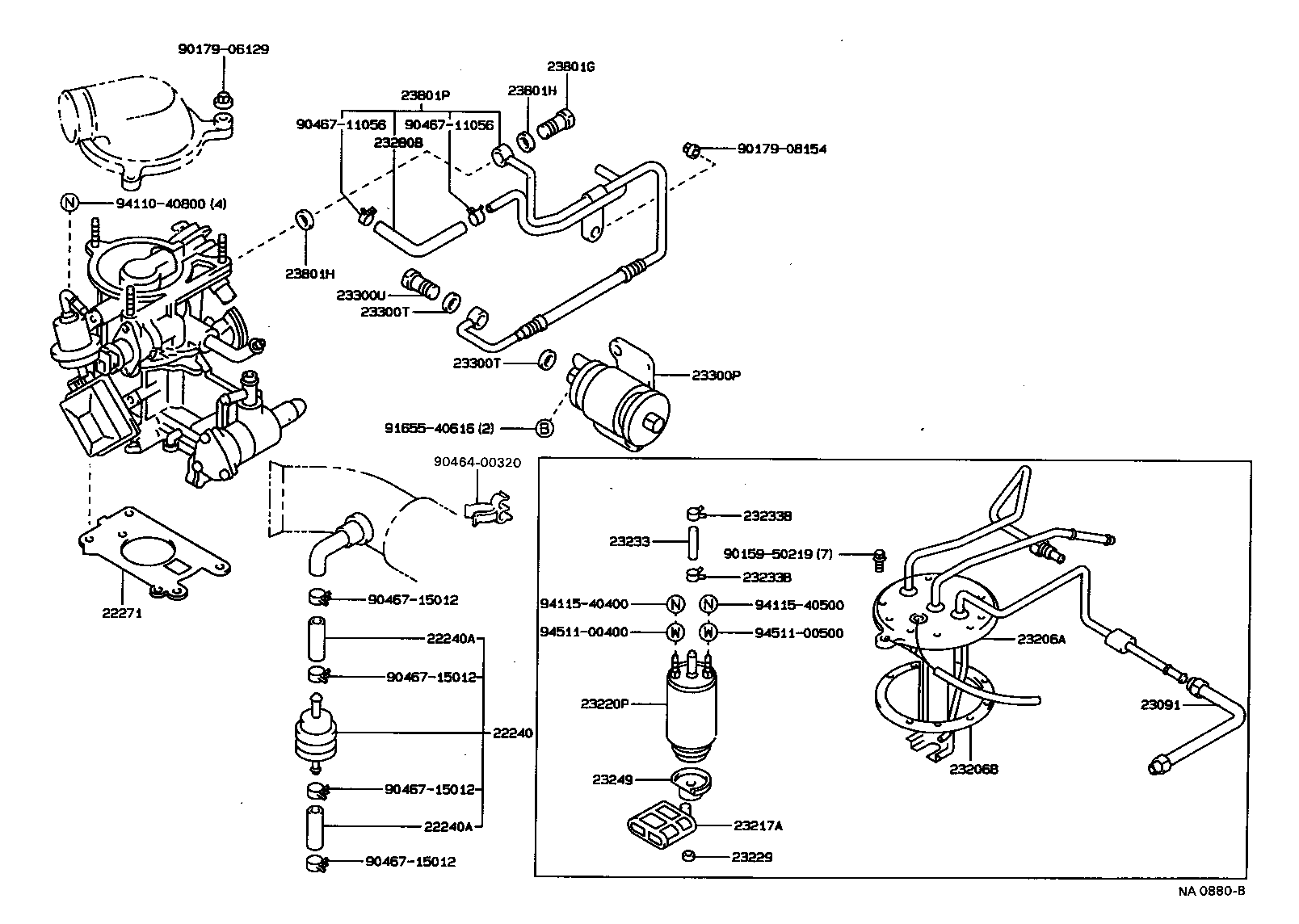

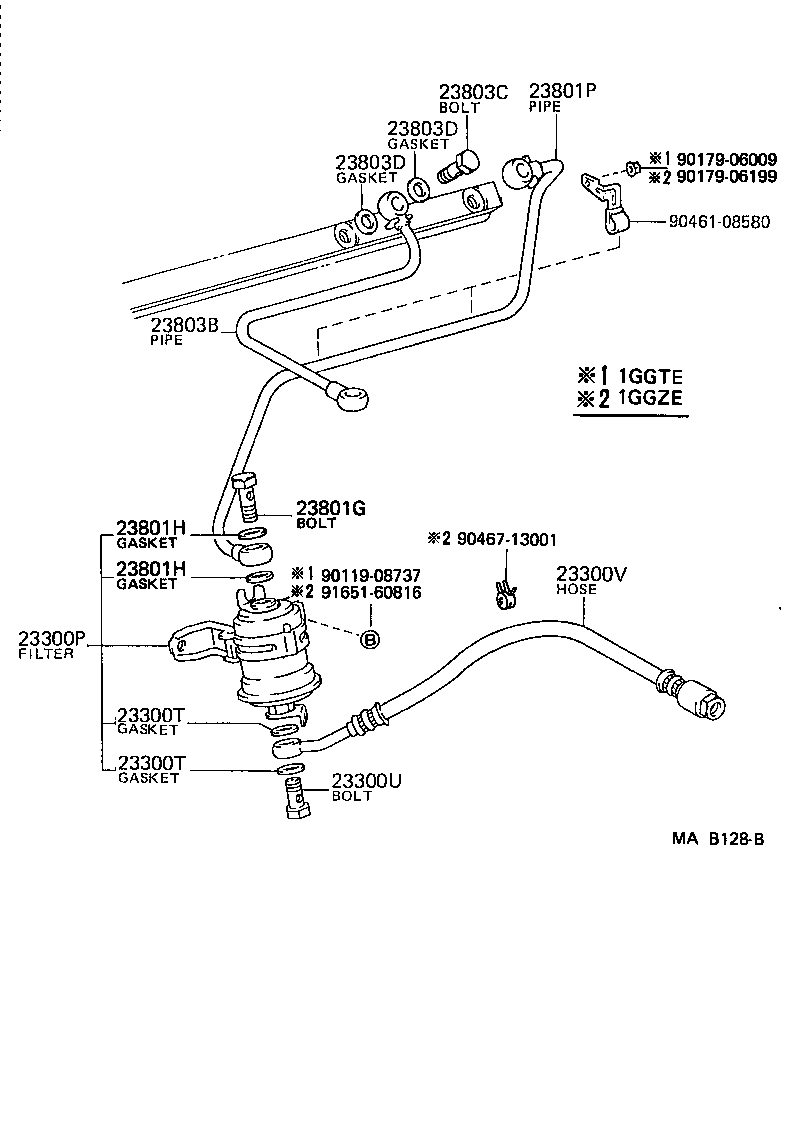

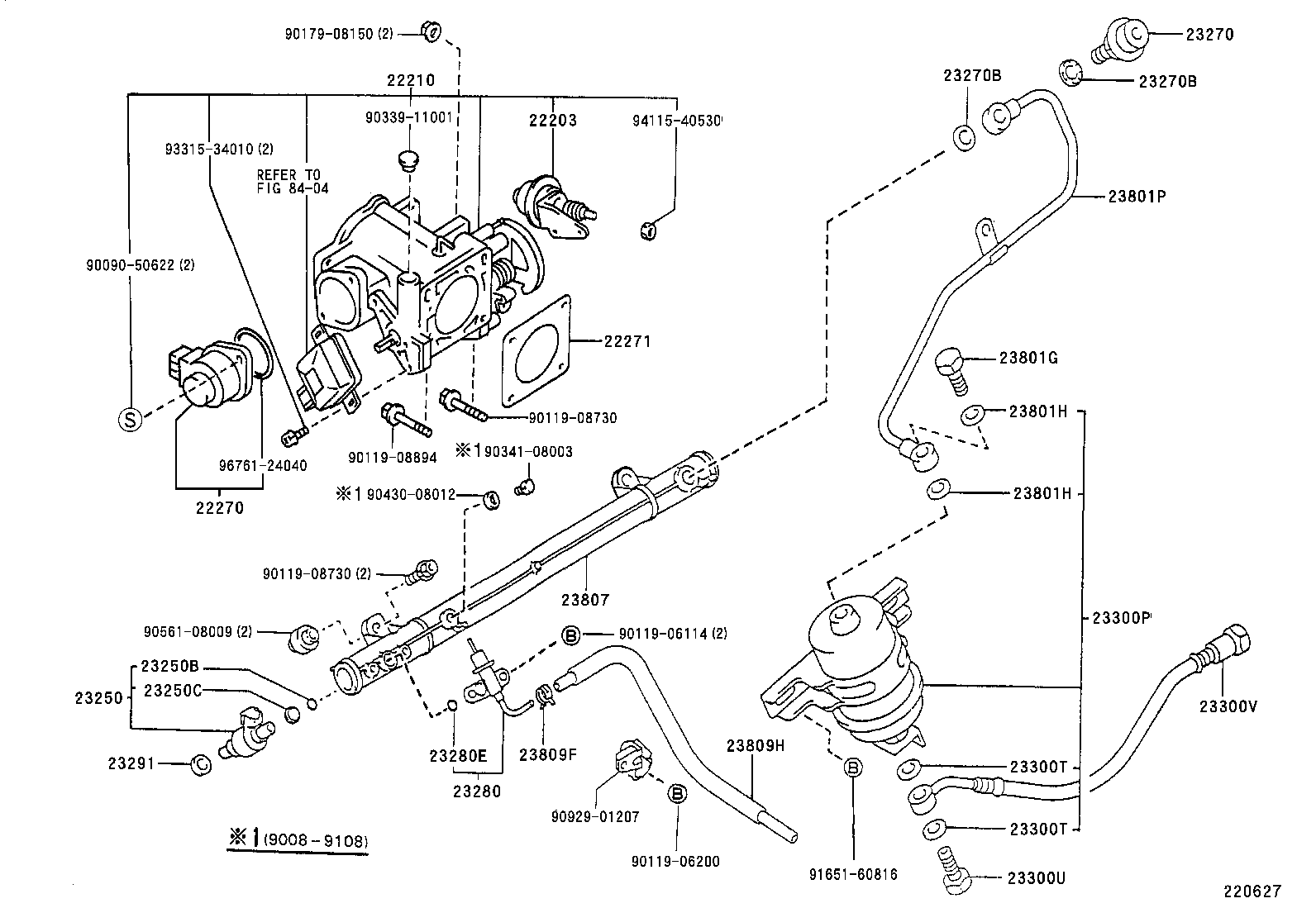

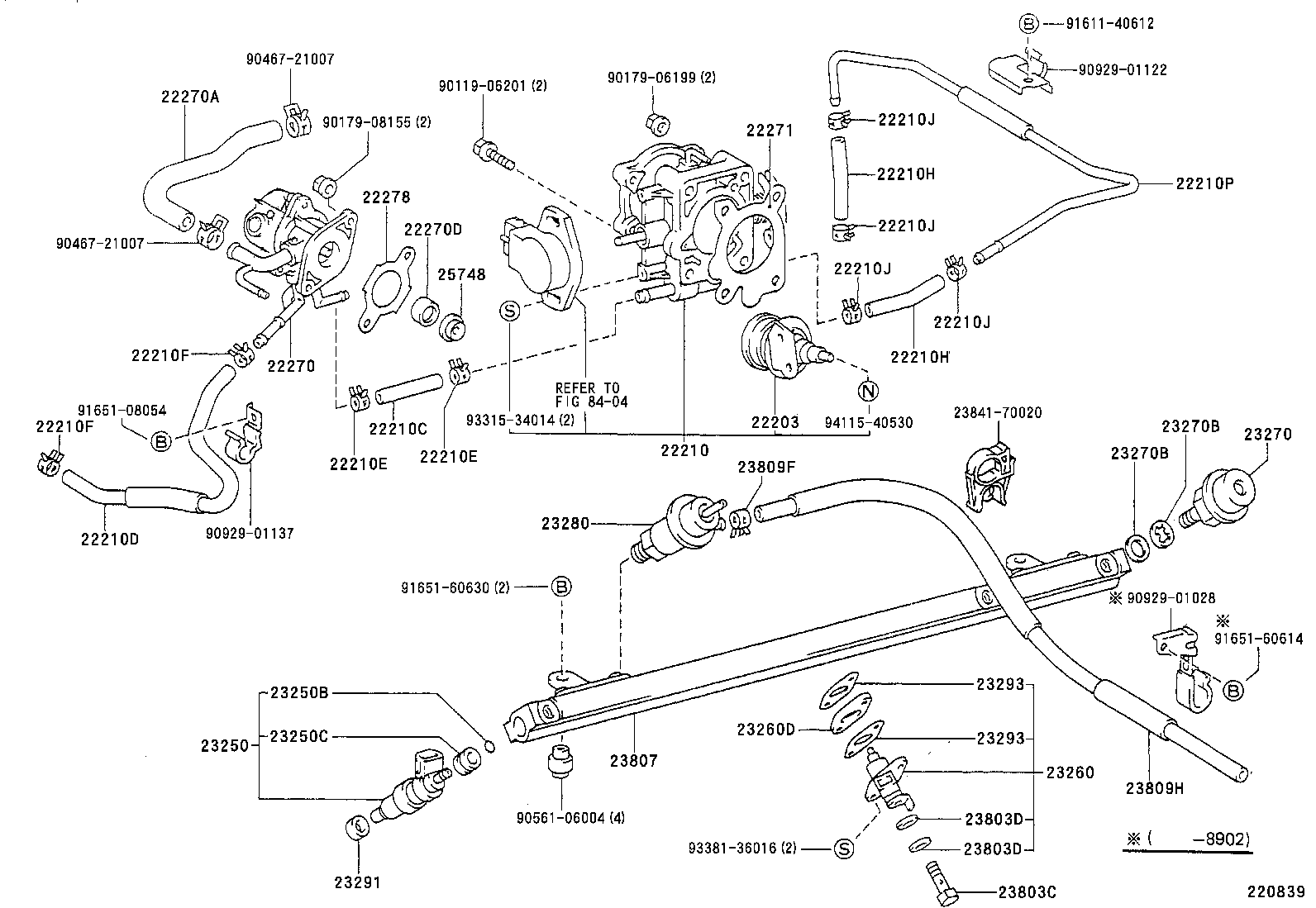

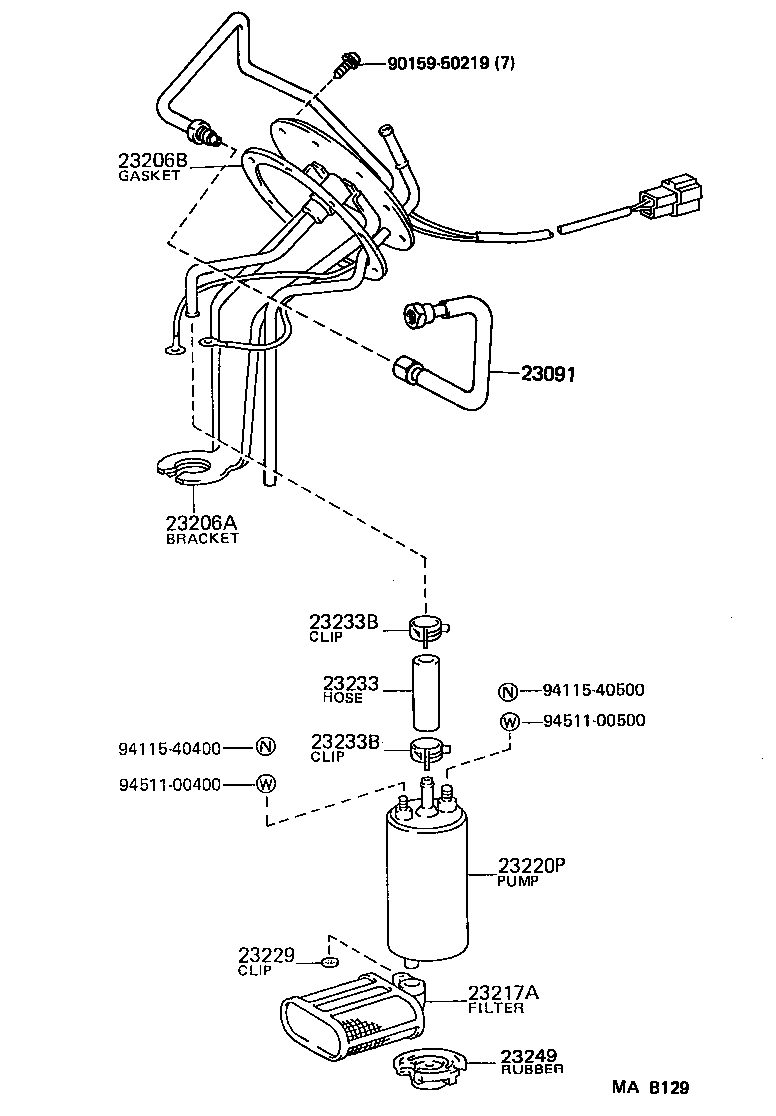

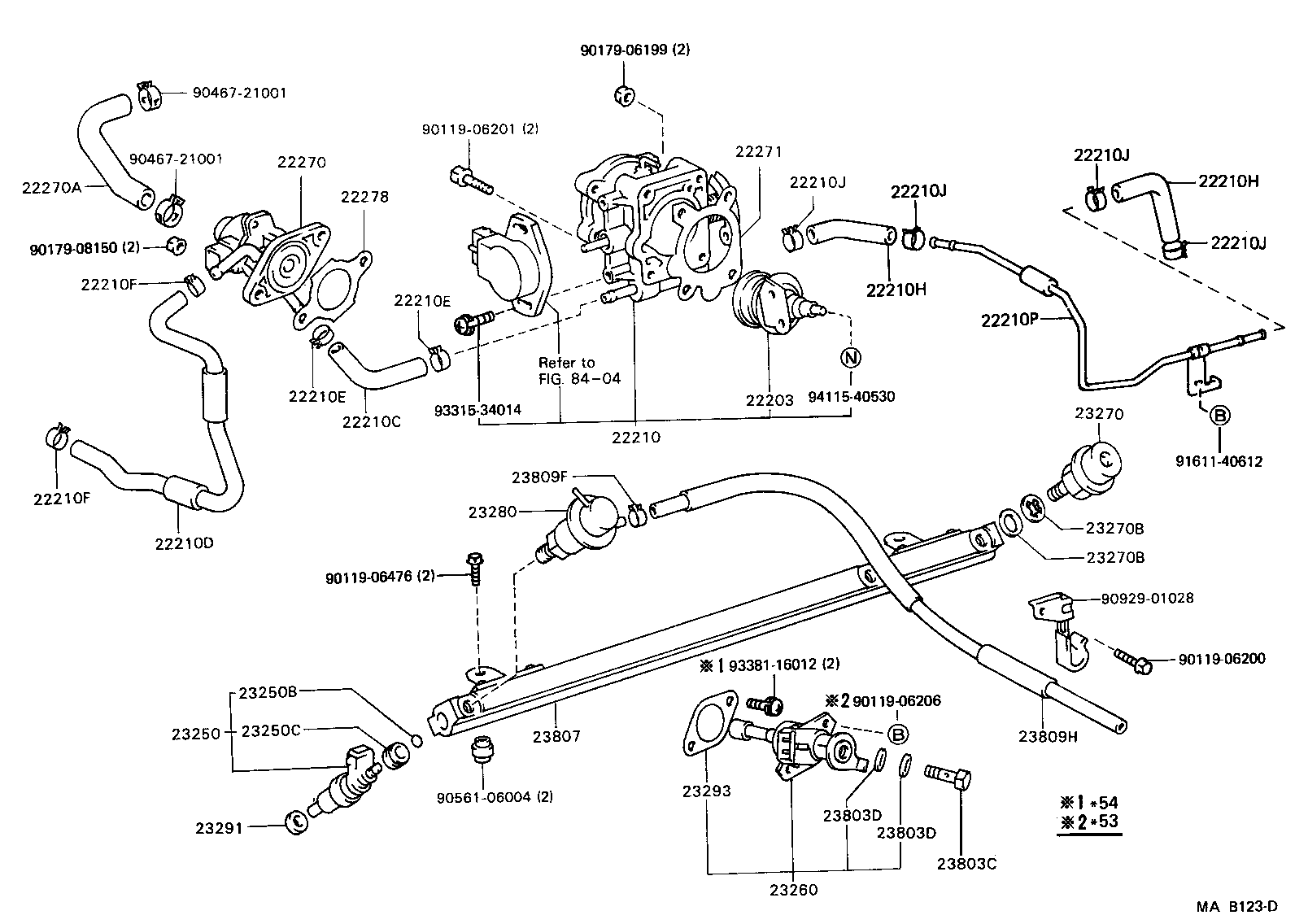

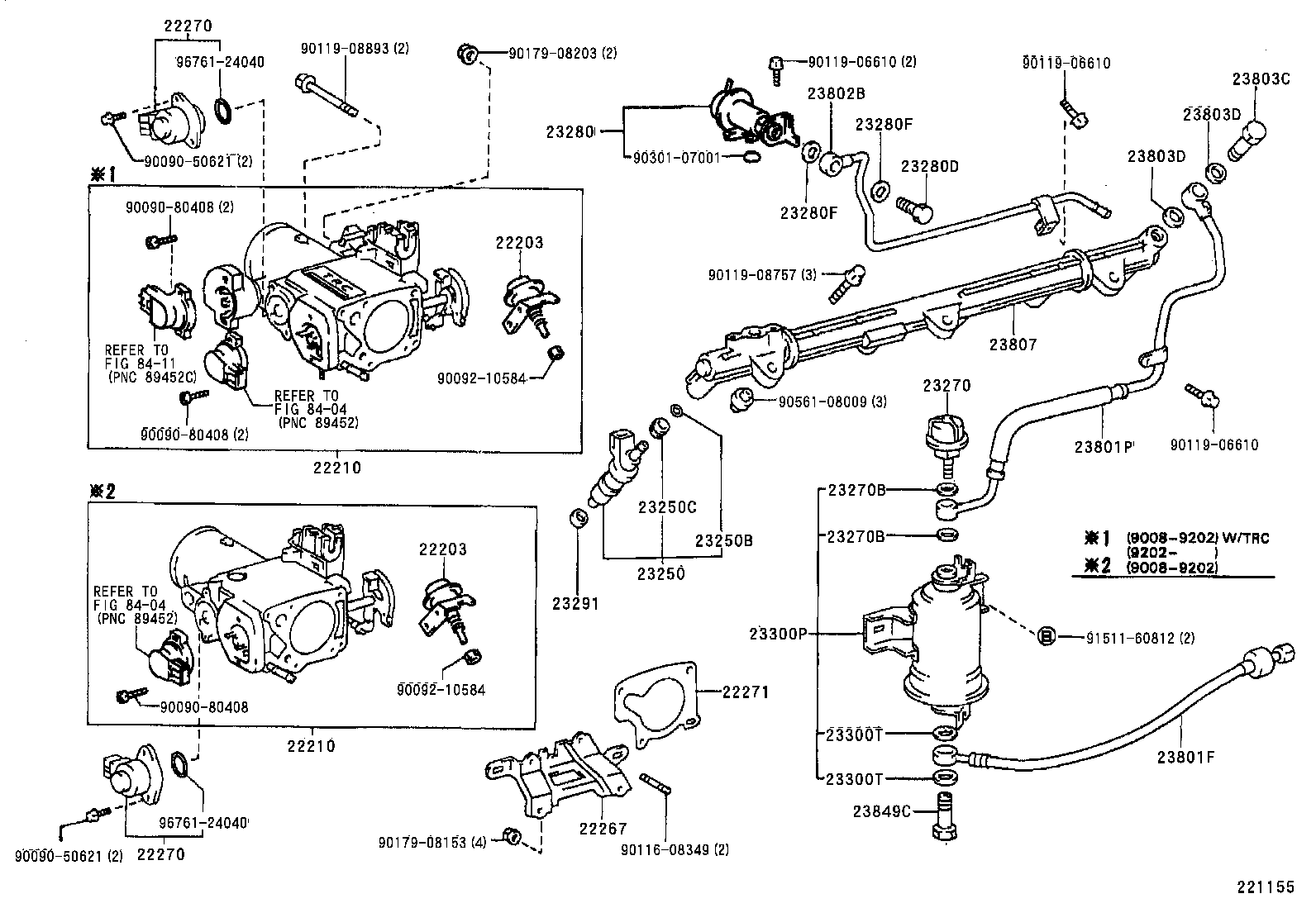

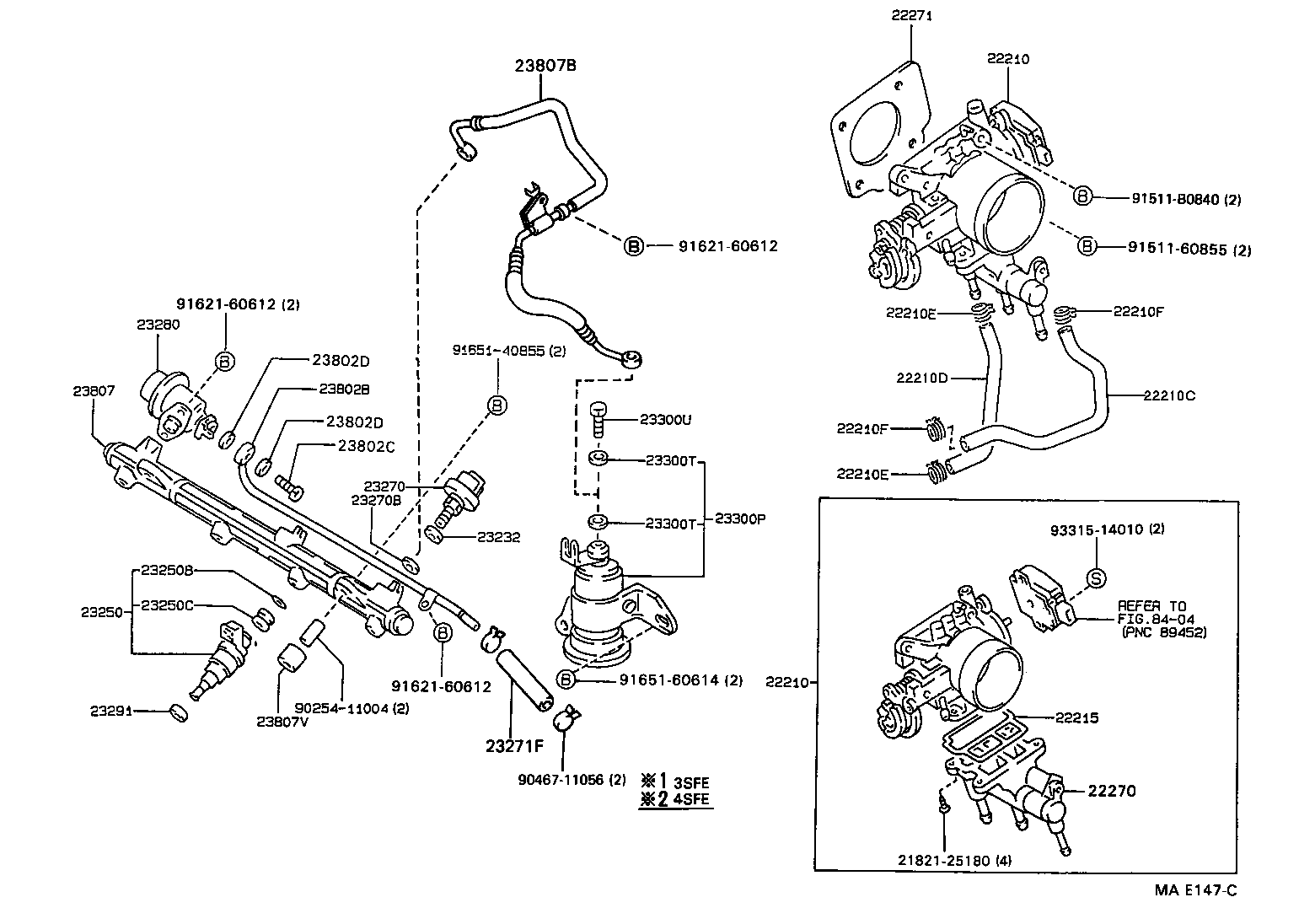

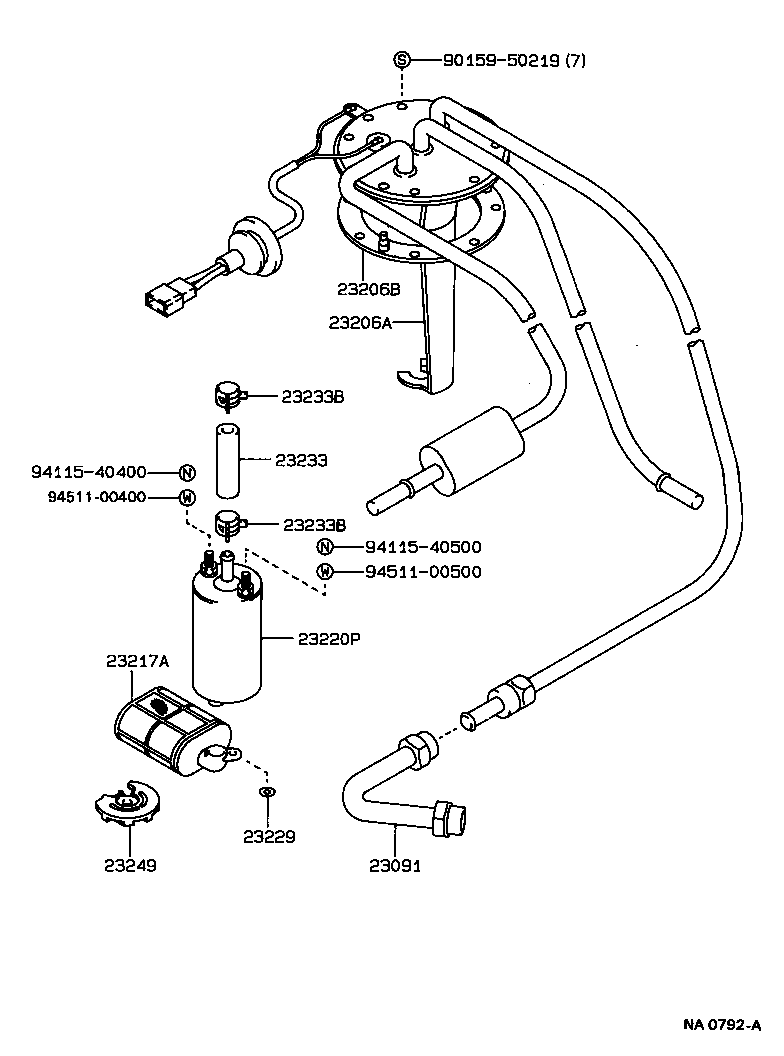

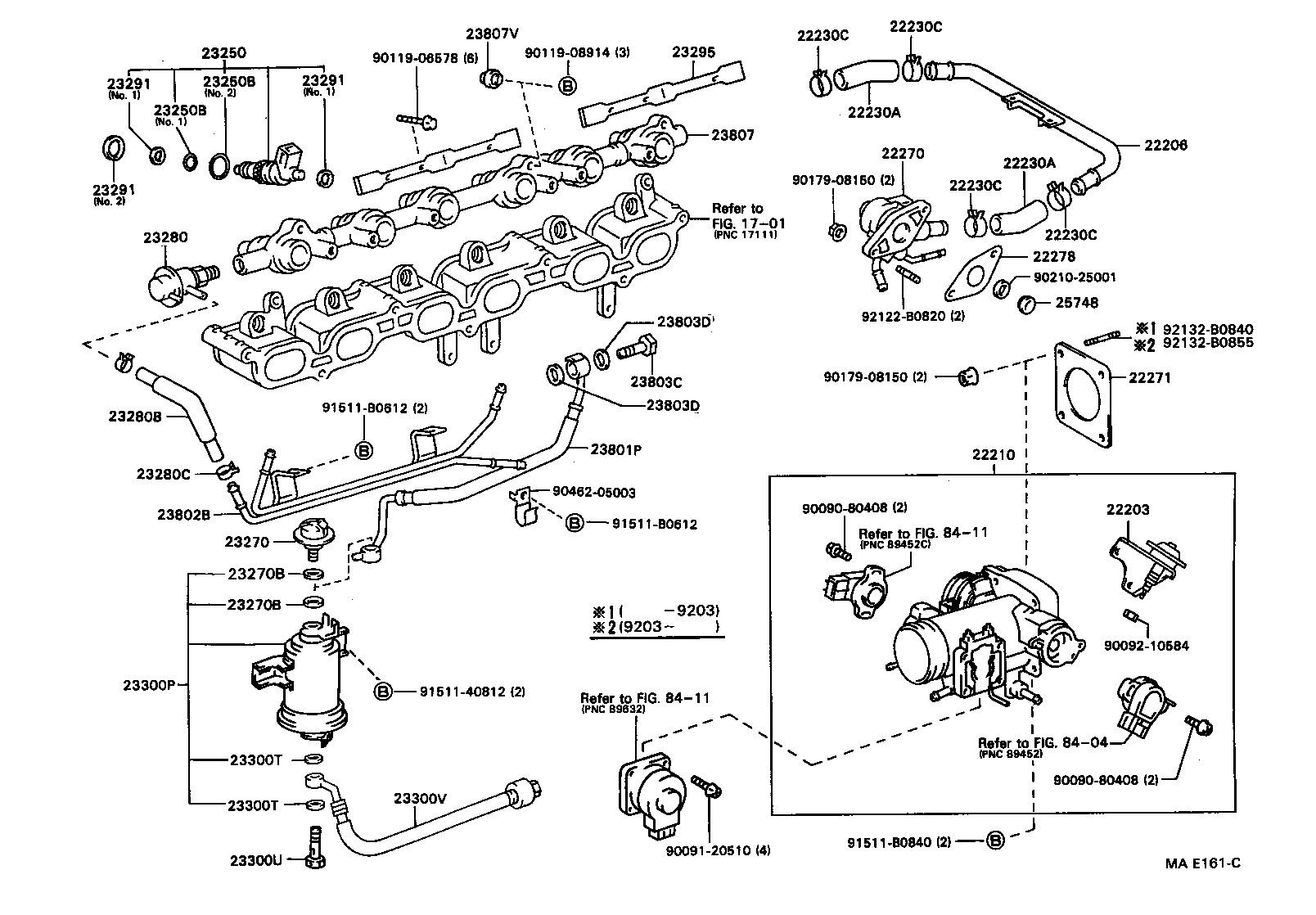

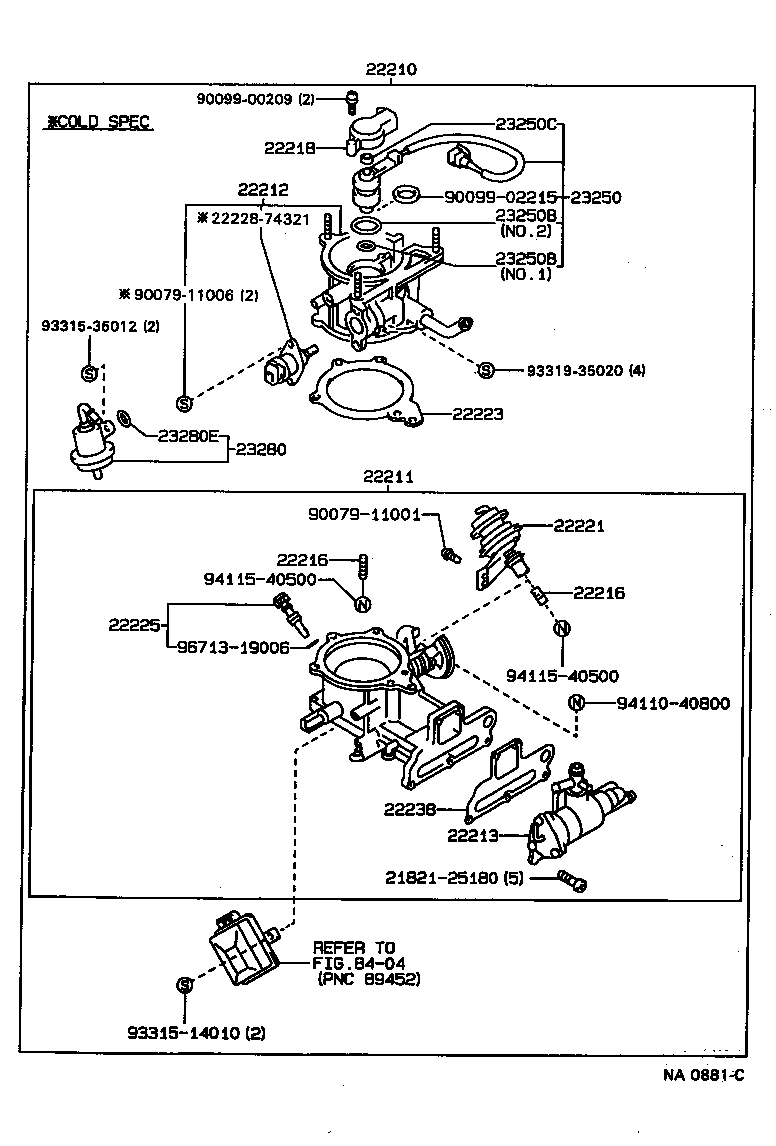

Illustrations
Part groups
| PNC | Description |
|---|---|
| 16295B | Hose, Water By-pass, NO.7 |
| 16295C | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 22203 | Dash Pot Sub-assy(FOR THROTTLE BODY) |
| 22206 | Pipe Sub-assy, Idle Speed Control |
| 22206A | Hose, Air, NO.7 |
| 22210 | Body Assy, Throttle |
| 22210C | Hose, Water By-pass, NO.1 |
| 22210D | Hose, Water By-pass, NO.2 |
| 22210E | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE, NO.1) |
| 22210F | Clamp OR Clip, Hose (FOR WATER BY-PASS HOSE, NO.2) |
| 22210H | Hose, Water By-pass, NO.3 |
| 22210J | Clip(FOR WATER BY-PASS HOSE NO.3) |
| 22210P | Pipe, Water By-pass |
| 22211 | Body, Throttle |
| 22212 | Body, Upper(FOR THROTTLE BODY) |
| 22213 | Valve Kit |
| 22215 | Gasket, Throttle Body Cover |
| 22216 | Screw, Dash Pot Adjusting |
| 22218 | Cover(FOR THROTTLE BODY) |
| 22221 | Positioner(FOR THROTTLE BODY) |
| 22223 | Gasket, Body Upper(FOR THROTTLE BODY) |
| 22225 | Screw, Idle Adjusting(FOR THROTTLE BODY) |
| 22230A | Hose, Auxiliary Air Valve, NO.1 |
| 22230C | Clip, Auxiliary Air Valve Hose, NO.1 |
| 22238 | Gasket, Auxiliary Air Valve |
| 22240 | Limiter Assy, Vacuum |
| 22240A | Hose, Vacuum Limiter, NO.1 |
| 22260 | Body Assy, Throttle, NO.2 |
| 22267 | Bracket, Throttle Body |
| 22270 | Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) |
| 22270A | Hose, Air, NO.1(FOR IDLE SPEED CONTROL VALVE) |
| 22270B | Clip(FOR AIR HOSE) |
| 22270D | Washer, Seal(FOR IDLE SPEED CONTROL VALVE) |
| 22271 | Gasket, Throttle Body |
| 22273A | Gasket, Throttle Body, NO.2 |
| 22278 | Gasket, Idle Speed Control Valve |
| 23091 | Tube Sub-assy, Fuel Pump |
| 23206A | Bracket, Fuel Pump |
| 23206B | Gasket, Fuel Pump Bracket |
| 23210P | Pump Assy, Fuel W/Motor & Bracket |
| 23217A | Filter, Fuel Pump |
| 23220P | Pump Assy, Fuel |
| 23229 | Clip(FOR FUEL PUMP FILTER) |
| 23232 | Gasket(FOR FUEL PUMP HOSE) |
| 23233 | Hose, Fuel Pump |
| 23233B | Clip(FOR FUEL PUMP HOSE) |
| 23249 | Rubber, Cushion(FOR FUEL PUMP) |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23260 | Injector Assy, Cold Start Fuel |
| 23260A | Bolt, Union |
| 23260B | Gasket |
| 23260D | Insulator, Cold Start Fuel Injector |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270B | Gasket(FOR PULSATION DAMPER HOSE) |
| 23271F | Hose, Fuel |
| 23280 | Regulator Assy, Fuel Pressure |
| 23280B | Hose, Fuel Pressure Regulator Return |
| 23280C | Clamp OR Clip(FOR FUEL PRESSURE REGULATOR RETURN HOSE) |
| 23280D | Bolt, Union(FOR FUEL PIPE OR HOSE SET) |
| 23280E | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23280F | Gasket(FOR FUEL PRESSURE REGULATOR) |
| 23291 | Insulator, Injector Vibration |
| 23293 | Gasket, Cold Start Injector |
| 23295 | Holder, Injector, NO.1 |
| 23300P | Filter, Fuel(FOR EFI) |
| 23300T | Gasket(FOR FUEL FILTER) |
| 23300U | Bolt, Union(FOR FUEL FILTER) |
| 23300V | Hose, Fuel(FOR FUEL INLET) |
| 23300W | Bracket, Fuel Filter |
| 23801F | Hose, Fuel, NO.1 |
| 23801G | Bolt, Union(FOR FUEL PIPE) |
| 23801H | Gasket(FOR FUEL PIPE) |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23802B | Pipe Sub-assy, Fuel, NO.2 |
| 23802C | Bolt, Union(FOR FUEL PIPE NO.2) |
| 23802D | Gasket(FOR FUEL PIPE NO.2) |
| 23803B | Pipe Sub-assy, Fuel, NO.3 |
| 23803C | Gasket(NOZZLE LEKAGE PIPE NO.3) |
| 23803D | Bolt, Union(FOR NOZZLE LEKAGE PIPE NO.3) |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807B | Hose, Fuel Delivery Pipe |
| 23807J | Gasket, Pipe Fuel Delivary Inlet |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23809F | Clip(FOR FUEL PIPE SUPPORT) |
| 23809H | Hose, Fuel Pipe Support TO Regulator |
| 23849C | Bolt, Union(FOR FUEL PIPE SUPPORT) |
| 23902 | Tube Sub-assy, Fuel |
| 25748 | Valve, Check(FOR IDLE SPEED CONTROL) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
