Toyota Cresta
1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan
Discontinued model
Data version 1993-06

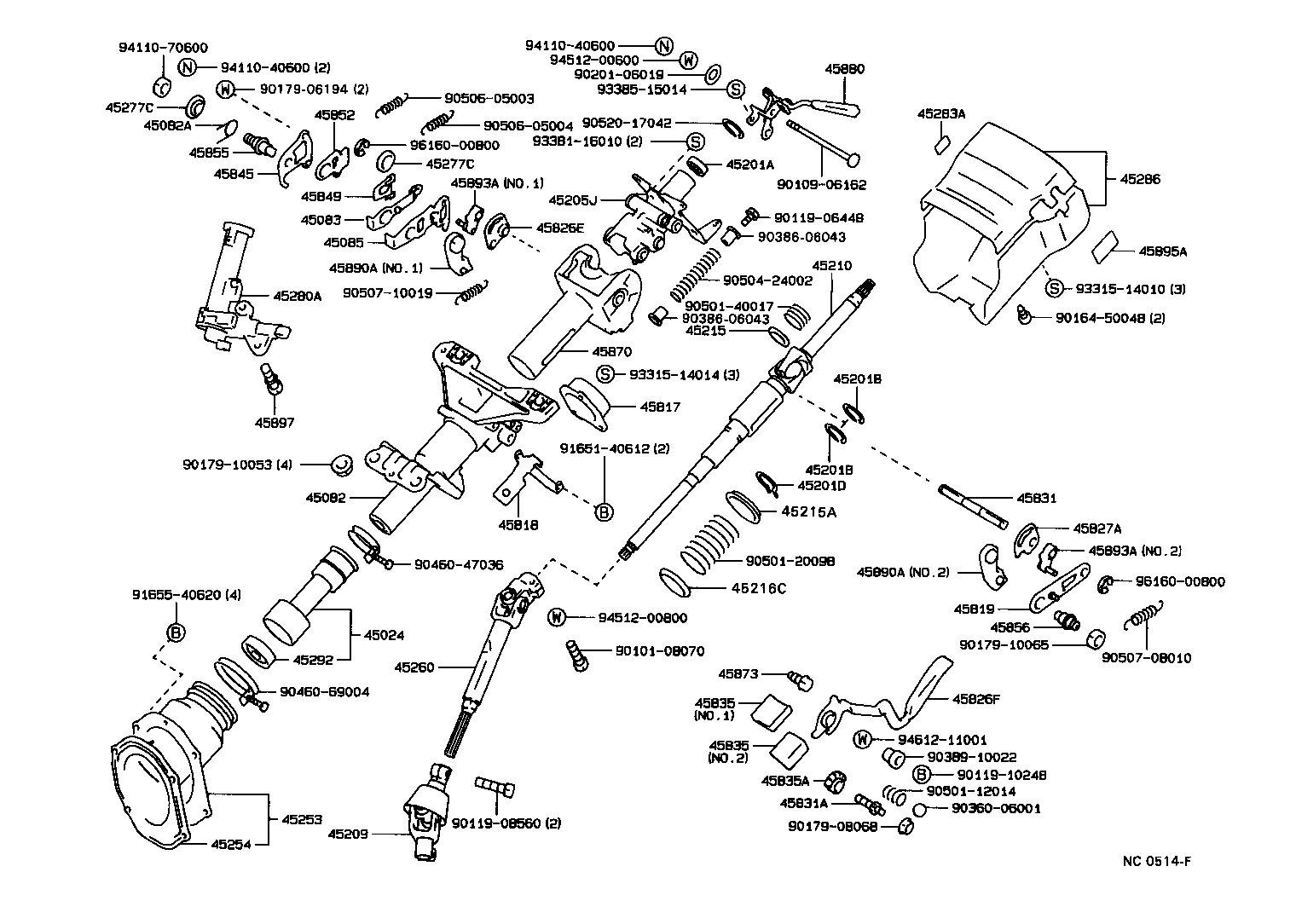

Steering Column & Shaft
46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45024 | Cover Sub-assy, Steering Column, Lower |
| 45082 | Bracket Sub-assy, Break Away W/Capsule |
| 45082A | Spring, Torsion(FOR TILT STEERING RETURN) |
| 45083 | Plate Sub-assy, Tilt Release Memory |
| 45085 | Plate Sub-assy, Tilt Memory, NO.1 |
| 45201A | Bearing(FOR STEERING MAIN SHAFT) |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45201D | Ring(FOR STEERING MAIN SHAFT) |
| 45205J | Tube Sub-assy, Steering Column, Upper |
| 45209 | Yoke Sub-assy, Steering Sliding |
| 45210 | Shaft Assy, Steering Main |
| 45215 | Collar, Main Shaft Bearing Thrust |
| 45215A | Seat, Telescopic Spring, NO.1 |
| 45216C | Seat, Telescopic Spring, NO.2 |
| 45253 | Cover, Steering Column Hole |
| 45254 | Shield, Steering Column Hole |
| 45260 | Shaft Assy, Steering Intermediate, NO.2 |
| 45271 | Clamp, Steering Column, Upper |
| 45273 | Bush, Steering Main Shaft |
| 45277C | Spacer(FOR TILT STEERING SUPPORT) |
| 45280A | Bracket Assy, Steering Column, Upper |
| 45283A | Plate, Beam Change & Turn Signal Caution |
| 45286 | Cover, Steering Column |
| 45292 | Seal, Main Shaft Lower Dust |
| 45817 | Stopper, Steering Shaft Thrust |
| 45818 | Bracket, Connector |
| 45819 | Retainer, Tilt Lever |
| 45826E | Lever, Steering Tilt(FOR TILT ADJUST) |
| 45826F | Lever, Steering Telescopic |
| 45827A | Lever, Steering Tilt Sub |
| 45831 | Bolt, Tilt Lever Lock, NO.1 |
| 45831A | Bolt, Telescope Lever Lock |
| 45835 | Wedge, Lock |
| 45835A | Attachment, Tilt Lever Serration |
| 45845 | Support, Tilt Memory |
| 45849 | Retainer, Tilt Adjuster Memory Spring |
| 45852 | Plate, Tilt Memory, NO.2 |
| 45855 | Bolt, Tilt Steering, NO.1 |
| 45856 | Bolt, Tilt Steering, NO.2 |
| 45870 | Tube Assy, Steering Column |
| 45873 | Stopper, Steering Column Tube |
| 45880 | Lever Assy, Steering Tilt |
| 45890A | Pawl Assy, Tilt Steering |
| 45893A | Stopper, Tilt Steering Pawl |
| 45895A | Plate, Tilt Steering Caution |
| 45897 | Bolt, Steering Lock Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
