Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

20 part groups · 11 illustrations

Illustrations

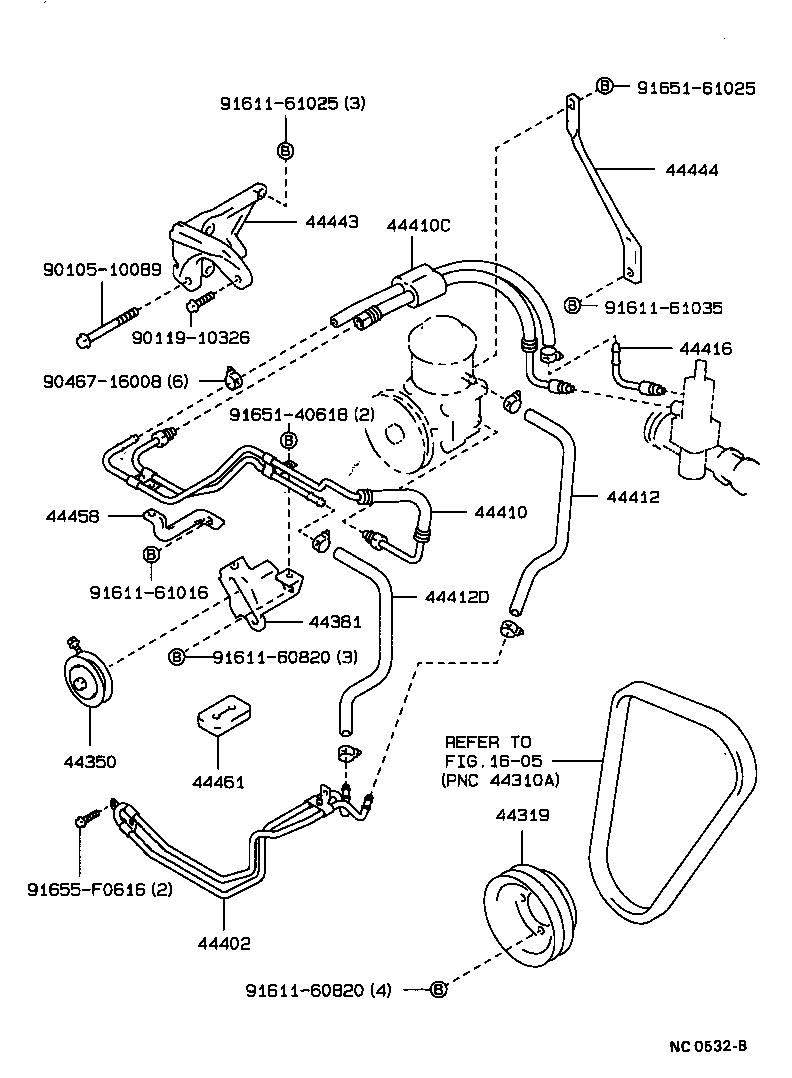

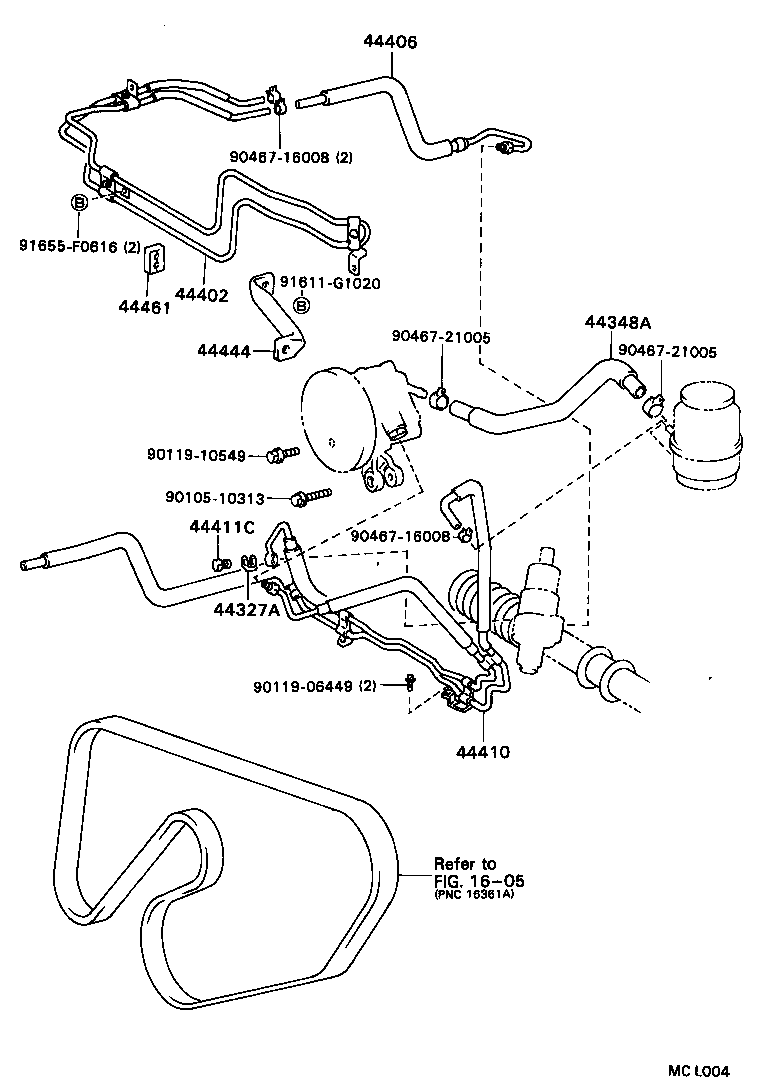

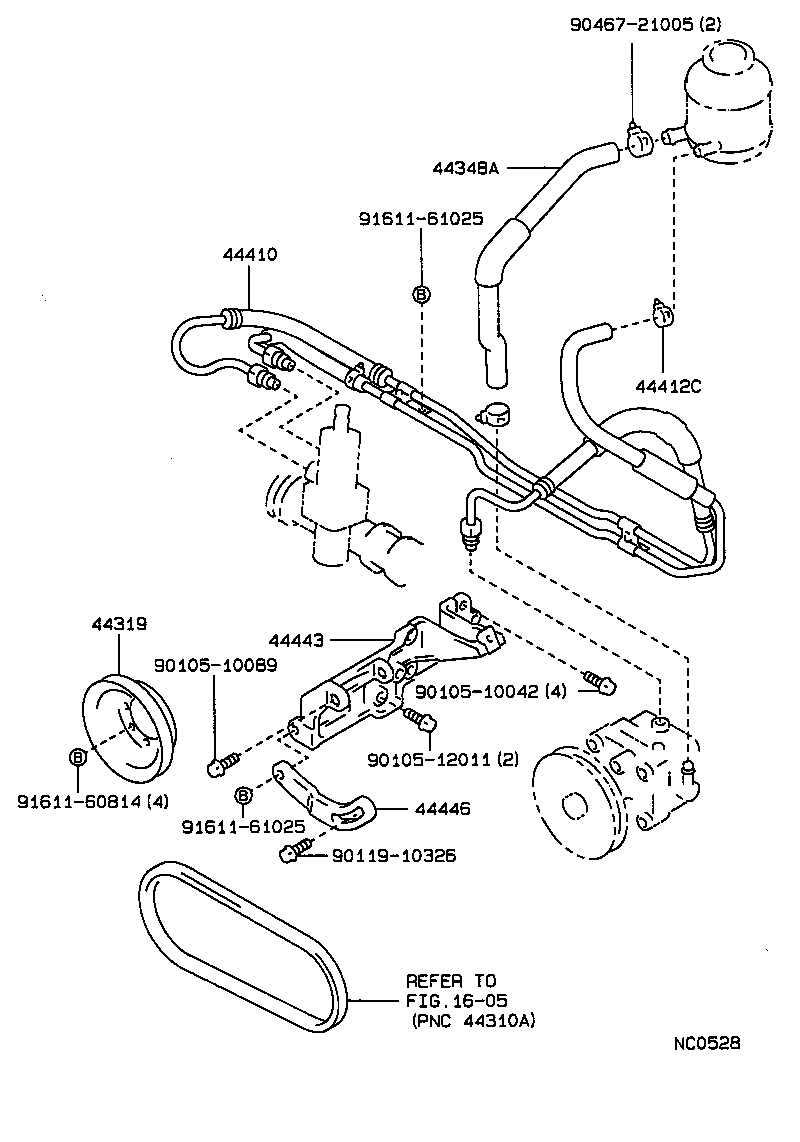

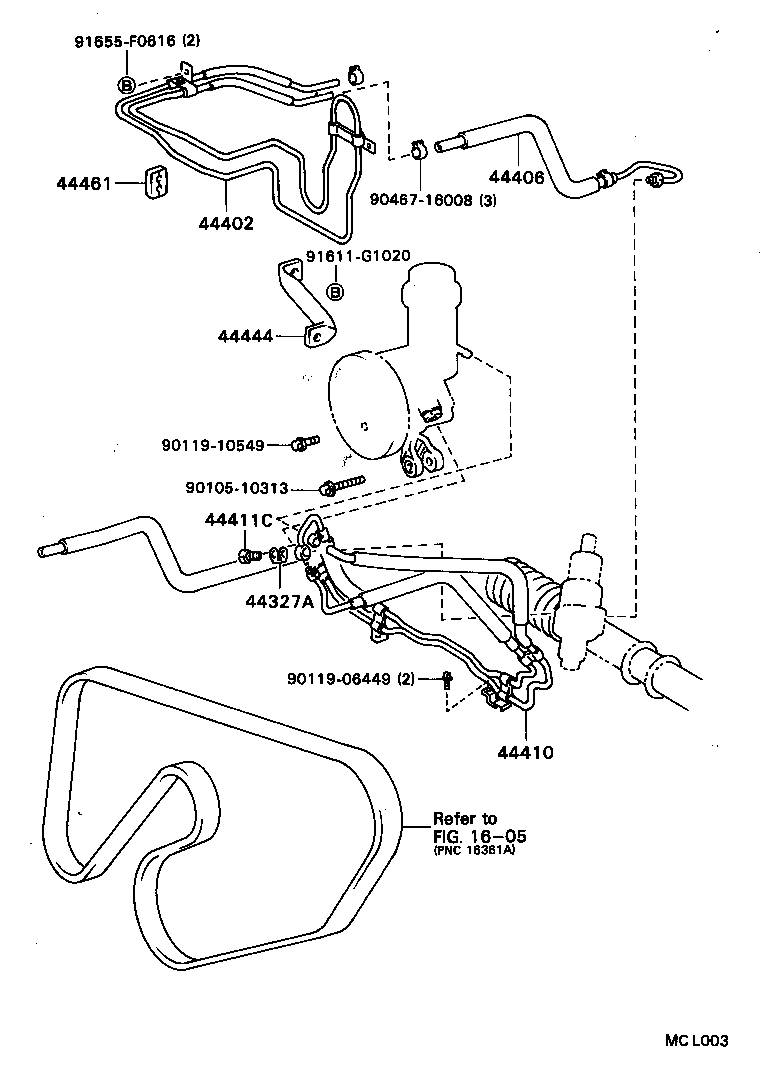

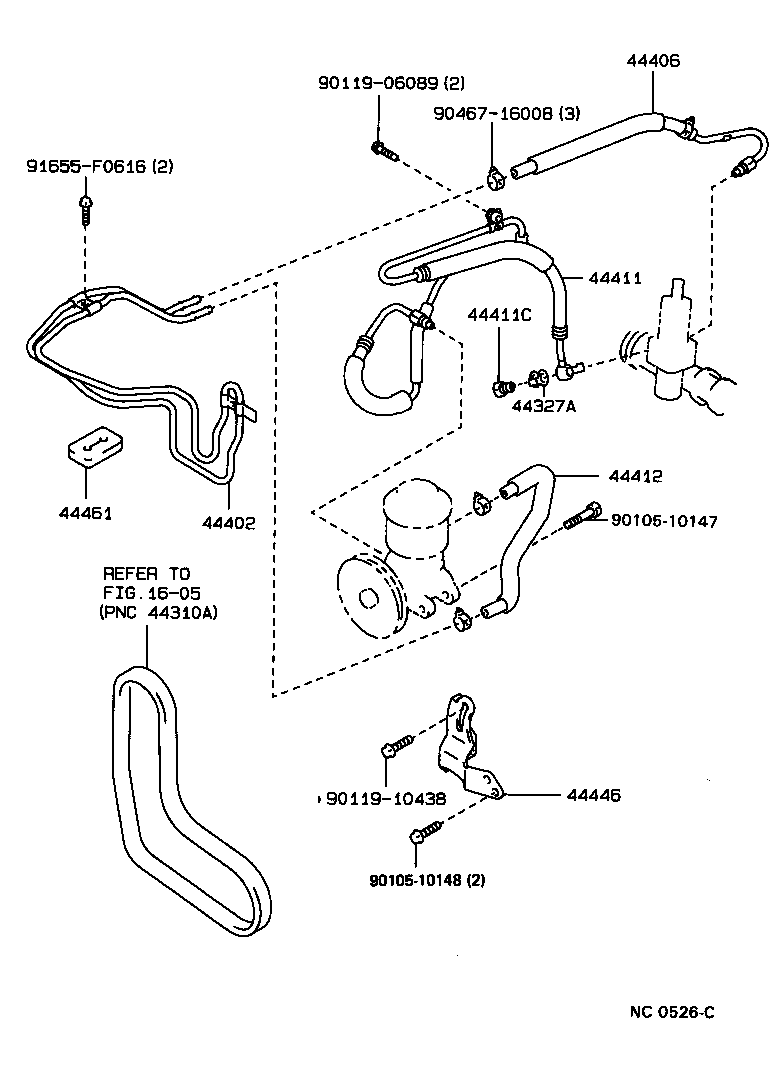

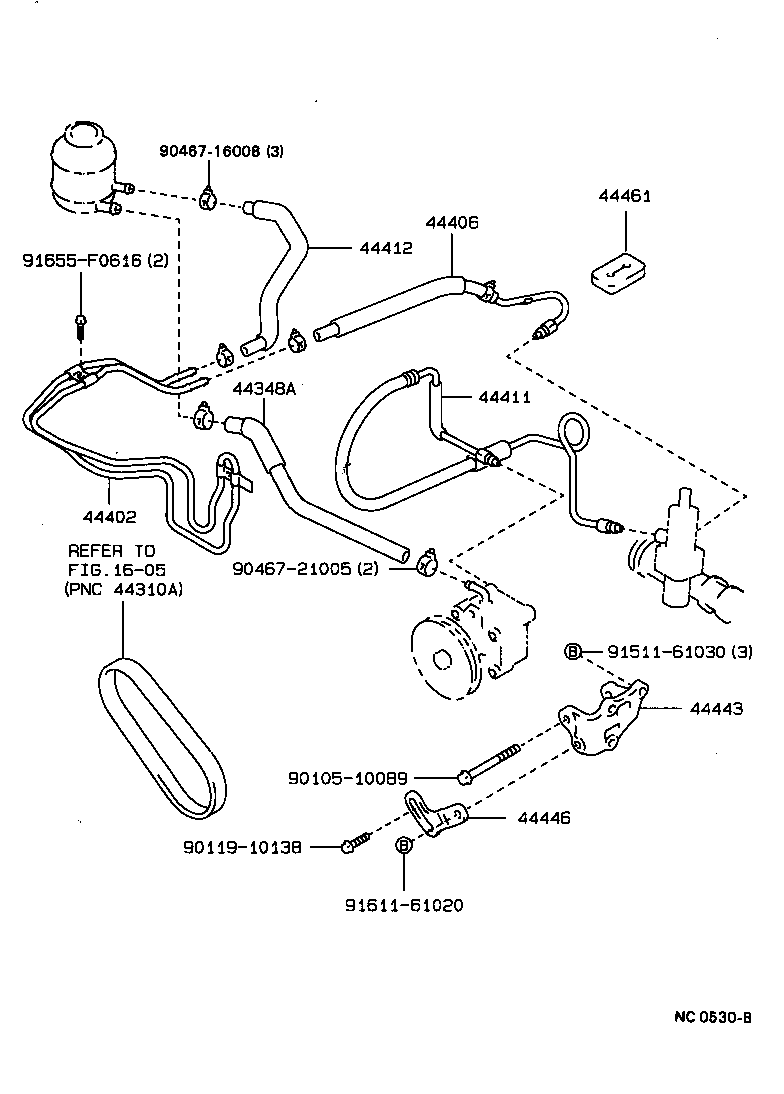

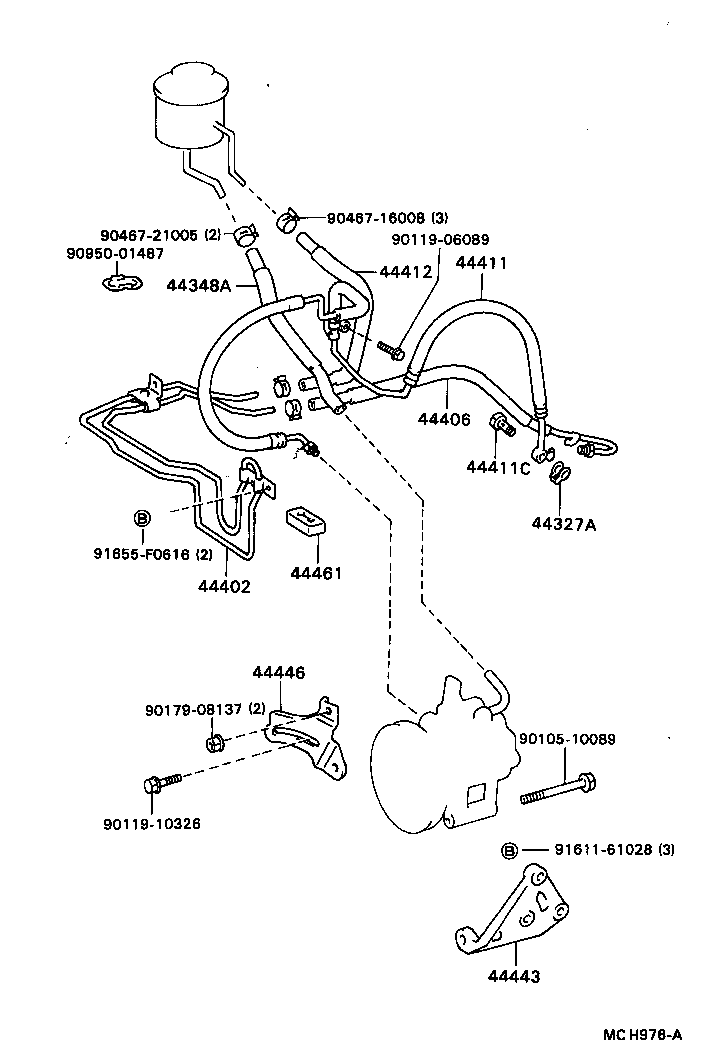

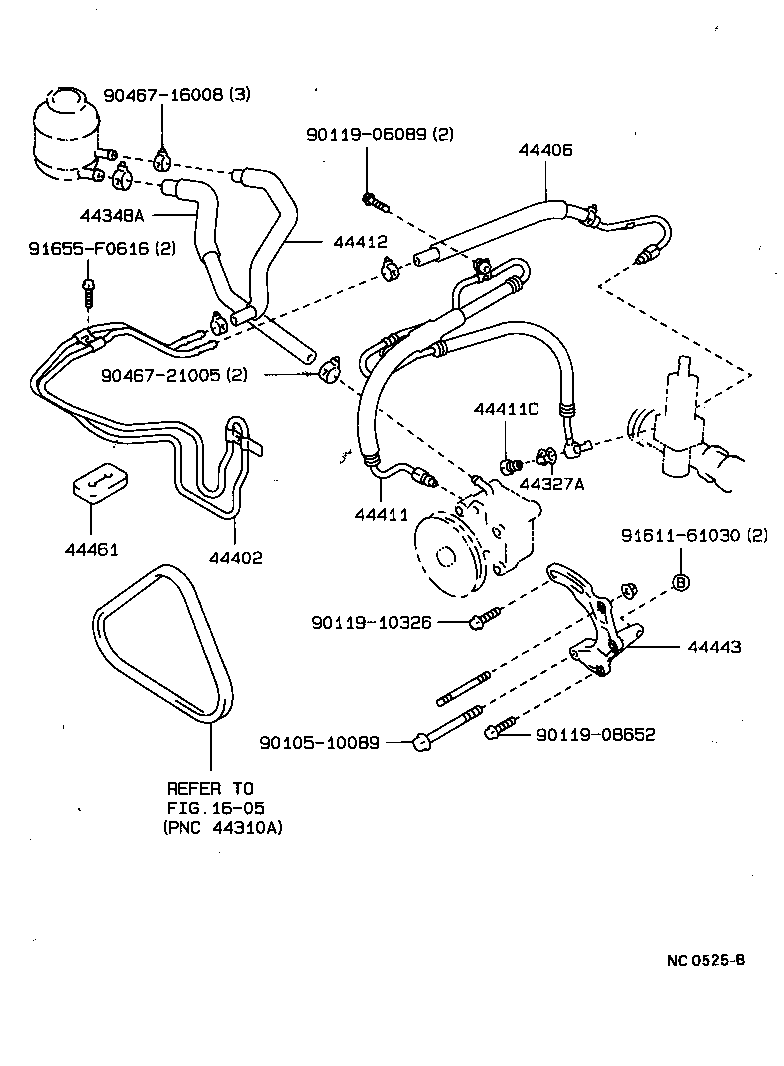

Figure NC0527 NC0527 1988-08 → — Figure NC0525B NC0525B 1988-08 → 1990-08 Figure NC0525B NC0525B 1988-08 → — Figure NC0526C NC0526C 1988-08 → 1990-08 Figure MCL003 MCL003 1990-08 → — Figure MCL004 MCL004 1990-08 → — Figure MCH976A MCH976A 1989-08 → — Figure NC0528 NC0528 1988-08 → — Figure NC0530B NC0530B 1988-08 → — Figure NC0529A NC0529A 1988-08 → — Figure NC0532B NC0532B 1988-08 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410C Tube Assy, Pressure Feed, NO.1
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412C Clamp(FOR RETURN HOSE)
44412D Hose, Return, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
44458 Bracket, Tube Support, NO.2
44461 Insulator, Tube Refrigerant
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
