Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

52 part groups · 19 illustrations

Illustrations

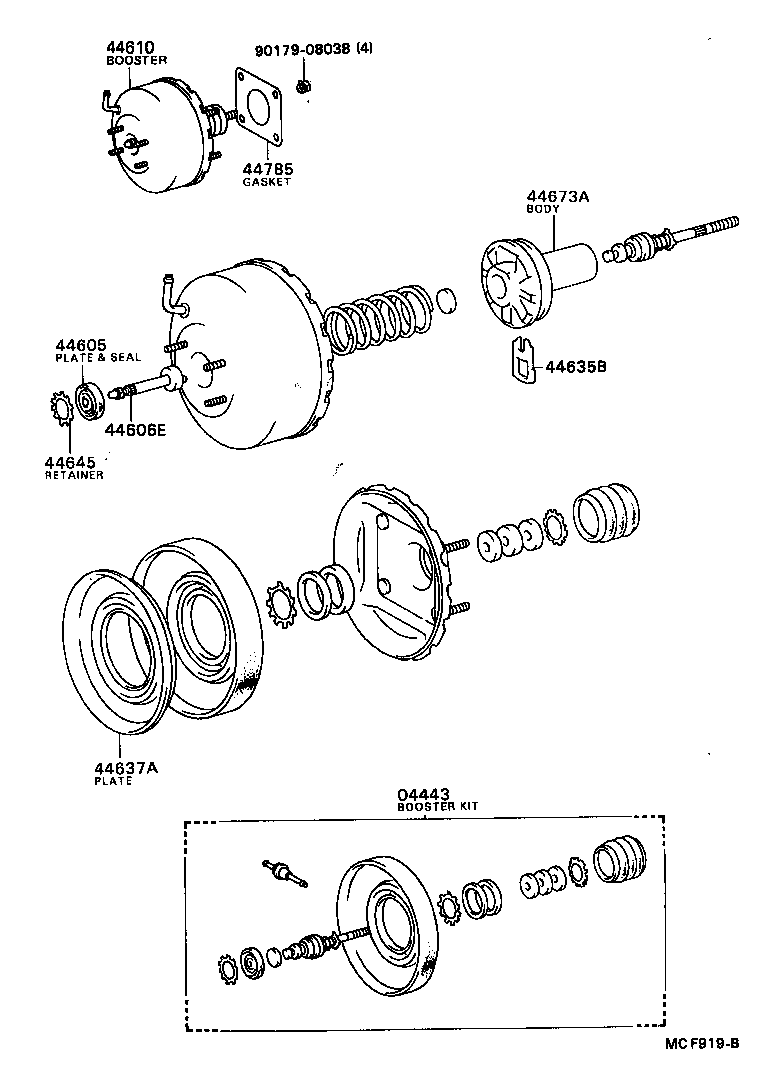

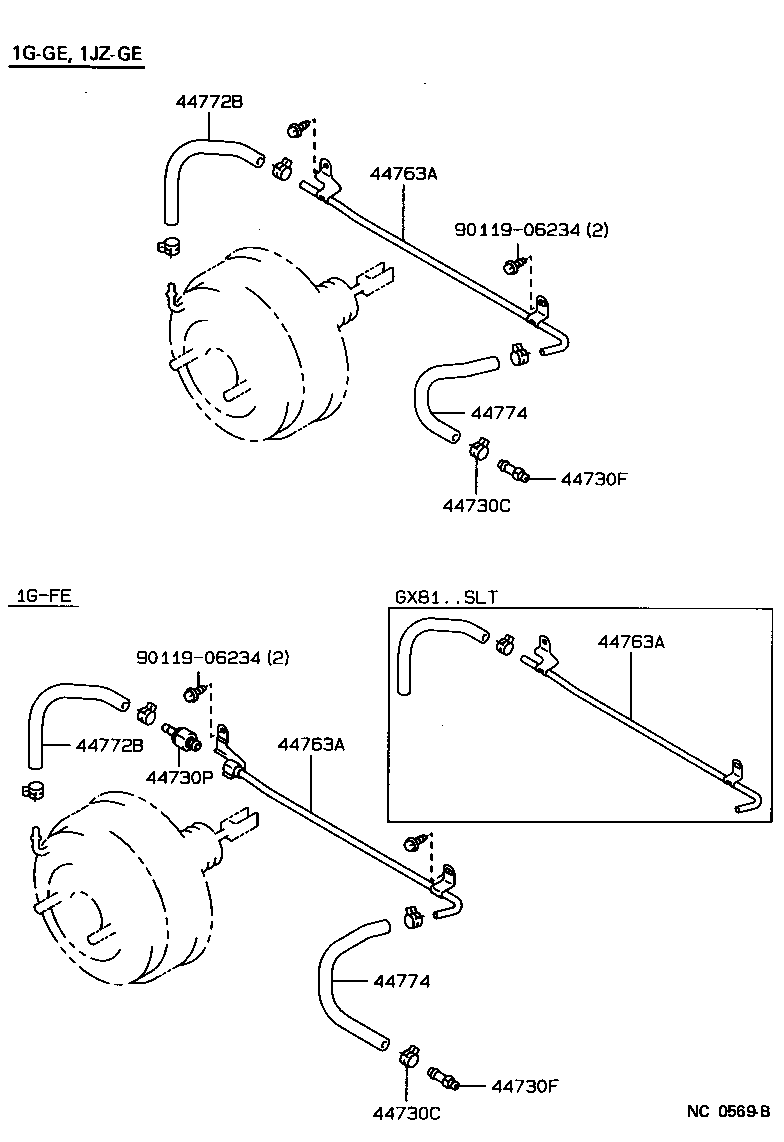

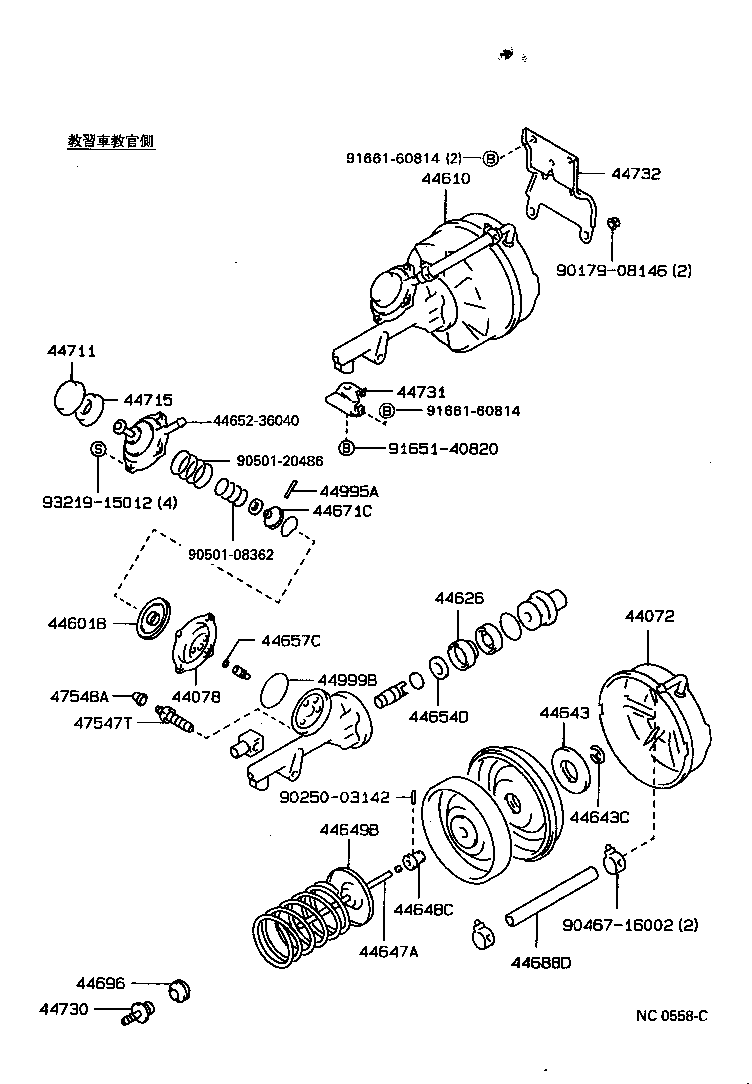

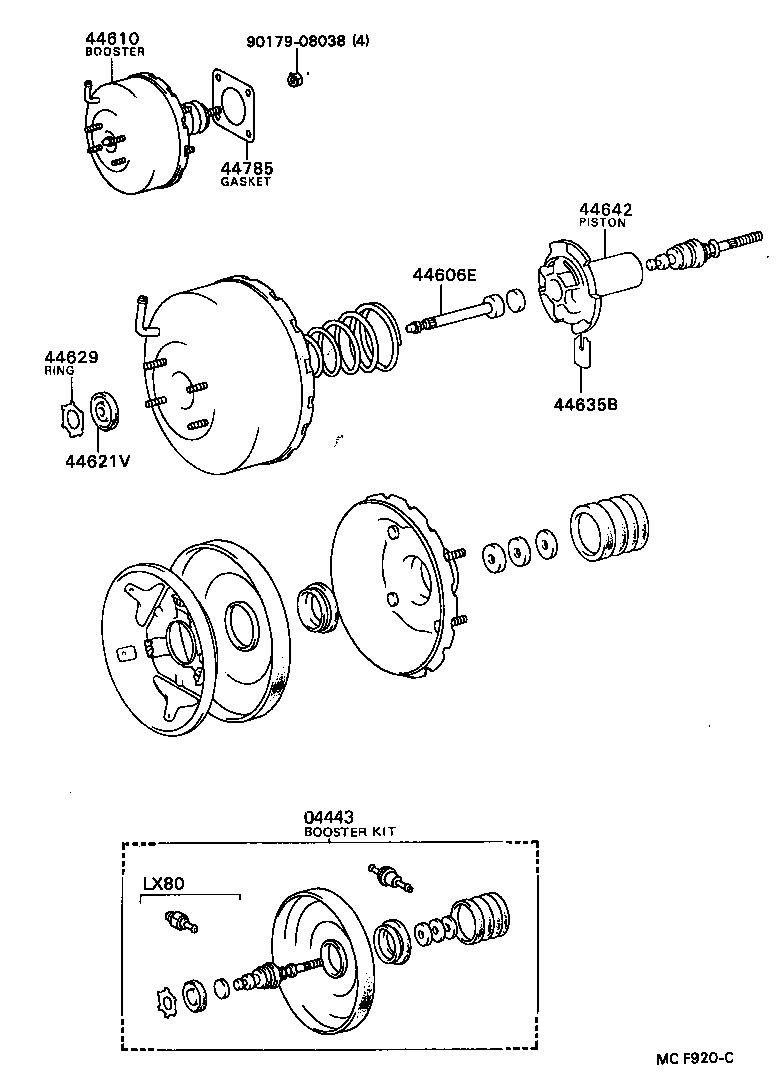

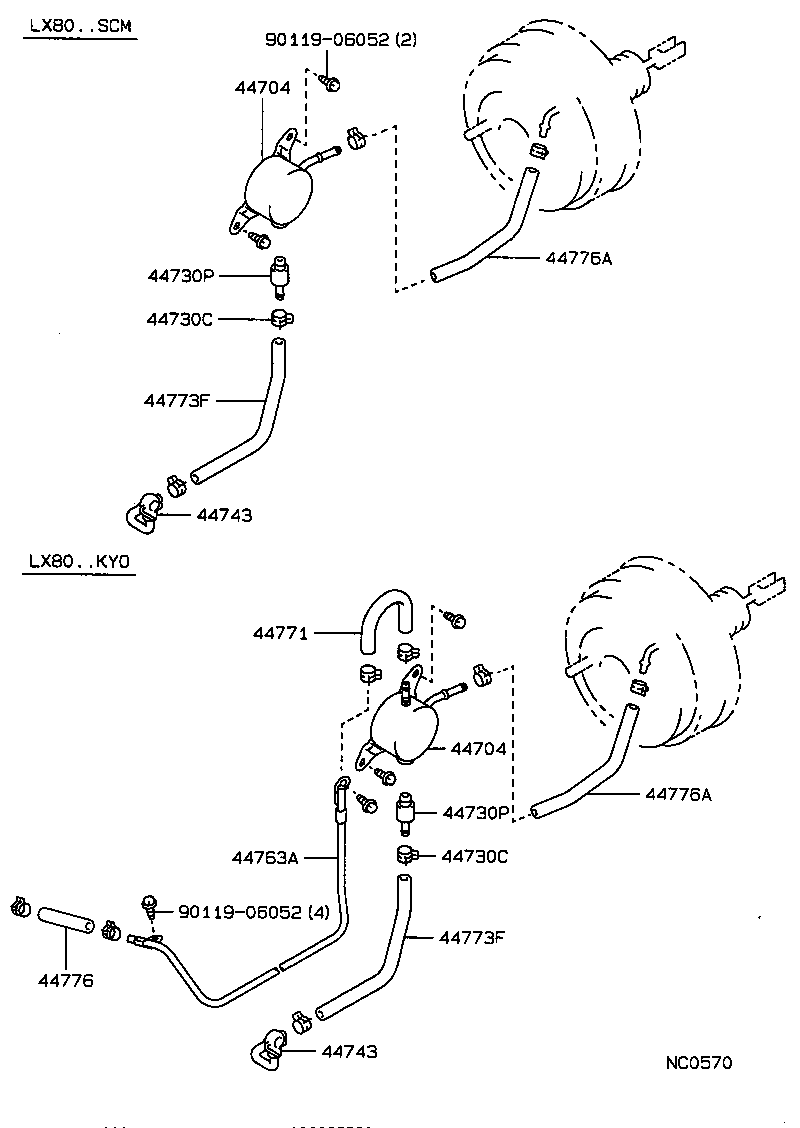

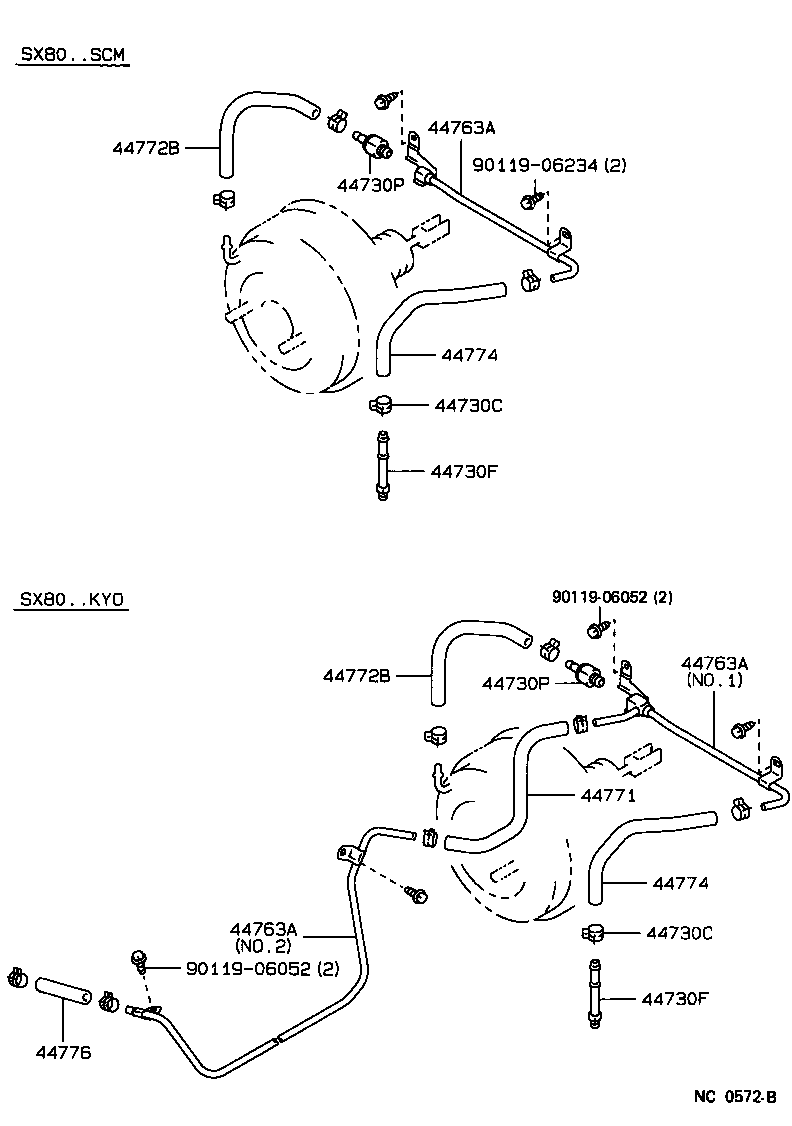

Figure MCF918 MCF918 1988-08 → — Figure MCF918 MCF918 1989-08 → 1990-08 Figure MCF918 MCF918 1990-08 → — Figure MCL013 MCL013 1990-08 → — Figure MCF919B MCF919B 1988-08 → — Figure MCF920C MCF920C 1988-08 → — Figure NC0558C NC0558C 1988-08 → — Figure NC0559 NC0559 1988-08 → — Figure NC0569B NC0569B 1988-08 → 1990-08 Figure NC0569B NC0569B 1988-08 → — Figure NC0569B NC0569B 1990-08 → — Figure NC0560A NC0560A 1988-08 → 1990-08 Figure MCJ045A MCJ045A 1989-08 → — Figure MCJ045A MCJ045A 1990-08 → — Figure NC0570 NC0570 1988-08 → — Figure NC0572B NC0572B 1988-08 → 1990-08 Figure NC0572B NC0572B 1990-08 → — Figure MCL012 MCL012 1990-08 → — Figure NC0568A NC0568A 1988-08 → —

Part groups

PNCDescription
04443 Booster Kit, Brake
44072 Body Sub-assy, Separator Booster, NO.2
44078 Body Sub-assy, Control Valve
44601B Diaphragm Plate Sub-assy, Booster, Rear
44605 Plate & Seal Sub-assy, Booster
44606E Rod Sub-assy, Brake Booster Piston
44610 Booster Assy, Brake
44621V Seal, Booster Body
44626 Retainer, Booster Rod Cup
44626A Retainer, Booster Body Seal
44629 Ring, Circular Internal
44635B Key, Valve Stopper
44637A Plate, Booster Diaphragm
44642 Piston, Brake Booster
44643 Retainer, Diaphragm
44643C Ring, Snap(FOR DIAPHRAGM RETAINER)
44645 Retainer, Booster Push Rod Seal
44647A Rod, Booster Piston
44648C Rod, Booster Body Tie
44649B Retainer, Booster Spring
44654D Spacer, Piston Rod
44657C Spacer(FOR BOOSTER CONTROL VALVE PISTON)
44657D Case, Reaction Disc
44671C Seat, Vacuum Valve
44673A Body, Booster Valve
44688D Hose, Booster Vacuum
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44711 Body, Air Cleaner(FOR BOOSTER)
44715 Element, Air Cleaner(FOR BOOSTER)
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730C Clip(FOR VACUUM HOSE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730P Valve Assy, Vacuum Check, NO.1
44730R Bolt, Union(FOR VACUUM HOSE UNION)
44730S Gasket(FOR VACUUM HOSE UNION)
44731 Bracket, Brake Booster, Front
44732 Bracket, Brake Booster, Rear
44743 Union(FOR VACUUM PUMP)
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44771 Hose, Vacuum Tube Connector
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
44785 Gasket, Brake Booster
44995A Pin, Valve Joint
44999B Ring, O(FOR CONTROL VALVE)
47547T Plug, Bleeder(FOR BOOSTER)
47548A Cap, Bleeder Plug(FOR BRAKE BOOSTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
