Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

44 part groups · 9 illustrations

Illustrations

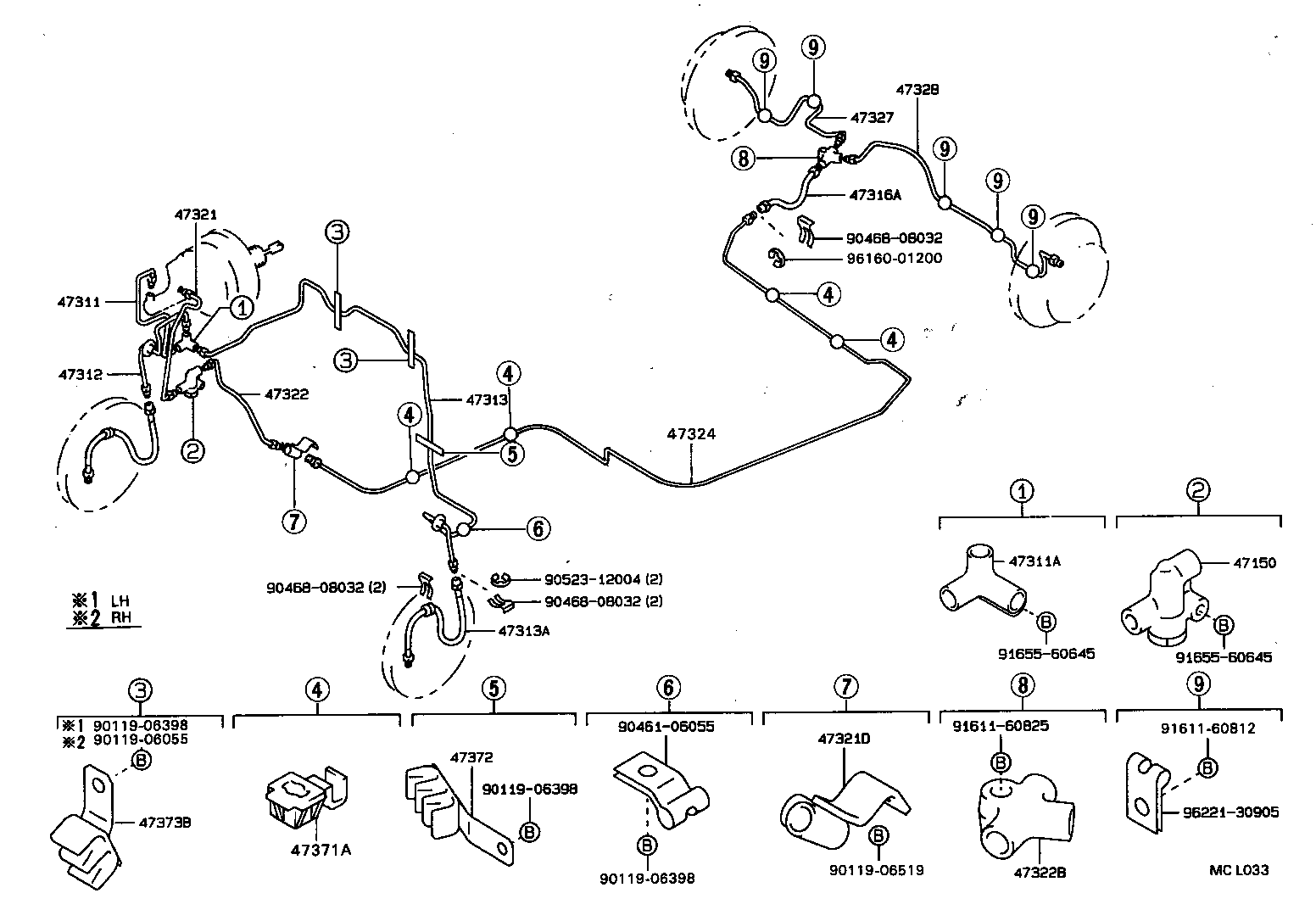

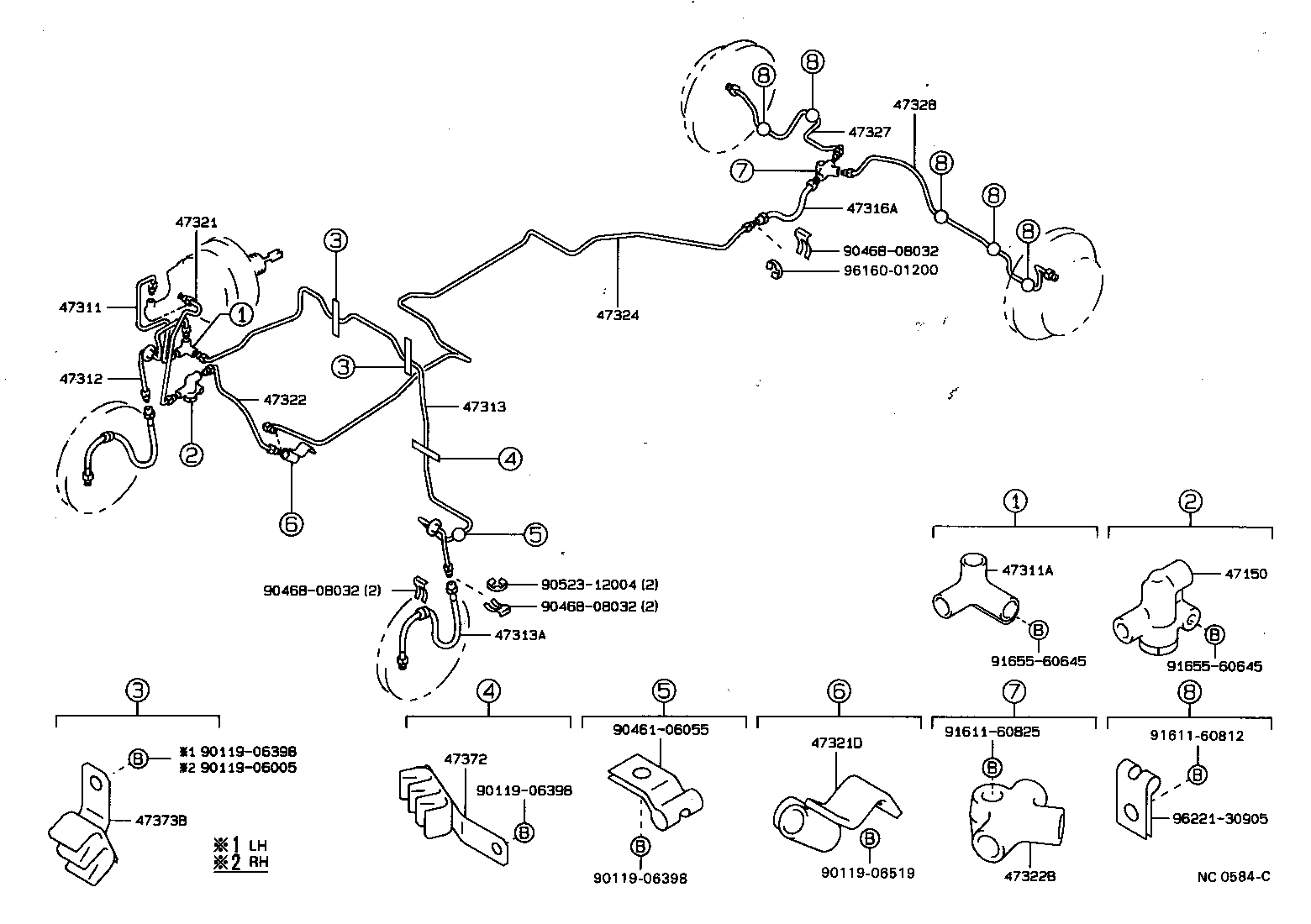

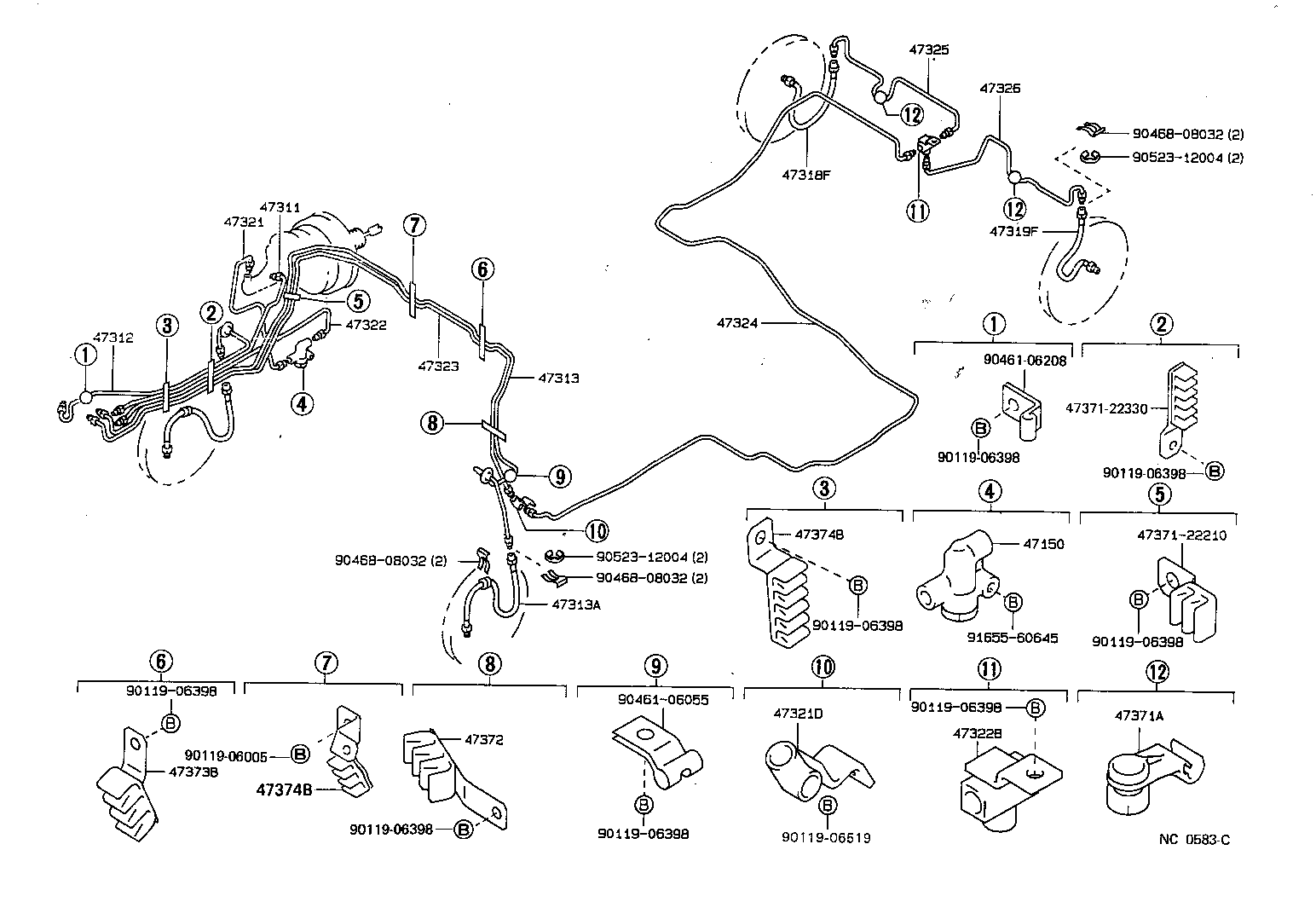

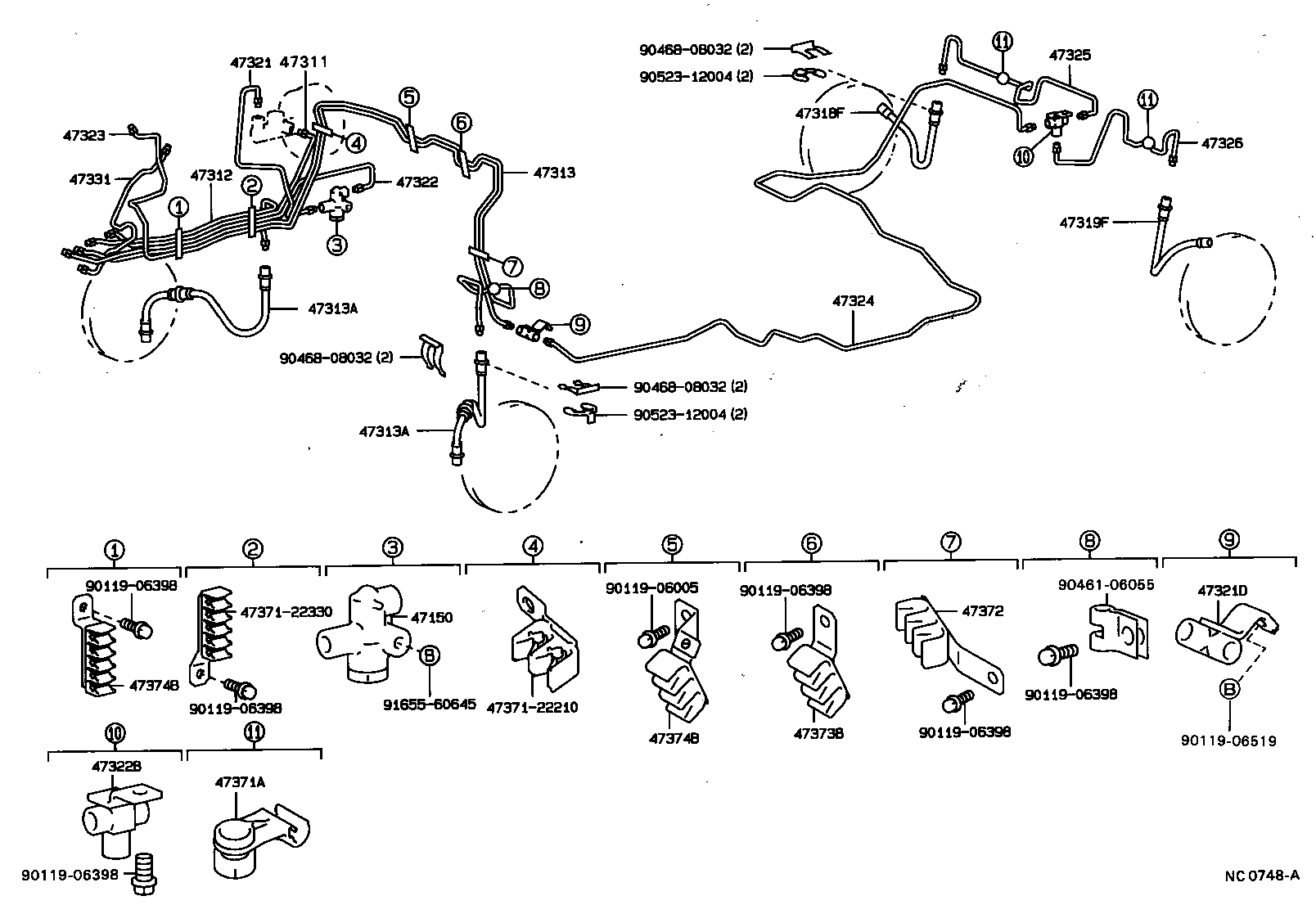

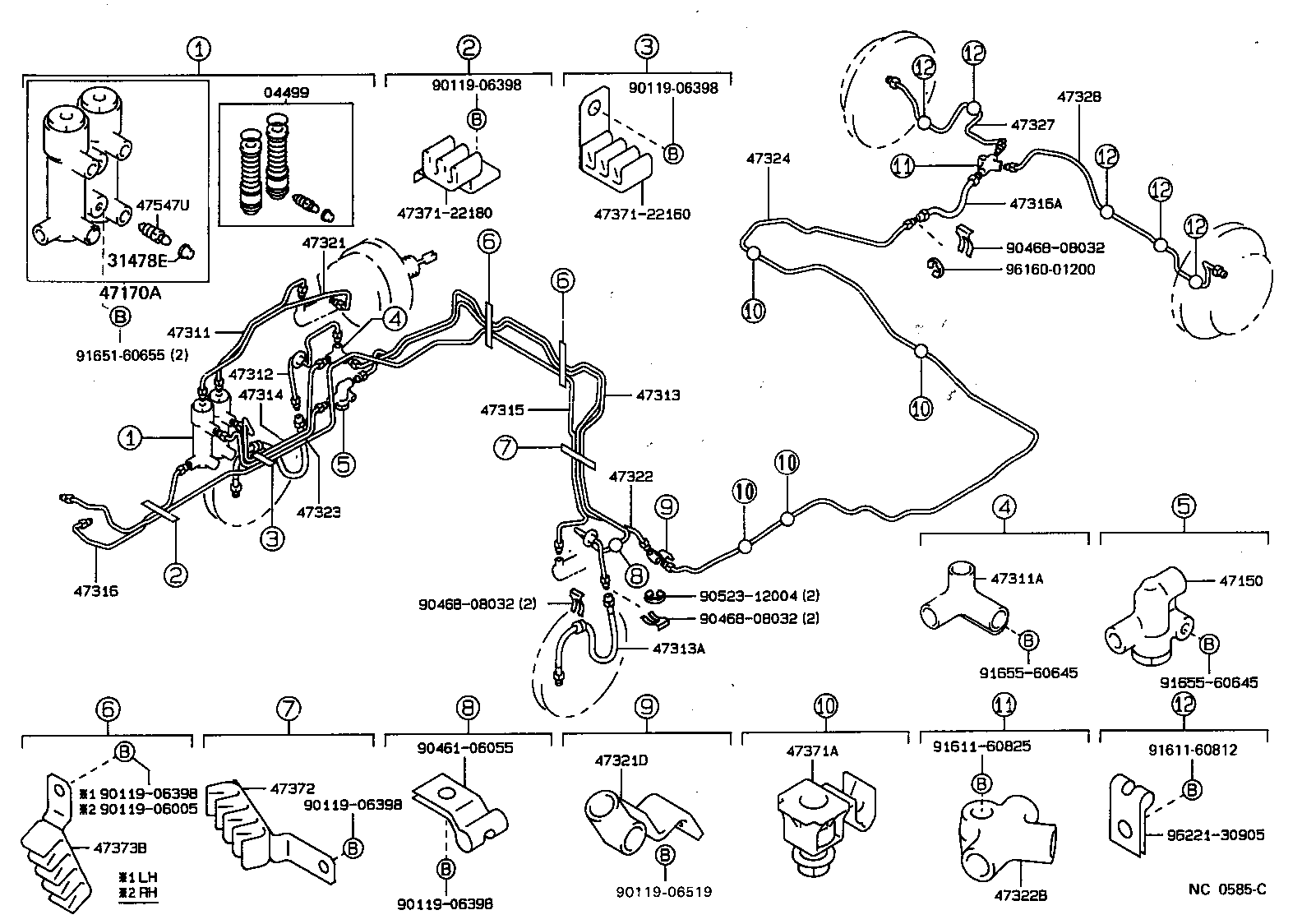

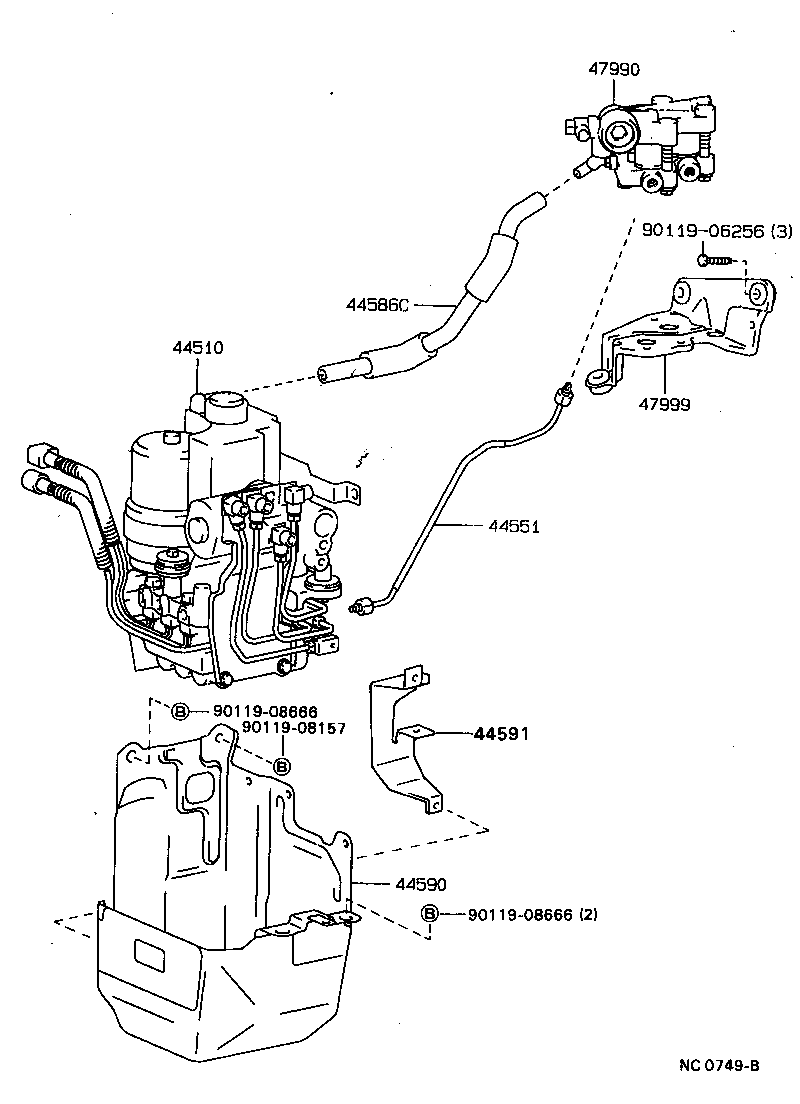

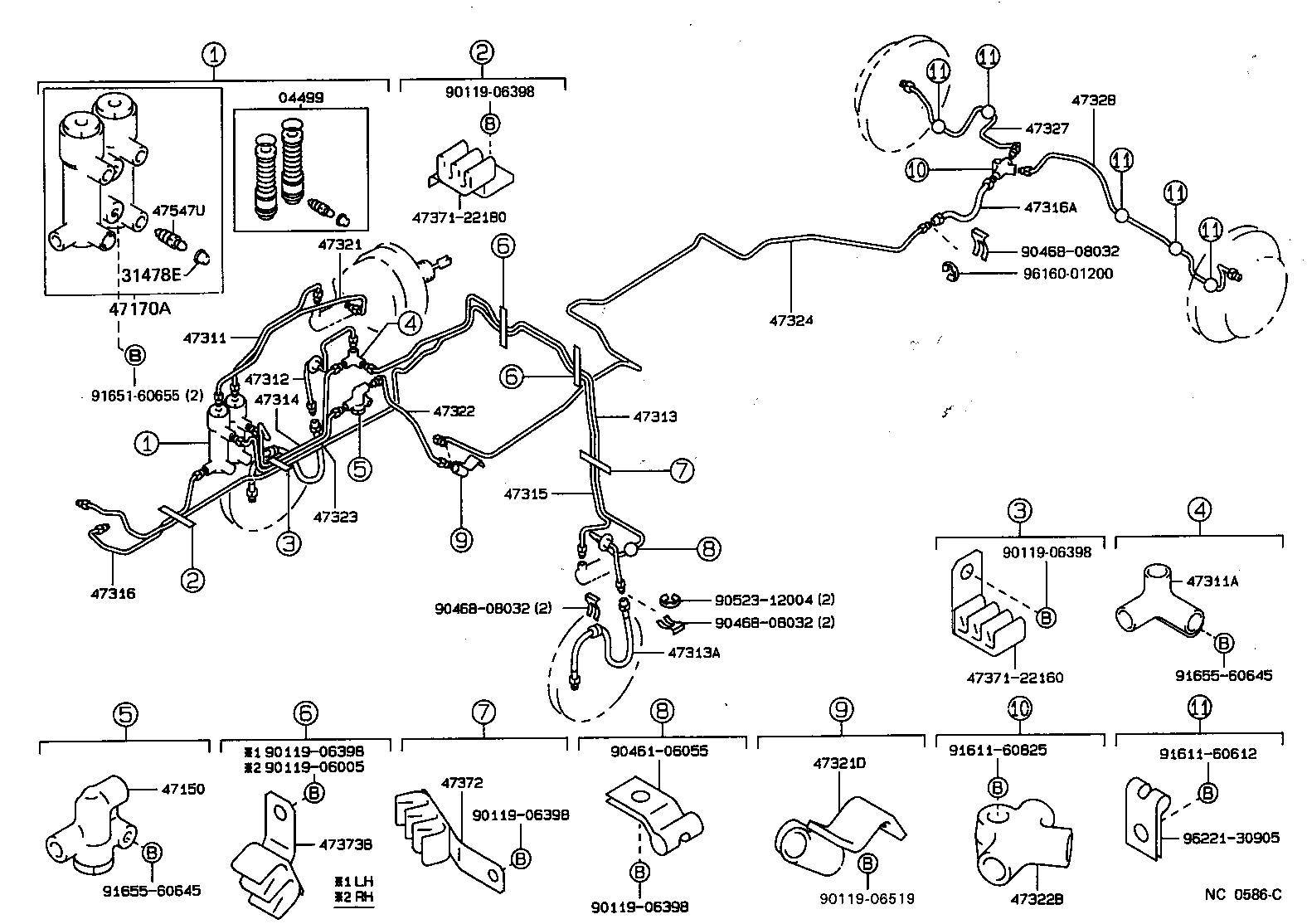

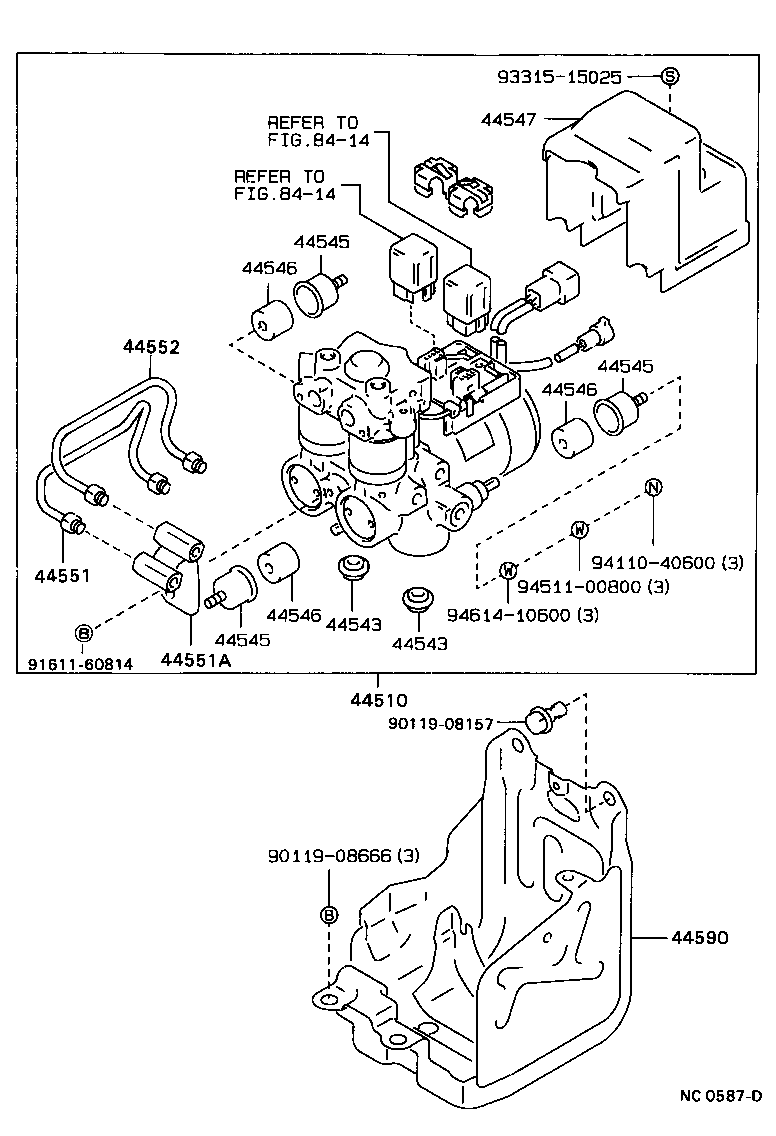

Figure NC0582C NC0582C 1988-08 → — Figure NC0583C NC0583C 1988-08 → — Figure NC0585C NC0585C 1988-08 → — Figure NC0586C NC0586C 1988-08 → — Figure MCL033 MCL033 1988-08 → — Figure NC0584C NC0584C 1988-08 → — Figure NC0748A NC0748A 1989-08 → — Figure NC0587D NC0587D 1988-08 → — Figure NC0749B NC0749B 1989-08 → —

Part groups

PNCDescription
04499 Piston Kit, Brake Change Valve
31478E Cap, Bleeder Plug(FOR BRAKE CHANGE VALVE)
44510 Actuator Assy, Brake
44543 Cap, Rubber
44545 Bolt, Union(FOR BRAKE ACTUATOR)
44546 Spacer, Air Inlet
44547 Case, Relay(FOR BRAKE ACTUATOR)
44551 Tube, Brake Actuator, NO.1
44551A Way, NO.1(FOR BRAKE ACTUATOR)
44552 Tube, Brake Actuator, NO.2
44586C Hose, Brake Actuator Return
44590 Bracket Assy, Brake Actuator
44591 Bracket, Brake Actuator, NO.1
47150 Valve Assy, Proportioning
47170A Valve Assy, Brake Change
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47331 Tube, Rear Brake, NO.10
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47547U Plug, Bleeder(FOR BRAKE CHANGE VALVE)
47990 Actuator Assy, Brake Traction
47999 Bracket, Brake Traction Actuator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
