Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

19 part groups · 2 illustrations

Illustrations

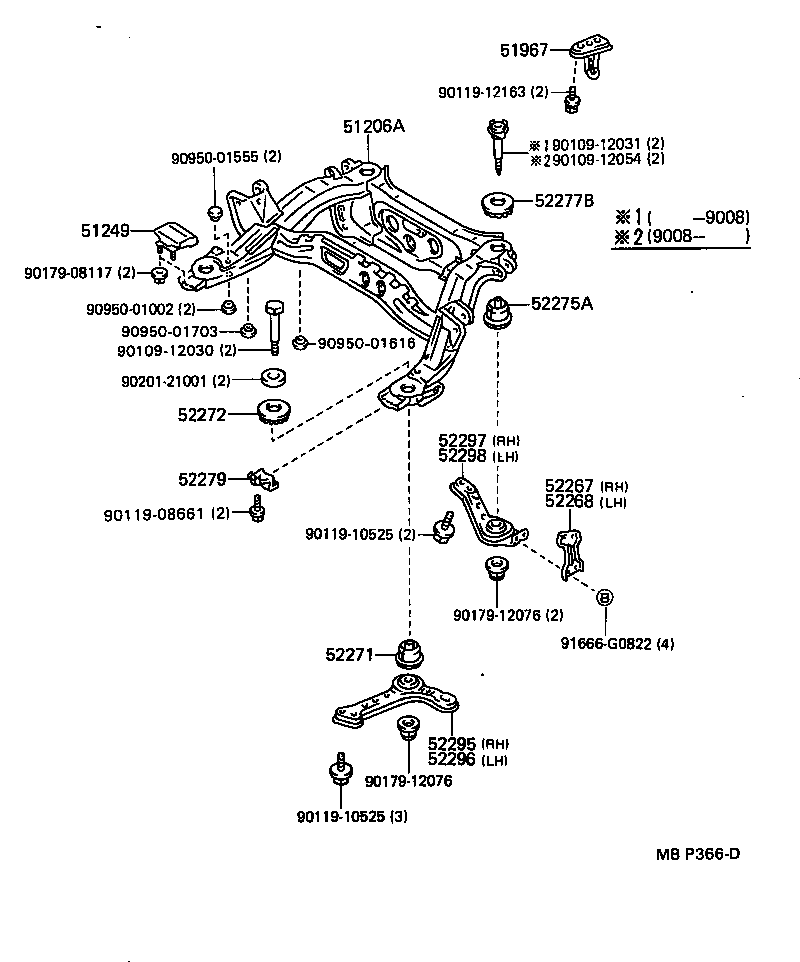

Figure MBP365G MBP365G 1988-08 → 1992-10 Figure MBP366D MBP366D 1988-08 → 1992-10

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51229A Bolt, Front Suspension Member Mounting
51249 Damper, Rear Suspension Member
51441 Cover, Engine Under, NO.1
51447B Protector, Oil Pan
51963B Hook, Transport, Front RH
51967 Hook, Transport, Rear
52267 Reinforce, Rear Suspension Member Lower Stopper, RH
52268 Reinforce, Rear Suspension Member Lower Stopper, LH
52271 Cushion, Rear Suspension Member
52272 Stopper, Rear Suspension Member, Upper
52275A Cushion, Rear Suspension Member Body Mounting, Rear
52277B Stopper, Rear Suspension Member, Rear Upper
52279 Retainer, Rear Suspension Member Cushion
52295 Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
52297 Brace, Rear Suspension Member, Rear Lower RH
52298 Brace, Rear Suspension Member, Rear Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
