Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

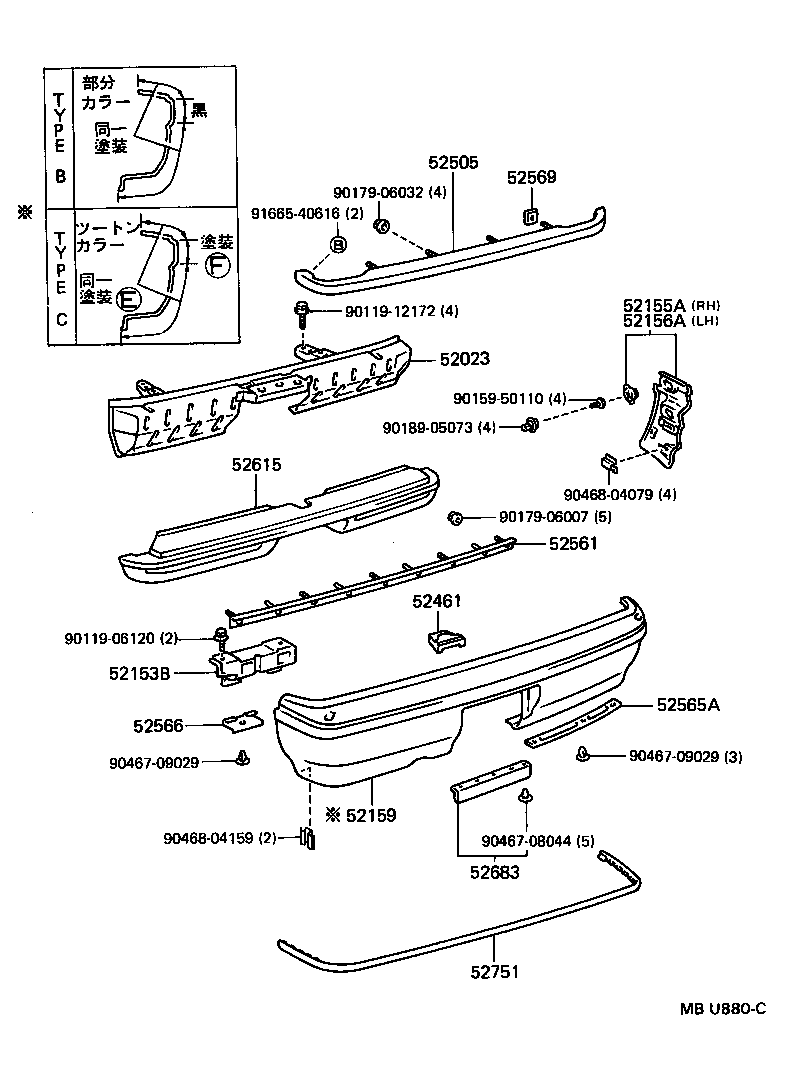

Figure MBT445D MBT445D 1988-08 → 1990-08 Figure MBU880C MBU880C 1990-08 → 1992-10

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52461 Pad, Rear Bumper, Center
52505 Filler Sub-assy, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52566 Filler, Rear Bumper Extension, LH
52569 Pad, Rear Bumper Filler
52615 Absorber, Rear Bumper Energy
52683 Extension, Rear Bumper, Center
52717A Retainer, Front Bumper Moulding
52751 Moulding, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
