Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 2 illustrations

Illustrations

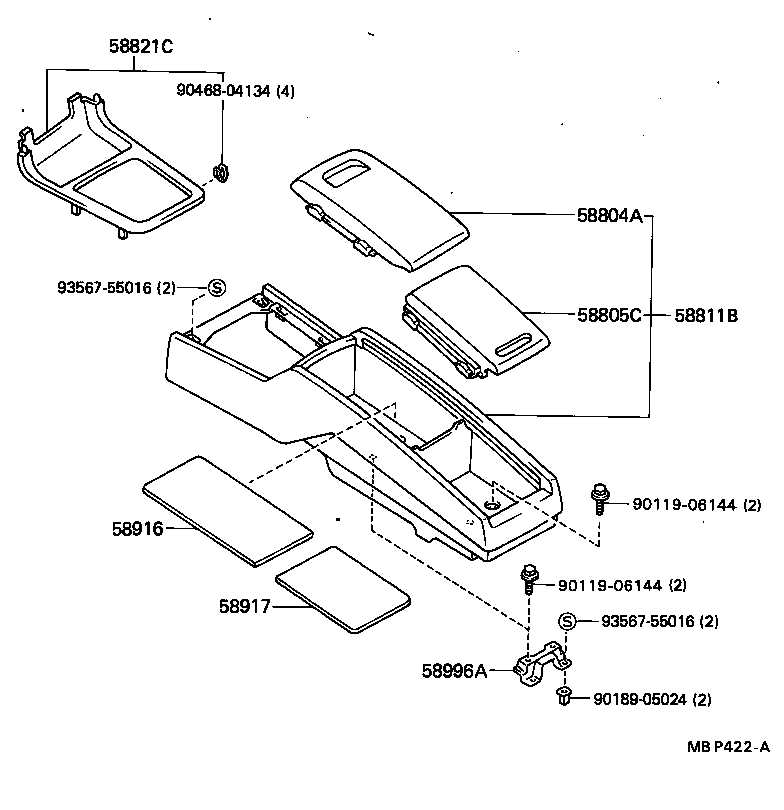

Figure MBP419A MBP419A 1988-08 → — Figure MBP422A MBP422A 1988-08 → —

Part groups

PNCDescription
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58811B Box, Console
58821C Panel, Console, Upper
58839A Cover, Console Box Hole
58905 Door Sub-assy, Console Compartment
58916 Mat, Box Bottom
58917 Mat, Box Bottom, NO.2
58919B Plate, Console Box
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58976 Striker, Console Compartment Door Lock
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
