Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

7 part groups · 4 illustrations

Illustrations

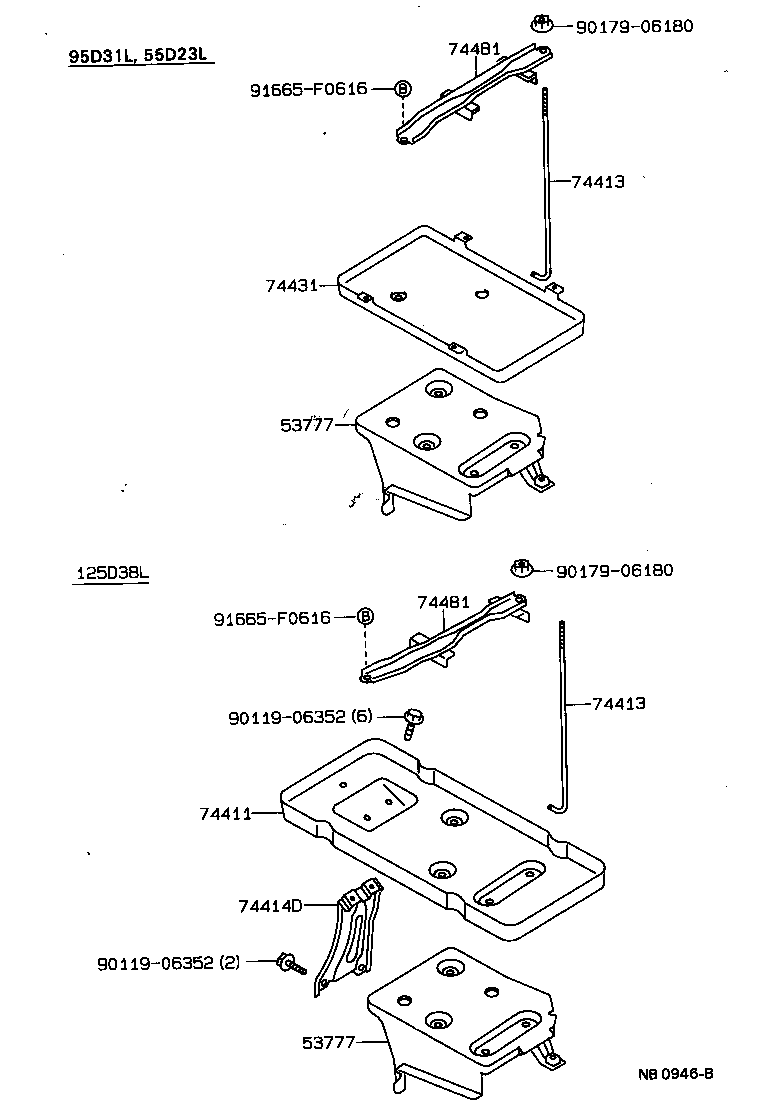

Figure NB0944A NB0944A 1988-08 → 1992-10 Figure NB0944A NB0944A 1990-08 → 1992-10 Figure NB0946B NB0946B 1988-08 → 1992-10 Figure NB0946B NB0946B 1990-08 → 1992-10

Part groups

PNCDescription
53777 Support, Battery Carrier, NO.2
74407A Bolt Sub-assy, Battery Clamp
74411 Carrier, Battery
74413 Bolt, Battery Clamp
74414D Support, Battery Carrier
74431 Tray, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
