Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

17 part groups · 6 illustrations

Illustrations

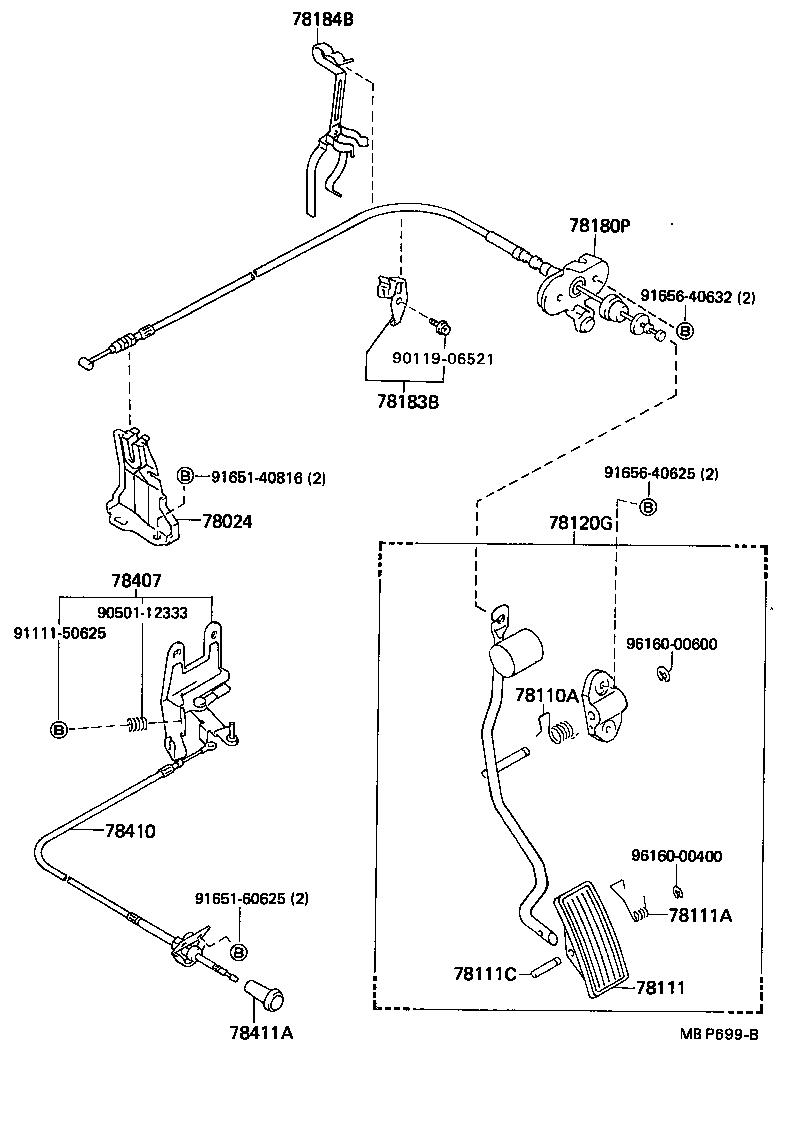

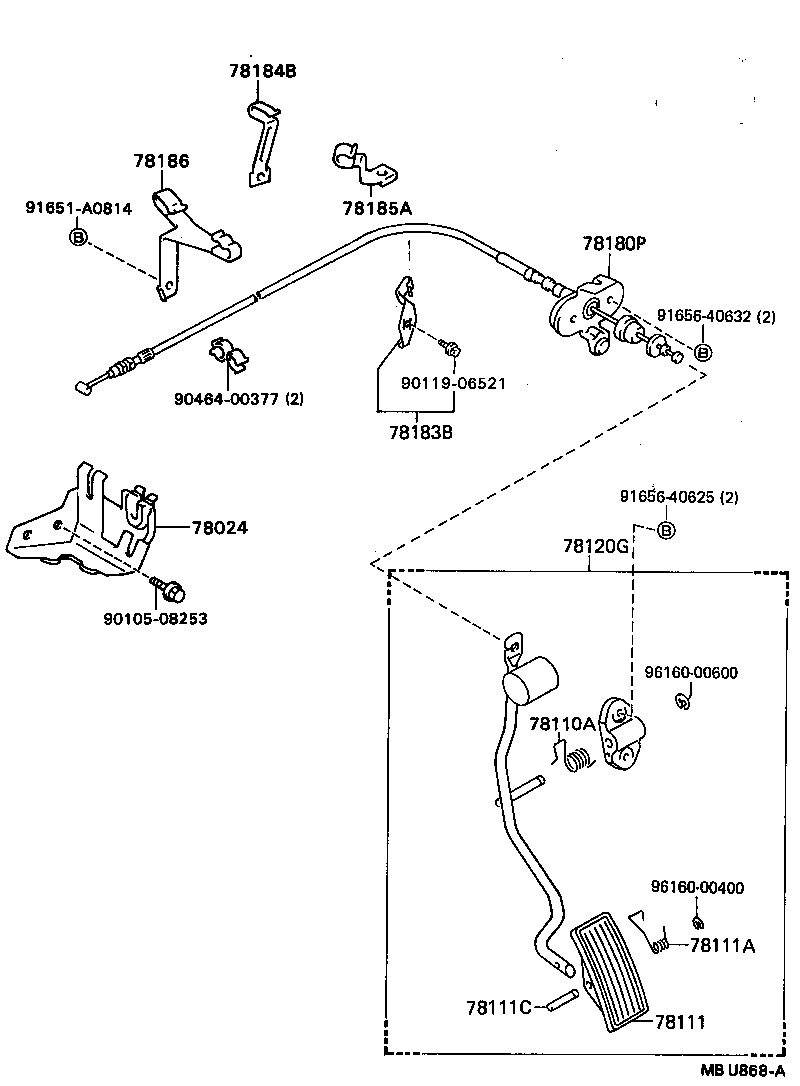

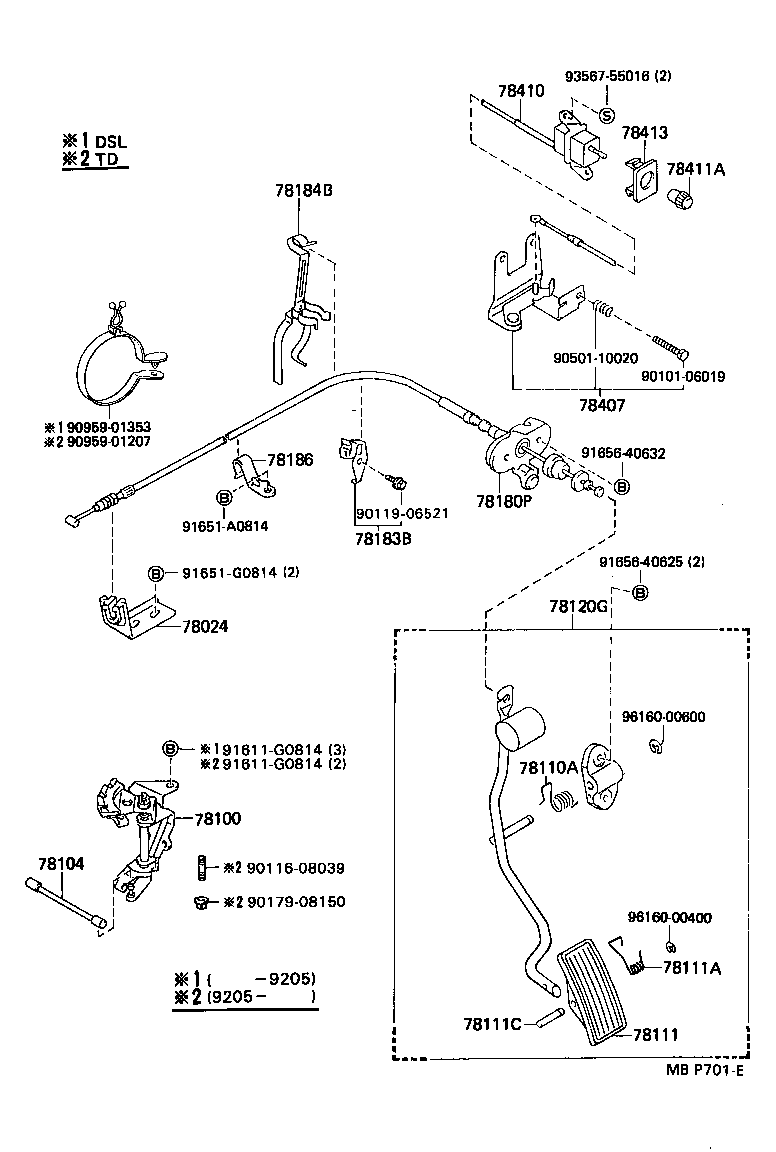

Figure MBP694C MBP694C 1988-08 → 1992-10 Figure MBP697D MBP697D 1988-08 → 1992-10 Figure MBP699B MBP699B 1988-08 → 1992-10 Figure MBP701E MBP701E 1988-08 → 1992-10 Figure MBS788 MBS788 1989-08 → 1992-10 Figure MBU868A MBU868A 1990-08 → 1992-10

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111A Spring (FOR ACCELERATOR PEDAL)
78111C Pin (FOR ACCELERATOR PEDAL)
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78186 Support, Accelerator Control Cable, NO.1
78407 Arm Sub-assy, Throttle Control
78410 Cable Assy, Throttle Control
78411A Knob, Throttle Control Cable
78413 Cover, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
