Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

12 part groups · 2 illustrations

Illustrations

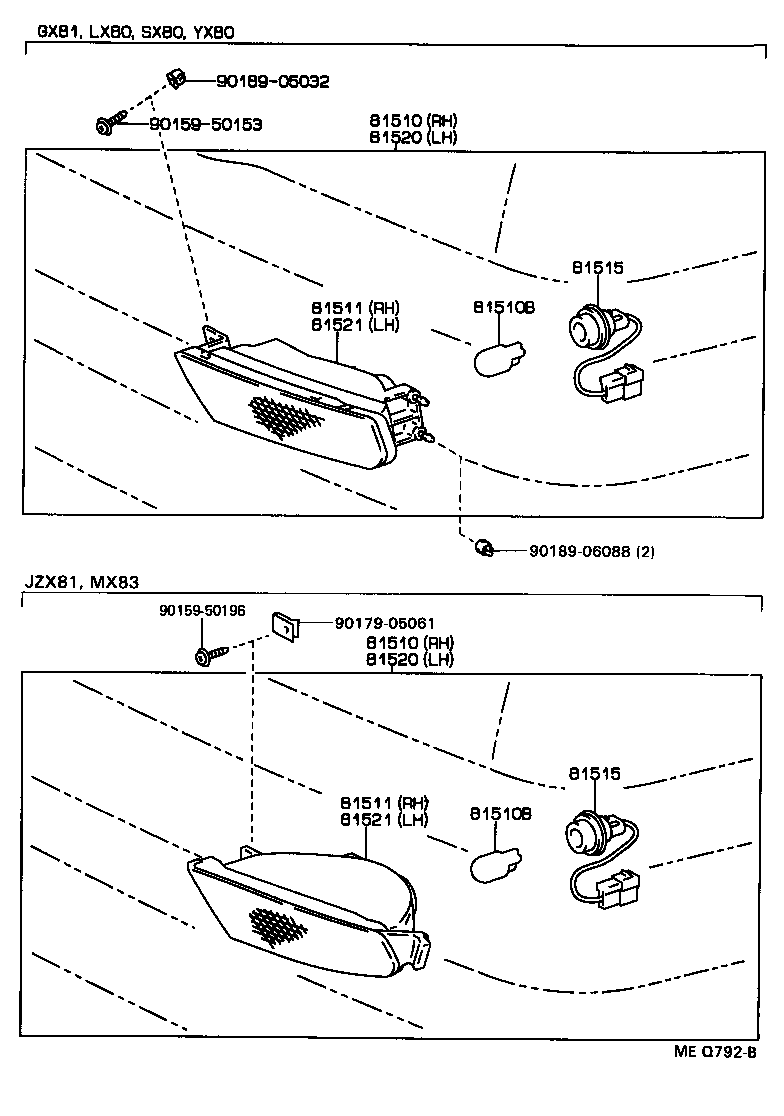

Figure NE5321 NE5321 1988-08 → 1990-08 Figure MEQ792B MEQ792B 1990-08 → —

Part groups

PNCDescription
81030 Lamp Assy, Front Fog And Turn Signal, RH
81040 Lamp Assy, Front Fog And Turn Signal, LH
81210F Bulb, Fog Lamp
81211E Unit, Front Fog And Turn Signal Lamp, RH
81215C Cord, Front Fog And Turn Signal Lamp
81221E Unit, Front Fog And Turn Signal Lamp, LH
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81515 Wire Sub-assy, Front Turn Signal Lamp Body
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
