Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

43 part groups · 17 illustrations

Illustrations

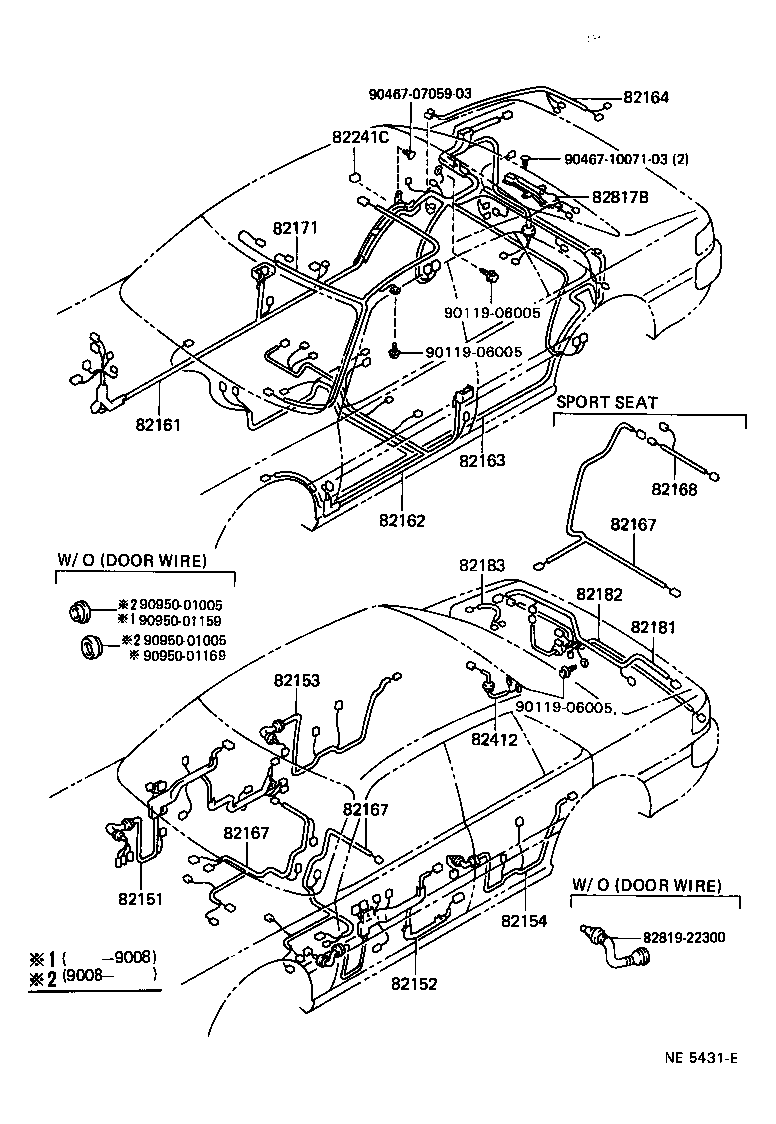

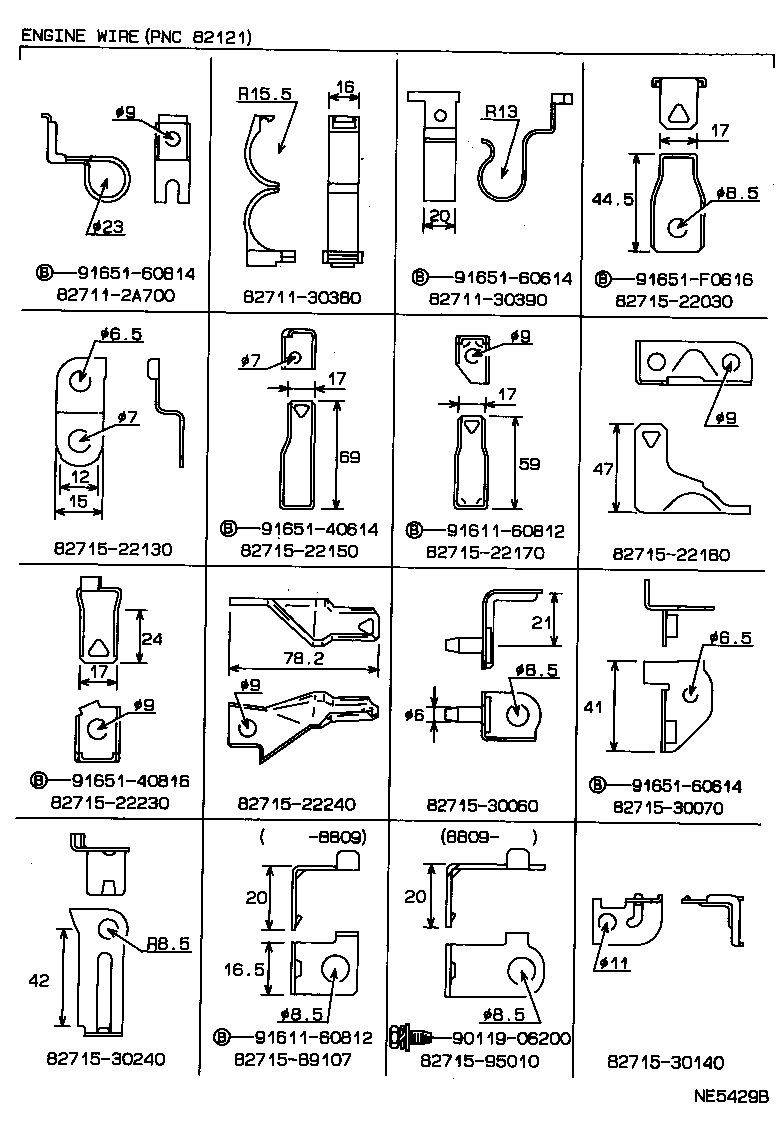

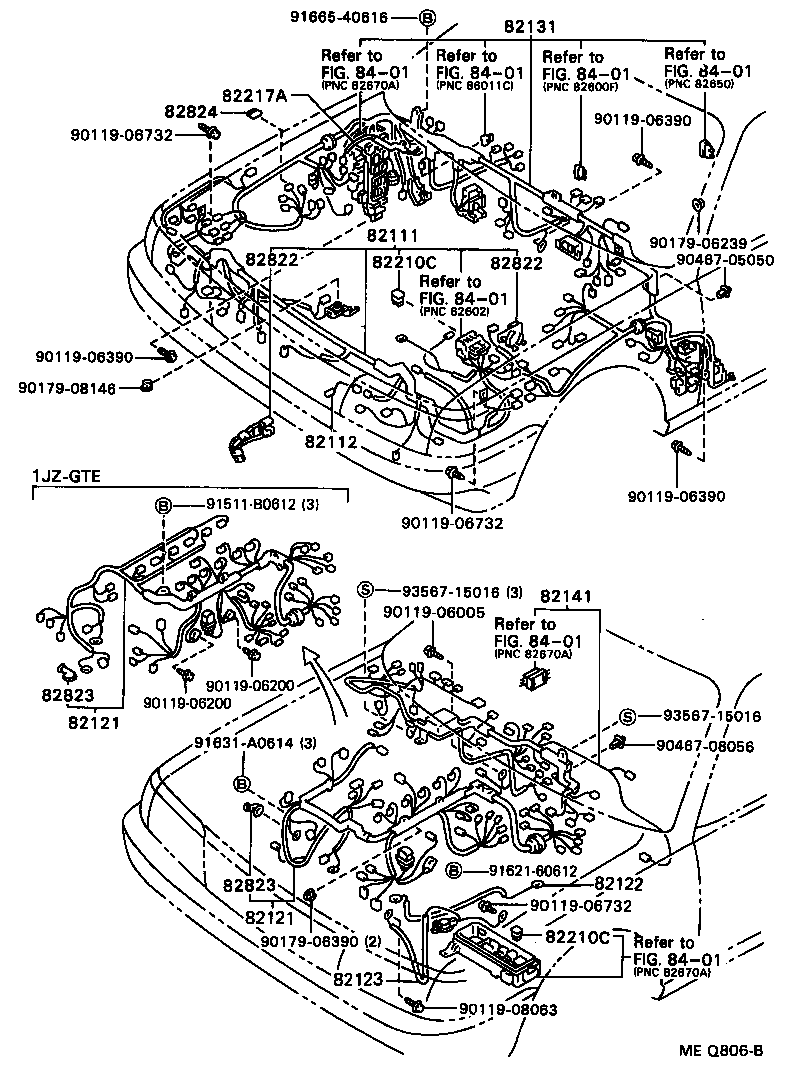

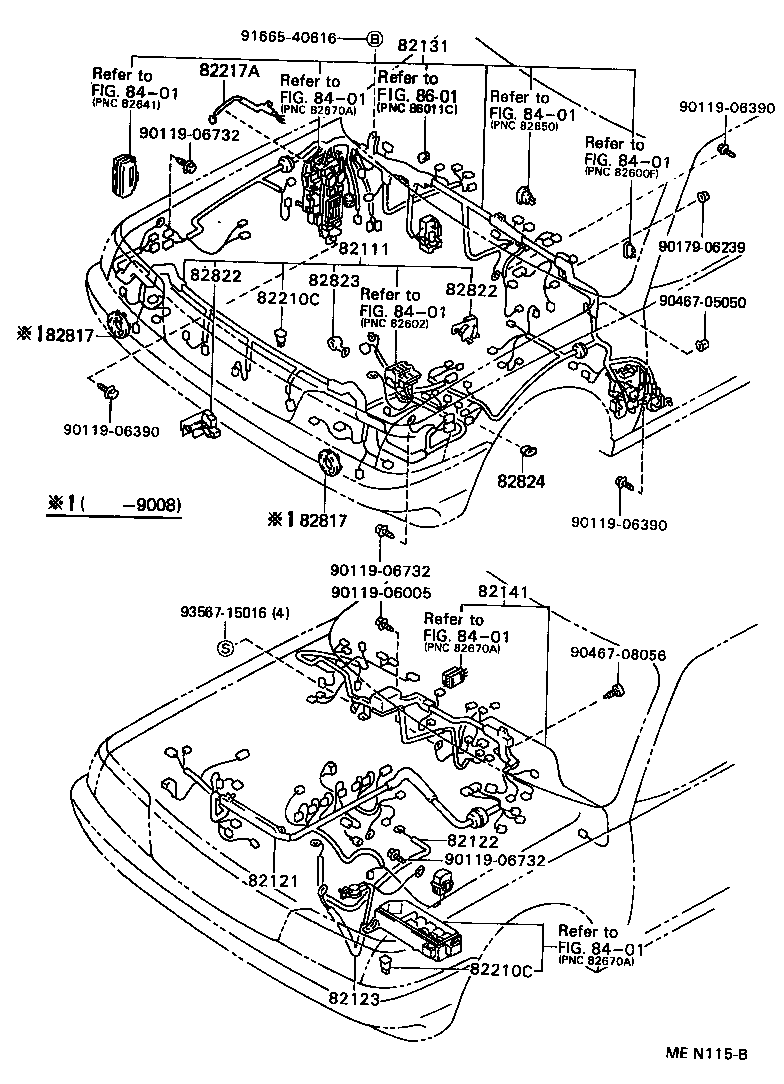

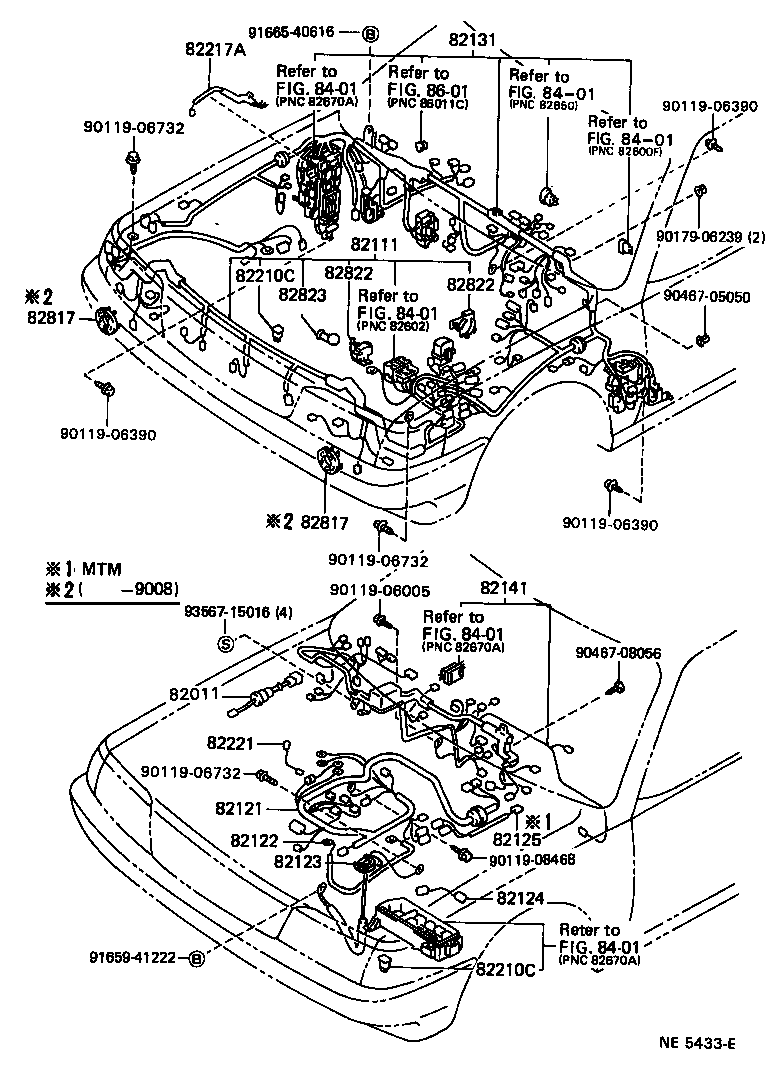

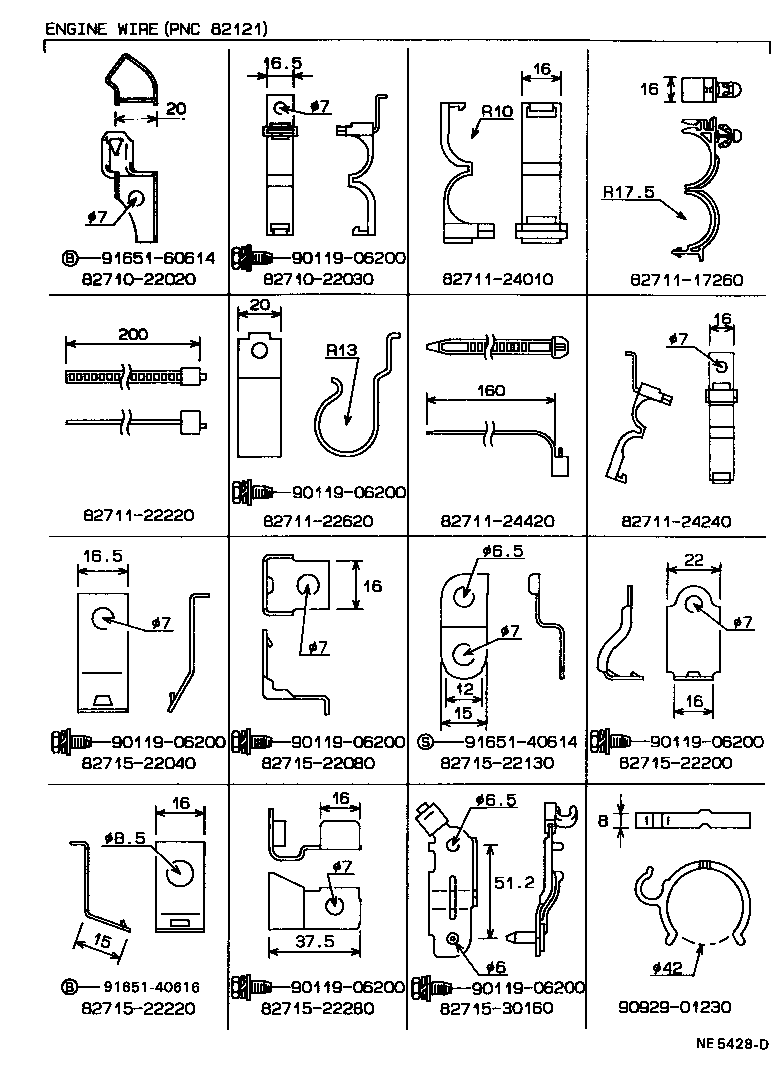

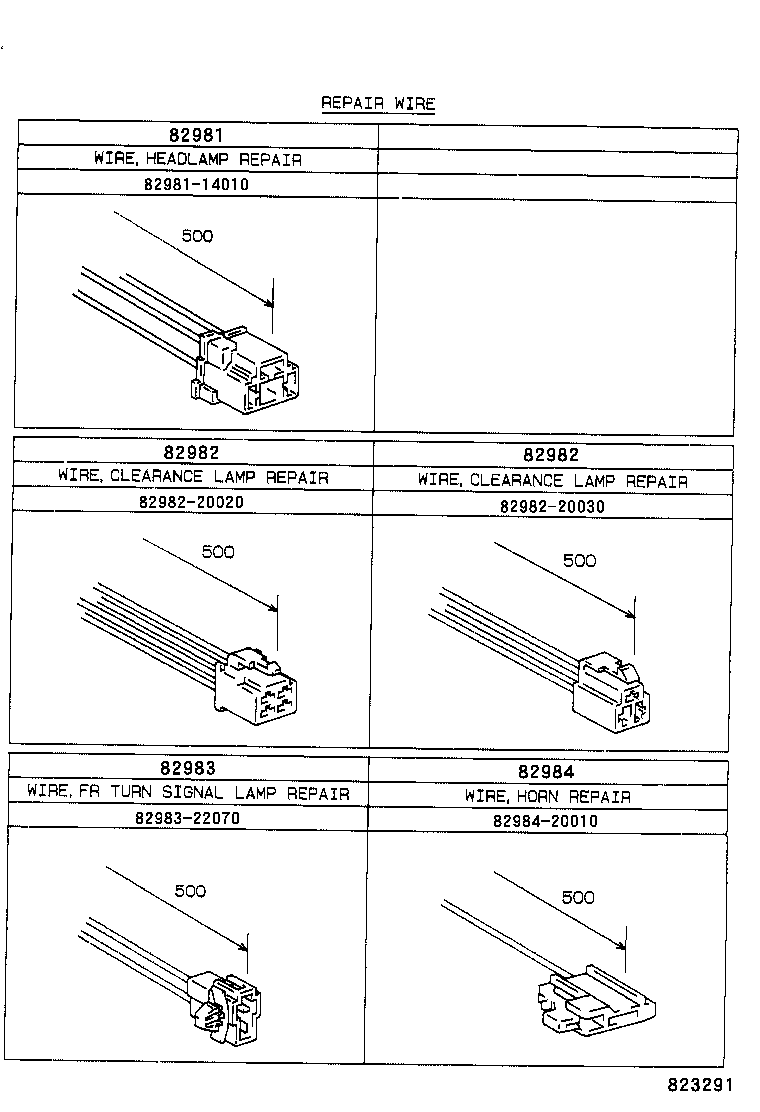

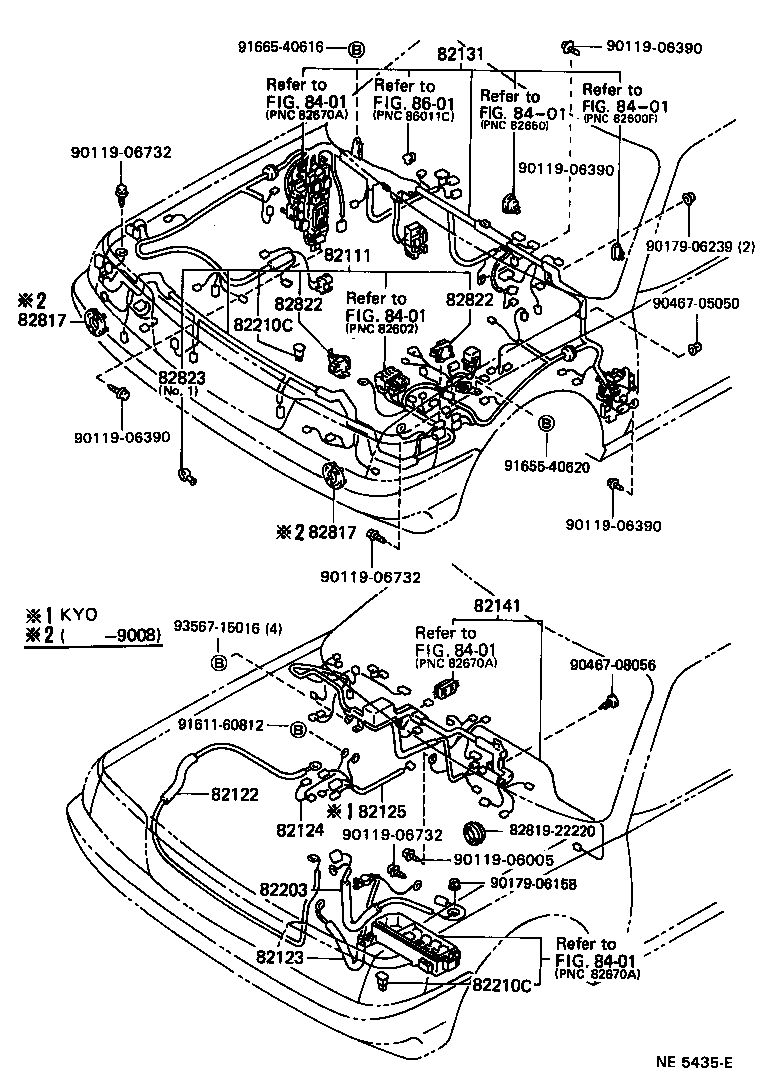

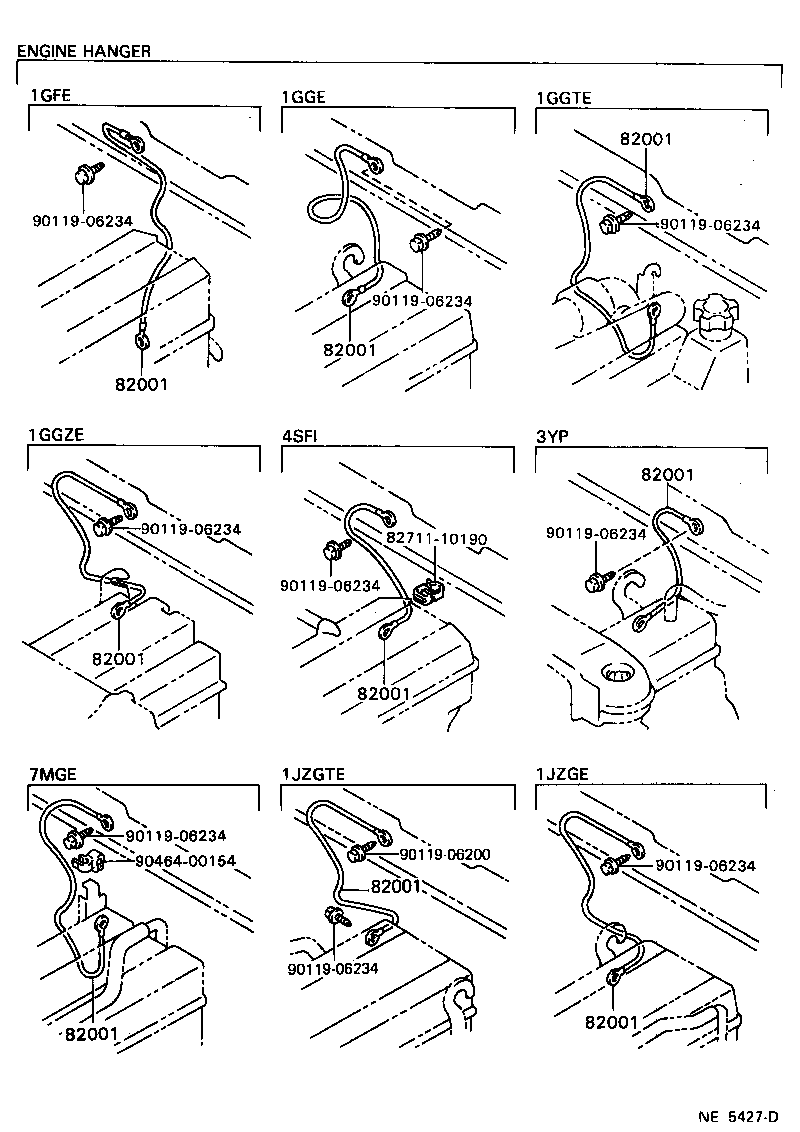

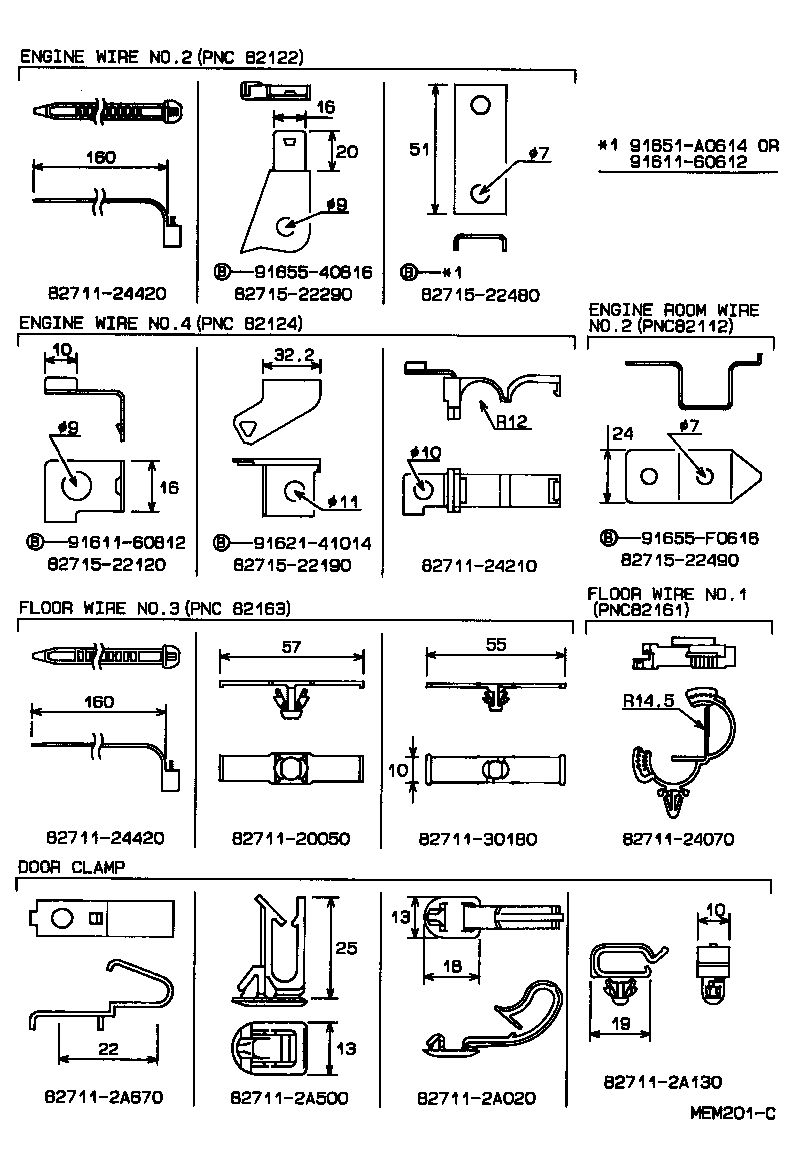

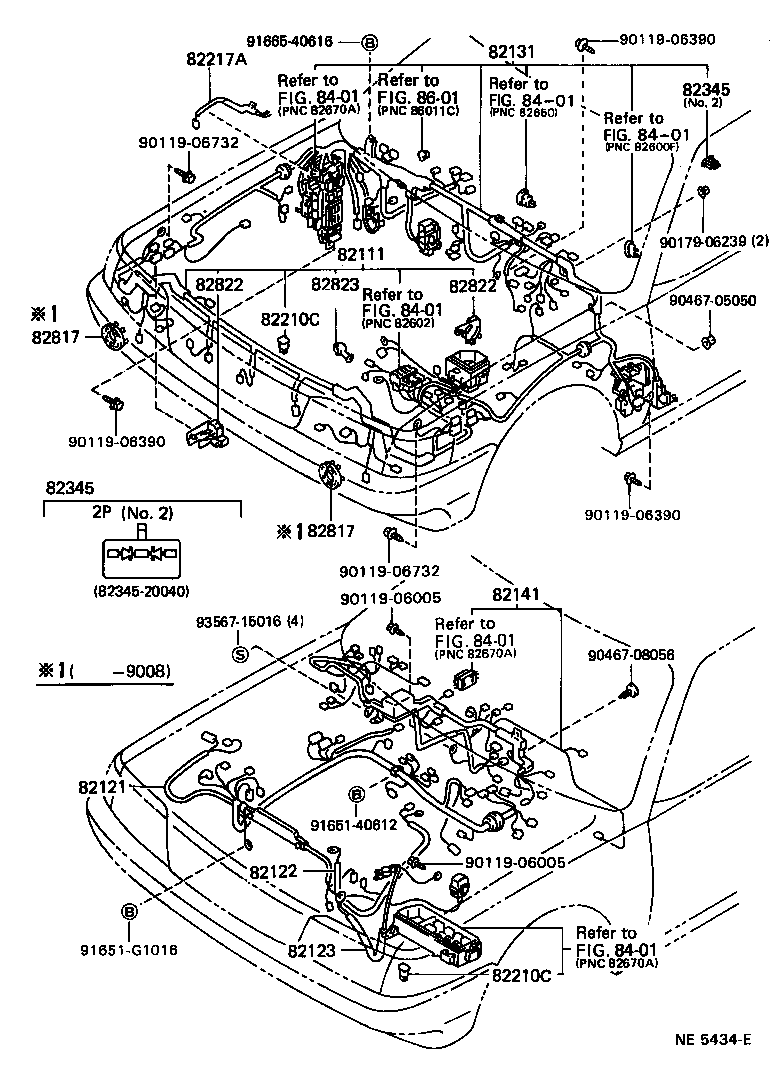

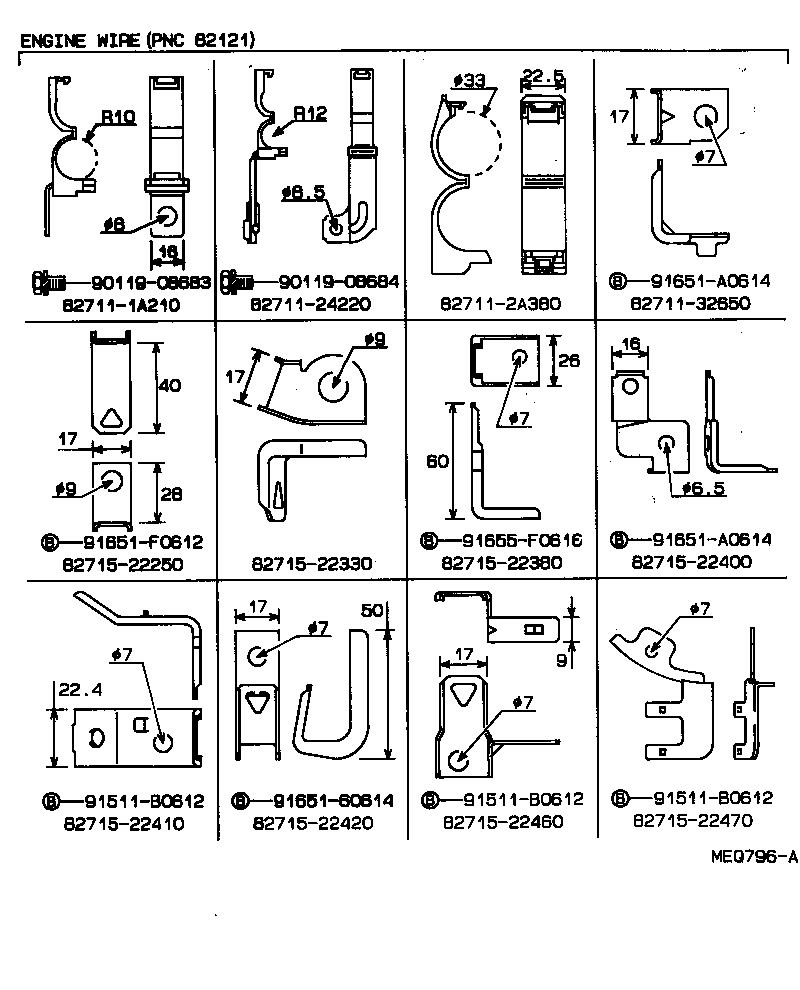

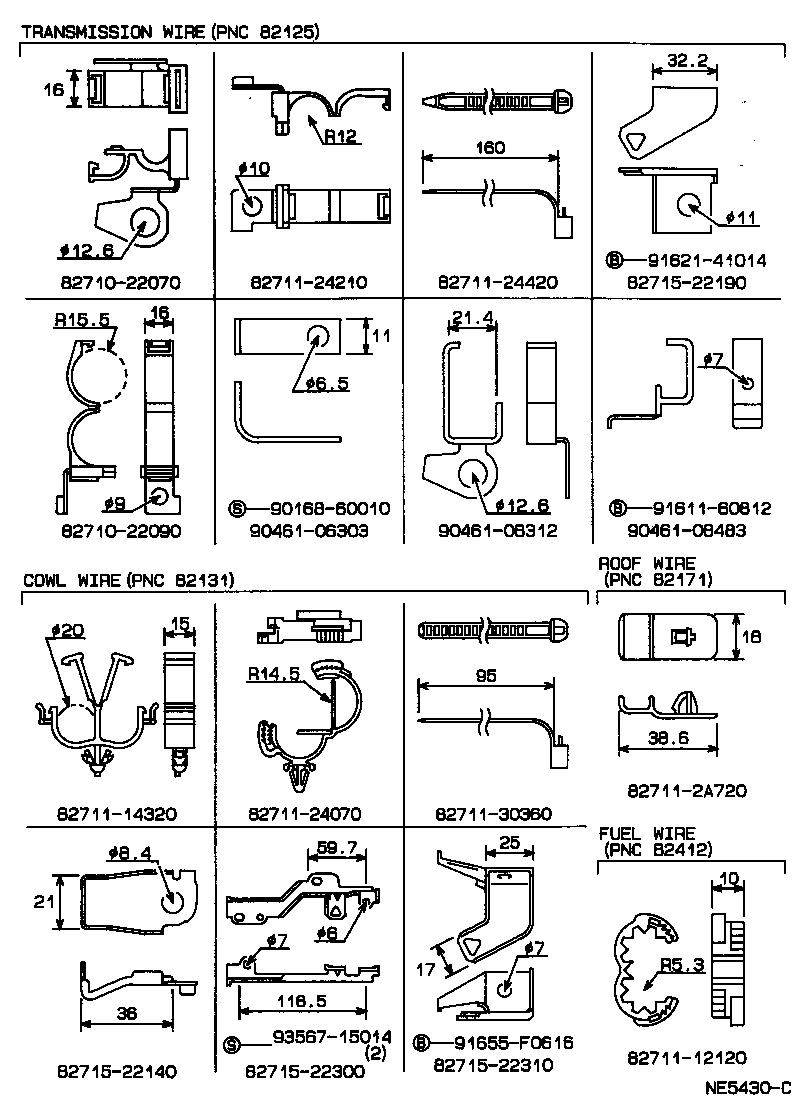

Figure NE5432E NE5432E 1988-08 → — Figure NE5433E NE5433E 1988-08 → — Figure MEN115B MEN115B 1989-08 → — Figure MEQ806B MEQ806B 1990-08 → — Figure NE5434E NE5434E 1988-08 → — Figure NE5435E NE5435E 1988-08 → — Figure NE5431E NE5431E 1988-08 → — Figure NE5427D NE5427D 1988-08 → — Figure MEN116 MEN116 1988-08 → — Figure NE5428D NE5428D 1988-08 → — Figure NE5429B NE5429B 1988-08 → — Figure MEQ796A MEQ796A 1988-08 → — Figure MER267 MER267 1988-08 → — Figure NE5430C NE5430C 1988-08 → — Figure MEM201C MEM201C 1988-08 → — Figure 823291 823291 1988-08 → — Figure MET632 MET632 1988-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82217A Wire, Front Window Defogger
82221 Wire, Oil Pressure Switch
82241C Wire, Relay
82345 Diode
82412 Wire, Fuel Gage
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82822 Bracket,Connector Block
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82987 Wire, Fog Lamp Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
