Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

11 part groups · 2 illustrations

Illustrations

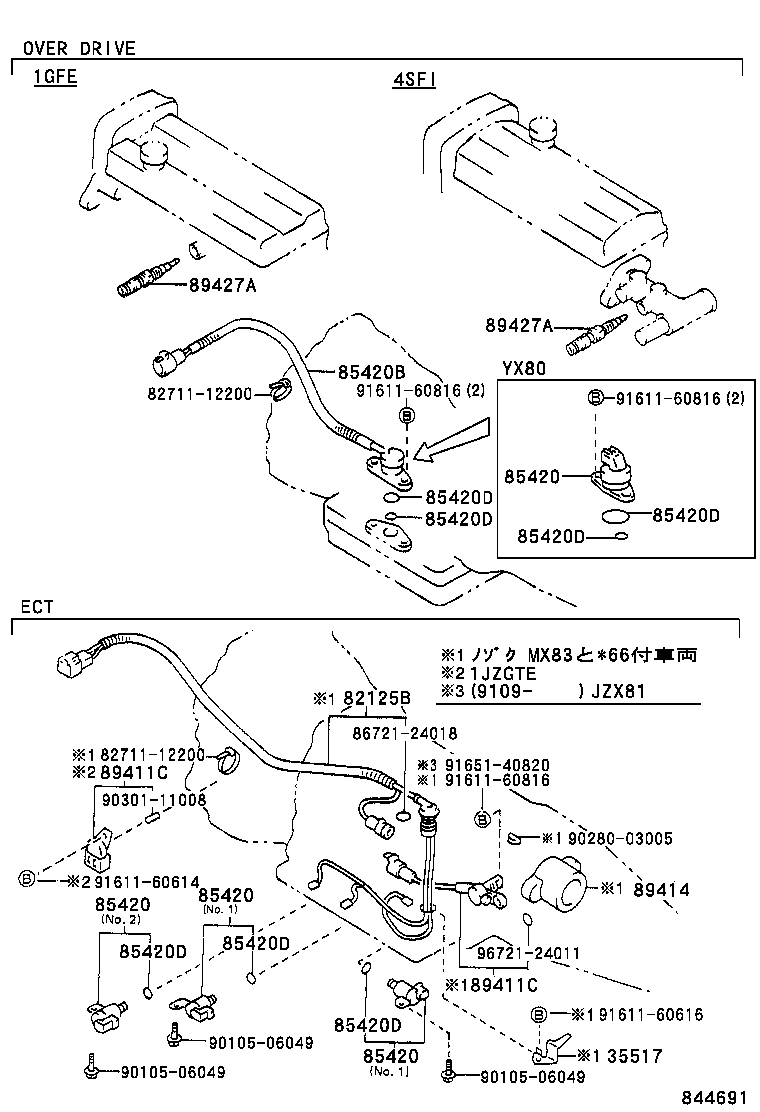

Figure NE5370 NE5370 1988-08 → — Figure 844691 844691 1988-08 → —

Part groups

PNCDescription
35517 Plate, Transmission Wire Lock
82125B Wire, Transmission
84720 Switch Assy, Pattern Select
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
89427A Switch, Temperature
89531 Relay, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
