Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

13 part groups · 2 illustrations

Illustrations

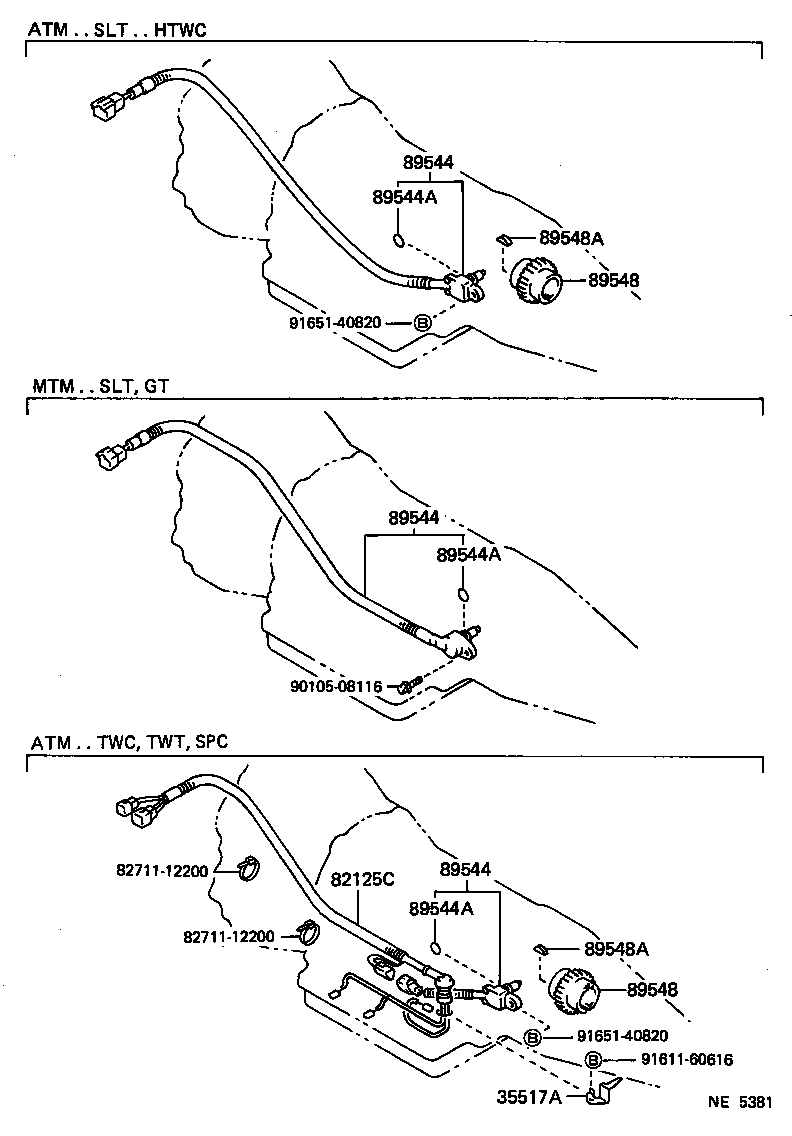

Figure NE5378E NE5378E 1988-08 → — Figure NE5381 NE5381 1988-08 → —

Part groups

PNCDescription
35517A Plate, Transmission Wire Lock
82125C Wire, Transmission
82219B Wire, Sensor
85999M Bracket, Relay
88263A Relay, Skid Control
89411 Sensor, Speed
89540 Computer Assy, Skid Control
89544 Sensor, Skid Control
89544A Ring, O (FOR SKID CONTROL SENSOR)
89548 Rotor, Skid Control Sensor
89548A Key, Woodruff (FOR SKID CONTROL SENSOR ROTOR)
89549 Bracket, Skid Control Computer
89638 Cover, Brake Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
