Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

18 part groups · 9 illustrations

Illustrations

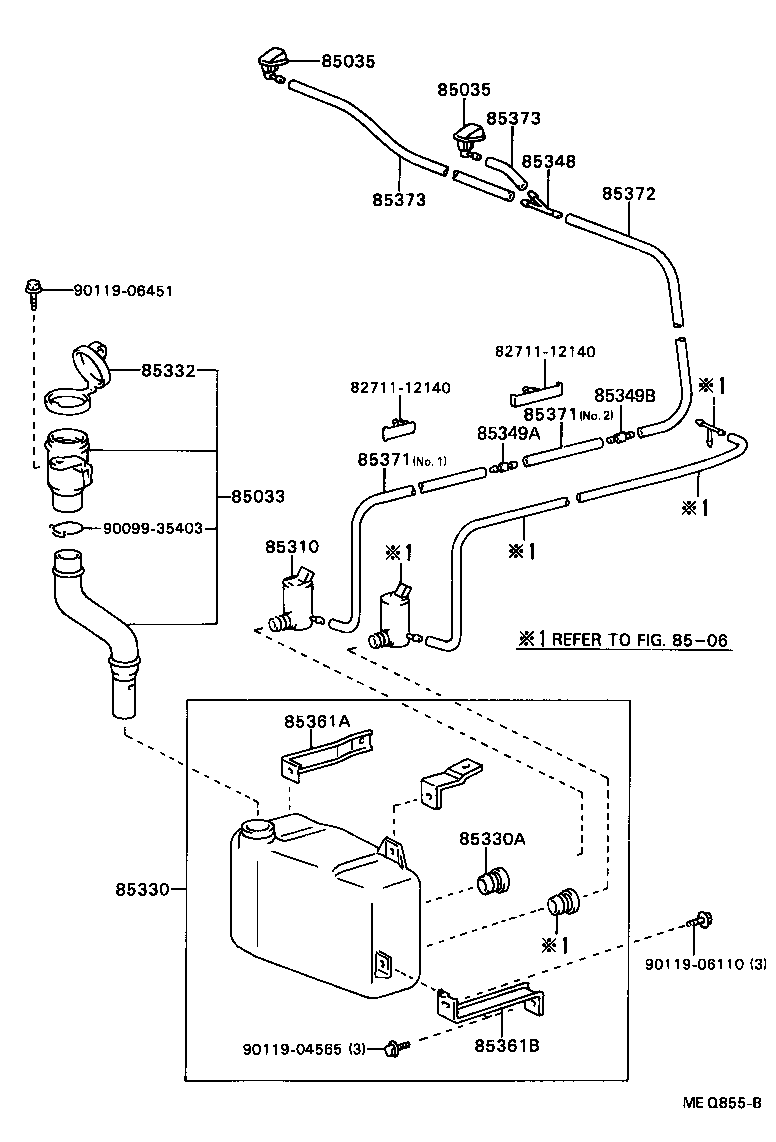

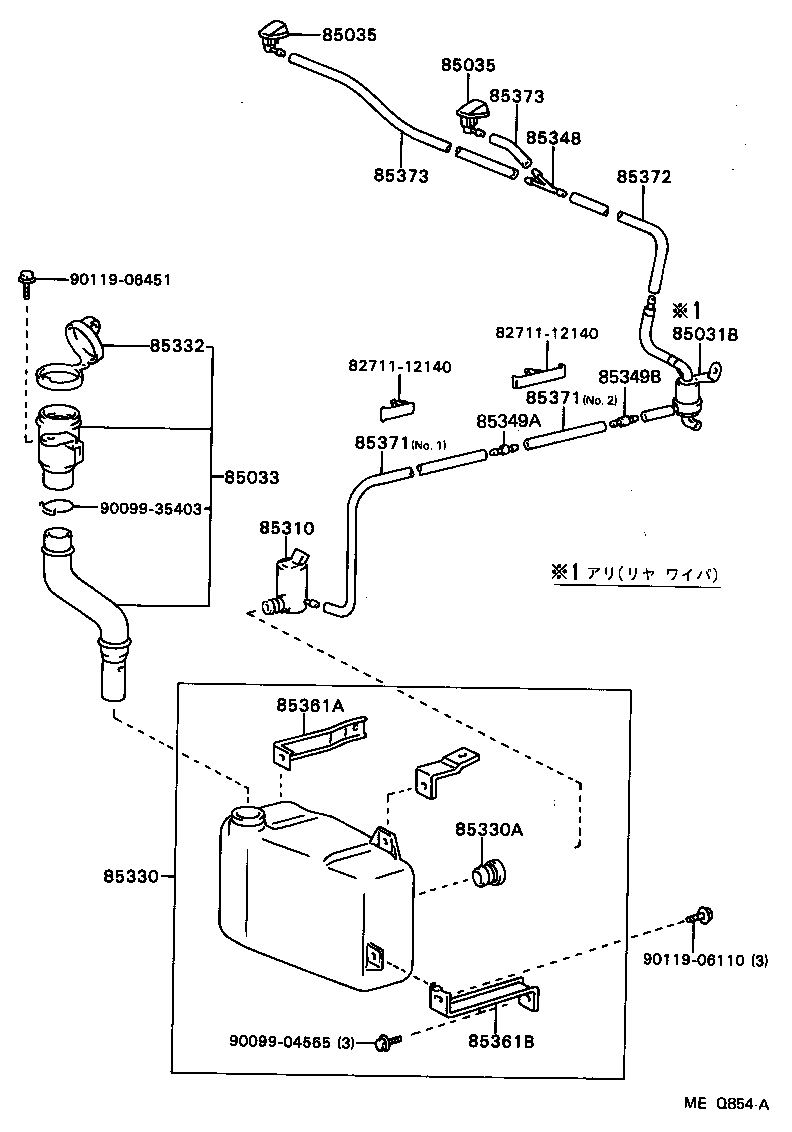

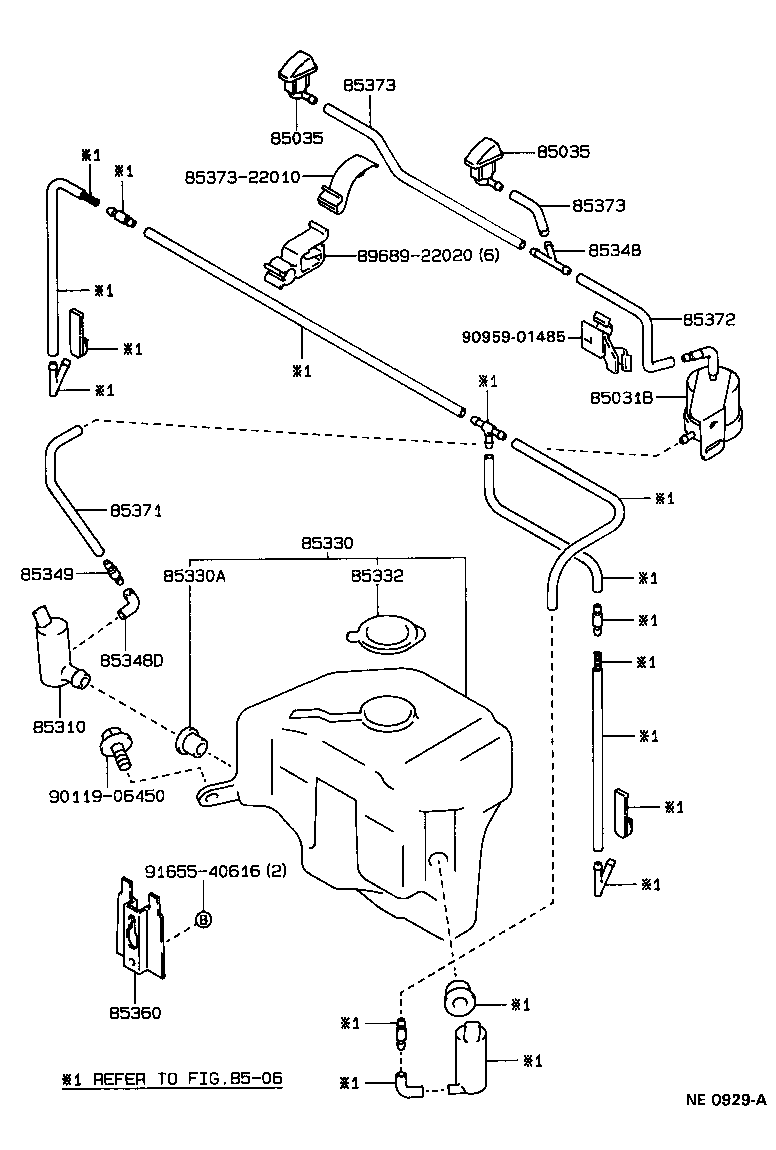

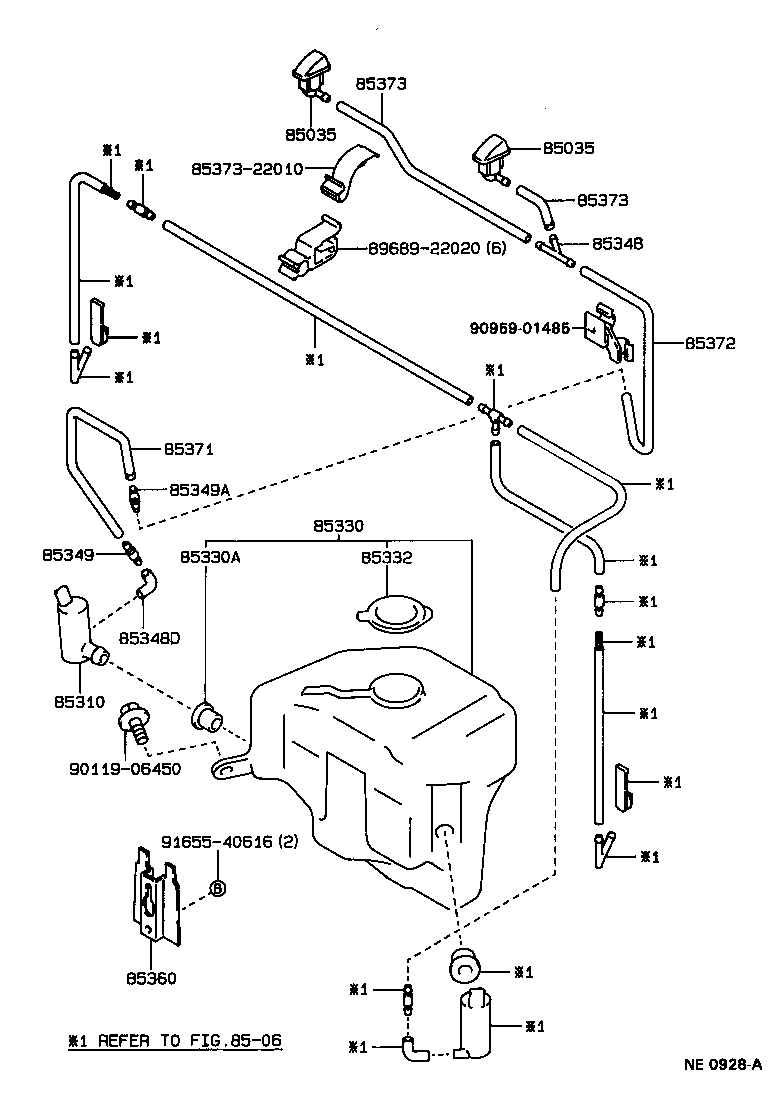

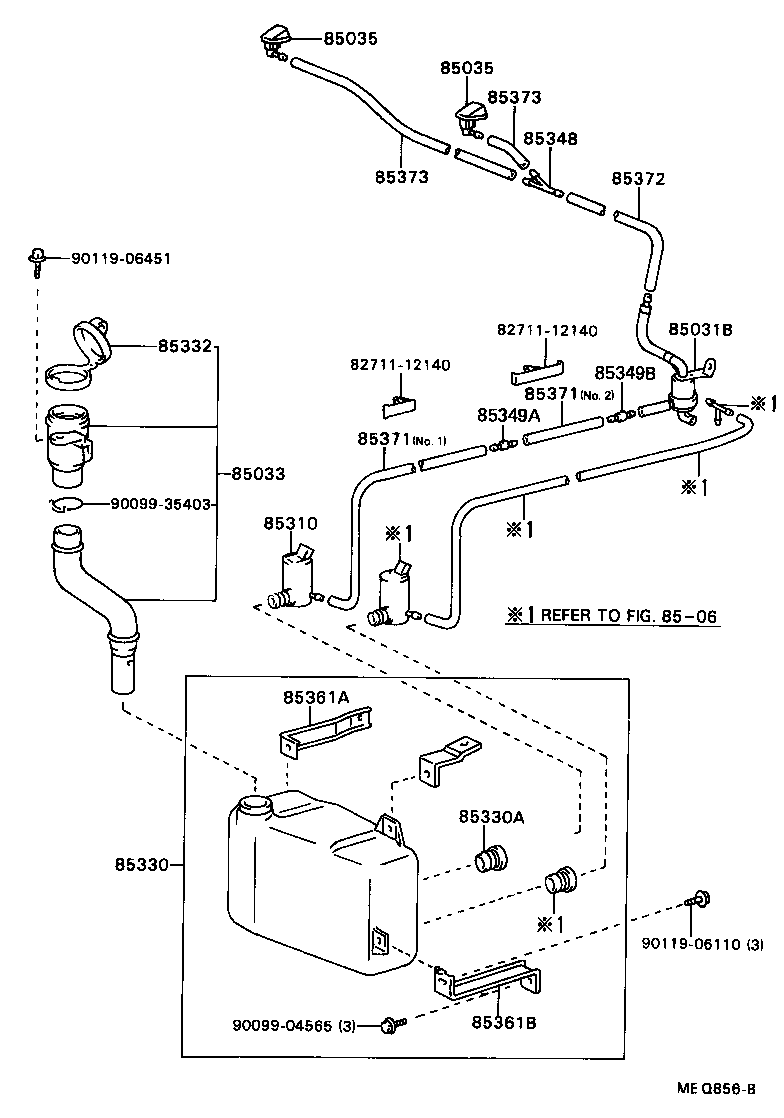

Figure NE0927A NE0927A 1988-08 → — Figure NE0927A NE0927A 1990-08 → — Figure MEQ854A MEQ854A 1990-08 → — Figure NE0928A NE0928A 1988-08 → — Figure NE0928A NE0928A 1990-08 → — Figure MEQ855B MEQ855B 1990-08 → — Figure NE0929A NE0929A 1988-08 → — Figure NE0929A NE0929A 1990-08 → — Figure MEQ856B MEQ856B 1990-08 → —

Part groups

PNCDescription
85031B Valve Sub-assy, Washer
85033 Cap Assy, Windshield Washer
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85349 Joint, Windshield Washer Hose, NO.1
85349A Joint, Windshield Washer Hose, NO.2
85349B Joint, Windshield Washer Hose, NO.3
85360 Bracket Assy, Windshield Washer
85361A Bracket, Windshield Washer, NO.1
85361B Bracket, Windshield Washer, NO.2
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
