Toyota Cresta
1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan
Discontinued model
Data version 1993-06

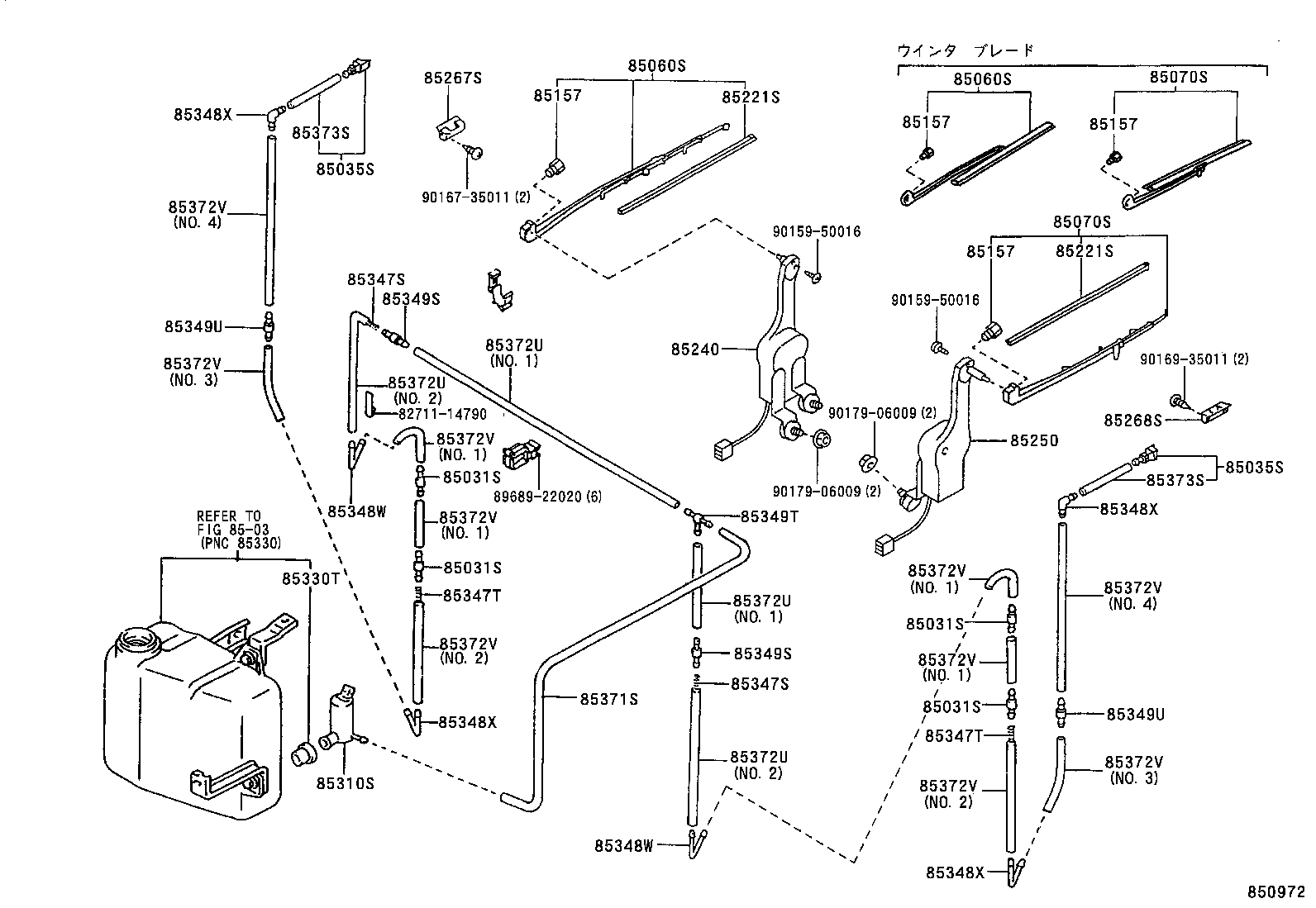

Side Wiper
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031S | Valve Sub-assy, Washer |
| 85035S | Nozzle Sub-assy, Washer |
| 85060S | Arm And Blade Assy, Sid Wiper, RH |
| 85070S | Arm And Blade Assy, Sid Wiper, LH |
| 85157 | Screw, Wiper |
| 85221S | Rubber, Wiper Blade |
| 85240 | Motor Assy, Side Window Wiper, RH |
| 85250 | Motor Assy, Side Window Wiper, LH |
| 85267S | Step, Linear Wiper, RH |
| 85268S | Step, Linear Wiper, LH |
| 85310S | Moter And Pump Assy, Washer |
| 85330T | Bush, Washer |
| 85347S | Spring |
| 85347T | Spring |
| 85348W | Joint, Washer Elbow, NO.1 |
| 85348X | Joint, Washer Elbow, NO.2 |
| 85349S | Joint, Washer Hose, NO.1 |
| 85349T | Joint, Washer Hose, NO.2 |
| 85349U | Joint, Washer Hose, NO.3 |
| 85371S | Hose, Sid Washer |
| 85372U | Hose, Side Washer |
| 85372V | Hose, Side Washer |
| 85373S | Hose, Sid Washer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
