Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

8 part groups · 3 illustrations

Illustrations

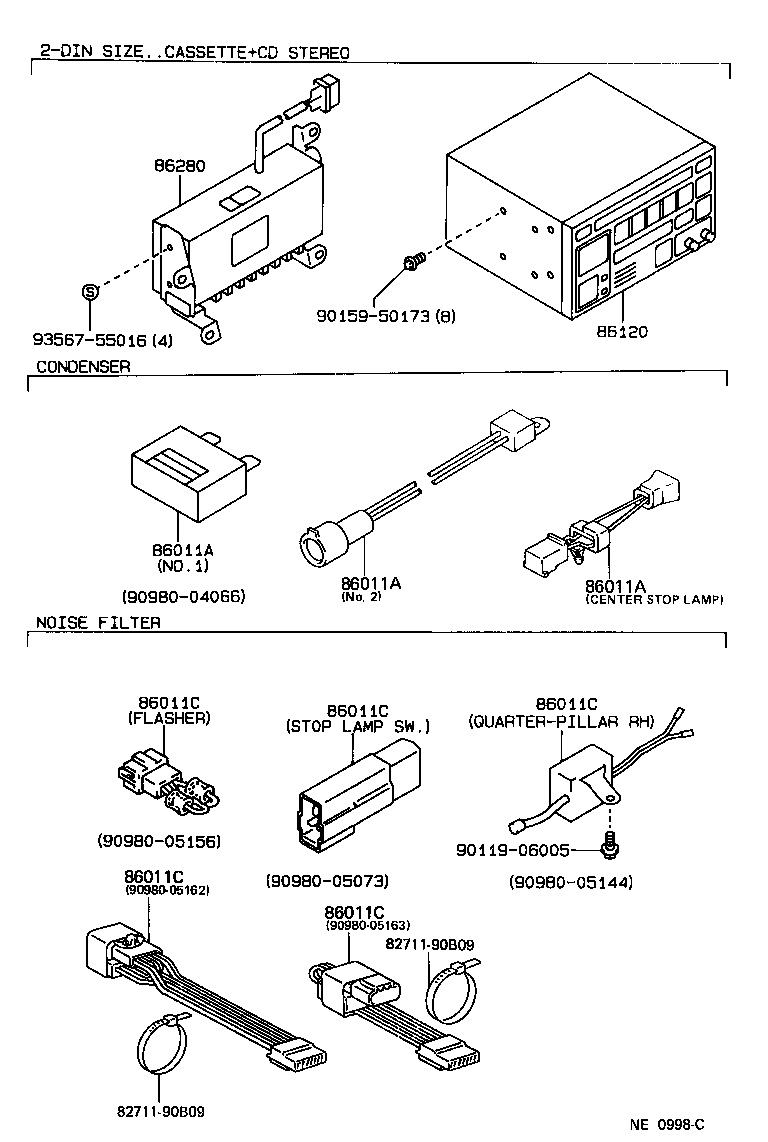

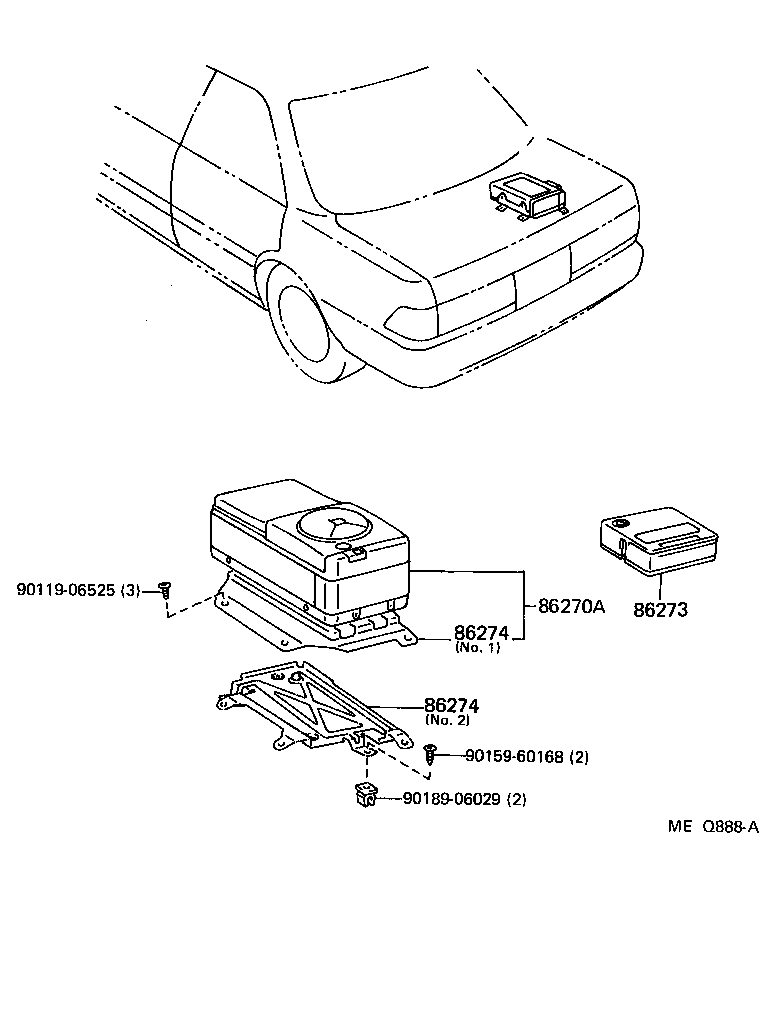

Figure NE0997 NE0997 1988-08 → — Figure NE0998C NE0998C 1988-08 → — Figure MEQ888A MEQ888A 1990-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86260 Tape Player Assy
86270A Disc Player Assy
86273 Magazine, Disc Player
86274 Bracket, Disc Player
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
