Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 6 illustrations

Illustrations

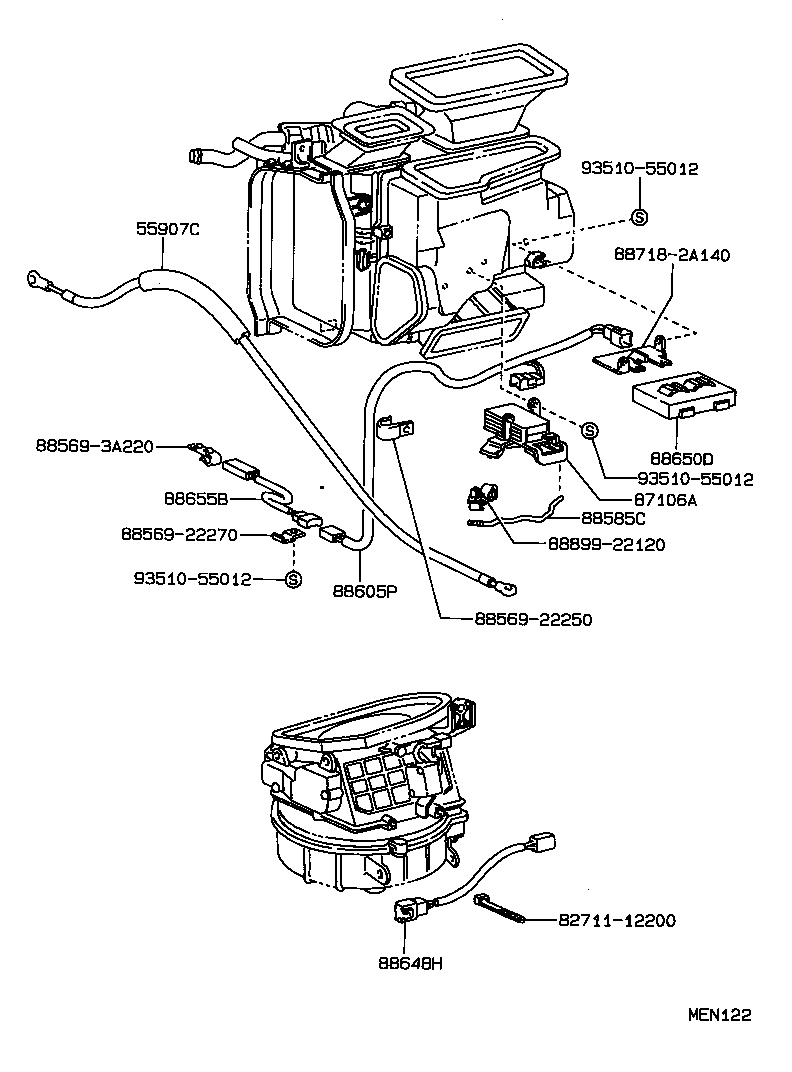

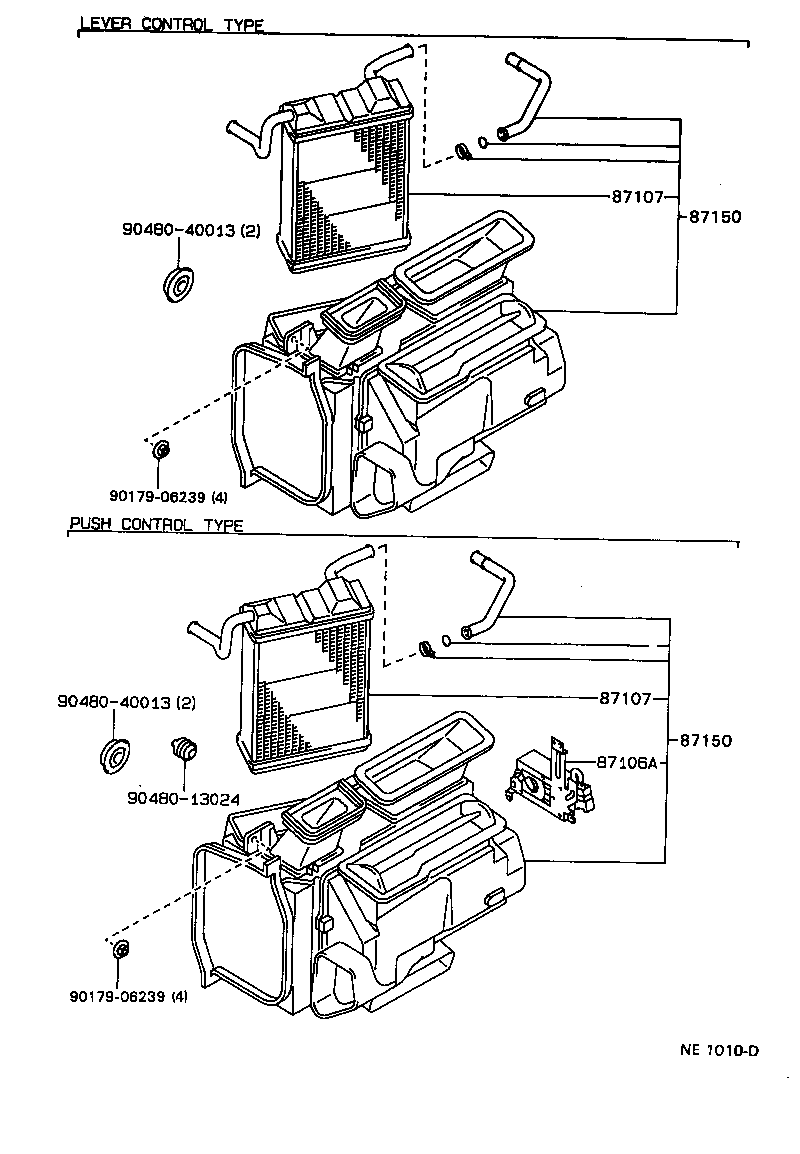

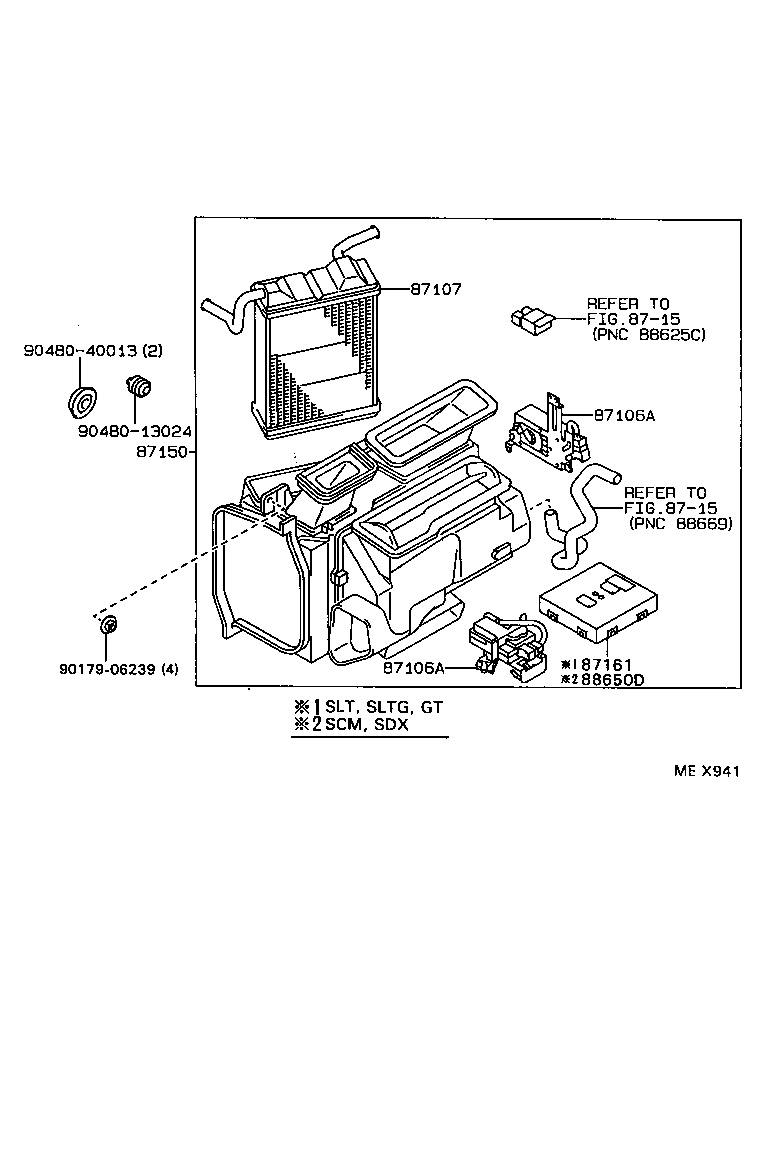

Figure NE1009D NE1009D 1988-08 → — Figure NE1010D NE1010D 1988-08 → 1990-08 Figure NE1010D NE1010D 1990-08 → — Figure MEX941 MEX941 1988-08 → 1990-08 Figure MEX941 MEX941 1990-08 → — Figure MEN122 MEN122 1988-08 → 1990-08

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87105 Fan Sub-assy, Heater Blower
87106A Servo Sub-assy, Damper
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87161 Amplifier, Heater Servo Motor
88585C Shaft
88605P Harness Sub-assy, Air Conditioner Wiring
88648H Wire, Air Conditioner
88650D Amplifier Assy
88655B Switch, Water Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
