Toyota Cresta

1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan

Discontinued model Data version 1993-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

19 part groups · 7 illustrations

Illustrations

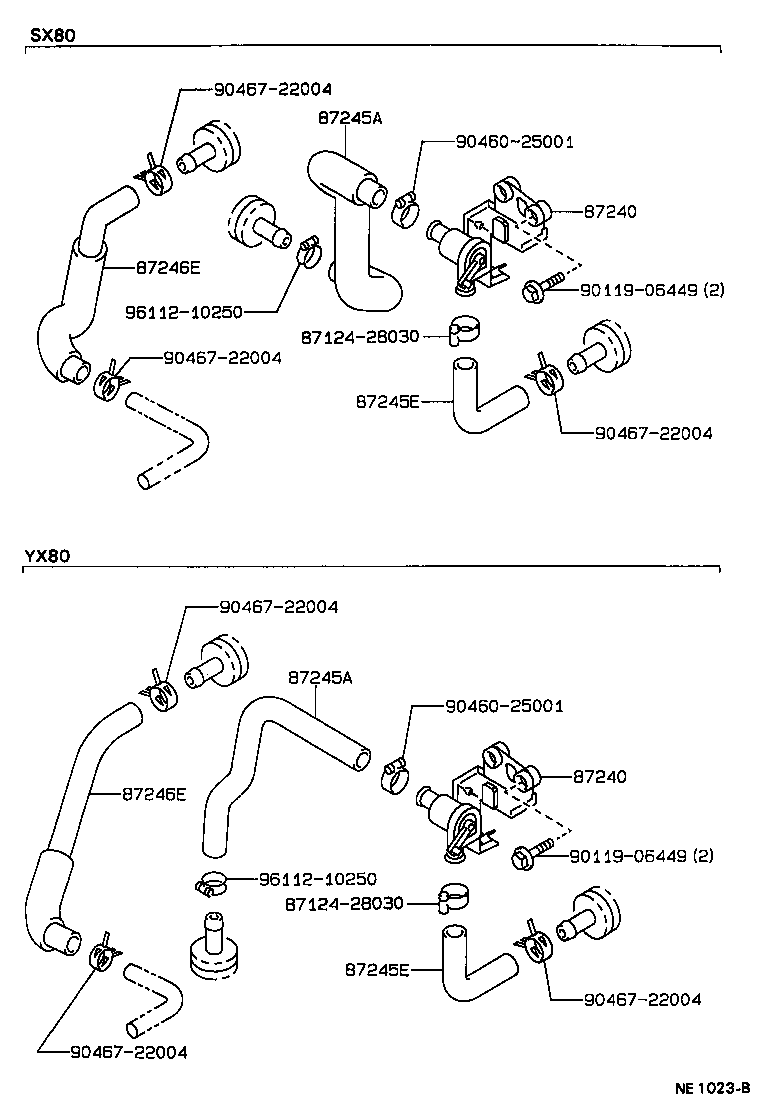

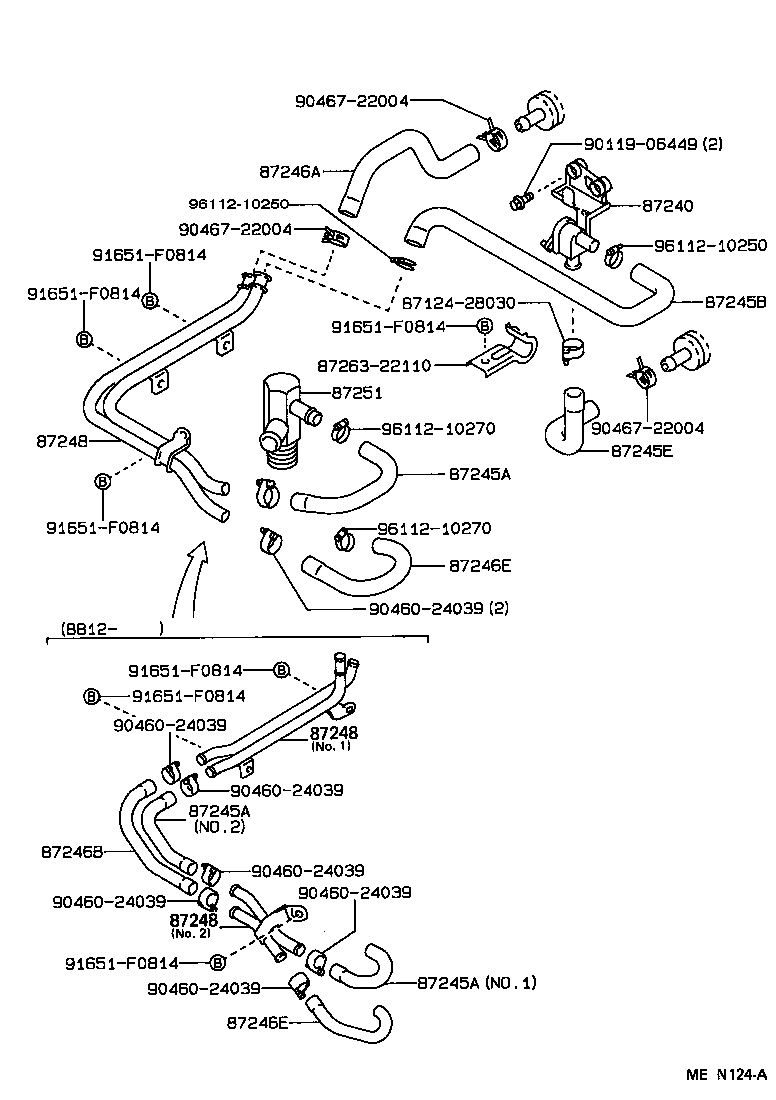

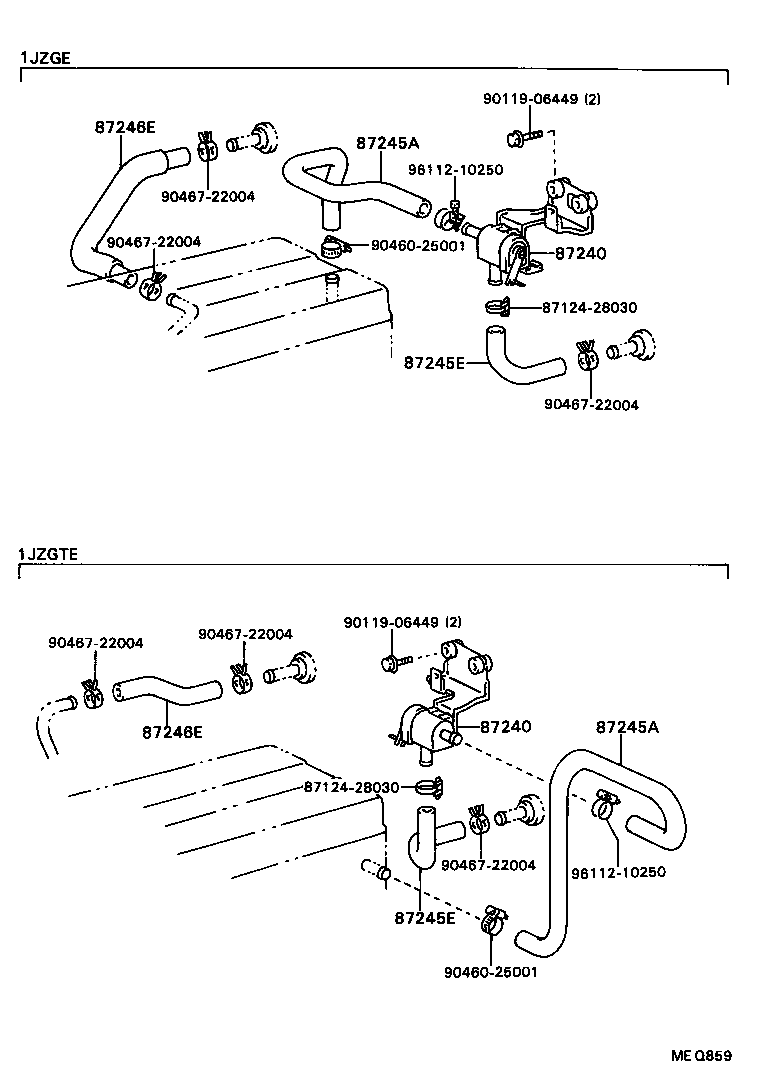

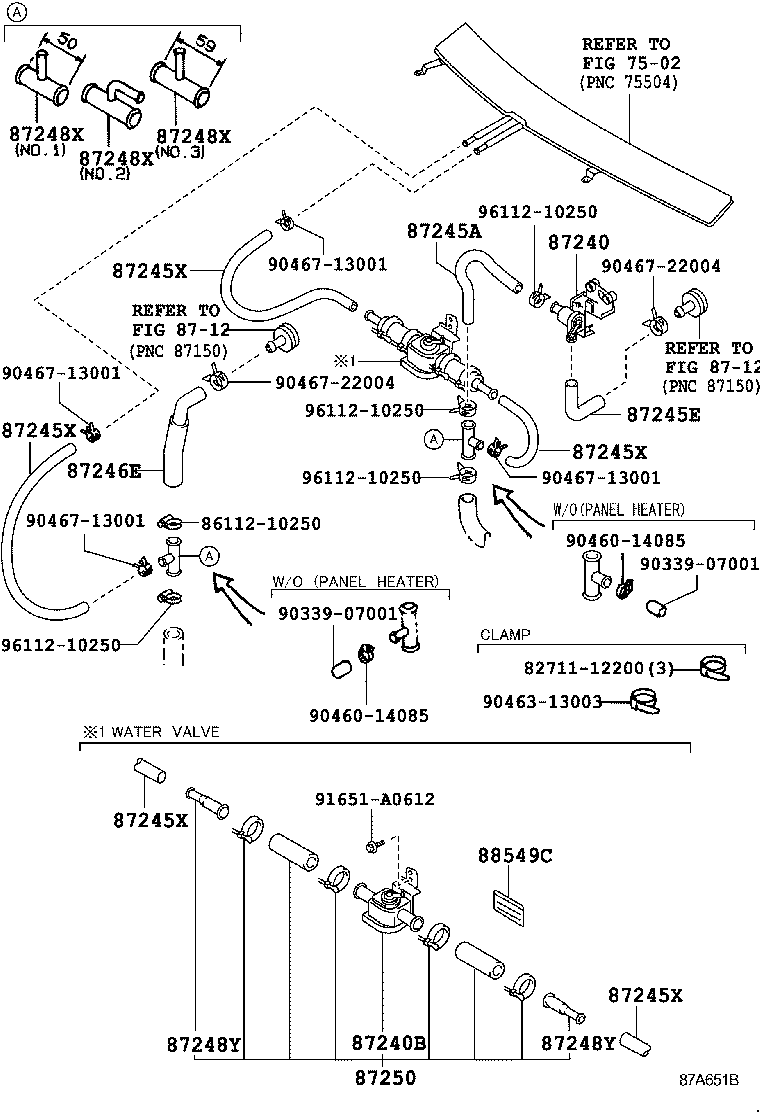

Figure NE1024G NE1024G 1988-08 → — Figure NE1025C NE1025C 1988-08 → 1990-08 Figure MEN124A MEN124A 1988-08 → — Figure MEN125 MEN125 1989-08 → — Figure MEQ859 MEQ859 1990-08 → — Figure NE1023B NE1023B 1988-08 → — Figure 87A651B 87A651B 1988-11 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87240B Valve Assy, Heater Water, NO.2
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87248 Pipe Sub-assy, Water
87248A Pipe, Heater Water Inlet, A
87248X Pipe, Heater Water
87248Y Pipe, Heater Water, NO.2
87249A Pipe, Heater Water Outlet, A
87250 Hose And Valve Assy
87251 Joint OR Union, Water Hose Through
88549C Plate, Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
