Toyota Cresta
1988-08 → 1992-10 · chassis GX81,LX80,MX83,SX80,YX80,JZX81 · catalogue 313160 · Japan
Discontinued model
Data version 1993-06

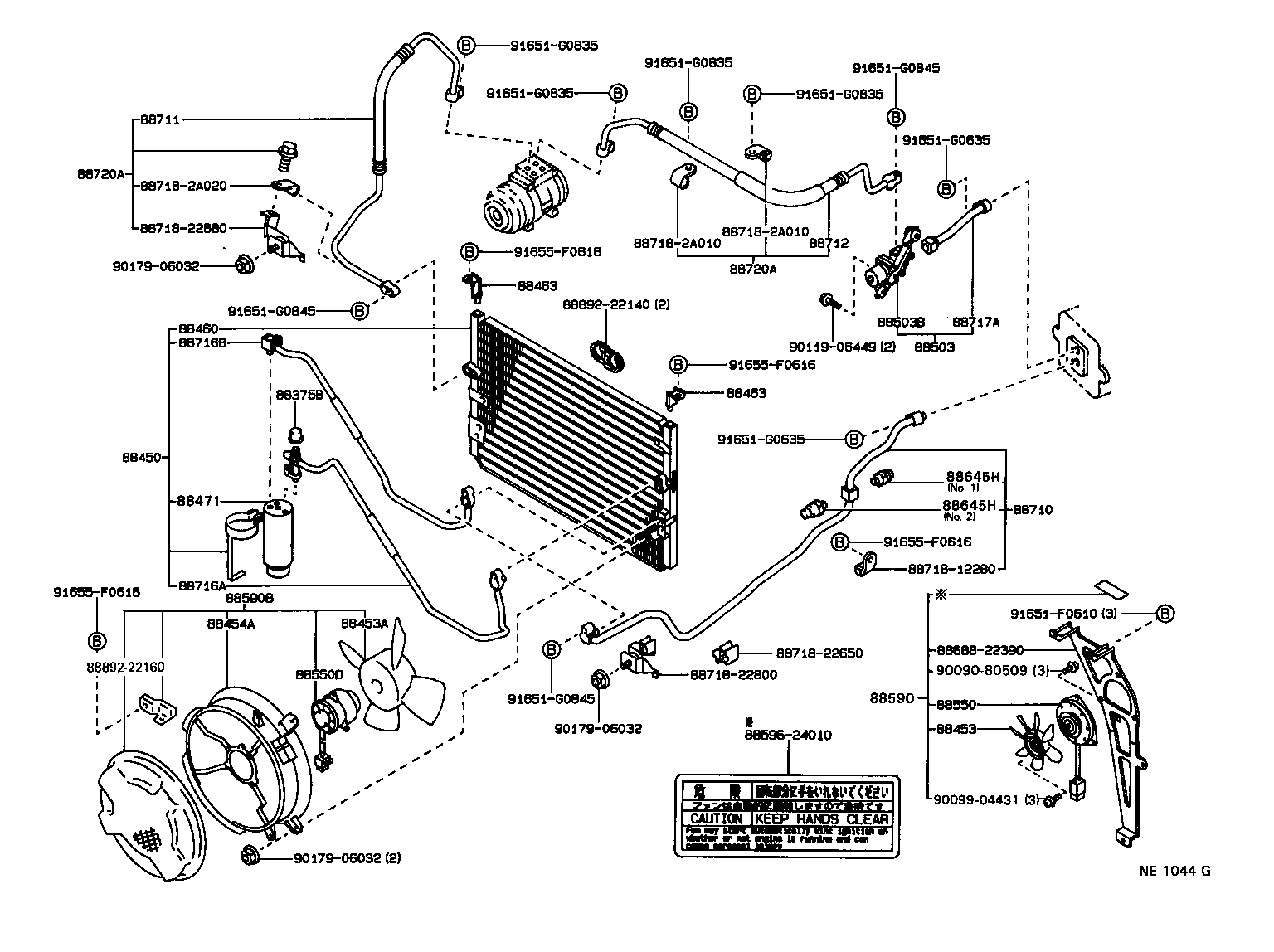

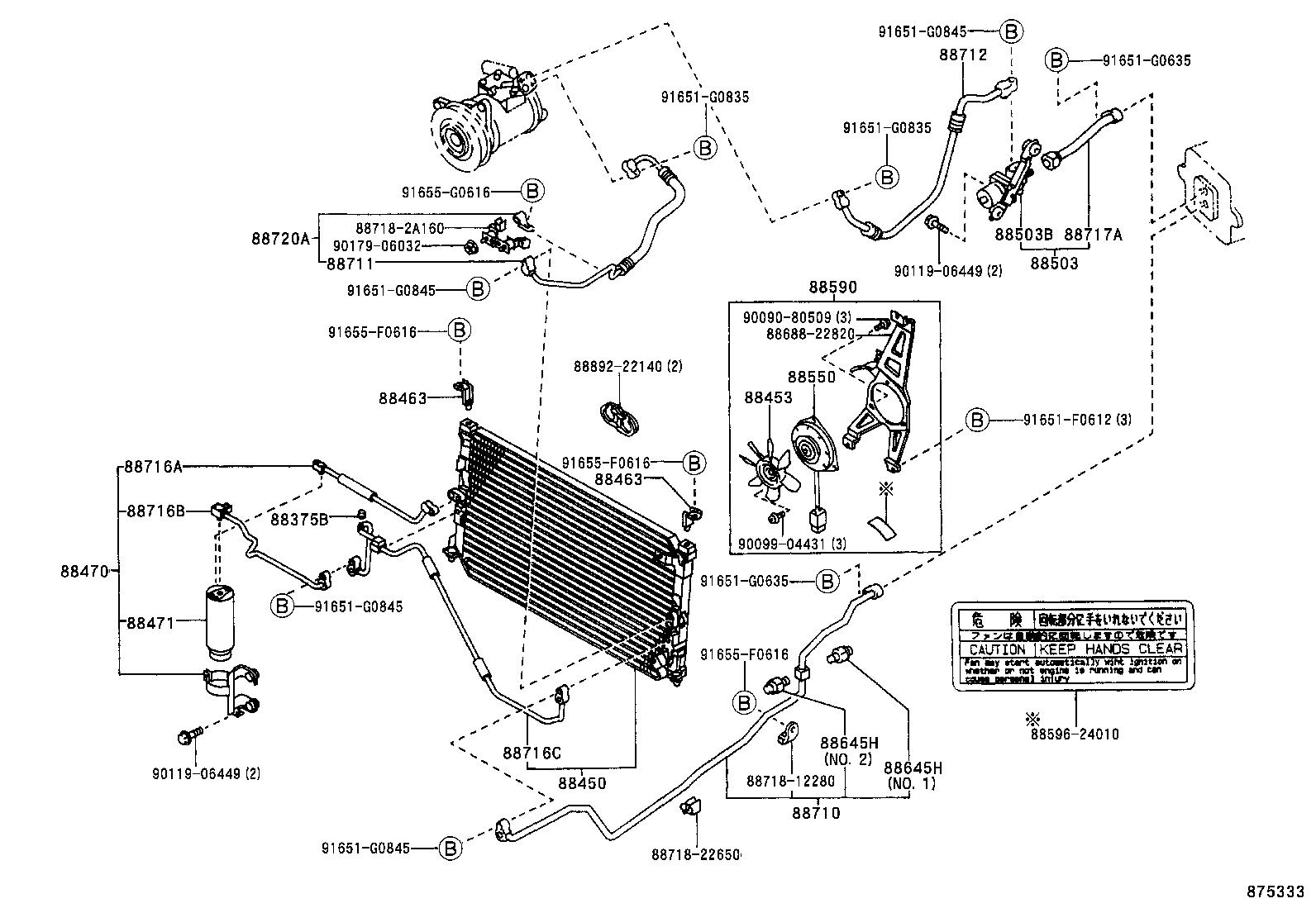

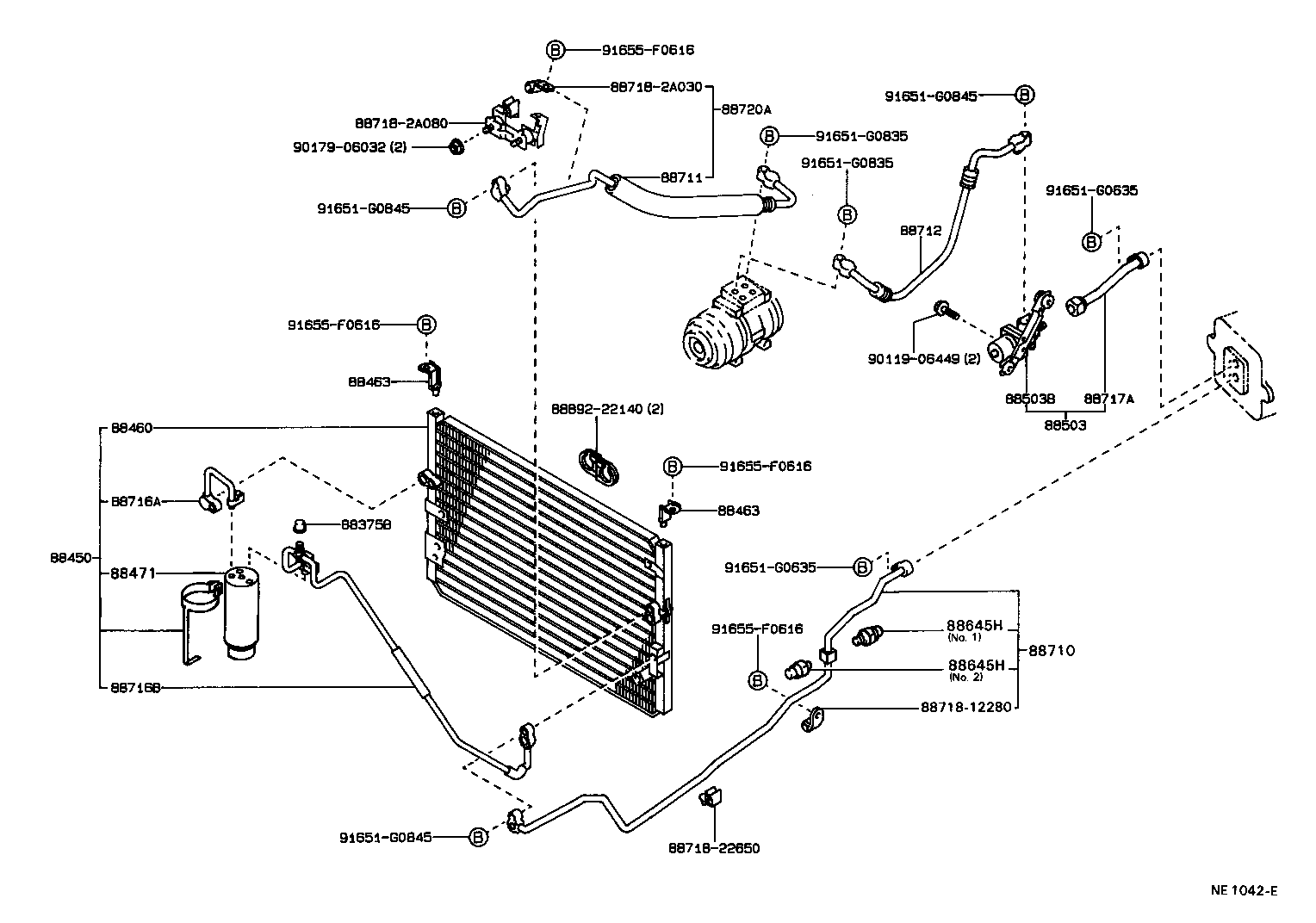

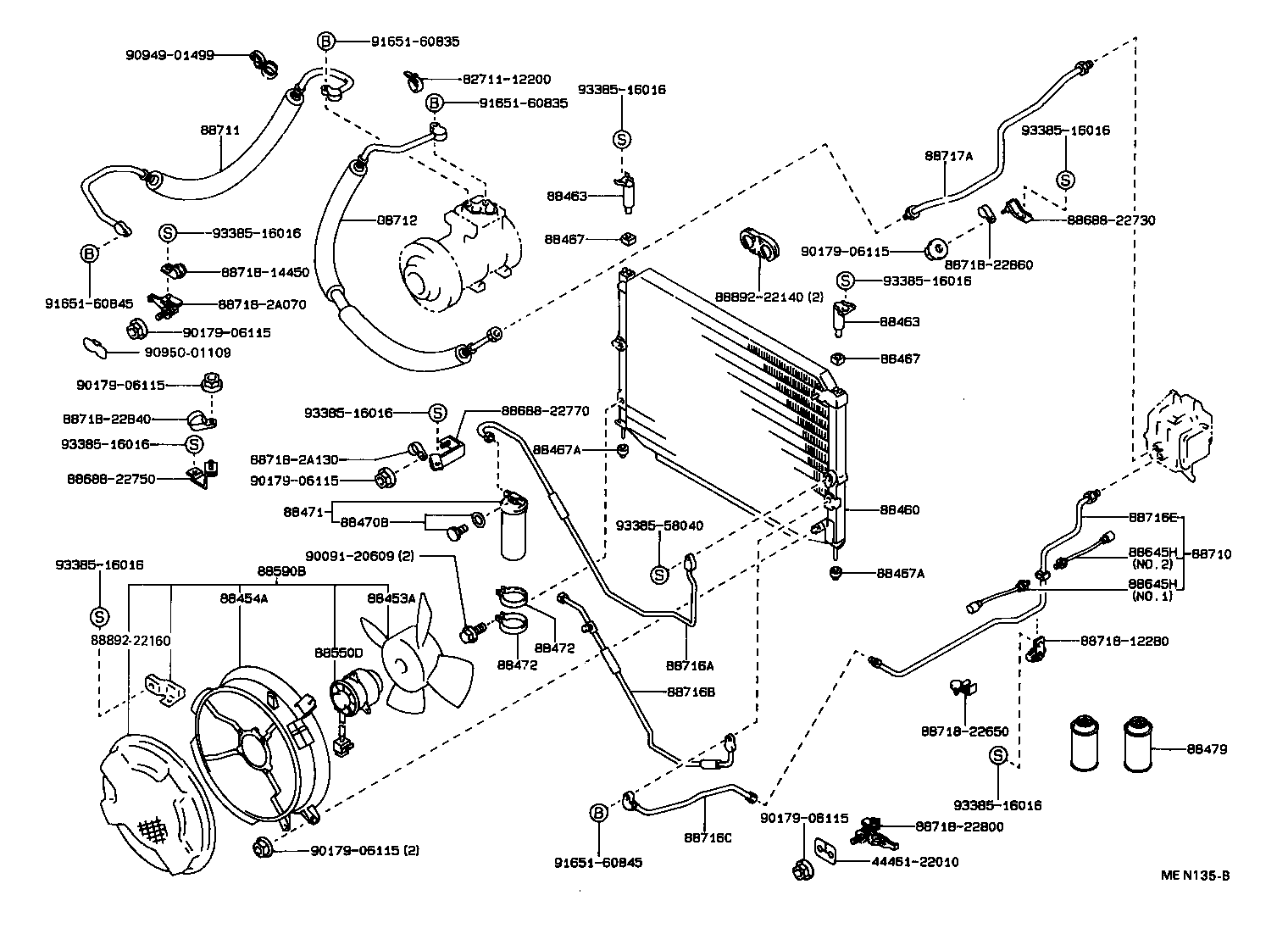

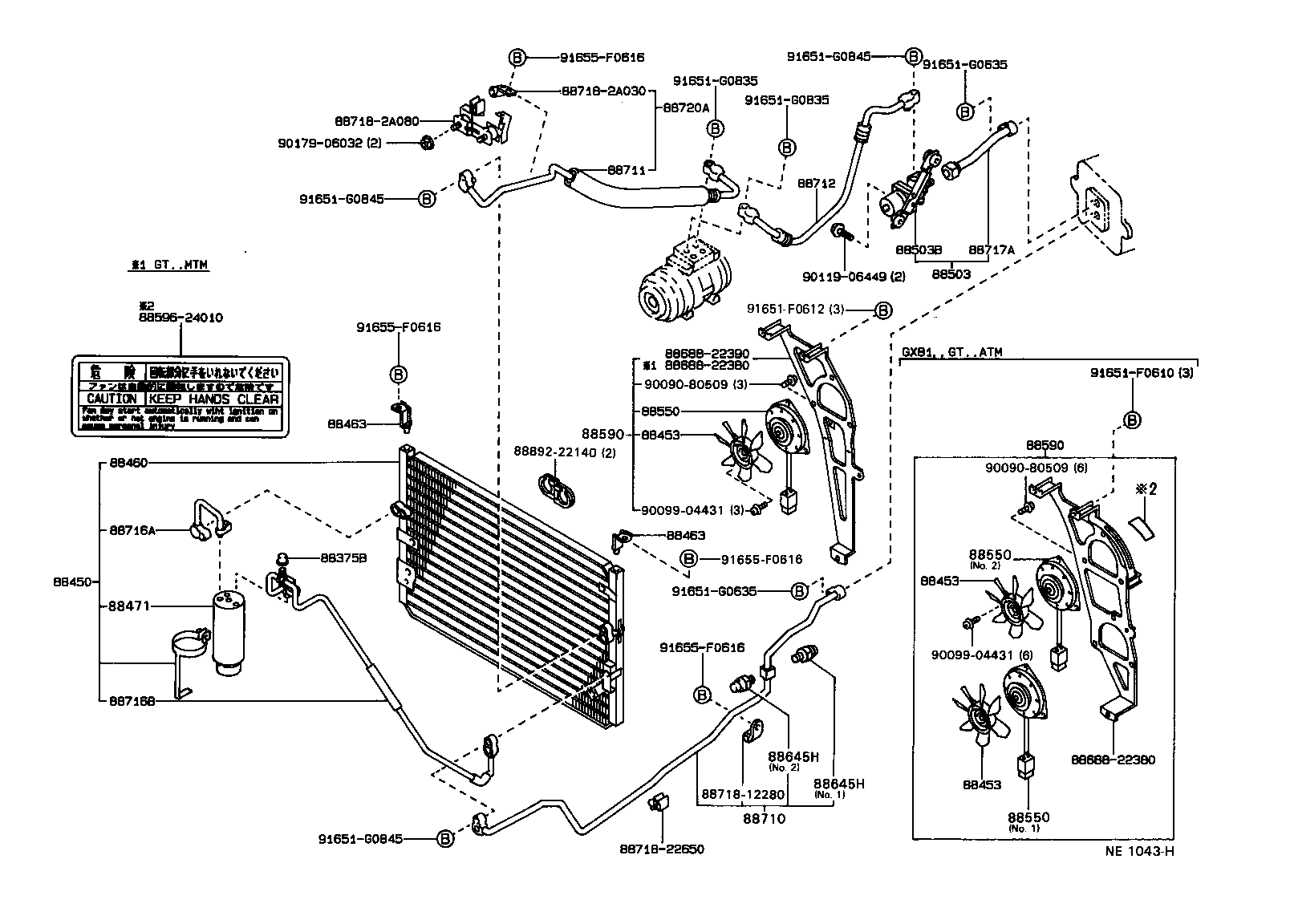

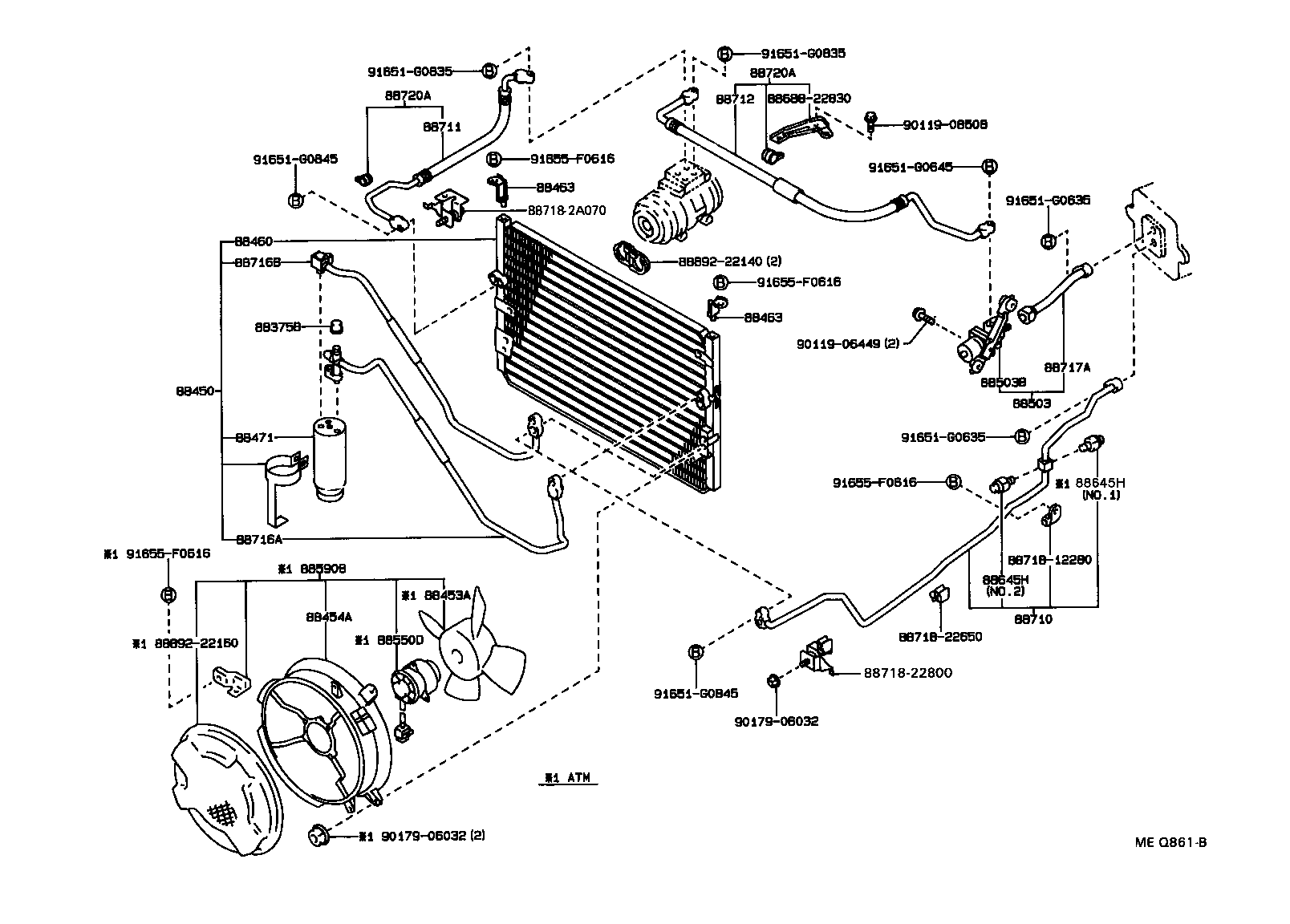

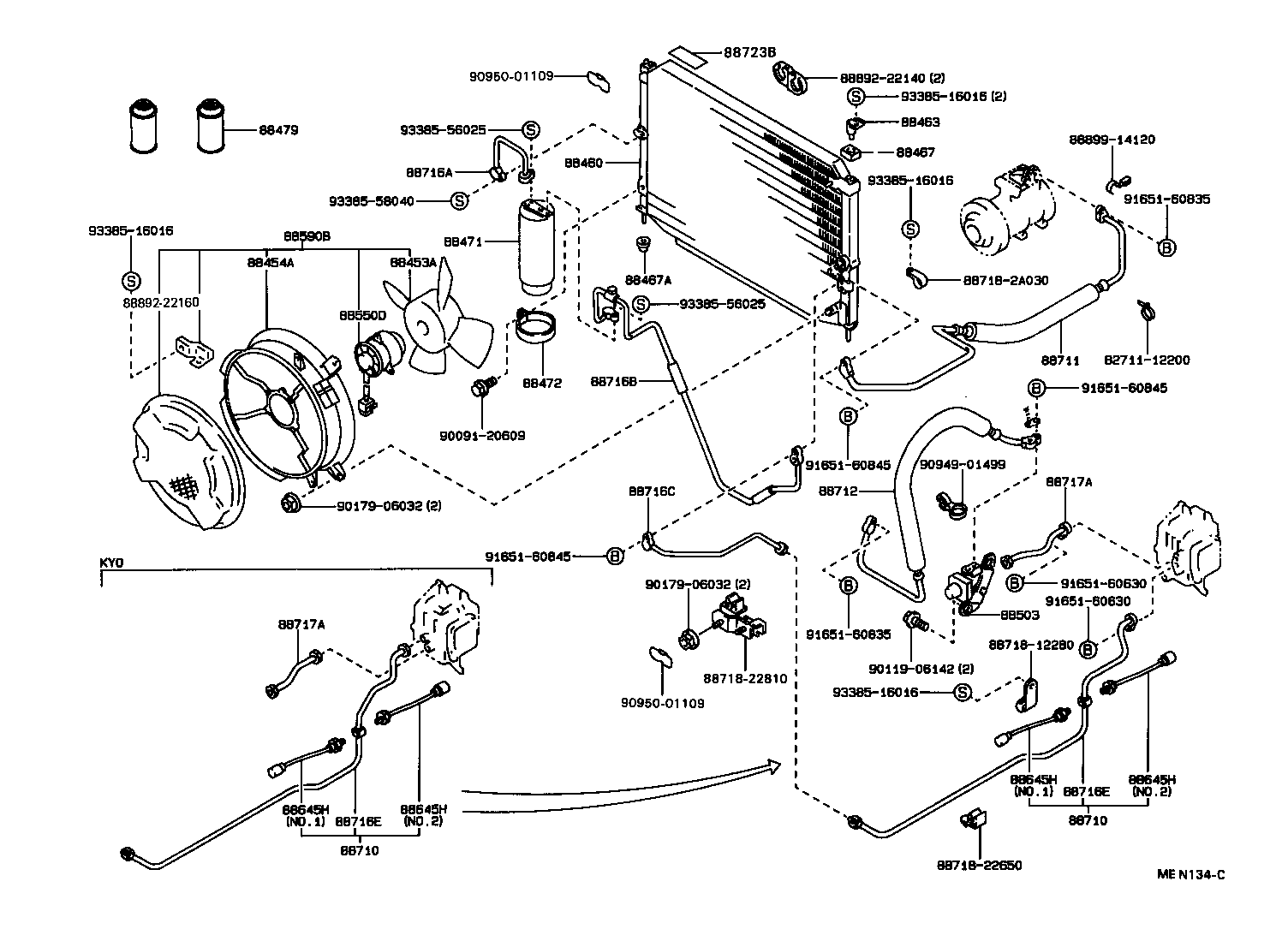

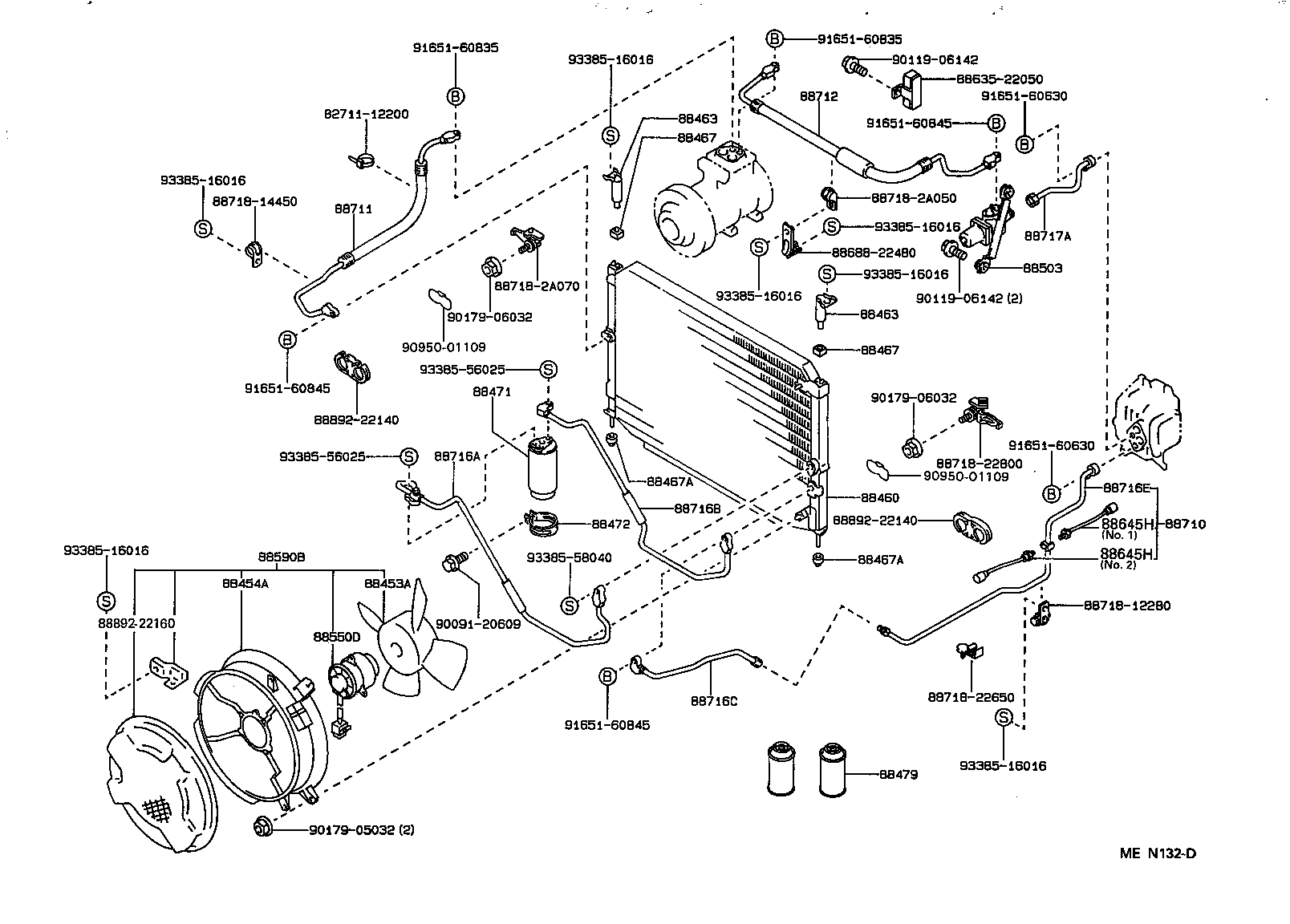

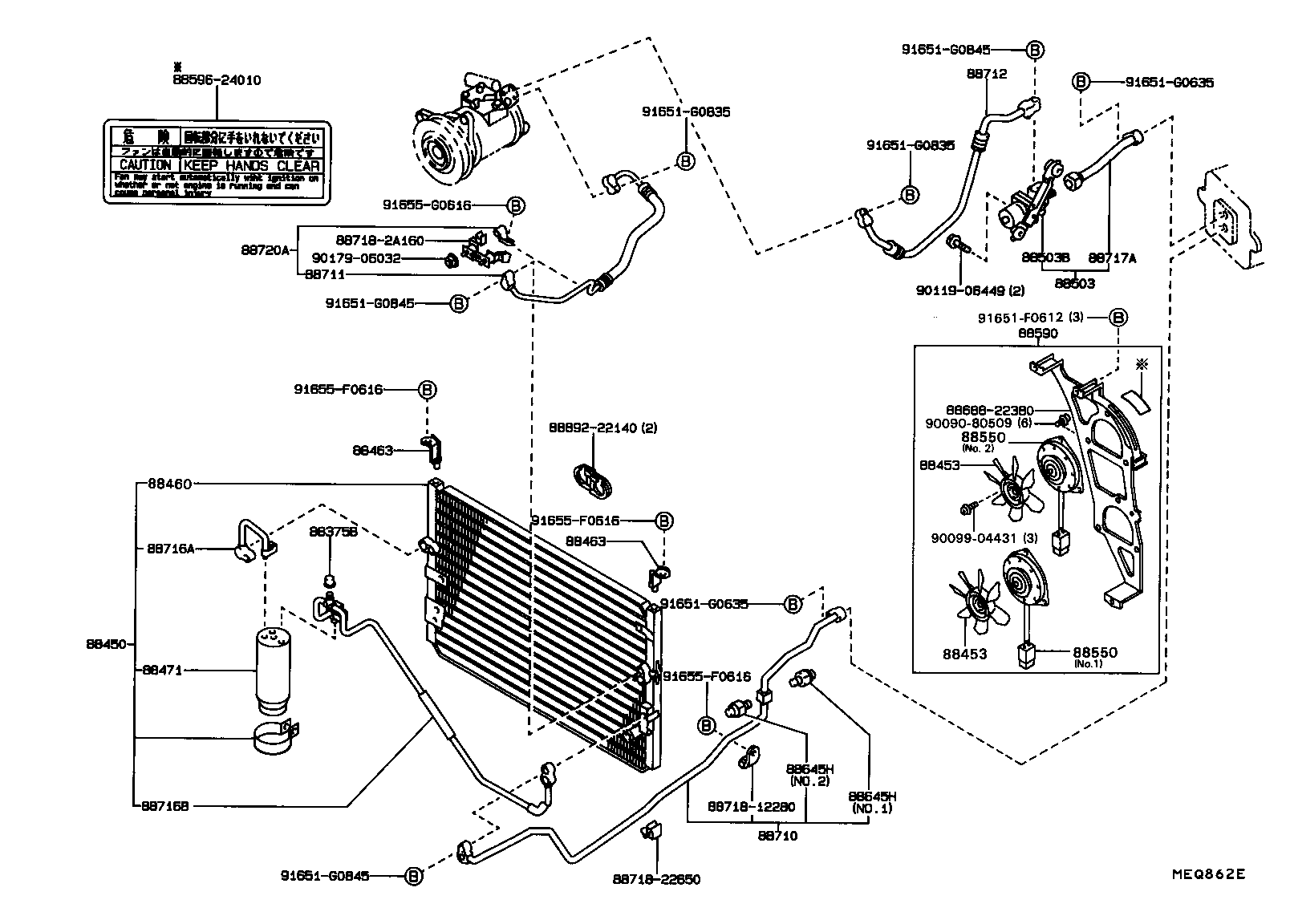

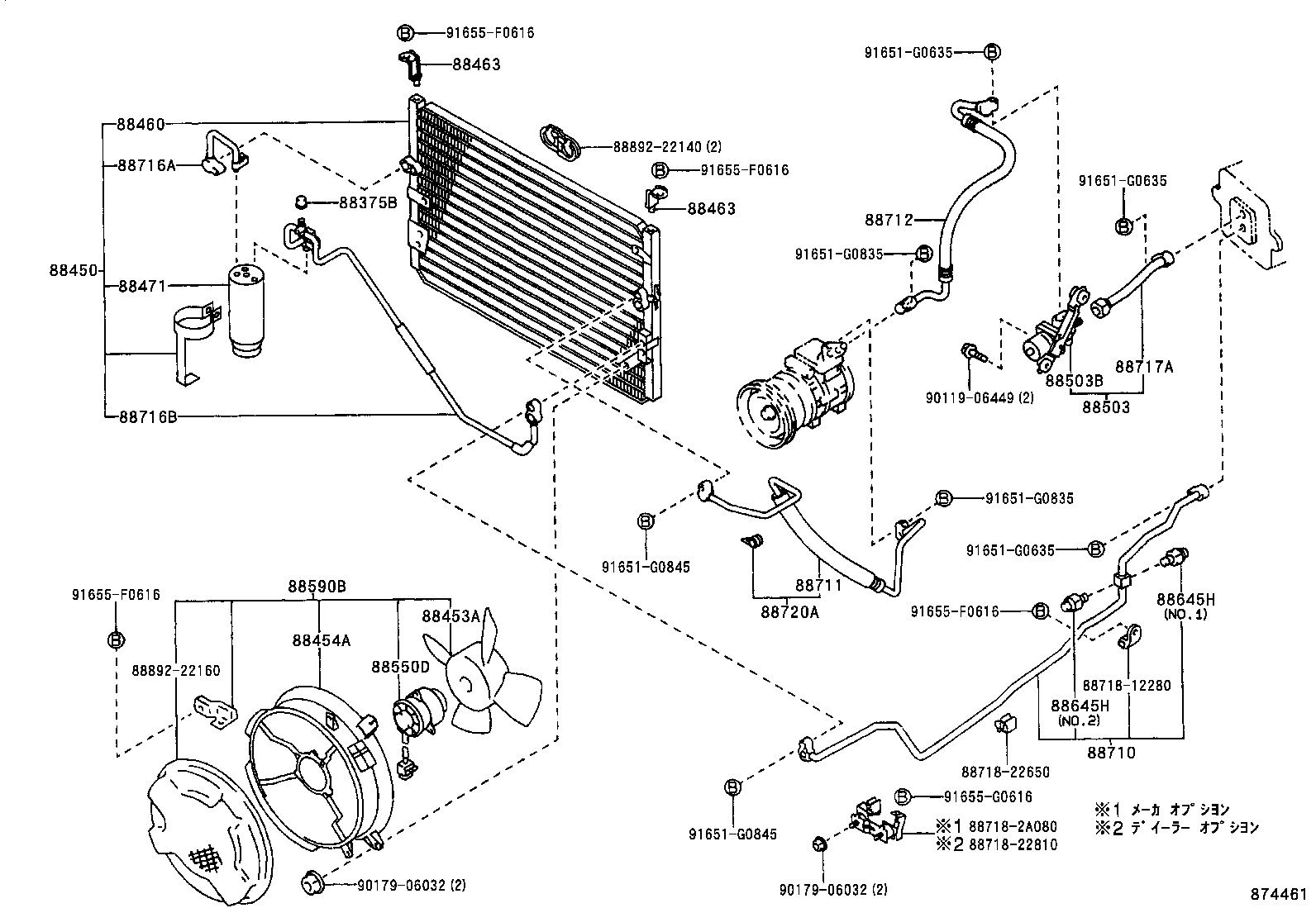

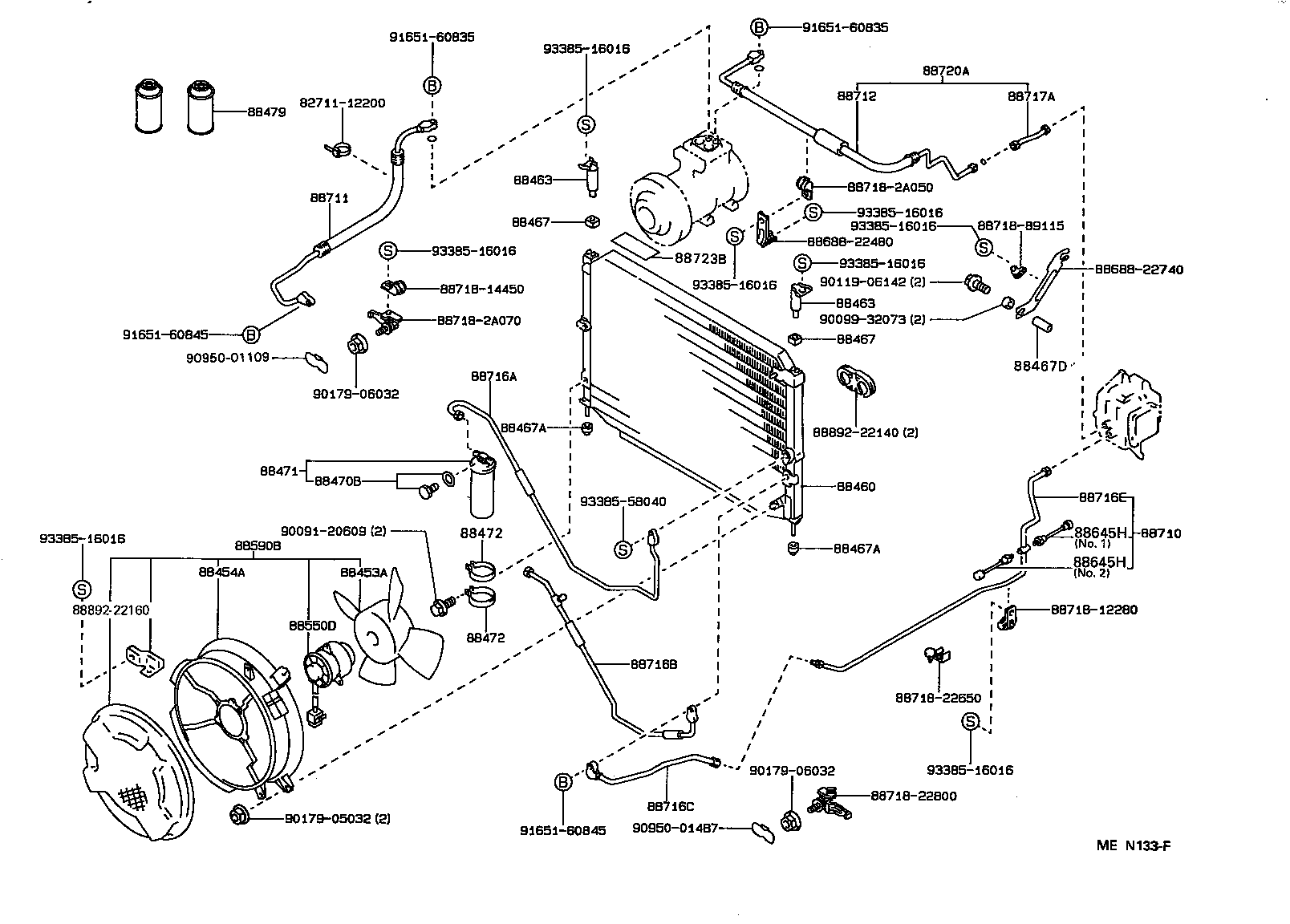

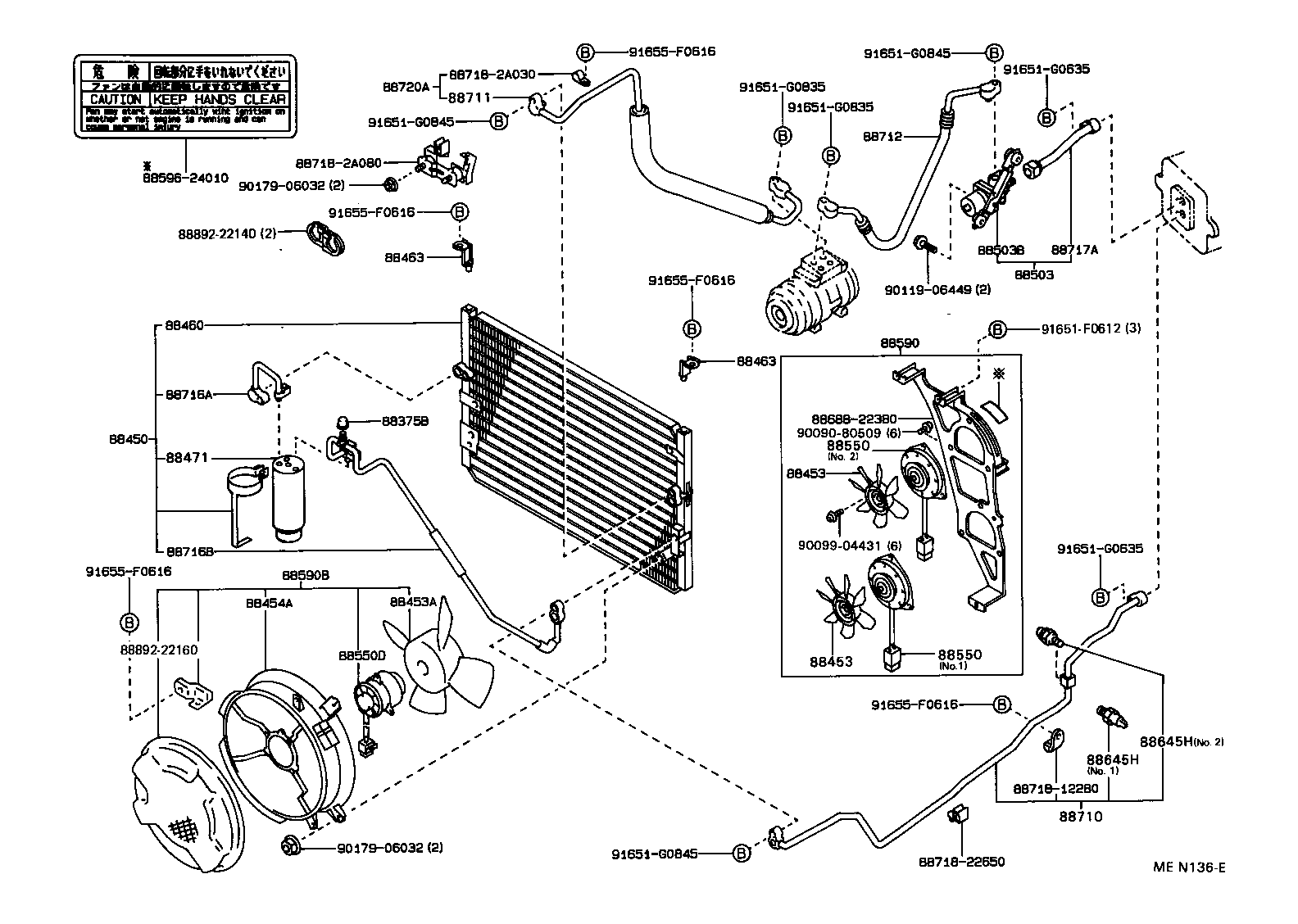

Heating & Air Conditioning - Cooler Piping
32 part groups · 16 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 88375B | Cap, Service Valve, NO.1 |
| 88450 | Condenser Assy, W/Receiver |
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88453A | Fan, Cooling |
| 88454A | Shroud, Fan |
| 88460 | Condenser Assy, Cooler |
| 88463 | Bracket, Cooler Condenser, NO.1 |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88467A | Cushion, Cooler Condenser, NO.2 |
| 88467D | Cushion, Cooler Refrigerant Pipe Clamp |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88470B | Bolt, Fuse |
| 88471 | Tank, Receiver Air Conditioner |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88503 | Regulator Assy, Pressure |
| 88503B | Regulator Sub-assy, Pressure |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88550D | Motor Assy, Blower |
| 88590 | Blower Assy, W/Shroud |
| 88590B | Blower Assy, W/Shroud |
| 88645H | Switch, Pressure NO.1 |
| 88710 | Tube Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88720A | Hose & Accessory, Air Conditioner |
| 88723B | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
