Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06
Camshaft & Valve

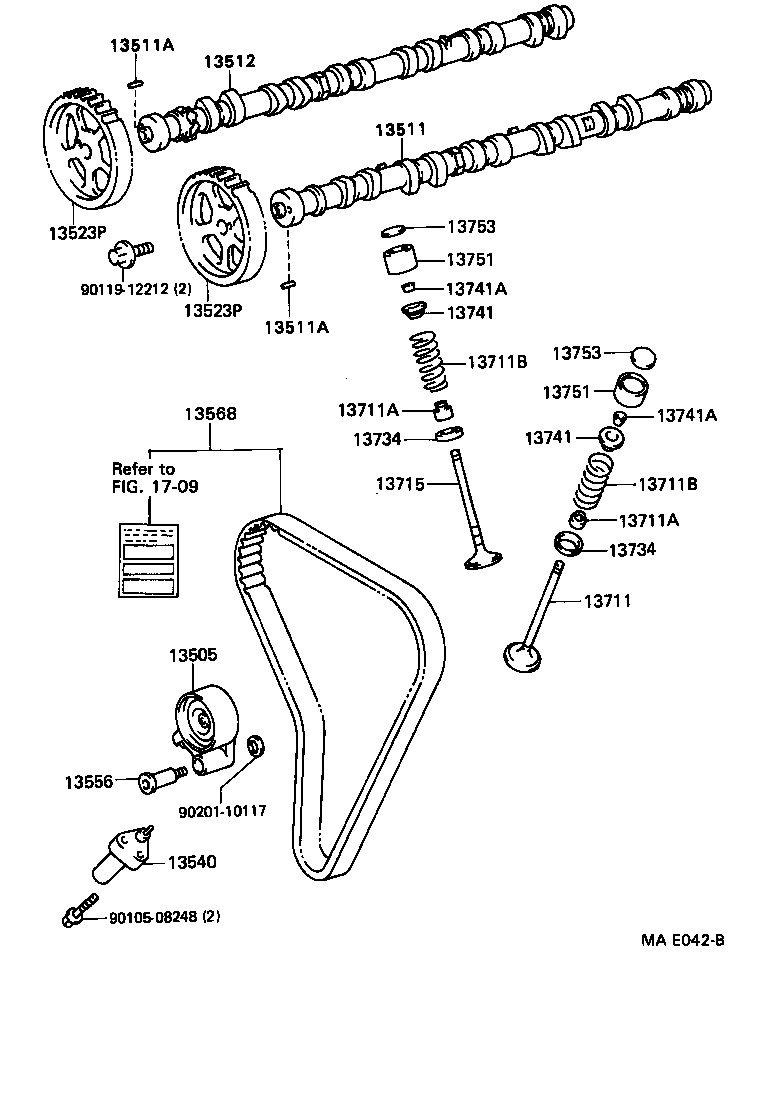

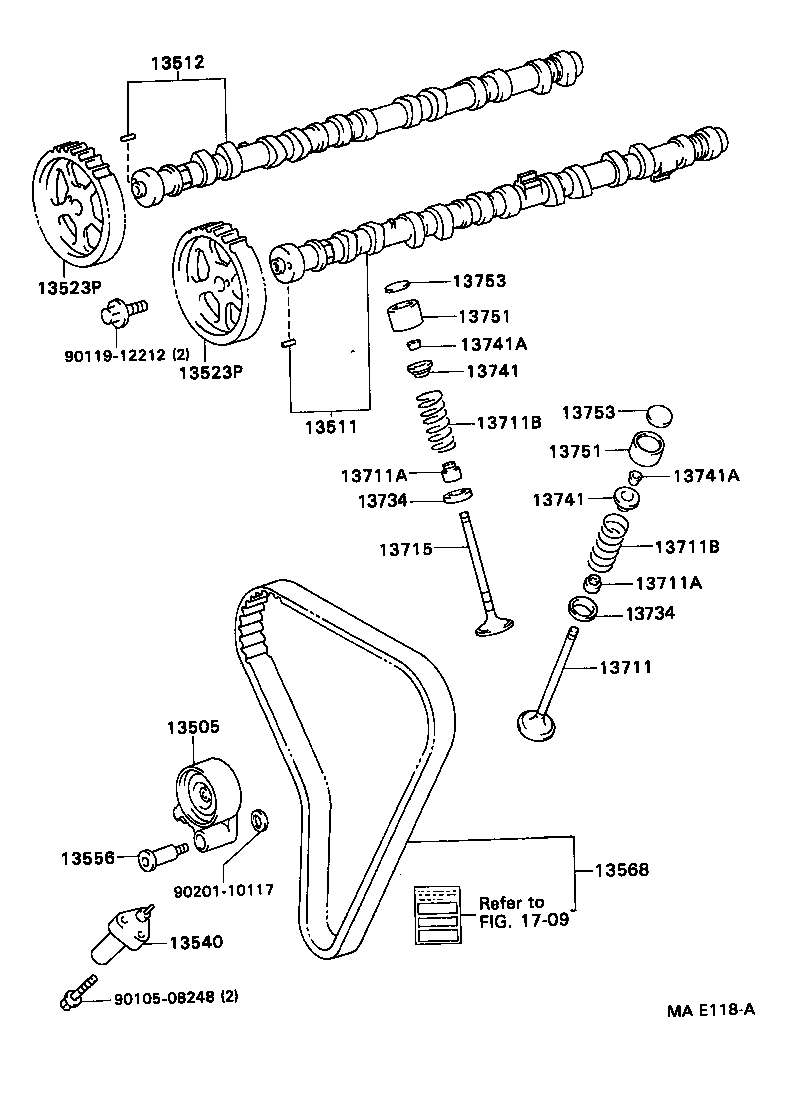

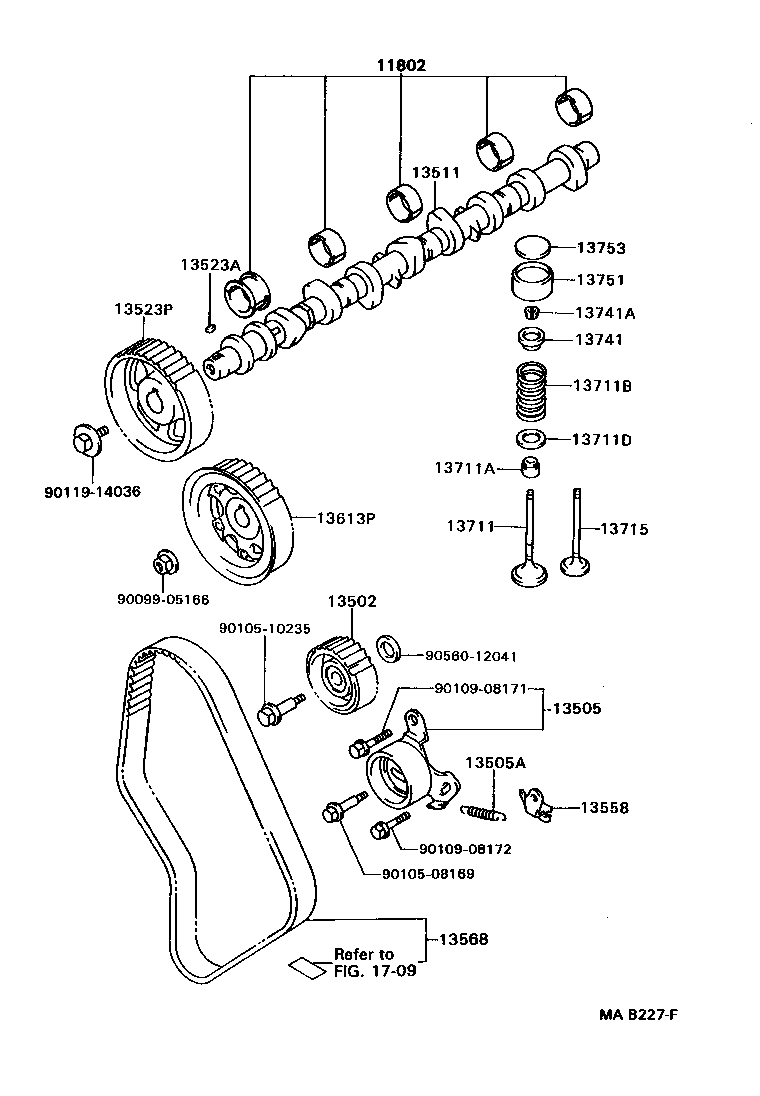

28 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11802 | Bearing Set, Camshaft |
| 13502 | Idler Sub-assy, Timing Belt, NO.2 |
| 13505 | Idler Sub-assy, Timing Belt, NO.1 |
| 13505A | Spring, Tension(FOR IDLER) |
| 13511 | Camshaft |
| 13511A | Pin, Straight(FOR CAMSHAFT KNOCK) |
| 13512 | Camshaft, NO.2 |
| 13522P | Pulley, Pump Drive Shaft |
| 13523A | Key, Woodruff(FOR TIMING GEAR) |
| 13523P | Pulley, Camshaft Timing |
| 13529 | Gear, Camshaft Sub |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13556 | Shaft, Timing Belt Idler |
| 13558 | Bracket, Spring(FOR IDLER) |
| 13568 | Belt, Timing |
| 13579 | Washer, Camshaft Timing Gear Bolt |
| 13613P | Pulley, Injection Pump Drive |
| 13711 | Valve, Intake |
| 13711A | Seal OR Ring, O(FOR VALVE STEM OIL) |
| 13711B | Spring, Compression(FOR INNER) |
| 13711D | Washer, Plate(FOR VALVE SPRING SEAT) |
| 13715 | Valve, Exhaust |
| 13734 | Seat, Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13751 | Lifter, Valve |
| 13751D | Pad, Valve Adjusting |
| 13753 | Shim, Valve Adjusting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
