Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

22 part groups · 11 illustrations

Illustrations

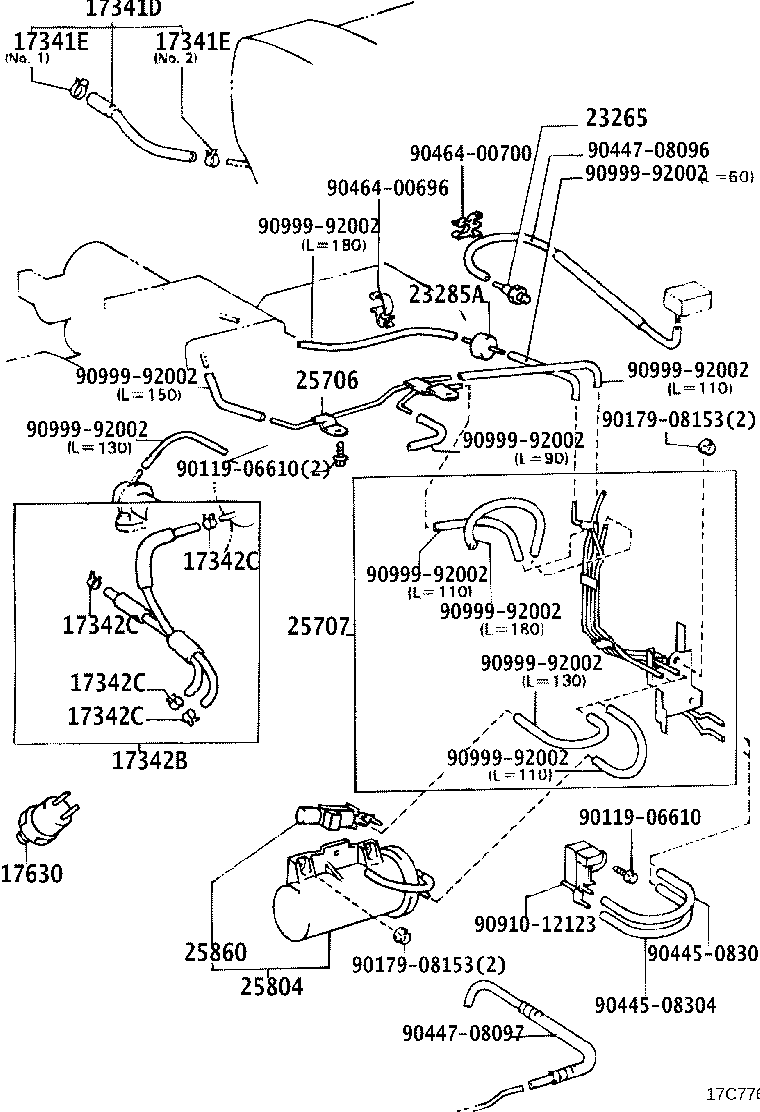

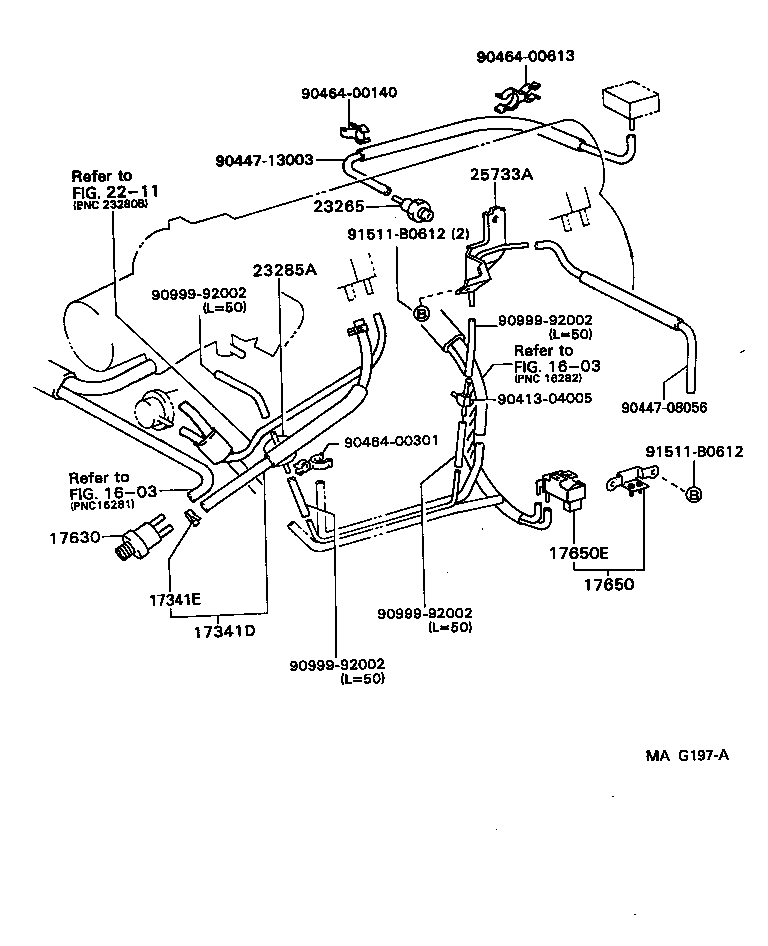

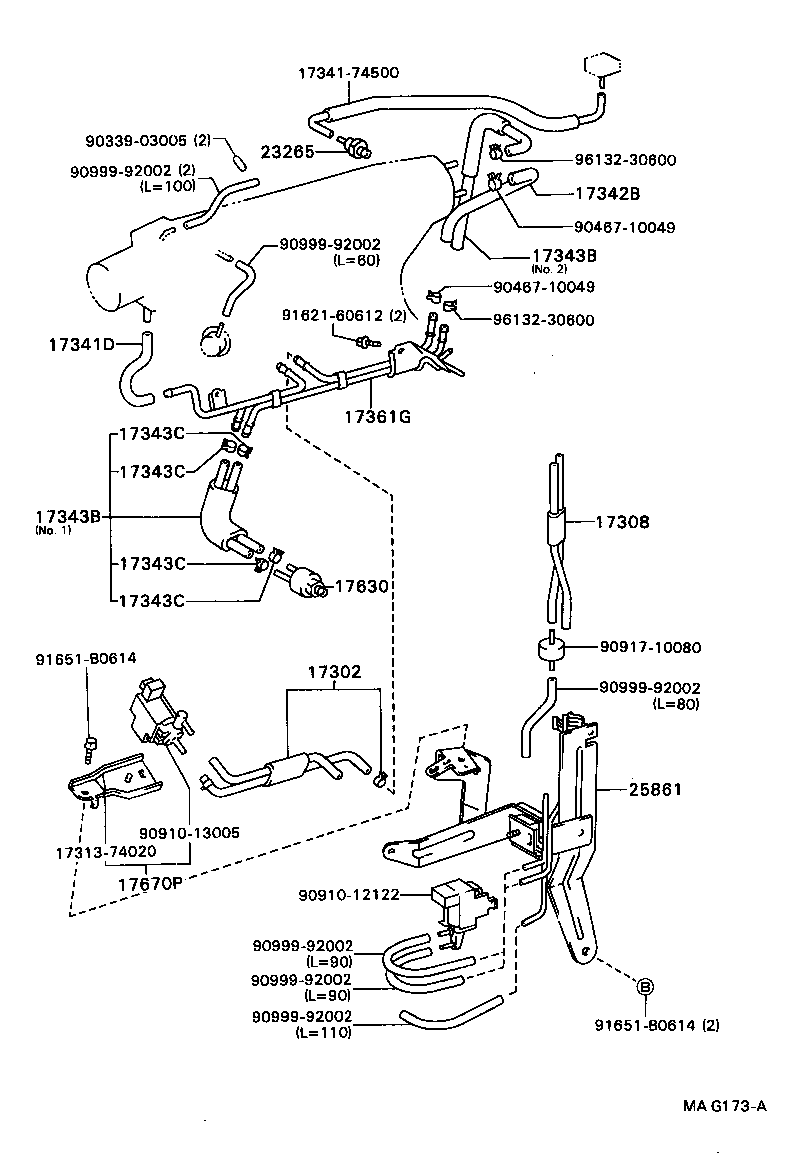

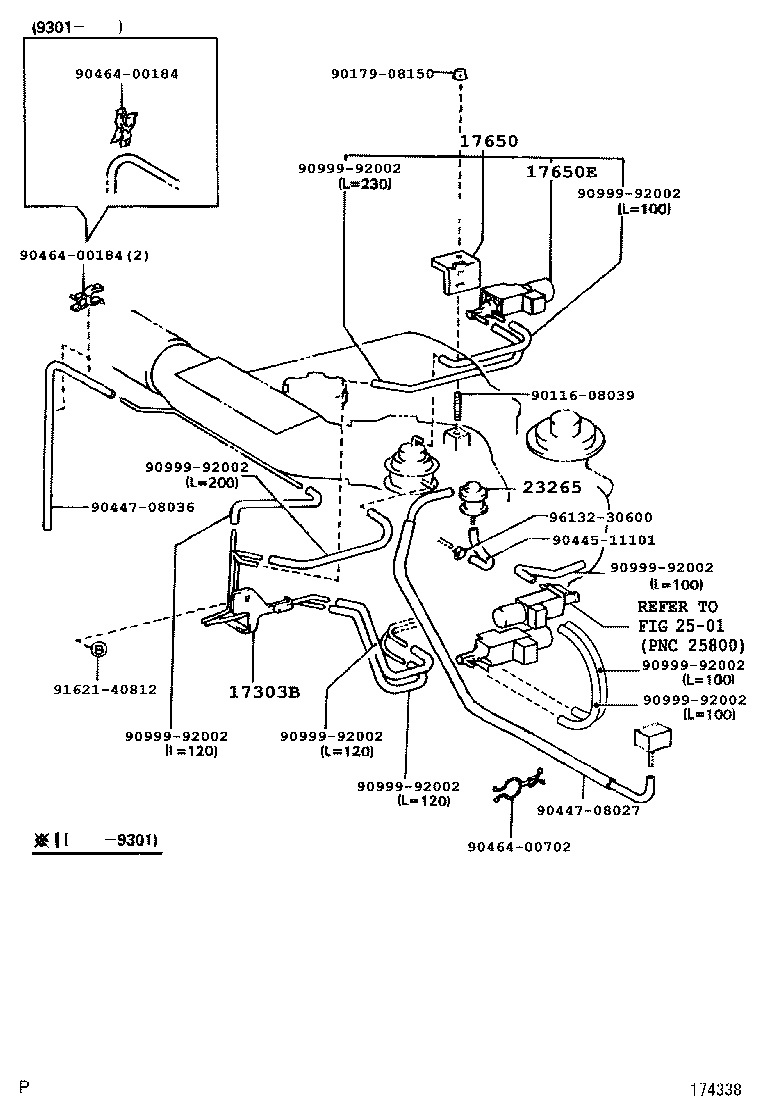

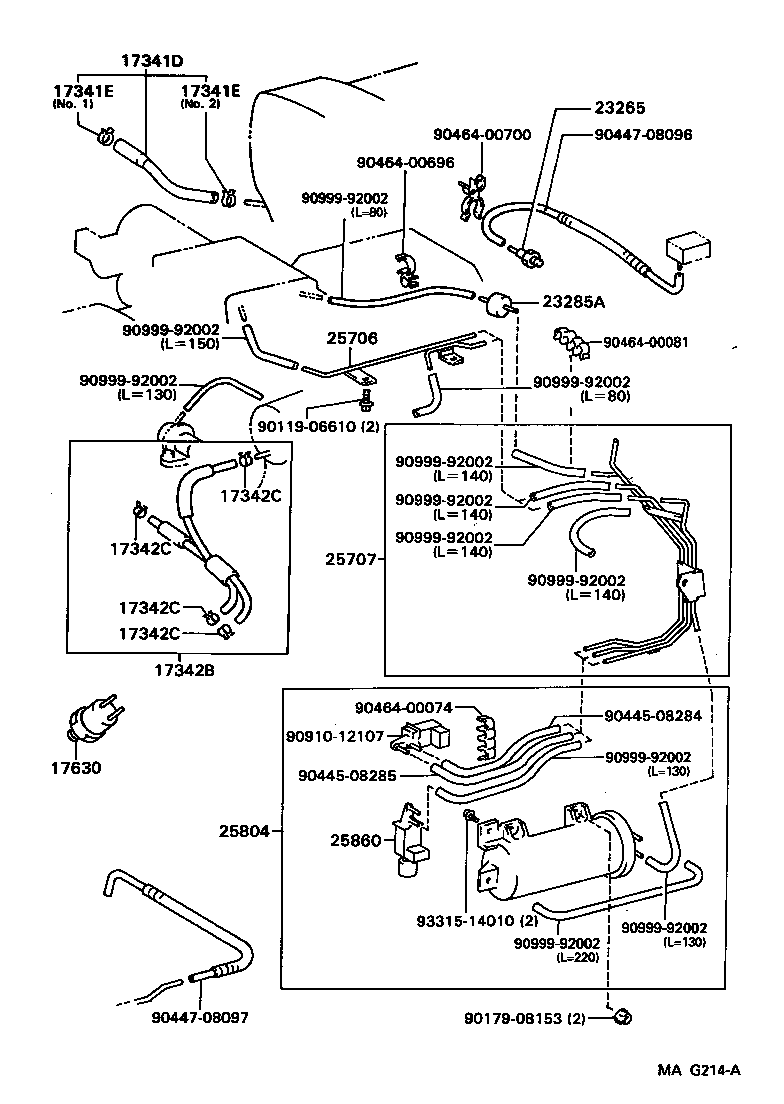

Figure MA9503A MA9503A 1992-10 → — Figure MAG208A MAG208A 1992-10 → — Figure MA9503A MA9503A 1992-10 → — Figure MAG214A MAG214A 1992-10 → — Figure 17C776 17C776 1992-10 → — Figure MAG197A MAG197A 1992-10 → — Figure MA9503A MA9503A 1992-10 → — Figure 174338 174338 1992-10 → 1995-09 Figure MAJ506A MAJ506A 1995-09 → — Figure MA9503A MA9503A 1992-10 → — Figure MAG173A MAG173A 1992-10 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17670P Valve Assy, Air By-pass
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25733A Pipe, Vacuum, NO.1
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
