Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06

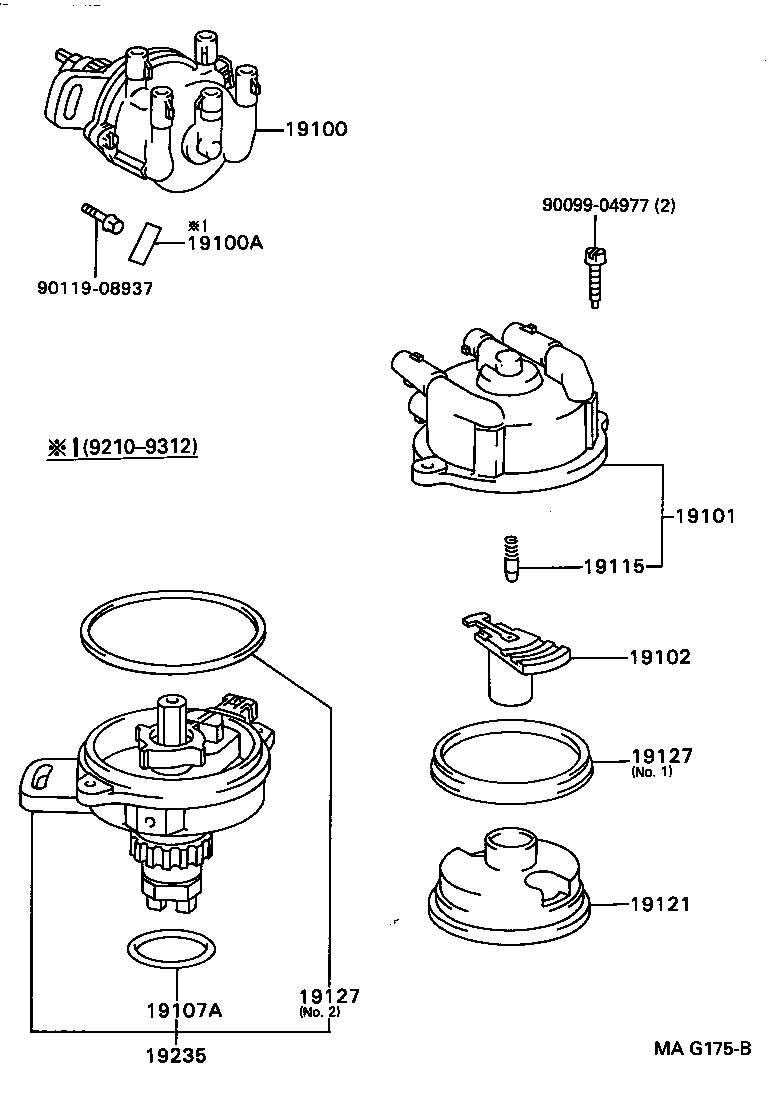

Distributor
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 19100 | Distributor Assy |
| 19100A | Tape, Sealing |
| 19101 | Cap Sub-assy, Distributor |
| 19102 | Rotor Sub-assy, Distributor |
| 19107A | Ring, O, Distributor Housing |
| 19115 | Piece, Distributor Cap, Center |
| 19121 | Cover, Dust Proof |
| 19127 | Packing, Dust Proof |
| 19235 | Housing, Distributor |
| 19242 | Clamp, Cord |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
