Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Body

16 part groups · 2 illustrations

Illustrations

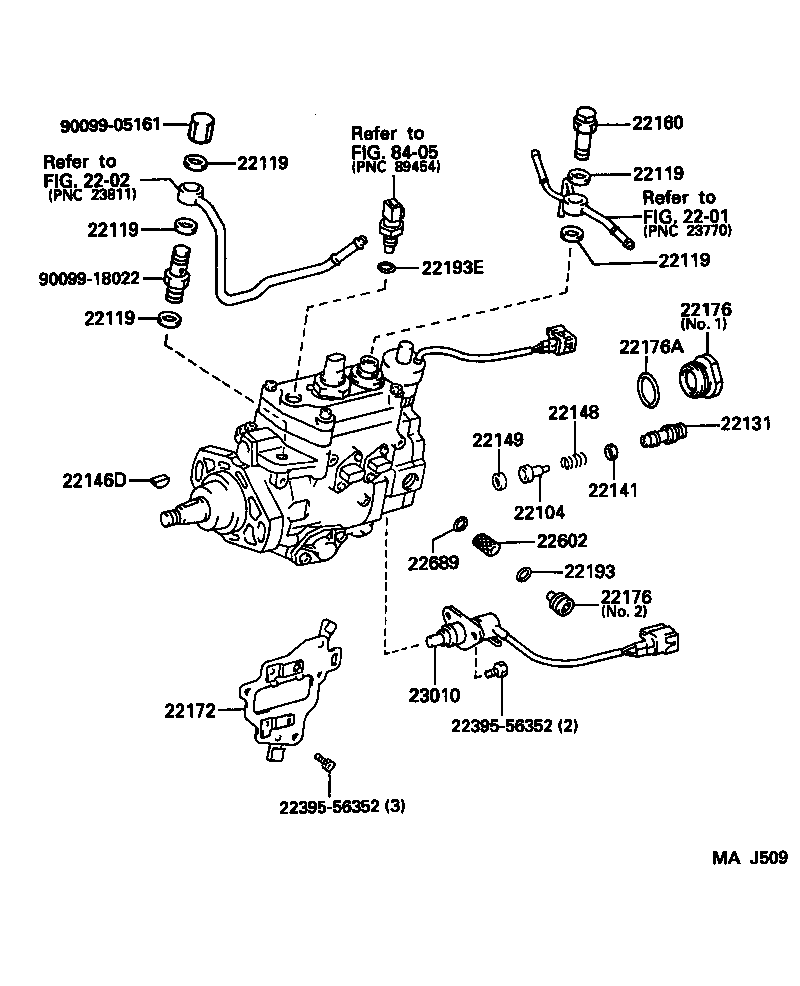

Figure MAH458A MAH458A 1992-10 → 1995-09 Figure MAJ509 MAJ509 1995-09 → —

Part groups

PNCDescription
22104 Valve Sub-assy, Injection Pump Delivery
22119 Washer, Air Bleeder Nipple
22131 Holder, Delivery Valve
22141 Seat, Delivery Valve Spring
22146D Key(FOR DRIVE GEAR)
22148 Spring, Delivery Valve
22149 Gasket, Delivery Valve
22160 Screw Sub-assy, Overflow
22172 Clip, Connector Support, Solenoid
22176 Plug, Distributive Head
22176A Ring, O(FOR DISTRIBUTIVE HEAD PLUG)
22193 Ring, O(FOR LEVER CONNECTING PIN)
22193E Ring, O(FOR FUEL TEMPERATURE SENSOR)
22602 Filter Sub-assy, Fuel Injection Pump
22689 Washer(FOR SWIVEL NIPPLE)
23010 Valve Assy, Timing Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
