Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

5 part groups · 3 illustrations

Illustrations

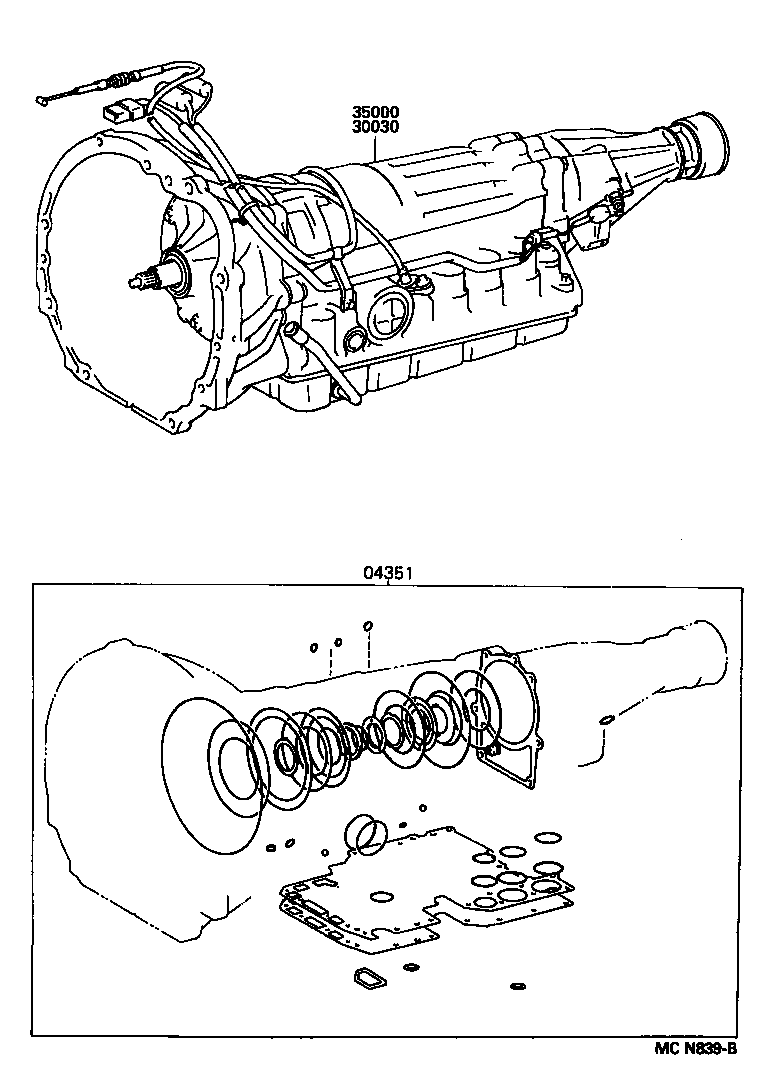

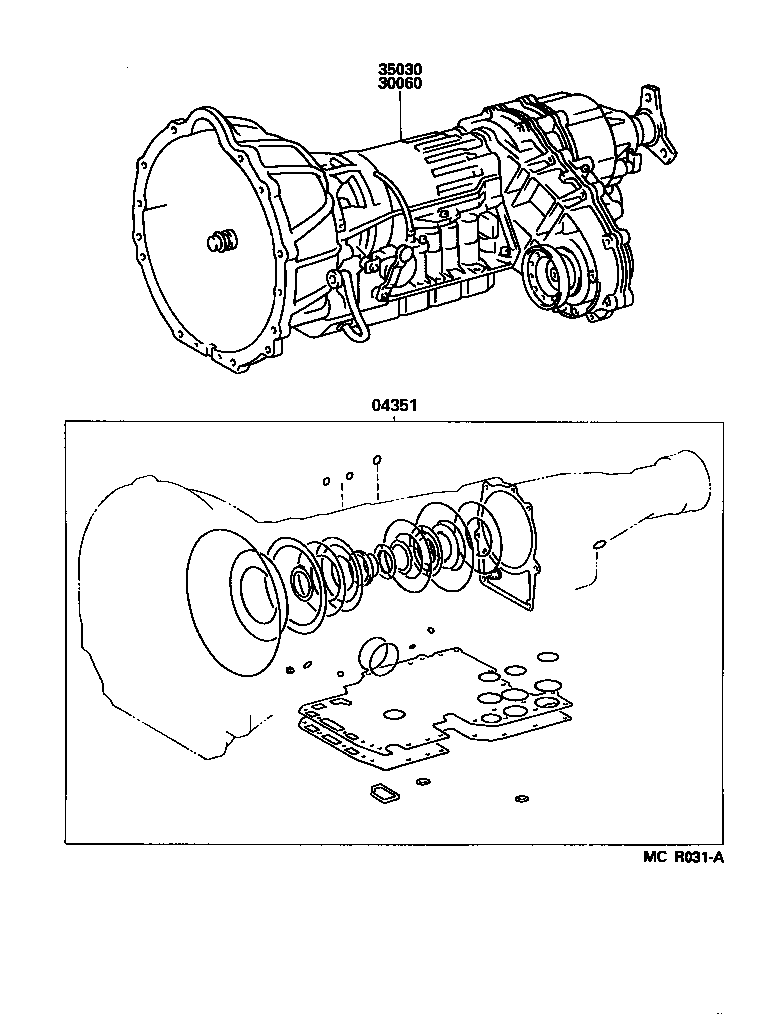

Figure MCN838B MCN838B 1992-10 → — Figure MCN839B MCN839B 1992-10 → — Figure MCR031A MCR031A 1993-10 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
30030 Transmission Assy, Rebuilt
30060 Transmission Assy, W/Transfer, Rebuilt
35000 Transmission Assy, Automatic
35030 Transmission Assy, Automatic W/Transfer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
