Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06

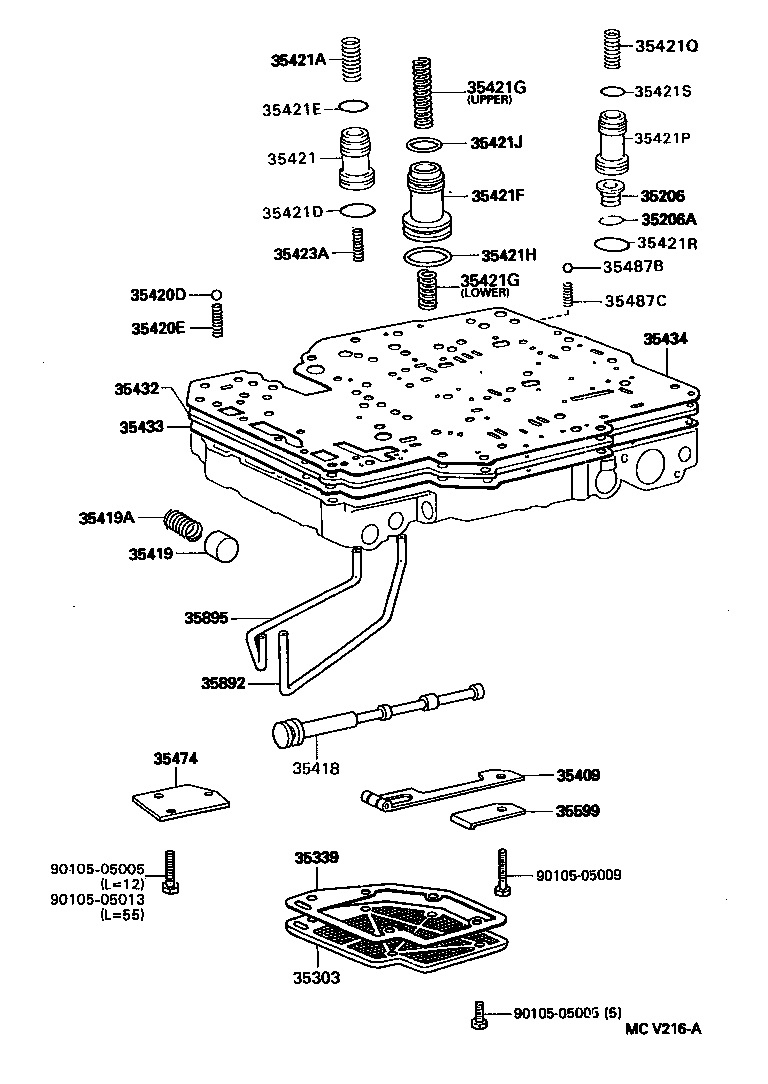

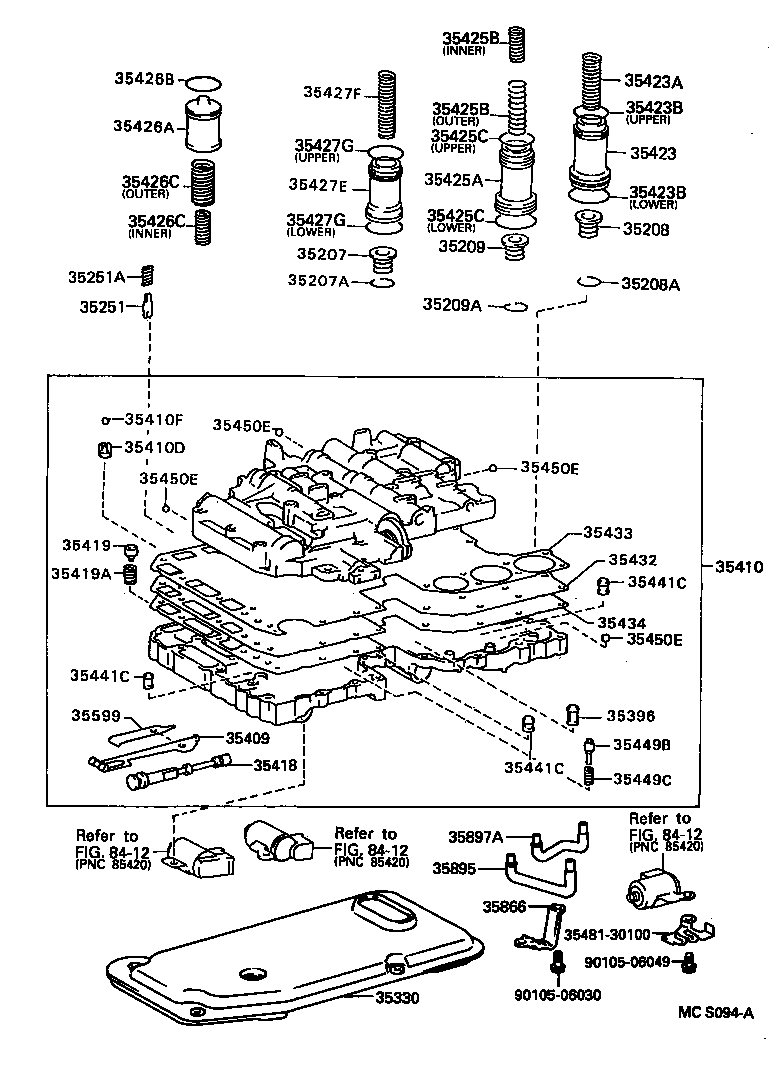

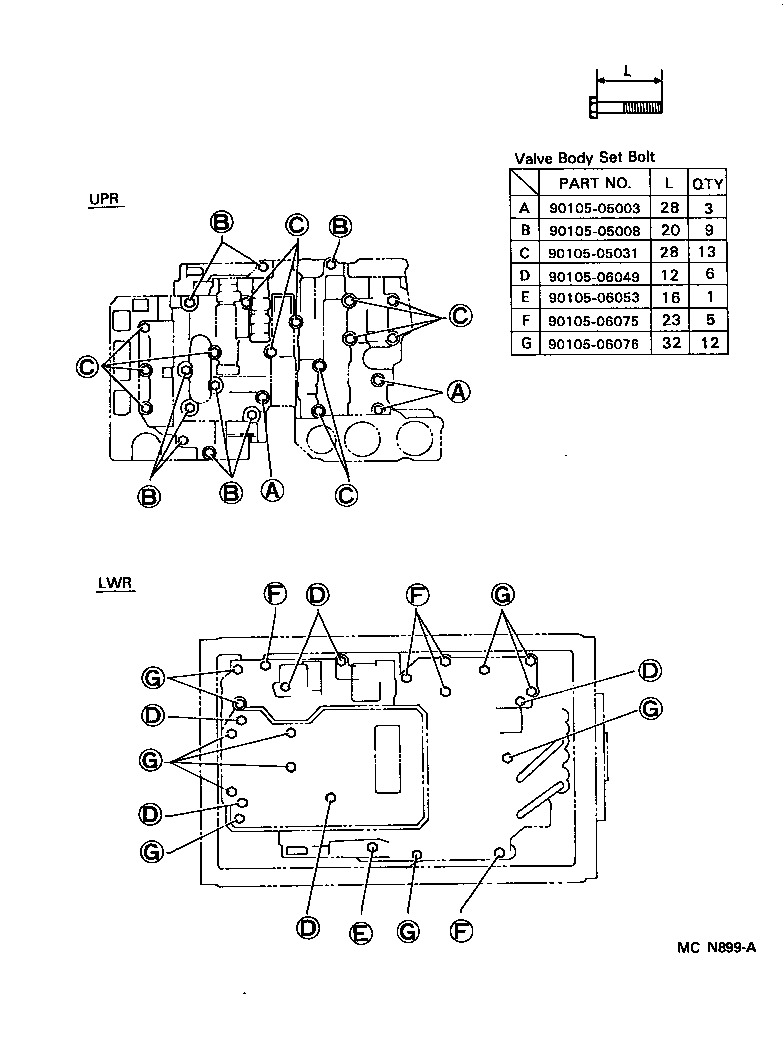

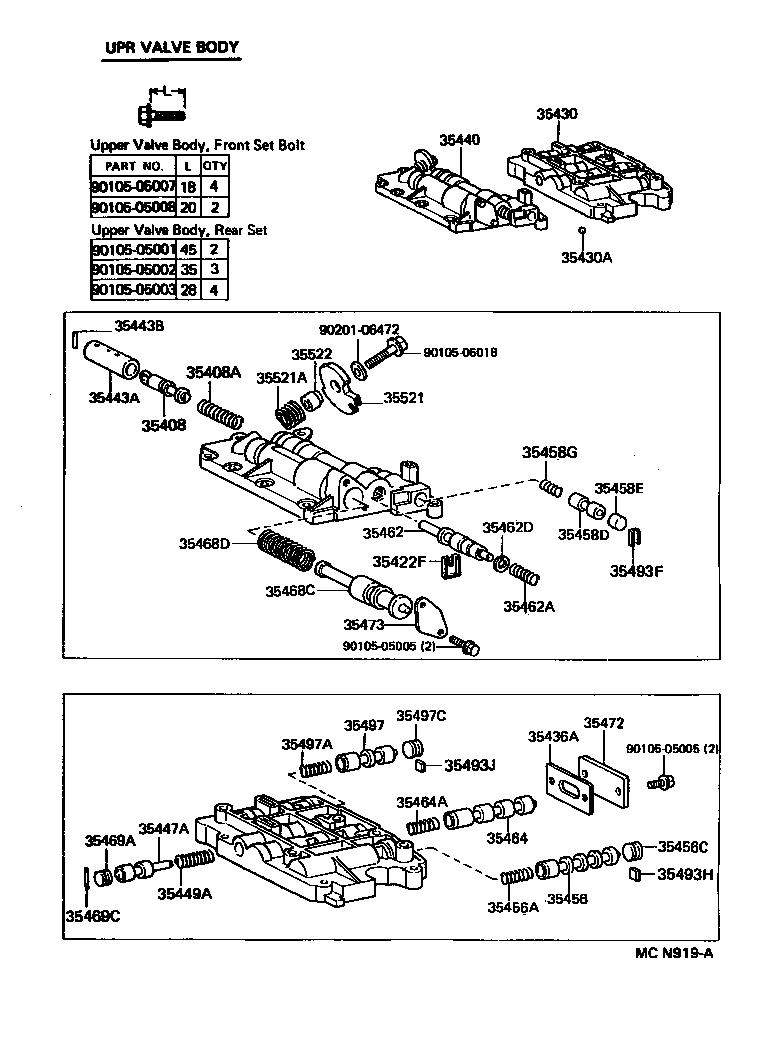

Valve Body & Oil Strainer (ATM)
190 part groups · 14 illustrations
Illustrations

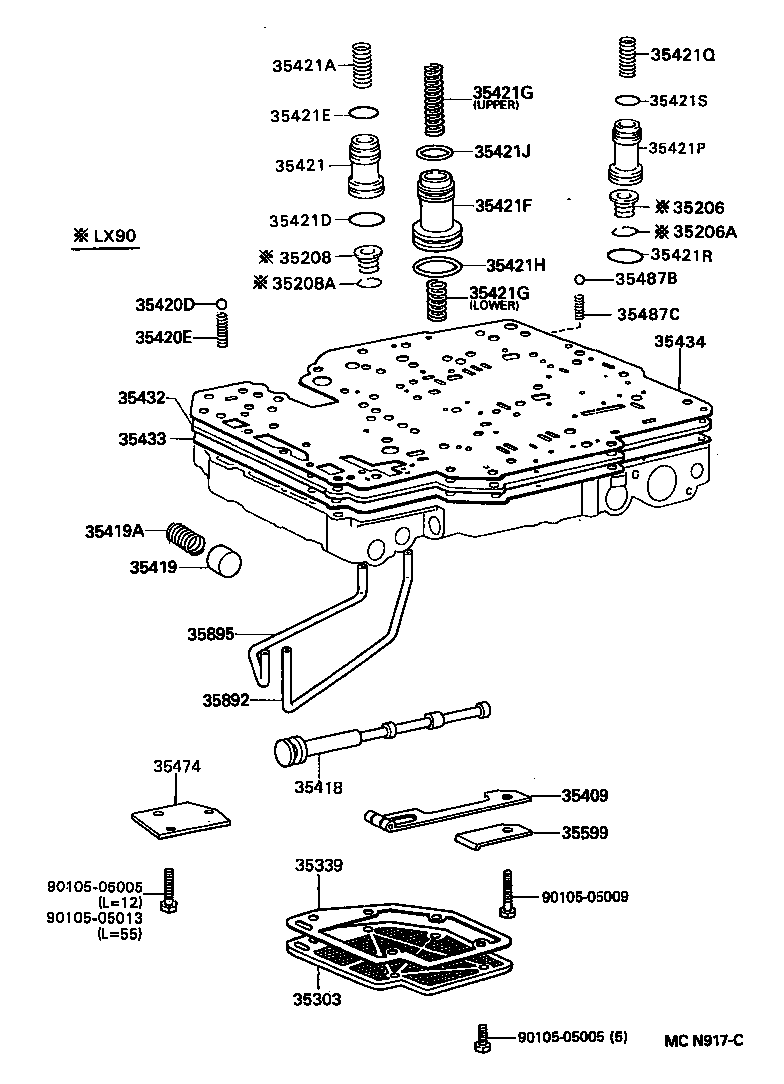

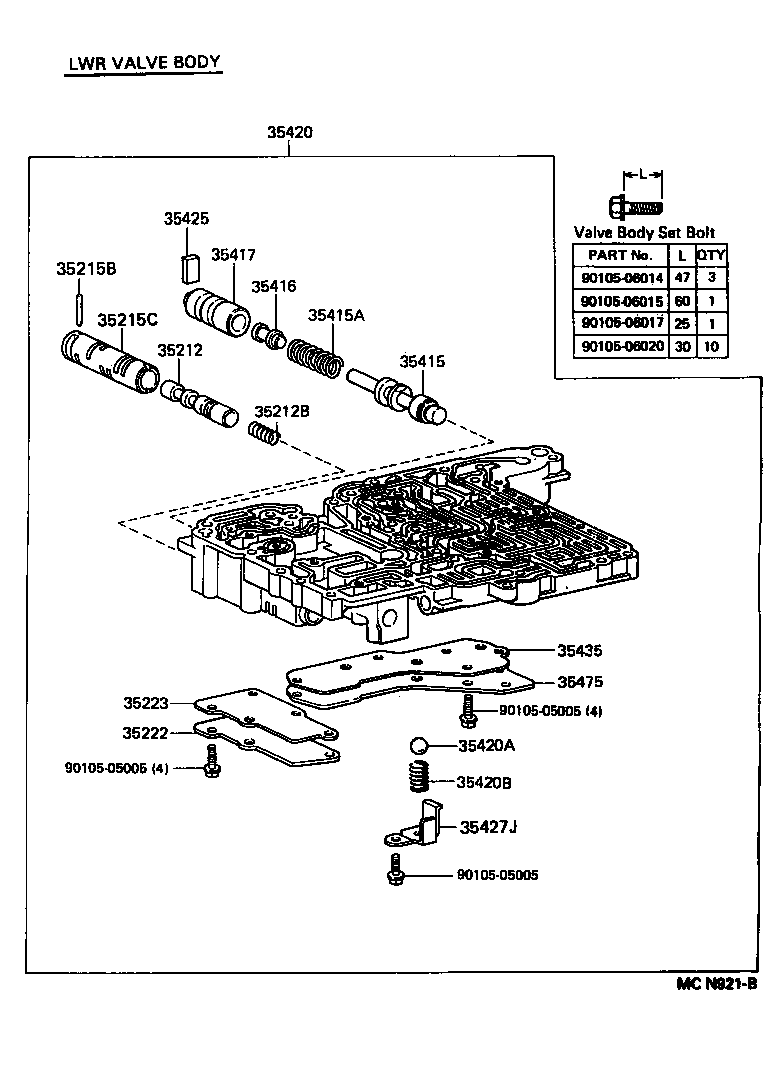

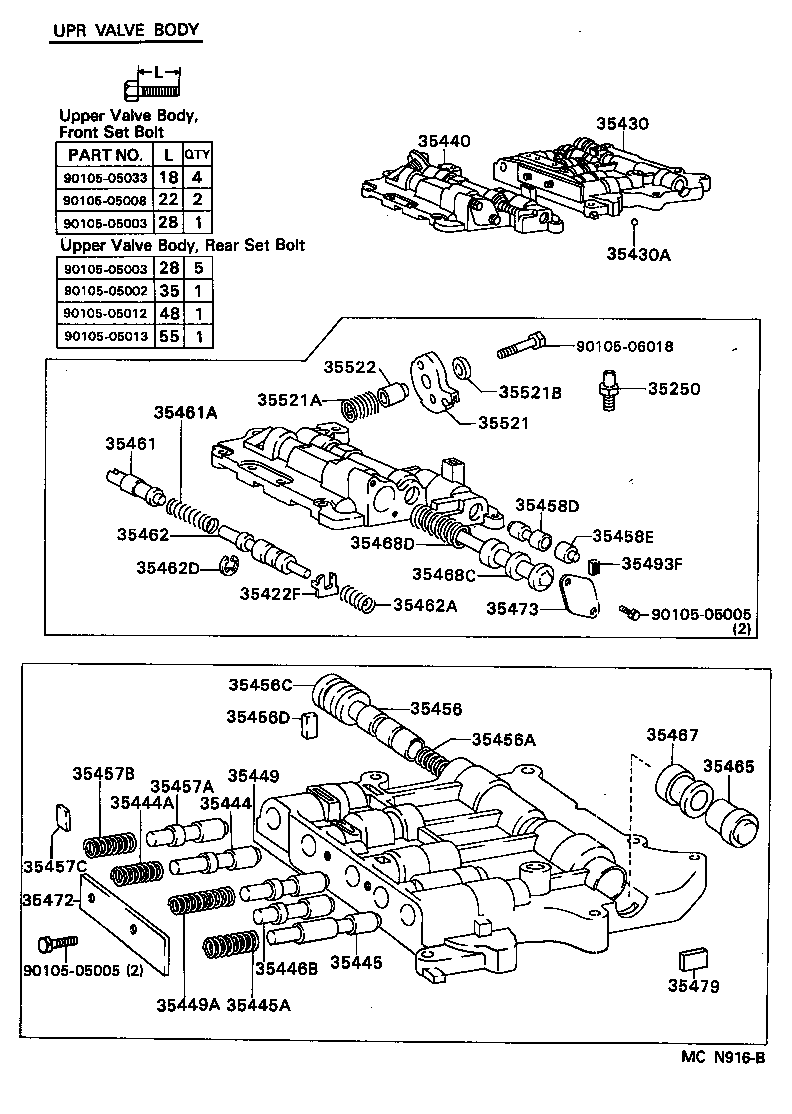

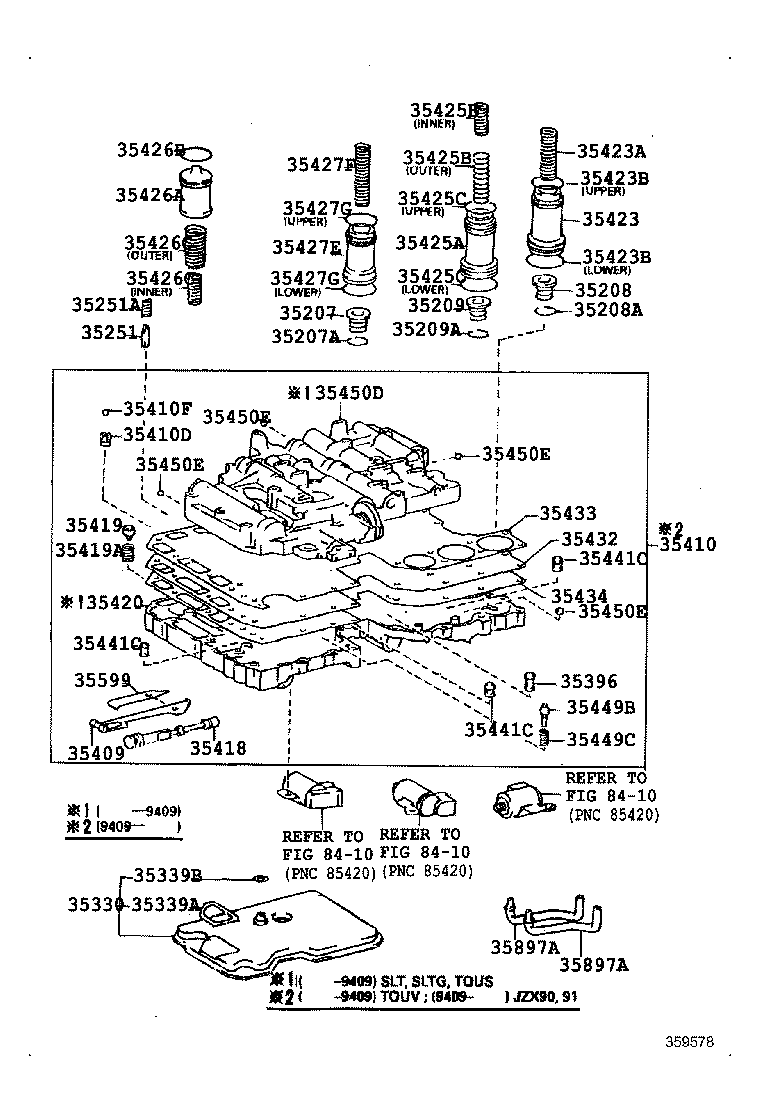

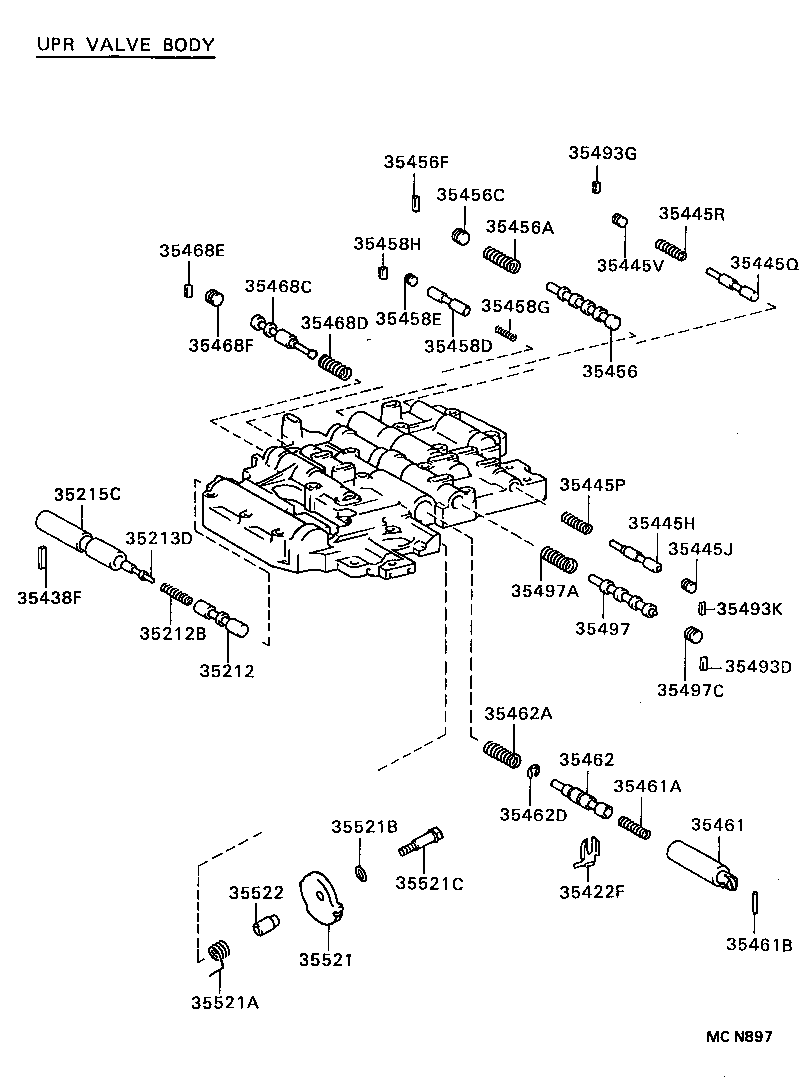

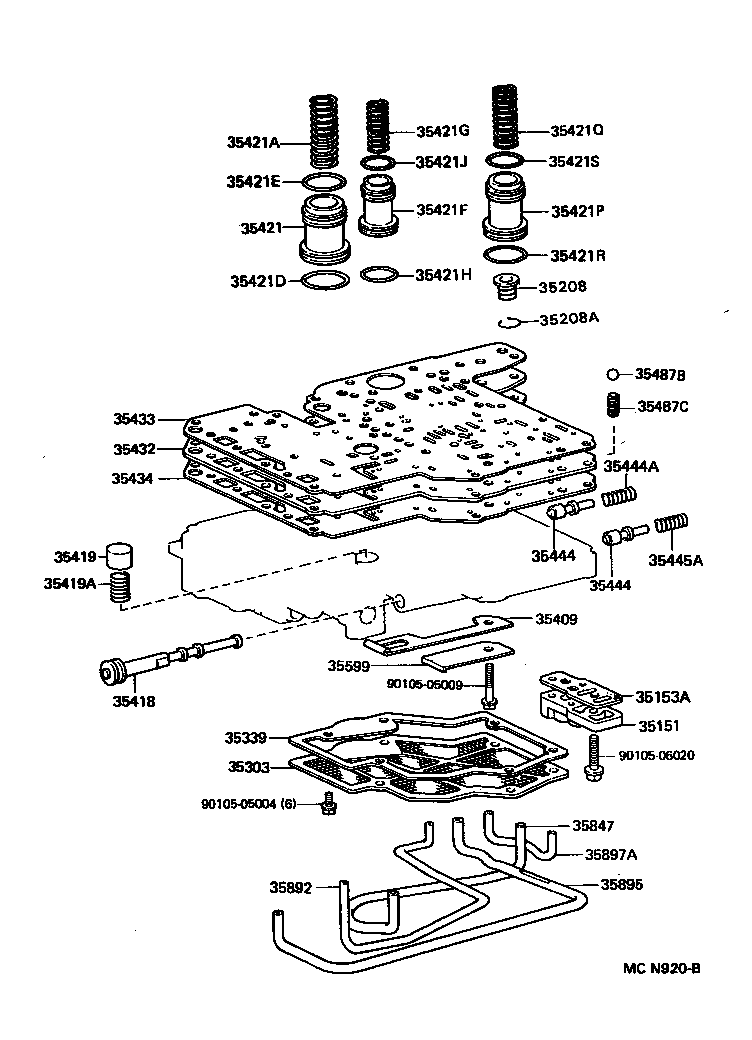

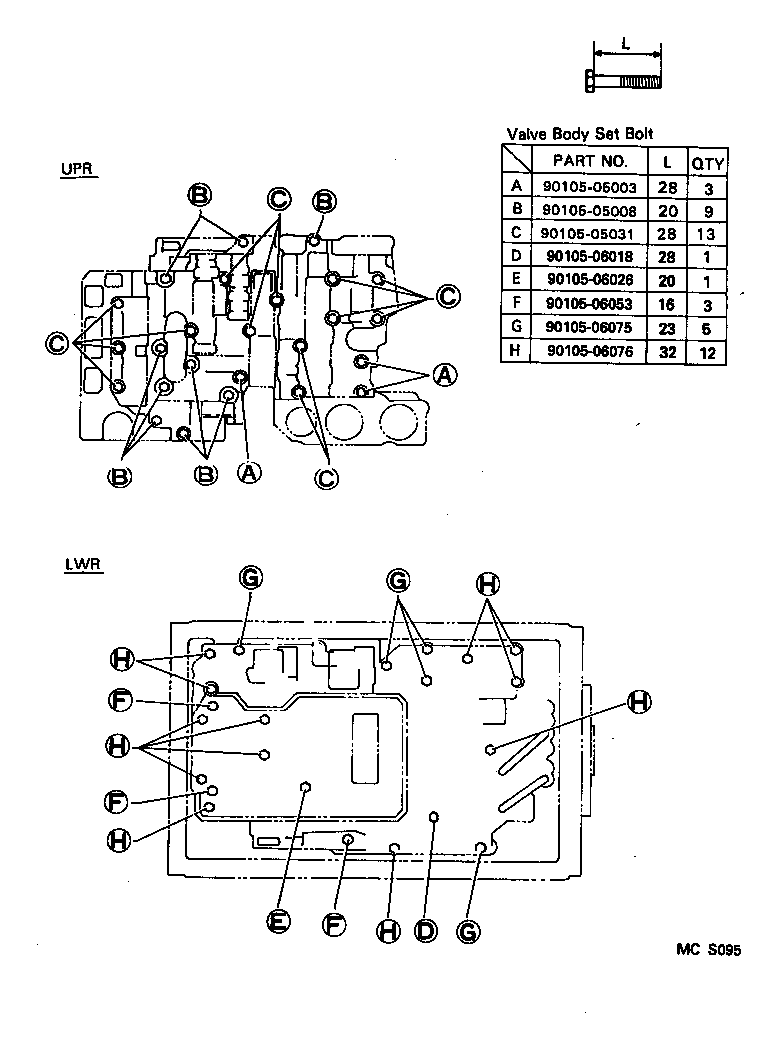

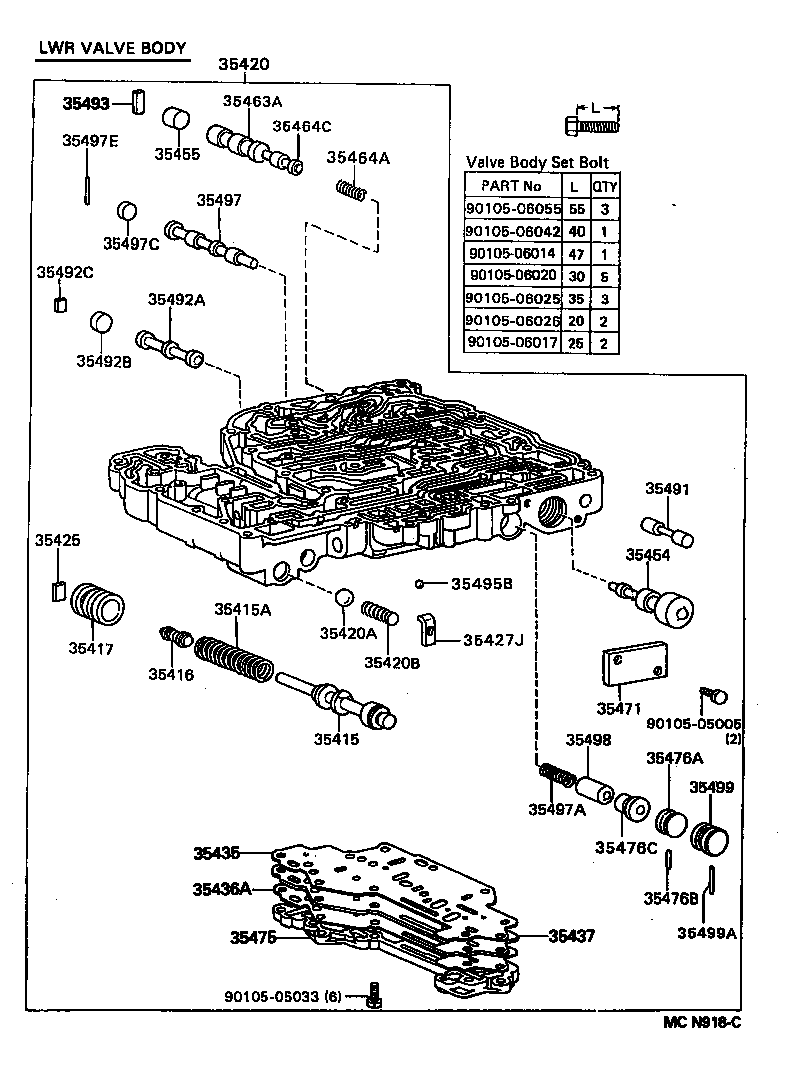

Part groups
| PNC | Description |
|---|---|
| 35151 | Cover, Transmission Case, Lower |
| 35153A | Gasket, Transmission Case Lower Cover |
| 35206 | Spring Sub-assy, C-1 Accumulator |
| 35206A | Ring, Hole Snap (FOR C-1 ACCUMULATOR SPRING) |
| 35207 | Spring Sub-assy, B-0 Accumulator |
| 35207A | Ring, Hole Snap (FOR B-0 ACCUMULATOR SPRING) |
| 35208 | Spring Sub-assy, B-2 Accumulator |
| 35208A | Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING) |
| 35209 | Spring Sub-assy, C-2 Accumulator |
| 35209A | Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING) |
| 35212 | Valve, Lock UP Relay |
| 35212B | Spring, Compression (FOR LOCK UP RELAY VALVE) |
| 35213D | Plunger, Lock UP Relay Valve |
| 35215B | Pin, Straight (FOR LOCK UP RELAY VALVE SLEEVE) |
| 35215C | Sleeve, Lock UP Relay Valve, NO.1 |
| 35222 | Plate, Lock UP Relay Valve Body |
| 35223 | Gasket, Lock UP Relay Valve Body |
| 35250 | Body Assy, Check Ball |
| 35251 | Body, Check Ball |
| 35251A | Spring, Compression (FOR CHECK BALL BODY) |
| 35303 | Strainer Sub-assy, Oil |
| 35330 | Strainer Assy, Valve Body Oil |
| 35339 | Gasket, Oil Strainer |
| 35339A | Gasket, Oil Strainer, NO.1 |
| 35339B | Gasket, Oil Strainer, NO.2 |
| 35396 | Strainer, Throttle Oil |
| 35408 | Plug Sub-assy, Primary Down Shift |
| 35408A | Spring, Compression (FOR PRIMARY DOWN SHIFT PLUG) |
| 35409 | Spring Sub-assy, Manual Detent |
| 35410 | Body Assy, Transmission Valve |
| 35410D | Valve, Check |
| 35410F | Ball (FOR CHECK VALVE) |
| 35415 | Valve, Pressure Regulator |
| 35415A | Spring, Compression (FOR PRESSURE REGULATOR VALVE) |
| 35415F | Valve, Primary Regulator |
| 35415H | Spring, Compression (FOR PRIMARY REGULATOR VALVE) |
| 35415J | Washer (FOR PRIMARY REGULATOR VALVE) |
| 35416 | Plunger, Primary Regulator Valve, NO.1 |
| 35417 | Sleeve, Pressure Regulator Valve |
| 35417A | Sleeve, Primary Regulator Valve |
| 35418 | Valve, Manual |
| 35419 | Valve, Check, NO.1 |
| 35419A | Spring, Compression (FOR CHECK VALVE) |
| 35420 | Body Assy, Lower Valve |
| 35420A | Ball (FOR PRESSURE RELIEF) |
| 35420B | Spring (FOR PRESSURE RELIEF) |
| 35420D | Ball (FOR LOWER VALVE BODY) |
| 35420E | Spring (FOR LOWER VALVE BODY) |
| 35421 | Piston, Accumulator, NO.1 |
| 35421A | Spring, Compression (FOR ACCUMULATOR PISTON NO.1) |
| 35421D | Ring (FOR ACCUMULATOR PISTON NO.1) |
| 35421E | Ring (FOR ACCUMULATOR PISTON NO.1) |
| 35421F | Piston, Accumulator, NO.2 |
| 35421G | Spring, Compression (FOR ACCUMULATOR PISTON NO.2) |
| 35421H | Ring (FOR ACCUMULATOR PISTON NO.2) |
| 35421J | Ring (FOR ACCUMULATOR PISTON NO.2) |
| 35421P | Piston, Accumulator, NO.3 |
| 35421Q | Spring, Compression (FOR ACCUMULATOR PISTON NO.3) |
| 35421R | Ring (FOR ACCUMULATOR PISTON NO.3) |
| 35421S | Ring (FOR ACCUMULATOR PISTON NO.3) |
| 35422F | Stopper, Valve Vibrating |
| 35423 | Piston, B-2 Accumulator |
| 35423A | Spring, Compression (FOR B-2 ACCUMULATOR PISTON) |
| 35423B | Ring, O (FOR B-2 ACCUMULATOR PISTON) |
| 35425 | Seat, Pressure Regulator Valve Sleeve |
| 35425A | Piston, C-2 Accumulator |
| 35425B | Spring, Compression (FOR C-2 ACCUMULATOR PISTON) |
| 35425C | Ring, O (FOR C-2 ACCUMULATOR PISTON) |
| 35426A | Piston, C-0 Accumulator |
| 35426B | Ring, O (FOR C-0 ACCUMULATOR PISTON) |
| 35426C | Spring, Compression (FOR C-0 ACCUMULATOR PISTON) |
| 35427E | Piston, B-0 Accumulator |
| 35427F | Spring, Compression (FOR B-0 ACCUMULATOR PISTON) |
| 35427G | Ring, O (FOR B-0 ACCUMULATOR PISTON) |
| 35427J | Seat, Check Valve Spring (FOR PRESSURE RELIEF) |
| 35428C | Plug, Pressure Reducing |
| 35428D | Clip (FOR PRESSURE REDUCING PLUG) |
| 35430 | Body Assy, Rear Upper Valve |
| 35430A | Ball (FOR REAR UPPER VALVE BODY) |
| 35432 | Plate, Valve Body, NO.1 |
| 35433 | Gasket, Valve Body, NO.1 |
| 35434 | Gasket, Valve Body, NO.2 |
| 35435 | Gasket, Valve Body Plate, NO.3 |
| 35436A | Gasket, Valve Body Plate, NO.4 |
| 35437 | Plate, 3-4 Shift Valve Separator |
| 35438D | Seat, Accumulator Control Valve Spring |
| 35438F | Seat, Detent Spring |
| 35440 | Body Assy, Front Upper Valve |
| 35441C | Strainer, Solenoid Oil |
| 35443A | Sleeve, Down Shift Plug |
| 35443B | Pin (FOR DOWN SHIFT PLUG SLEEVE) |
| 35444 | Valve, Intermediate Modulator |
| 35444A | Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE) |
| 35444D | Valve, Release Control |
| 35444K | Pin, Straight (FOR RELEASE CONTROL PLUG) |
| 35445 | Valve, Low Modulator |
| 35445A | Spring, Compression (FOR LOW MODULATOR VALVE) |
| 35445H | Valve, 2ND Coast Modulator |
| 35445J | Plug (FOR 2ND COAST MODULATOR VALVE) |
| 35445P | Spring, Compression (FOR 2ND COAST MODULATOR VALVE) |
| 35445Q | Valve, Low Coast Modulator |
| 35445R | Spring, Compression (FOR LOW COAST MODULATOR VALVE) |
| 35445V | Plug (FOR LOW COAST MODULATOR VALVE) |
| 35446B | Plug, Governor Modulator Valve |
| 35447A | Valve, Reverse Clutch Sequence |
| 35449 | Valve, Sequence |
| 35449A | Spring, Compression (FOR SEQUENCE VALVE) |
| 35449B | Valve, Pressure Relief |
| 35449C | Spring, Compression (FOR VALVE PRESSURE RELIEF) |
| 35450D | Body Assy, Upper Valve |
| 35450E | Ball (FOR UPPER VALVE BODY) |
| 35454 | Valve, Low Coast Shift |
| 35455 | Plug, 1-2 Shift Valve Low |
| 35456 | Valve, 2-3 Shift |
| 35456A | Spring, Compression (FOR 2-3 SHIFT VALVE) |
| 35456C | Plug (FOR 2-3 SHIFT VALVE) |
| 35456D | Seat (FOR 2-3 SHIFT VALVE) |
| 35456F | Key, Straight (FOR 2-3 SHIFT VALVE) |
| 35457A | Valve, Detent Regulator |
| 35457B | Spring, Compression (FOR DETENT REGULATOR VALVE) |
| 35457C | Seat (FOR DETENT REGULATOR VALVE) |
| 35458D | Valve, Cut Back |
| 35458E | Plug (FOR CUT BACK VALVE) |
| 35458G | Spring, Compression (FOR CUT BACK VALVE) |
| 35458H | Key, Straight (FOR CUT BACK VALVE) |
| 35461 | Plug, Down Shift |
| 35461A | Spring, Compression (FOR DOWN SHIFT PLUG) |
| 35461B | Pin, Straight (FOR DOWN SHIFT PLUG) |
| 35462 | Valve, Throttle |
| 35462A | Spring, Compression (FOR THROTTLE VALVE) |
| 35462D | Ring, E (FOR THROTTLE VALVE) |
| 35463A | Valve, 1-2 Shift, Lower |
| 35464 | Valve, 1-2 Shift |
| 35464A | Spring, Compression (FOR 1-2 SHIFT VALVE) |
| 35464C | Valve, 1-2 Shift, Upper |
| 35464E | Plug (FOR 1-2 SHIFT VALVE) |
| 35465 | Plug, Intermediate Shift Valve |
| 35467 | Valve, Intermediate Shift |
| 35468C | Valve, Secondary Regulator |
| 35468D | Spring, Compression (FOR SECONDARY REGULATOR VALVE) |
| 35468E | Key, Straight (FOR SECONDARY REGULATOR VALVE) |
| 35468F | Plug (FOR SECONDARY REGULATOR VALVE) |
| 35469A | Plug, 3-2 Kick Down Orifice Control Valve |
| 35469C | Roller, Shift Valve Plug |
| 35471 | Cover, Valve Body, NO.1 |
| 35472 | Cover, Valve Body, NO.2 |
| 35473 | Cover, Transmission Valve Body |
| 35474 | Cover, Valve Body, NO.4 |
| 35475 | Cover, Valve Body, NO.5 |
| 35476A | Plug, Straight (FOR 3RD COAST SHIFT) |
| 35476B | Pin, Locating (FOR 3RD COAST SHIFT) |
| 35476C | Valve, 3RD Coast |
| 35479 | Seat, Intermediate Shift Valve |
| 35487B | Ball, Check, NO.4 |
| 35487C | Spring, Compression (FOR CHECK BALL) |
| 35491 | Plug, Reverse Brake |
| 35491A | Valve, Accumulator Control, NO.1 |
| 35491B | Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1) |
| 35492A | Valve, Manual Down Timing |
| 35492B | Plug (FOR MANUAL DOWN TIMING VALVE) |
| 35492C | Seat, Valve (FOR MANUAL DOWN TIMING VALVE) |
| 35492E | Sleeve, Accumulator Control Valve |
| 35493 | Seat, Shift Valve Spring |
| 35493A | Seat, Primary Regulator Valve Plug |
| 35493B | Seat, 1-2 Shift Valve Plug |
| 35493D | Seat, 3-4 Shift Valve Plug |
| 35493F | Seat, Shift Valve Plug |
| 35493G | Seat, Low Coast Modulator Valve Plug |
| 35493H | Seat, Shift Valve Plug (FOR LOCK UP RELAY VALVE) |
| 35493J | Seat, Shift Valve Plug (FOR MANUAL DOWN TIMING VALVE) |
| 35493K | Seat, Shift Valve Plug |
| 35495B | Ball, Check, NO.1 |
| 35497 | Valve, 3-4 Shift |
| 35497A | Spring, Compression (FOR 3-4 SHIFT VALVE) |
| 35497C | Plug (FOR 3-4 SHIFT VALVE) |
| 35497E | Roller, Needle (FOR 3-4 SHIFT VALVE) |
| 35498 | Valve, 3-4 Coast Shift |
| 35499 | Plug, 3-4 Shift Valve |
| 35499A | Pin, Straight (FOR 3-4 SHIFT VALVE) |
| 35521 | Cam, Throttle Valve |
| 35521A | Spring (FOR THROTTLE VALVE CAM RETURN) |
| 35521B | Washer (FOR THROTTLE VALVE CAM SET) |
| 35521C | Bolt (FOR THROTTLE VALVE CAM SET) |
| 35522 | Pin, Throttle Valve Cam |
| 35599 | Cover, Manual Detent Spring |
| 35847 | Tube, Transmission Lube Apply |
| 35866 | Bracket, Transfer Apply Tube |
| 35892 | Tube, Overdrive Brake |
| 35895 | Tube, Front Clutch Apply |
| 35897A | Tube, 1ST & Reverse Brake, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
