Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Case & Extension Housing

21 part groups · 2 illustrations

Illustrations

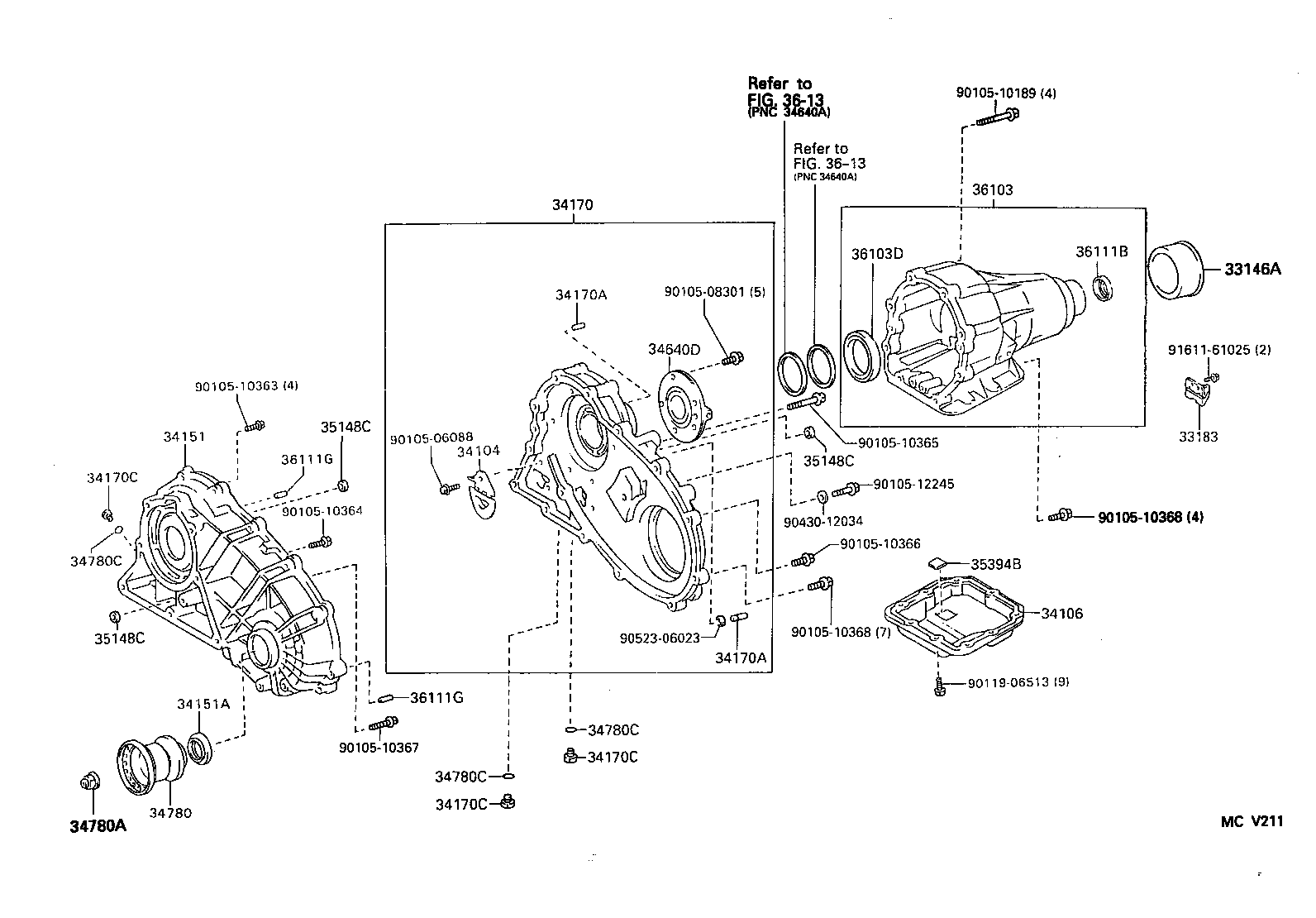

Figure MCN910F MCN910F 1993-10 → 1995-12 Figure MCV211 MCV211 1995-12 → —

Part groups

PNCDescription
33146A Deflector, Transfer Extension Housing Dust
33183 Damper, Transfer Dynamic
34104 Valve Sub-assy, Transfer Baffle
34106 Pan Sub-assy, Transfer Oil
34151 Case, Transfer Chain, Front
34151A Seal, Oil (FOR TRANSFER CHAIN CASE)
34170 Case Assy, Transfer Chain, Rear
34170A Pin, Straight (FOR TRANSFER CHAIN CASE)
34170C Plug (FOR TRANSFER CHAIN CASE)
34640D Support Assy, Transfer Center
34780 Yoke Assy, Flange
34780A Nut (FOR FLANGE YOKE)
34780B Washer, Plate (FOR FLANGE YOKE)
34780C Ring, O (FOR FLANGE YOKE)
35148C Gasket, Governor Apply (FOR ATM TRANSFER CHAIN CASE)
35394B Magnet, Oil Cleaner (FOR TRANSFER)
36103 Case Sub-assy, Transfer
36103D Bearing (FOR TRANSFER CASE)
36103E Ring, Hole Snap (FOR TRANSFER CASE BEARING)
36111B Seal, Oil (FOR TRANSFER CASE)
36111G Pin, Straight (FOR TRANSFER CASE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
