Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

39 part groups · 6 illustrations

Illustrations

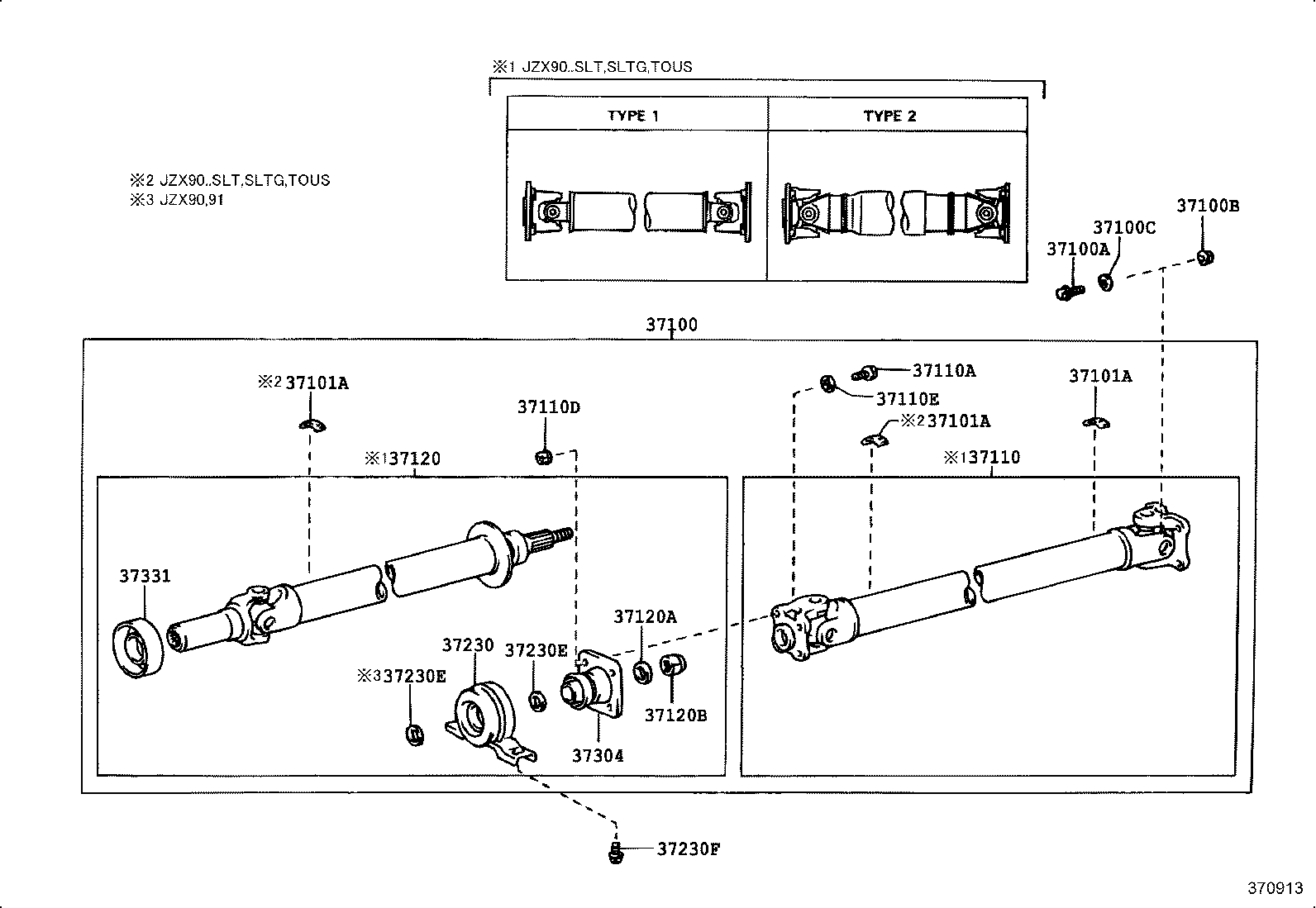

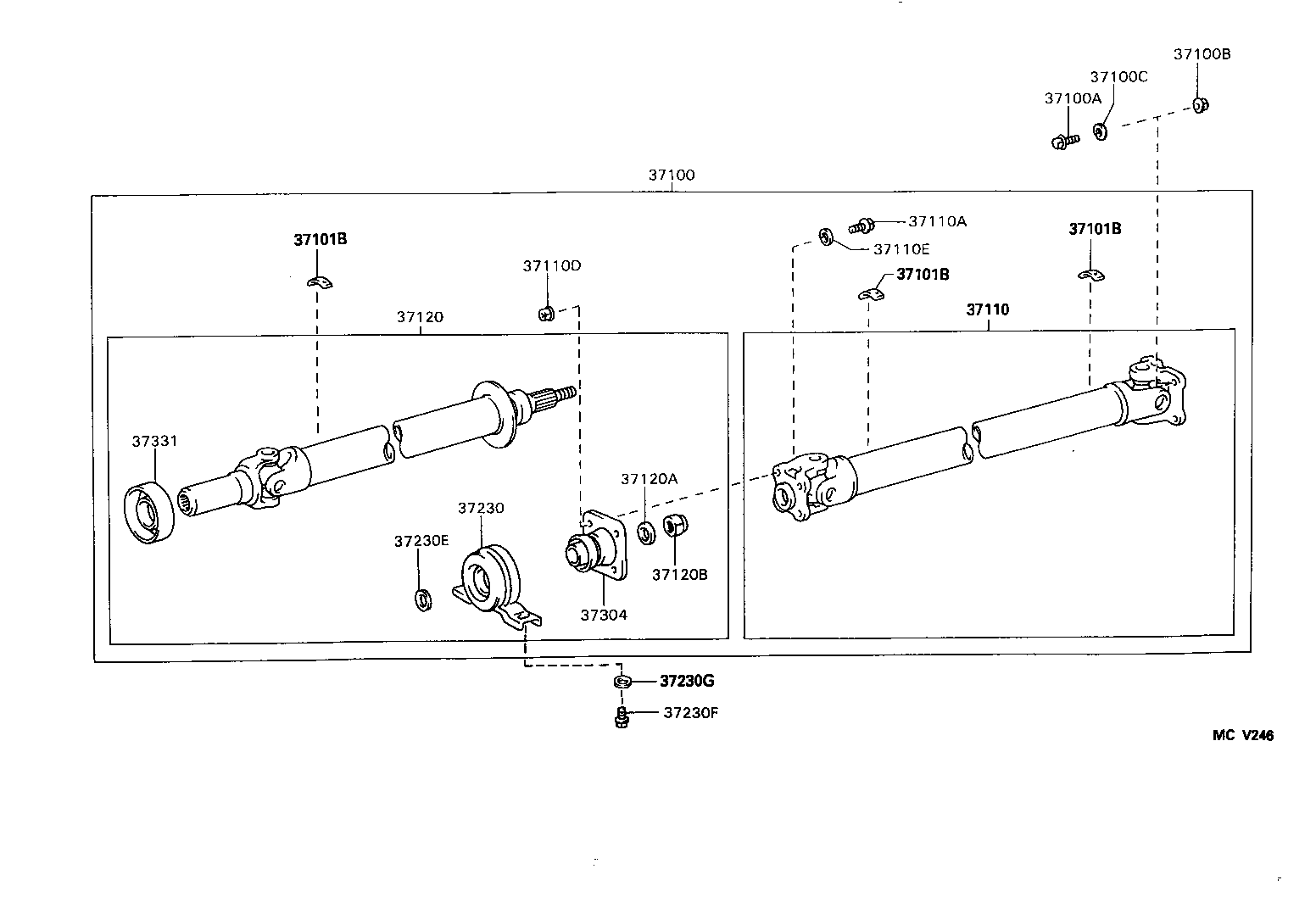

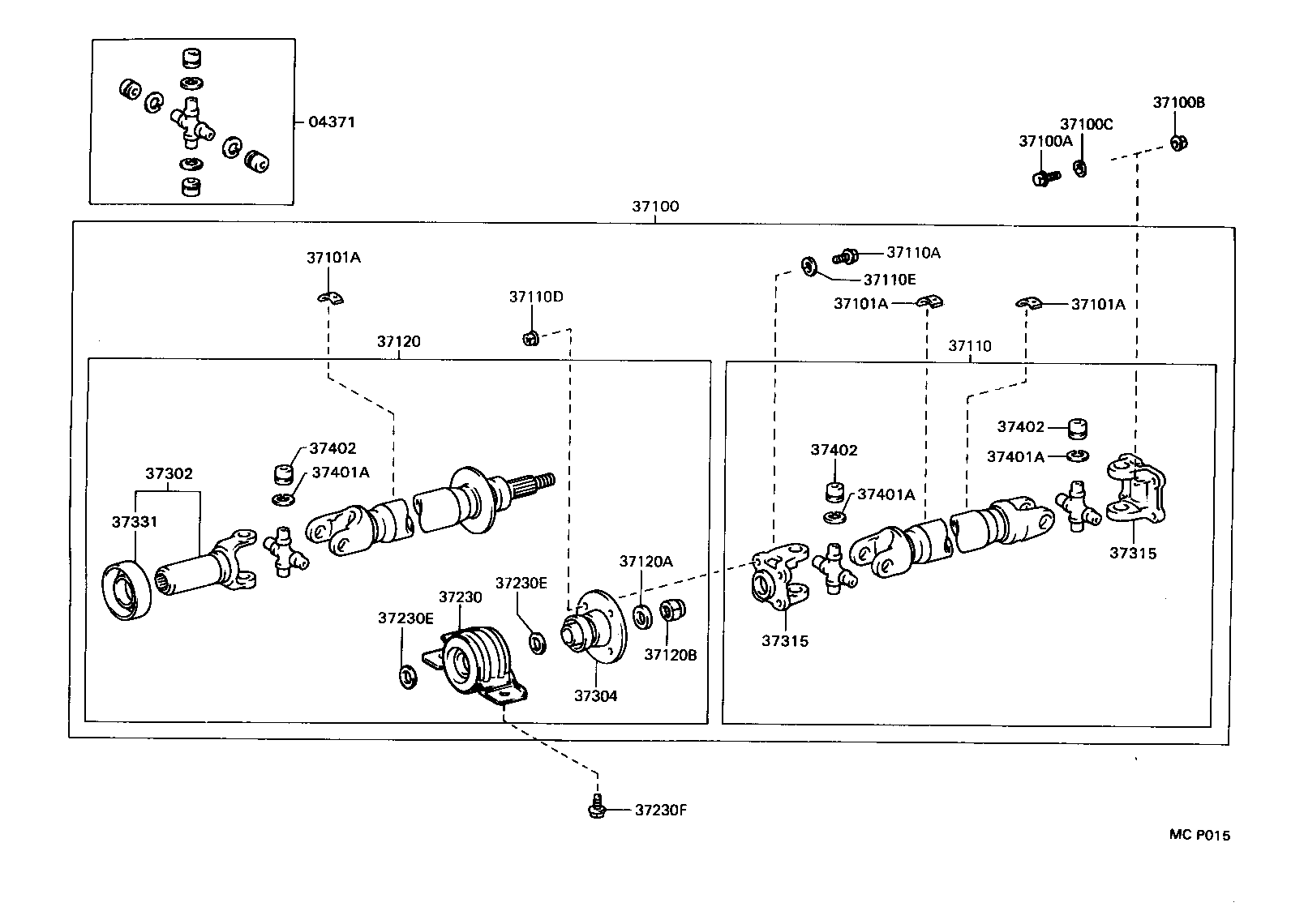

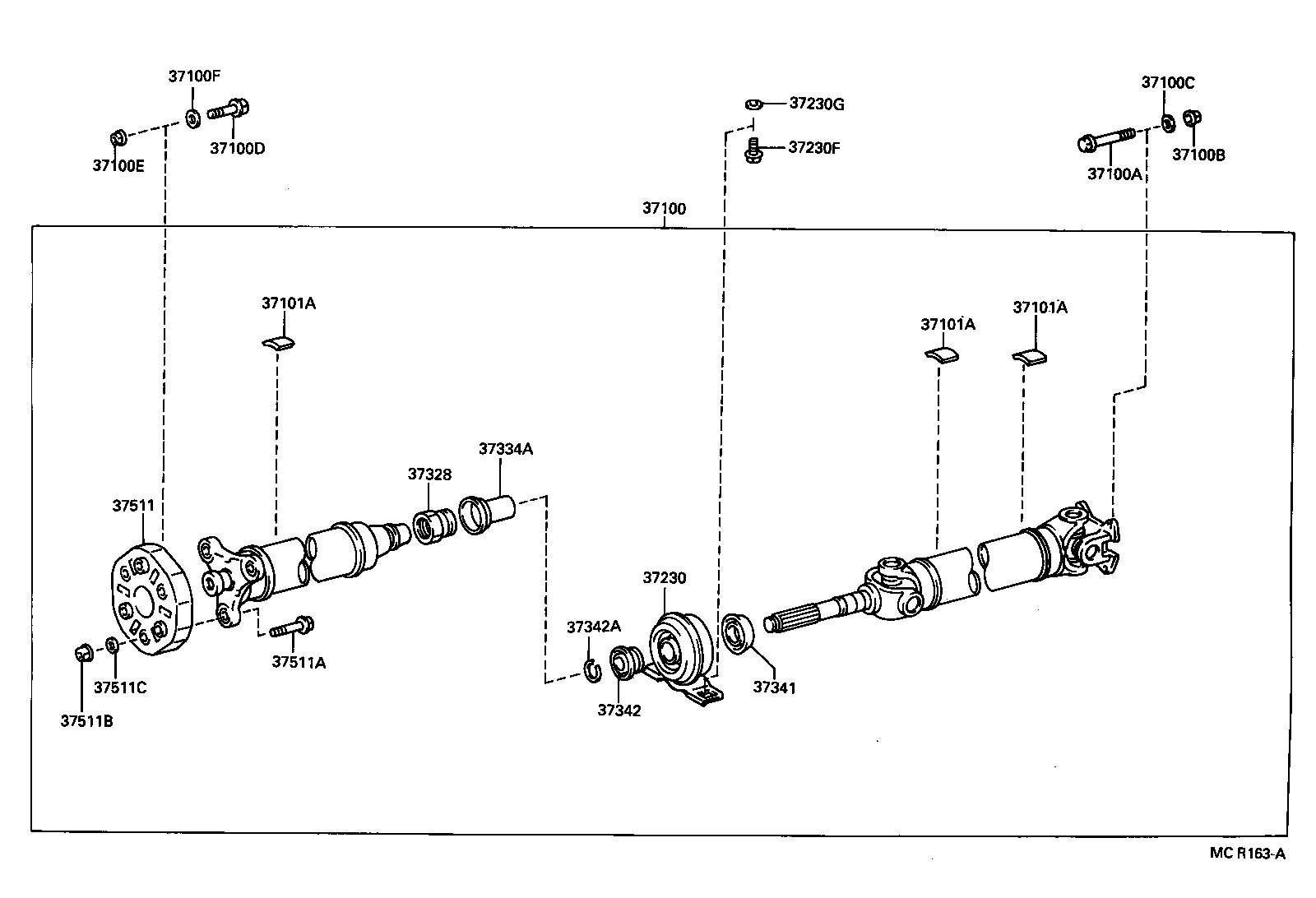

Figure 370913 370913 1992-10 → — Figure MCP015 MCP015 1992-10 → — Figure MCR164 MCR164 1993-10 → — Figure MCR163A MCR163A 1993-10 → 1995-12 Figure MCV246 MCV246 1995-12 → — Figure MCP016 MCP016 1992-10 → 1993-05

Part groups

PNCDescription
04371 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
37100 Shaft Assy, Propeller W/Center Bearing
37100A Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100B Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100C Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100D Bolt, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100E Nut, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100F Washer, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37101B Piece, Balance, NO.2 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37120A Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120B Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37140 Shaft Assy, Propeller, Front
37140A Bolt (F0R FRONT PROPELLER SHAFT)
37230 Bearing Assy, Center Support, NO.1
37230E Washer, NO.1 (FOR CENTER SUPPORT BEARING)
37230F Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
37230G Washer, NO.2 (FOR CENTER SUPPORT BEARING)
37302 Yoke Sub-assy, Universal Joint Sleeve
37304 Flange Sub-assy, Universal Joint
37315 Yoke, Universal Joint Flange
37328 Nut, Propeller Shaft Adjusting
37331 Cover, Sliding Shaft Dust
37334A Boot, Sliding Shaft
37341 Deflector, Propeller Shaft Dust, NO.1
37342 Deflector, Propeller Shaft Dust, NO.2
37342A Ring, Snap (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2)
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
37511 Coupling, Flexible
37511A Bolt (FOR FLEXIBLE COUPLING)
37511B Nut (FOR FLEXIBLE COUPLING)
37511C Washer, Plate (FOR FLEXIBLE COUPLING)
43489B Washer, Constant Velocity Universal Joint
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
