Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06

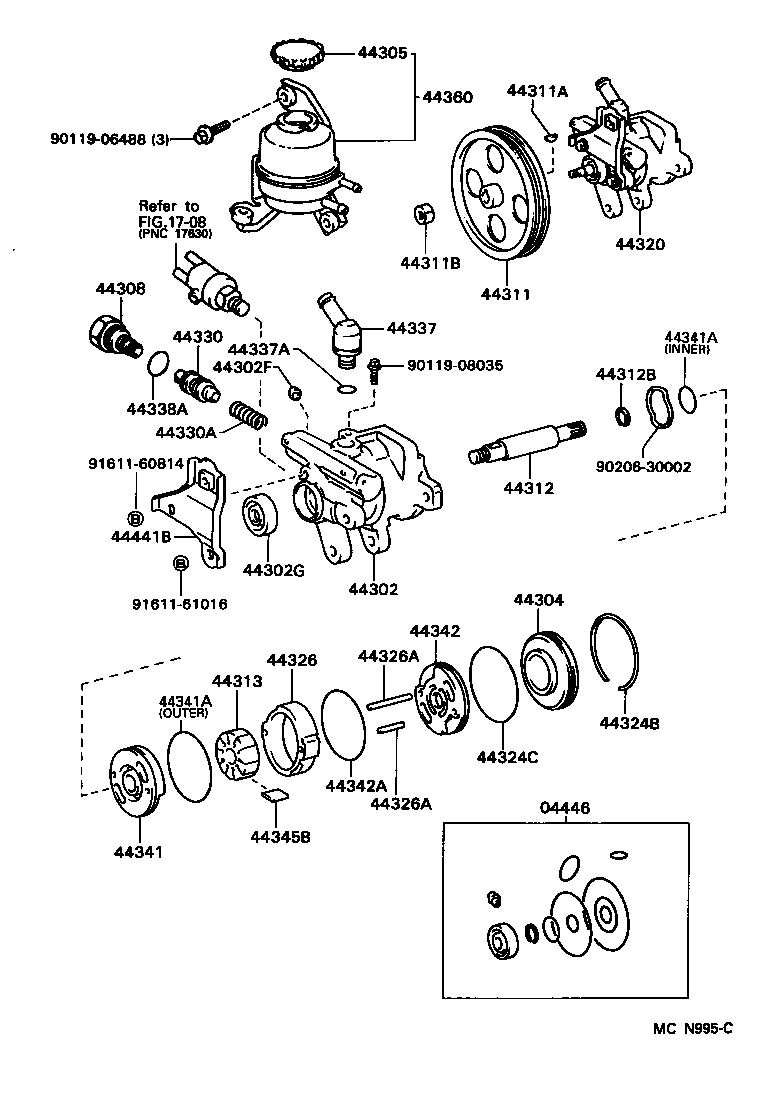

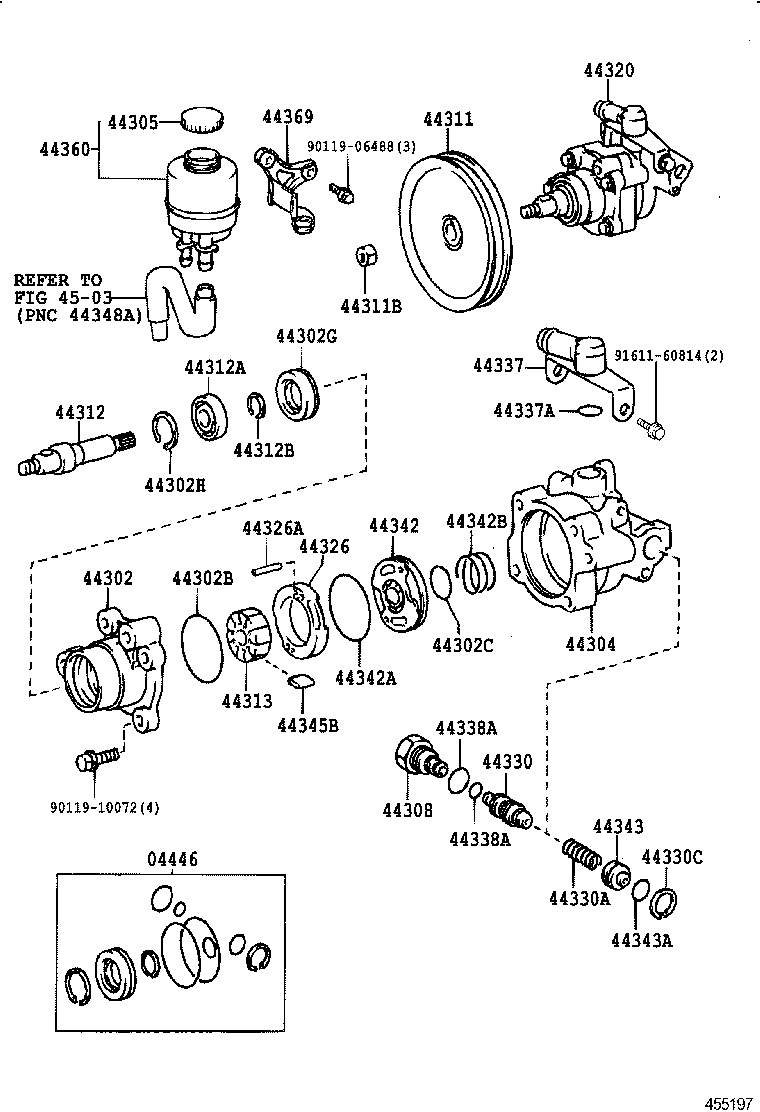

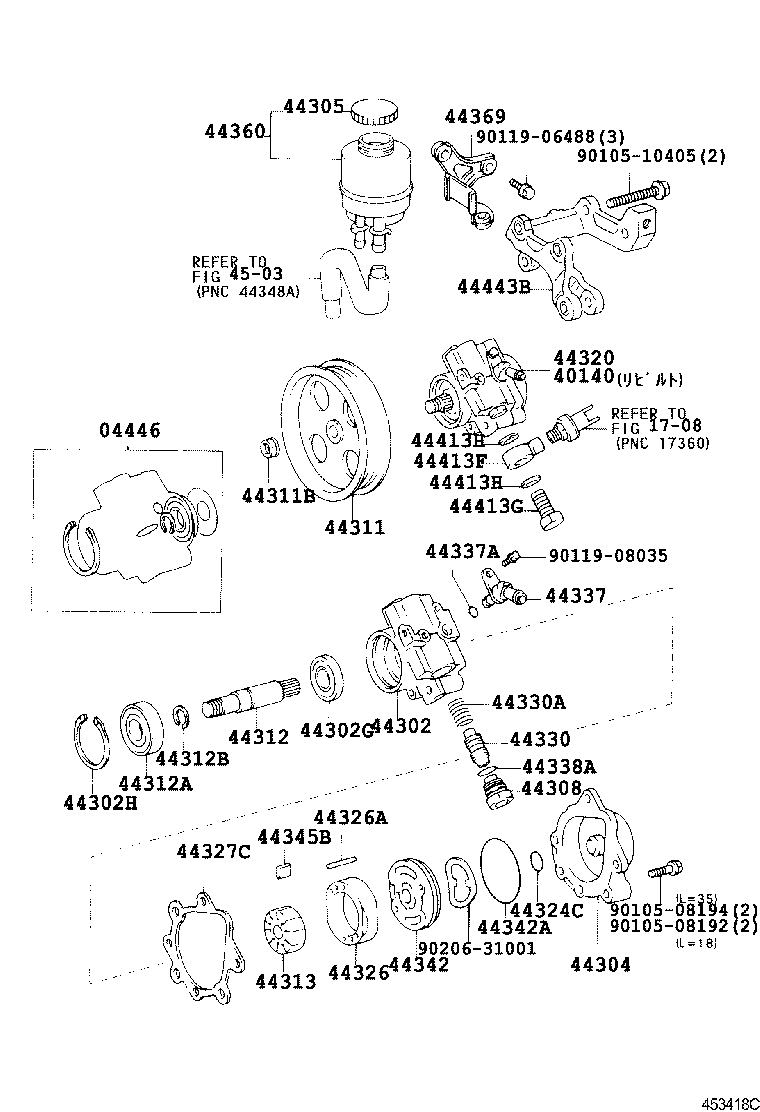

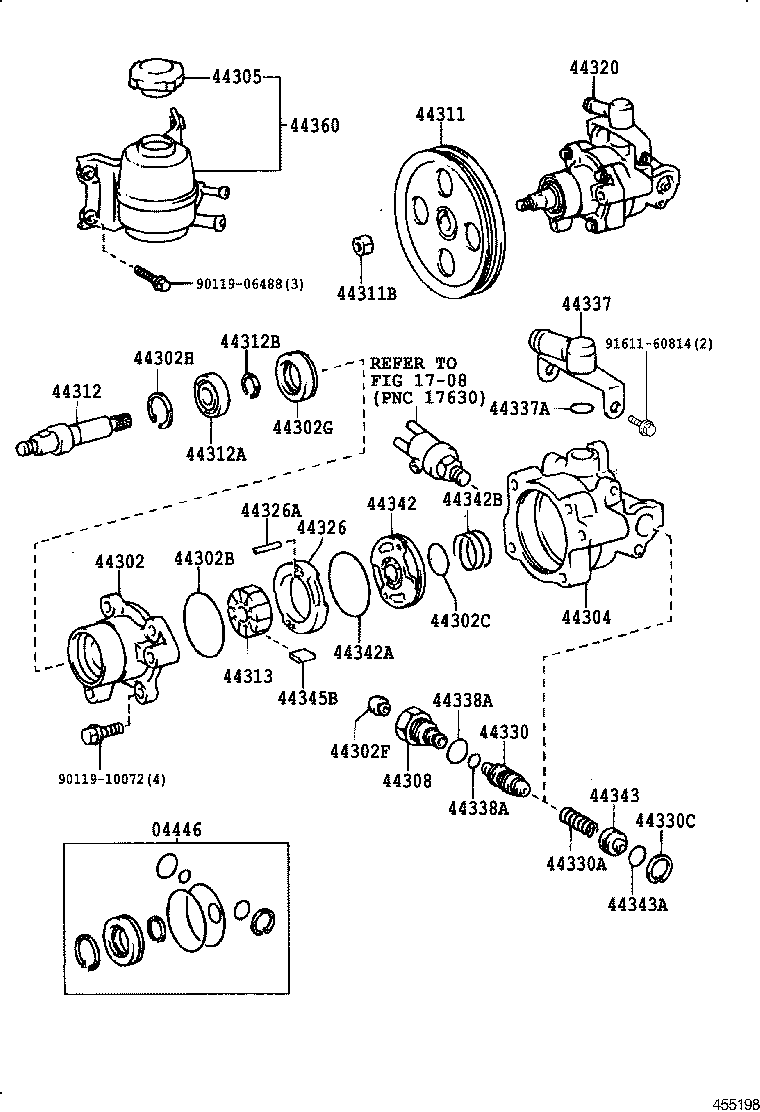

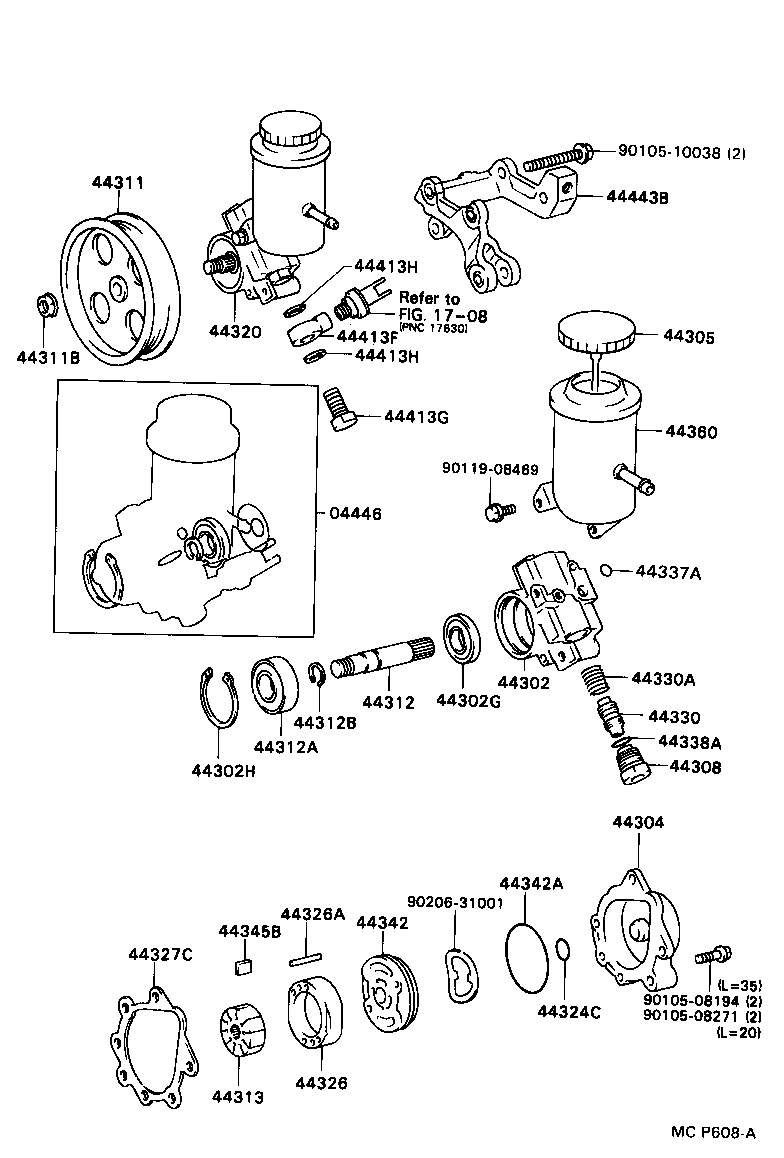

Vane Pump & Reservoir (POWER STEERING)
45 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 04446 | Gasket Kit, Power Steering Pump |
| 40140 | Pump Assy,Vane Rebuilt |
| 44302 | Housing Sub-assy, Vane Pump, Front |
| 44302B | Ring, O, NO.1(FOR VANE PUMP HOUSING) |
| 44302C | Ring, O, NO.2(FOR VANE PUMP HOUSING) |
| 44302F | Seat, Union(FOR VANE PUMP HOUSING) |
| 44302G | Seal, Oil, NO.2(FOR VANE PUMP HOUSING) |
| 44302H | Ring, Snap, NO.1(FOR VANE PUMP HOUSING) |
| 44304 | Housing Sub-assy, Vane Pump, Rear |
| 44305 | Cap Sub-assy, Vane Pump Oil Reservoir |
| 44308 | Union Sub-assy, Pressure Port |
| 44311 | Pulley, Vane Pump |
| 44311A | Key, Vane Pump Pulley |
| 44311B | Nut(FOR VANE PUMP PULLEY) |
| 44312 | Shaft, Vane Pump |
| 44312A | Bearing(FOR VANE PUMP SHAFT) |
| 44312B | Ring, Snap, NO.1(FOR VANE PUMP SHAFT) |
| 44313 | Rotor, Vane Pump |
| 44320 | Pump Assy, Vane |
| 44324B | Ring, Hole Snap(FOR PUMP HOUSING REAR) |
| 44324C | Ring, O(FOR PUMP HOUSING REAR) |
| 44326 | Ring, Cam(FOR VANE PUMP) |
| 44326A | Pin, Straight(FOR VANE PUMP CAM RING) |
| 44327C | Gasket, Vane Pump Housing |
| 44330 | Valve Assy, Flow Control |
| 44330A | Spring, Compression(FOR FLOW CONTROL VALVE) |
| 44330C | Ring, Snap(FOR FLOW CONTROL VALVE) |
| 44337 | Union, Power Steering Suction Port |
| 44337A | Ring, O(FOR POWER STEERING SUCTION PORT) |
| 44338A | Ring, O(FOR PRESSURE PORT UNION) |
| 44341 | Plate, Vane Pump Side, Front |
| 44341A | Ring, O(FOR VANE PUMP FRONT SIDE PLATE) |
| 44342 | Plate, Vane Pump Side, Rear |
| 44342A | Ring, O(FOR VANE PUMP SIDE PLATE REAR) |
| 44342B | Spring, Compression(FOR VANE PUMP SIDE PLATE REAR) |
| 44343 | Seat, Flow Control Spring |
| 44343A | Ring, O(FOR FLOW CONTROL SPRING SEAT) |
| 44345B | Plate, Vane Pump |
| 44360 | Reservoir Assy, Vane Pump Oil |
| 44369 | Bracket, Oil Reservoir, NO.1 |
| 44413F | Tube, Pressure Feed, NO.2 |
| 44413G | Bolt, Union(FOR PRESSURE FEED TUBE NO.2) |
| 44413H | Gasket(FOR PRESSURE FEED TUBE NO.2) |
| 44441B | Bracket, Pump, Front |
| 44443B | Bracket, Vane Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
