Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06
Parking Brake & Cable
47 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

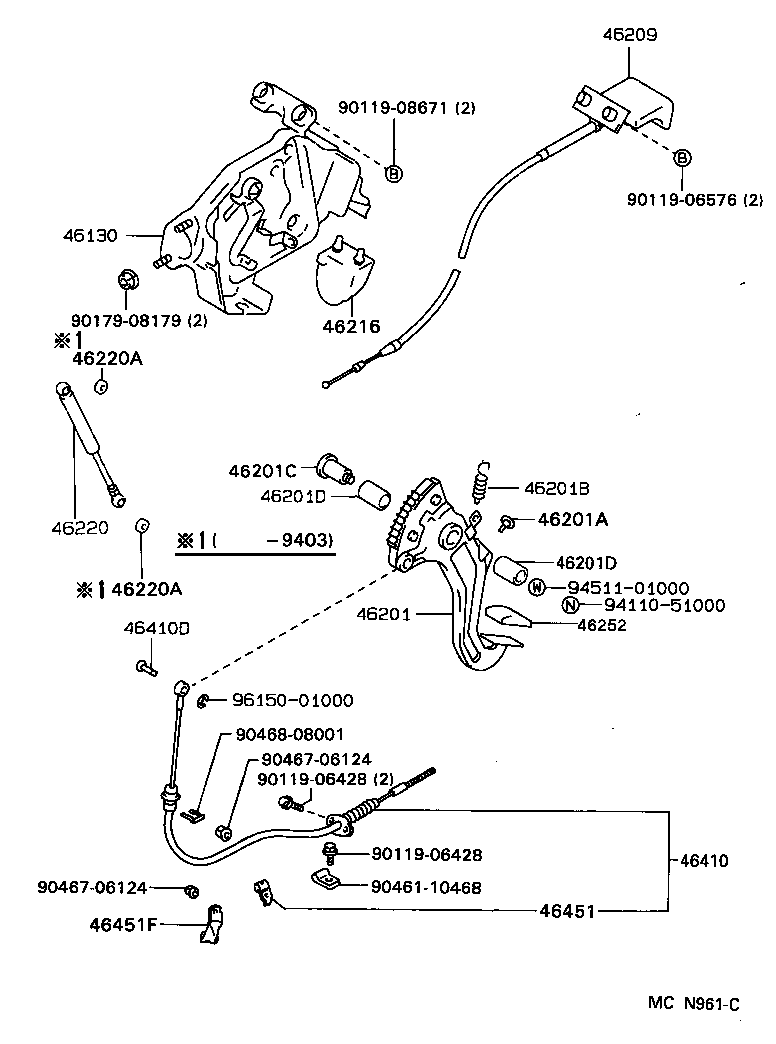

| 46130 | Bracket Assy, Parking Brake Pedal |
| 46201 | Pedal Sub-assy, Parking Brake |
| 46201A | Cushion(FOR PARKING BRAKE PEDAL) |
| 46201B | Spring, Tension |
| 46201C | Shaft, Pedal |
| 46201D | Bush(FOR PARKING BRAKE PEDAL) |
| 46201E | Lever Sub-assy, Parking Brake |
| 46209 | Cable Sub-assy, Parking Brake Release |
| 46216 | Cushion, Parking Pedal |
| 46217 | Knob, Parking Brake Release Rod |
| 46220 | Absorber Assy, Parking Brake Pedal Return |
| 46220A | Cushion(FOR PARKING BRAKE PEDAL RETURN ABSORBER) |
| 46225A | Spring, Compression(FOR PARKING BRAKE PAWL ROD) |
| 46252 | Pad, Parking Pedal |
| 46304 | Equalizer Sub-assy, Parking Brake |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46410D | Pin(FOR PARKING BRAKE FRONT CABLE) |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420A | Clamp, NO.1(FOR PARKING BRAKE CABLE) |
| 46420B | Clamp, NO.2(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46440 | Cable Assy, Parking Brake, NO.4 |
| 46451 | Bracket, Cable Support |
| 46451F | Bracket, Cable Support |

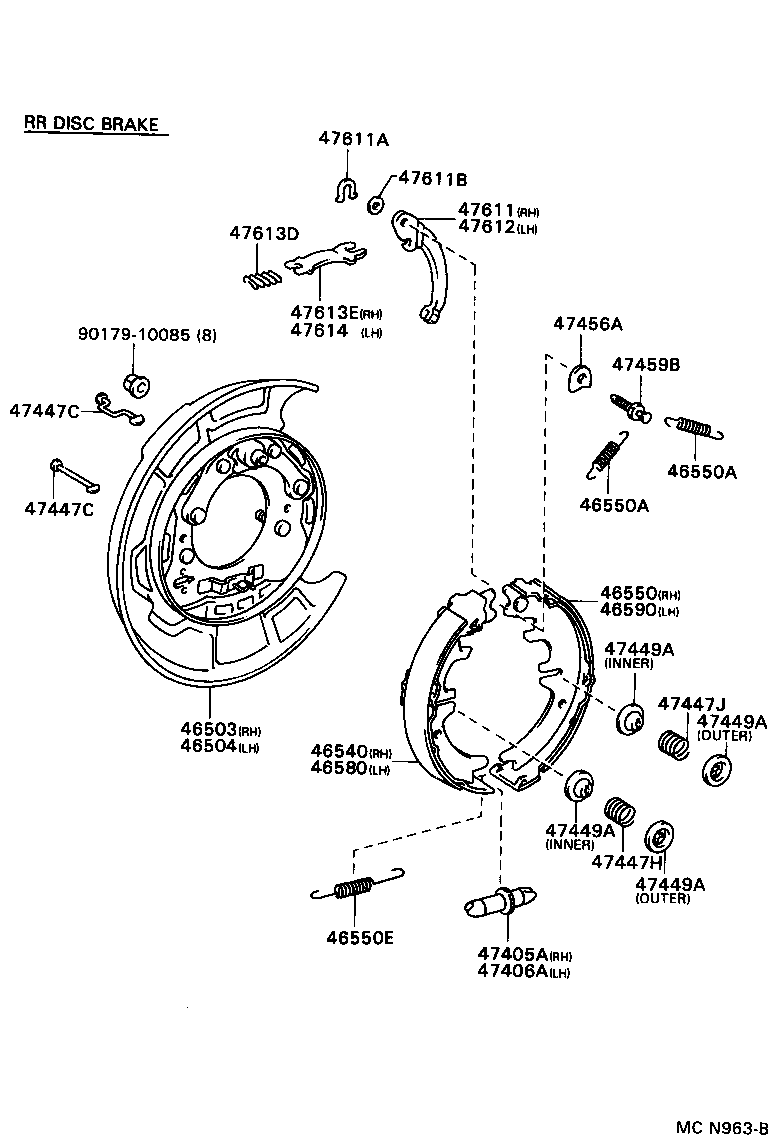

| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46504 | Plate Sub-assy, Parking Brake, LH |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550A | Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46580 | Shoe Assy, Parking Brake, LH NO.1 |
| 46590 | Shoe Assy, Parking Brake, LH NO.2 |
| 47405A | Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) |
| 47406A | Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) |
| 47447C | Pin, Shoe Hold Down Spring(FOR PARKING BRAKE) |
| 47447H | Spring, Compression, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN) |
| 47447J | Spring, Compression, NO.2(FOR PARKING BRAKE SHOE HOLD DOWN) |
| 47449A | Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
| 47456A | Plate, Shoe Guide(FOR PARKING BRAKE) |
| 47459B | Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE) |
| 47611 | Lever, Parking Brake Shoe, RH |
| 47611A | Washer, Type C(FOR PARKING BRAKE SHOE LEVER) |
| 47611B | Shim(FOR PARKING BRAKE SHOE LEVER) |
| 47612 | Lever, Parking Brake Shoe, LH |
| 47613D | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 47613E | Strut, Parking Brake Shoe, RH |
| 47614 | Strut, Parking Brake Shoe, LH |
