Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

15 part groups · 2 illustrations

Illustrations

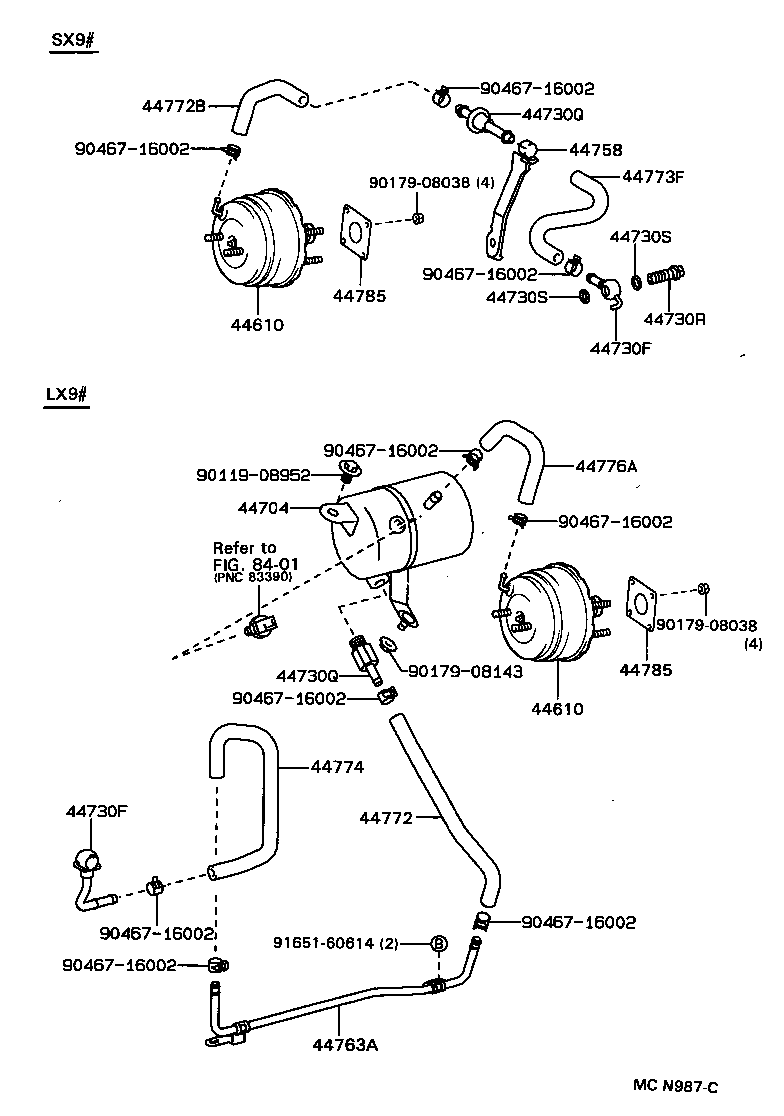

Figure MCN986C MCN986C 1992-10 → — Figure MCN987C MCN987C 1992-10 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730Q Valve Assy, Vacuum Check, NO.2
44730R Bolt, Union(FOR VACUUM HOSE UNION)
44730S Gasket(FOR VACUUM HOSE UNION)
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44772 Hose, Check Valve TO Connector Tube
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44776A Hose, Vacuum Reservoir TO Brake Booster
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
