Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06

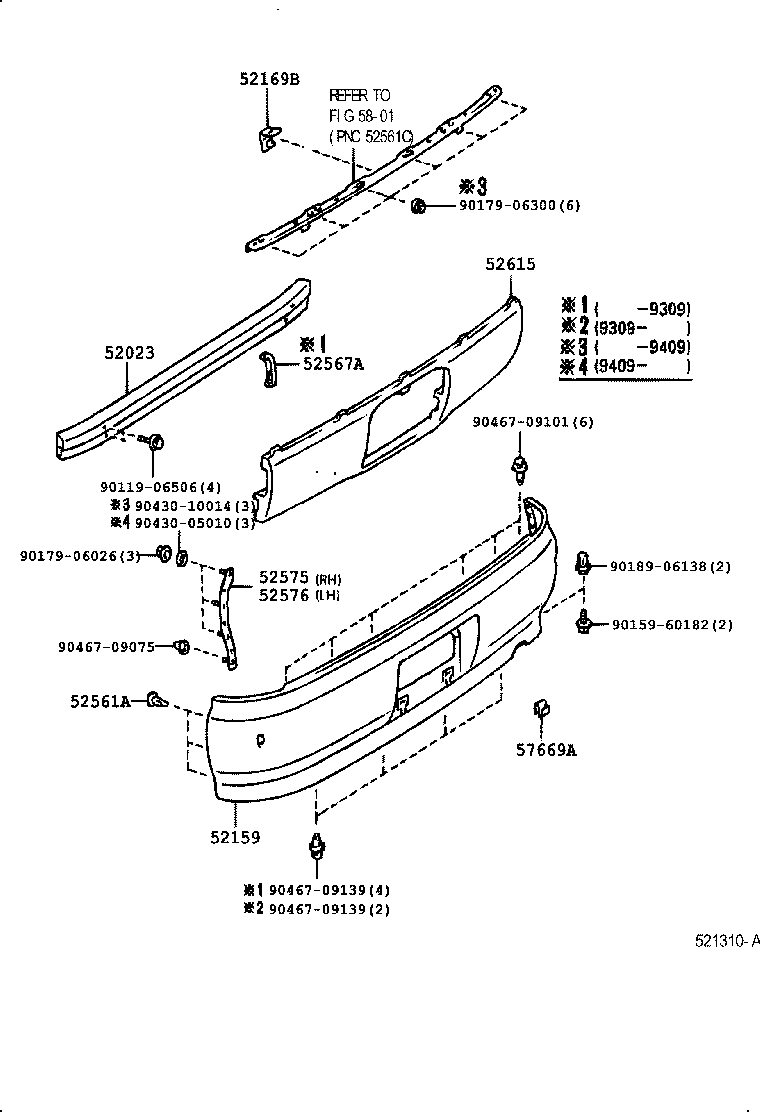

Rear Bumper & Bumper Stay
9 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 52023 | Reinforcement Sub-assy, Rear Bumper |
| 52159 | Cover, Rear Bumper |
| 52169B | Bracket, Rear Bumper, Center |
| 52561A | Clip(FOR REAR BUMPER RETAINER) |
| 52567A | Retainer, Rear Bumper, Lower Side |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52615 | Absorber, Rear Bumper Energy |
| 57669A | Bracket, Rear License Plate Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
