Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06
Cowl Panel & Windshield Glass
16 part groups · 1 illustrations

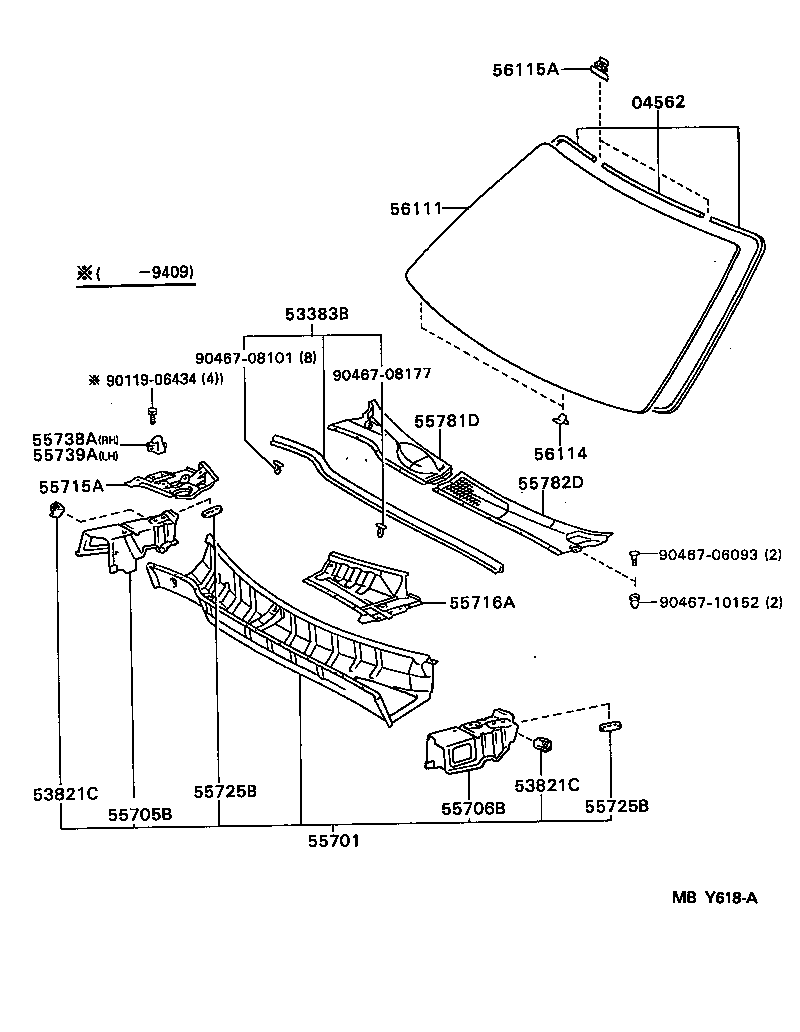

Illustrations
Part groups
| PNC | Description |
|---|---|
| 04562 | Dam Kit, Windshield Glass |
| 53383B | Seal, Hood TO Cowl Top |
| 53821C | Bracket, Front Fender, Rear |
| 55701 | Panel Sub-assy, Cowl |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55715A | Brace, Cowl Top TO Apron, RH |
| 55716A | Brace, Cowl Top TO Apron, LH |
| 55725B | Reinforcement, Hood Hinge Mounting |
| 55738A | Stopper, Hood, RH |
| 55739A | Stopper, Hood, LH |
| 55781D | Louver, Cowl Top Ventilator, RH |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 56111 | Glass, Windshield |
| 56114 | Retainer, Windshield Glass |
| 56115A | Stopper, Windshield Glass, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
