Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06

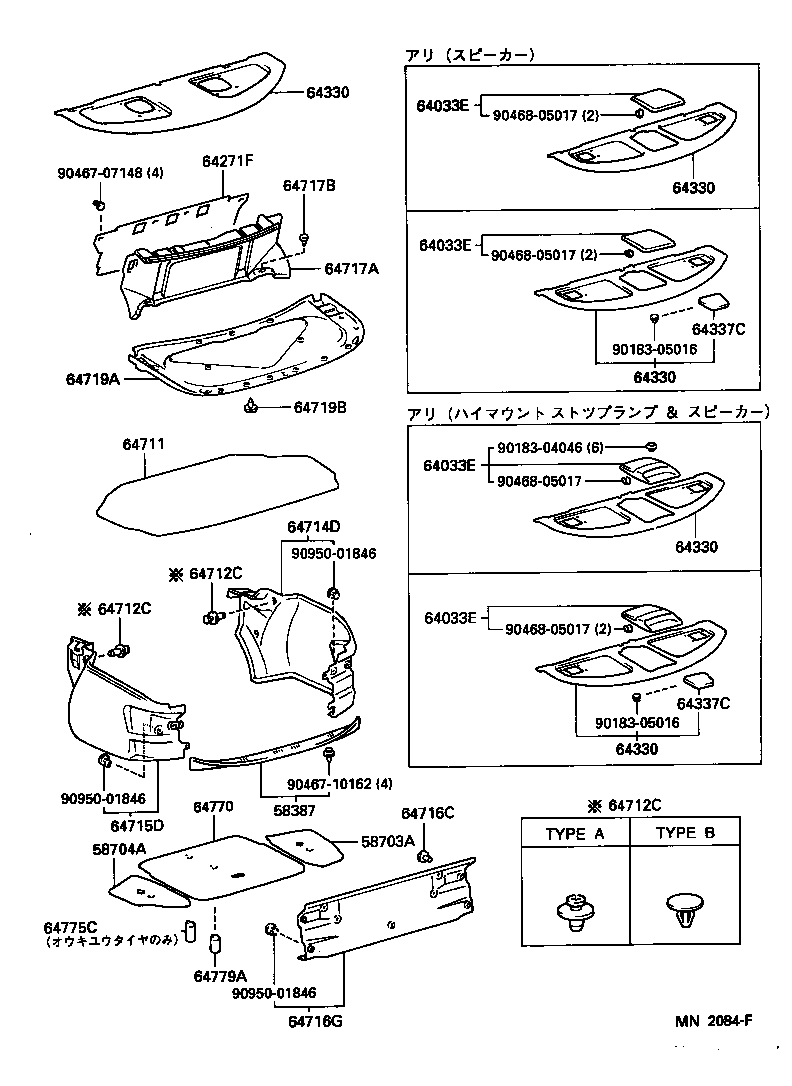

Package Tray Panel & Luggage Compartment Mat
20 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58703A | Cover Sub-assy, Luggage Compartment Side, RH |
| 58704A | Cover Sub-assy, Luggage Compartment Side, LH |
| 64033E | Grille Sub-assy, Rear Speaker |
| 64271F | Trim, Room Partition |
| 64330 | Panel Assy, Package Tray Trim |
| 64337C | Garnish, Package Tray Trim |
| 64711 | Mat, Luggage Compartment Floor |
| 64712C | Clip(FOR LUGGAGE COMPARTMENT TRIM COVER) |
| 64714D | Cover, Luggage Compartment Trim, Side, RH |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64716C | Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64770 | Cover Assy, Spare Wheel |
| 64775C | Support, Spare Wheel Cover |
| 64779A | Stopper, Spare Wheel Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
