Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06

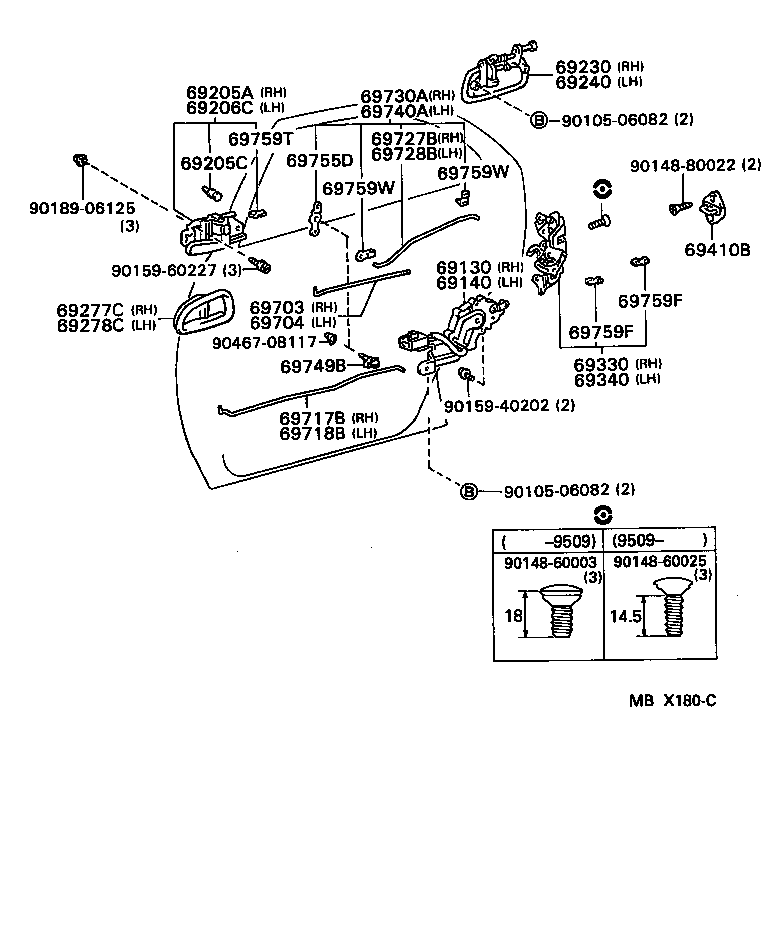

Rear Door Lock & Handle
25 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 69130 | Actuator Assy, Rear Door Lock, RH |
| 69140 | Actuator Assy, Rear Door Lock, LH |
| 69205A | Handle Sub-assy, Rear Door Inside, RH |
| 69205C | Cushion(FOR REAR DOOR INSIDE HANDLE) |
| 69206C | Handle Sub-assy, Rear Door Inside, LH |
| 69230 | Handle Assy, Rear Door Outside, RH |
| 69240 | Handle Assy, Rear Door Outside, LH |
| 69277C | Bezel, Rear Door Inside Handle, RH |
| 69278C | Bezel, Rear Door Inside Handle, LH |
| 69330 | Lock Assy, Rear Door, RH |
| 69340 | Lock Assy, Rear Door, LH |
| 69410B | Plate Assy, Rear Door Lock Striker |
| 69703 | Link Sub-assy, Rear Door Locking Control, RH |
| 69704 | Link Sub-assy, Rear Door Locking Control, LH |
| 69717B | Link, Rear Door Lock Remote Control, RH |
| 69718B | Link, Rear Door Lock Remote Control, LH |
| 69727B | Link, Rear Door Inside Locking, NO.2 RH |
| 69728B | Link, Rear Door Inside Locking, NO.2 LH |
| 69730A | Link Assy, Rear Door Lock Control, RH |
| 69740A | Link Assy, Rear Door Lock Control, LH |
| 69749B | Clamp, Rear Door Lock Link |
| 69755D | Bellcrank, Rear Door Locking Control, Front |
| 69759F | Snap, Rear Door Lock Control Link |
| 69759T | Snap, Rear Door Inside Handle |
| 69759W | Snap, Rear Door Lock Control Link |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
