Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06
Armrest & Visor
22 part groups · 1 illustrations

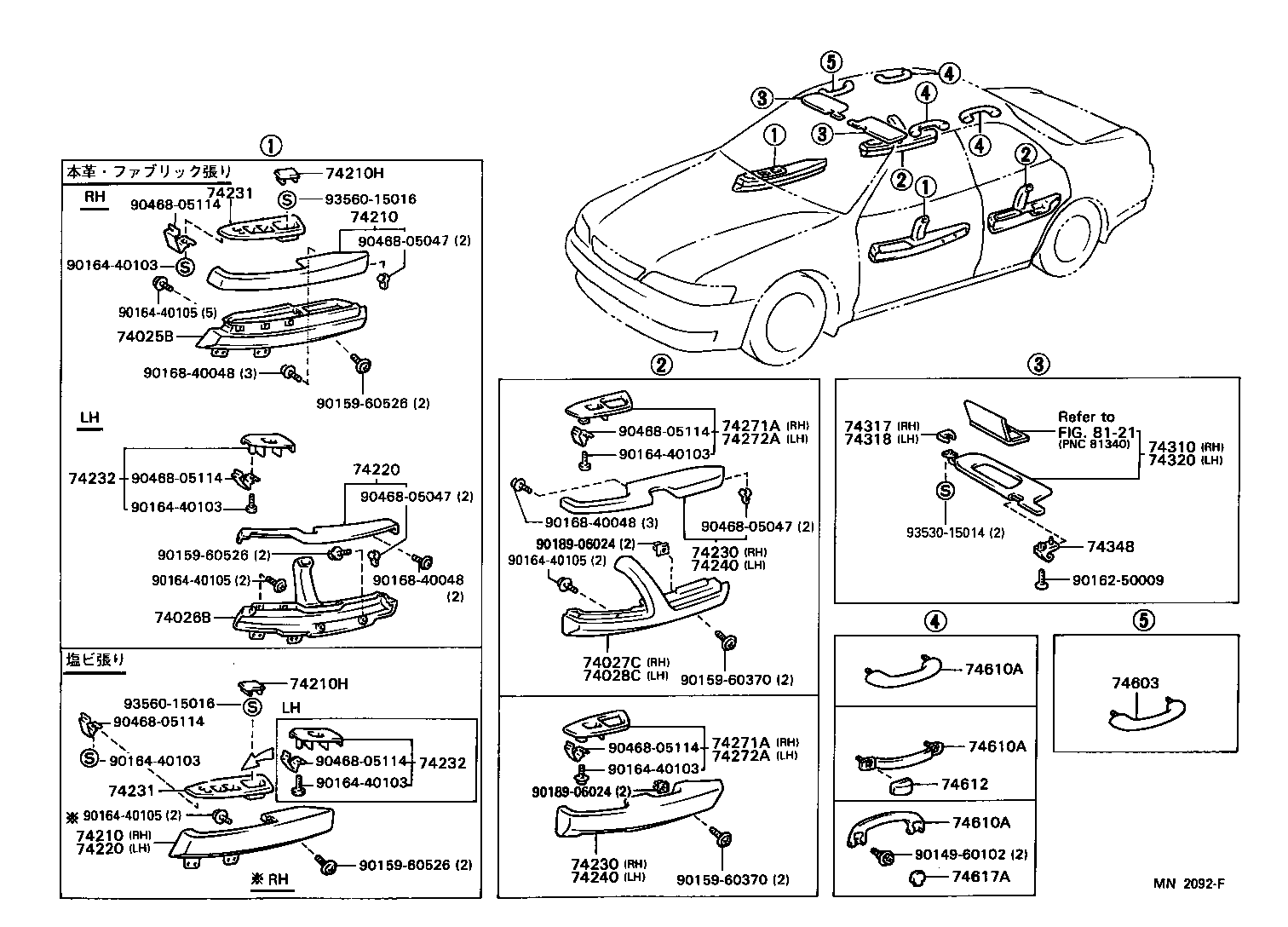

Illustrations
Part groups
| PNC | Description |
|---|---|
| 74025B | Base Sub-assy, Front Armrest, Lower RH |
| 74026B | Base Sub-assy, Front Armrest, Lower LH |
| 74027C | Base Sub-assy, Rear Armrest, Lower RH |
| 74028C | Base Sub-assy, Rear Armrest, Lower LH |
| 74210 | Armrest Assy, Front, RH |
| 74210H | Plug, Hole (FOR DOOR ARMREST) |
| 74220 | Armrest Assy, Front, LH |
| 74230 | Armrest Assy, Rear, RH |
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74240 | Armrest Assy, Rear, LH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74603 | Grip Sub-assy, Assist, Front |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74617A | Plug, Assist Grip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
