Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06
Side Moulding
37 part groups · 1 illustrations

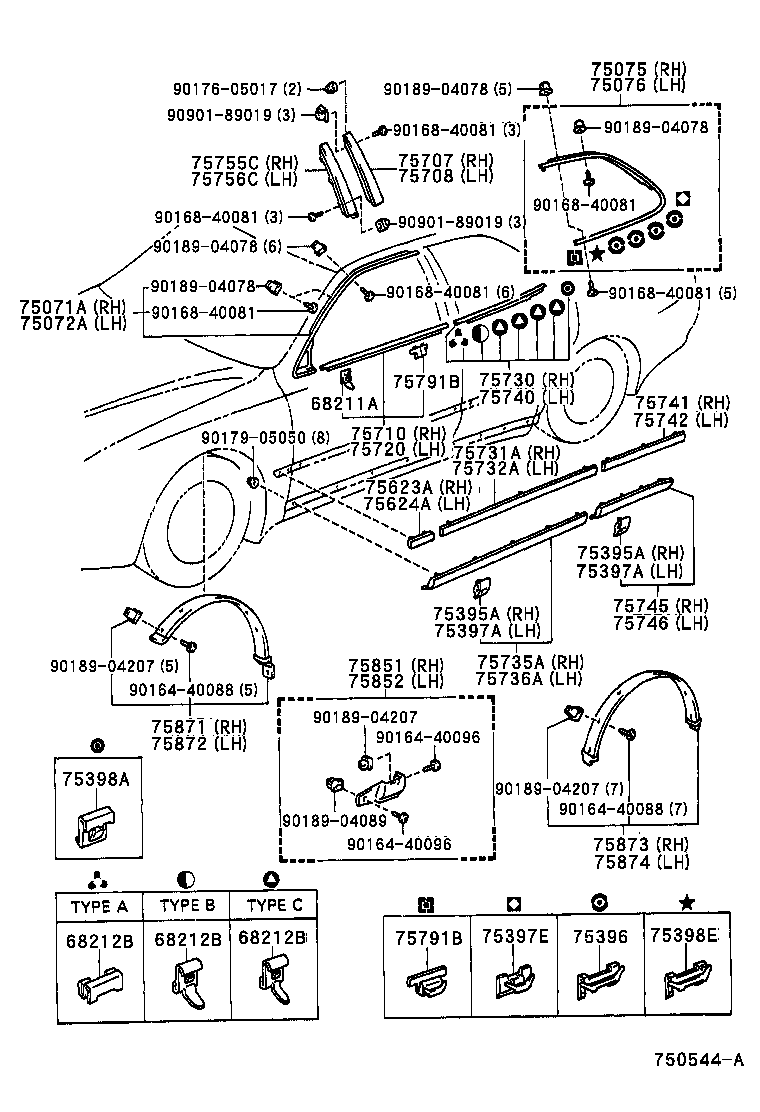

Illustrations
Part groups
| PNC | Description |
|---|---|
| 68211A | Clip, Door Belt Moulding |
| 68212B | Clip, Rear Door Glass Weatherstrip |
| 75071A | Moulding Sub-assy, Front Door, Outside RH |
| 75072A | Moulding Sub-assy, Front Door, Outside LH |
| 75075 | Moulding Sub-assy, Rear Door, Outside RH |
| 75076 | Moulding Sub-assy, Rear Door, Outside LH |
| 75395A | Clip, Outside Moulding, NO.1 |
| 75396 | Clip, Outside Moulding, NO.2 |
| 75397A | Clip, Outside Moulding, NO.3 |
| 75397E | Clip, Outside Moulding, NO.1 |
| 75398A | Clip, Outside Moulding, NO.5 |
| 75398E | Clip, Outside Moulding, NO.2 |
| 75623A | Moulding, Front Fender, Outside Rear RH |
| 75624A | Moulding, Front Fender, Outside Rear LH |
| 75707 | Moulding Sub-assy, Rear Door Window Frame, RH |
| 75708 | Moulding Sub-assy, Rear Door Window Frame, LH |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75735A | Moulding, Front Door Outside, Lower RH |
| 75736A | Moulding, Front Door Outside, Lower LH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75745 | Moulding, Rear Door Outside, Lower RH |
| 75746 | Moulding, Rear Door Outside, Lower LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75791B | Clip, Belt Moulding Side |
| 75851 | Moulding, Rocker Panel, RH |
| 75852 | Moulding, Rocker Panel, LH |
| 75871 | Moulding, Front Fender Wheel Opening, RH |
| 75872 | Moulding, Front Fender Wheel Opening, LH |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
