Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

13 part groups · 1 illustrations

Illustrations

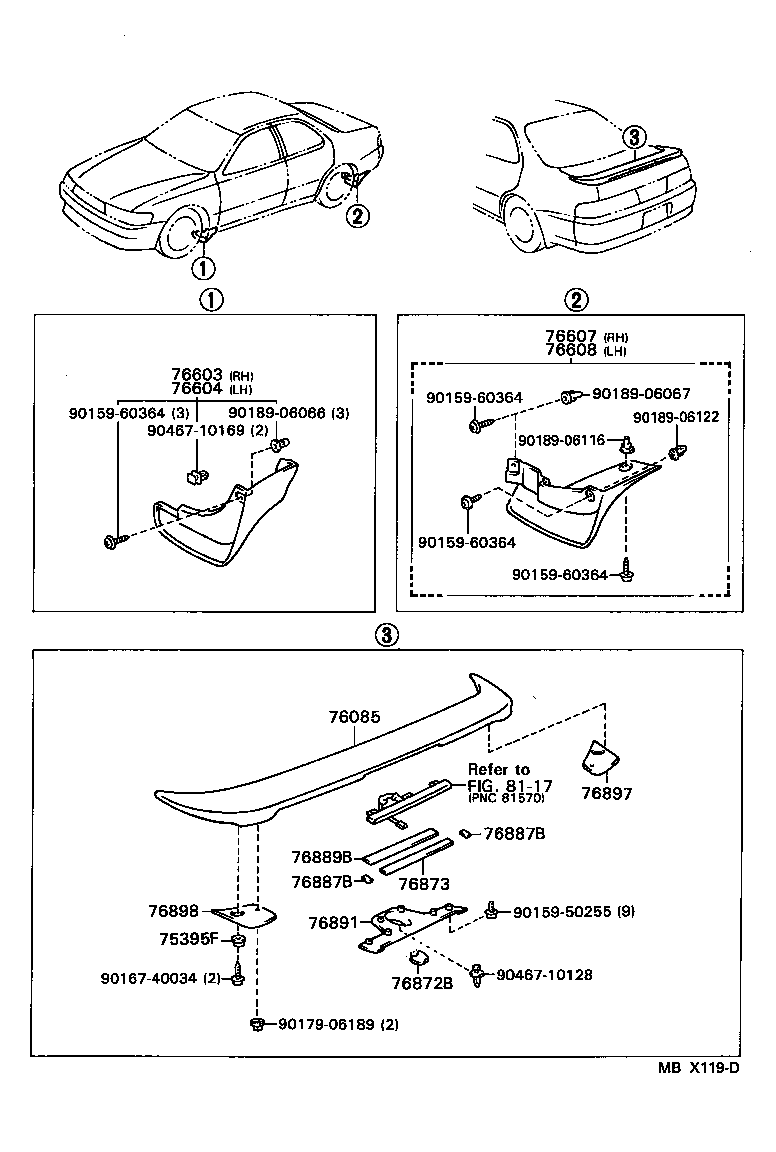

Figure MBX119D MBX119D 1992-10 → —

Part groups

PNCDescription
75395F Clip, Outside Moulding, NO.1
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76872B Protector, Rear Spoiler, Center
76873 Protector, Rear Spoiler, NO.2
76887B Protector, Rear Spoiler Side, NO.2
76889B Seal, Rear Spoiler, NO.1
76891 Spoiler, Rear NO.1
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
