Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06

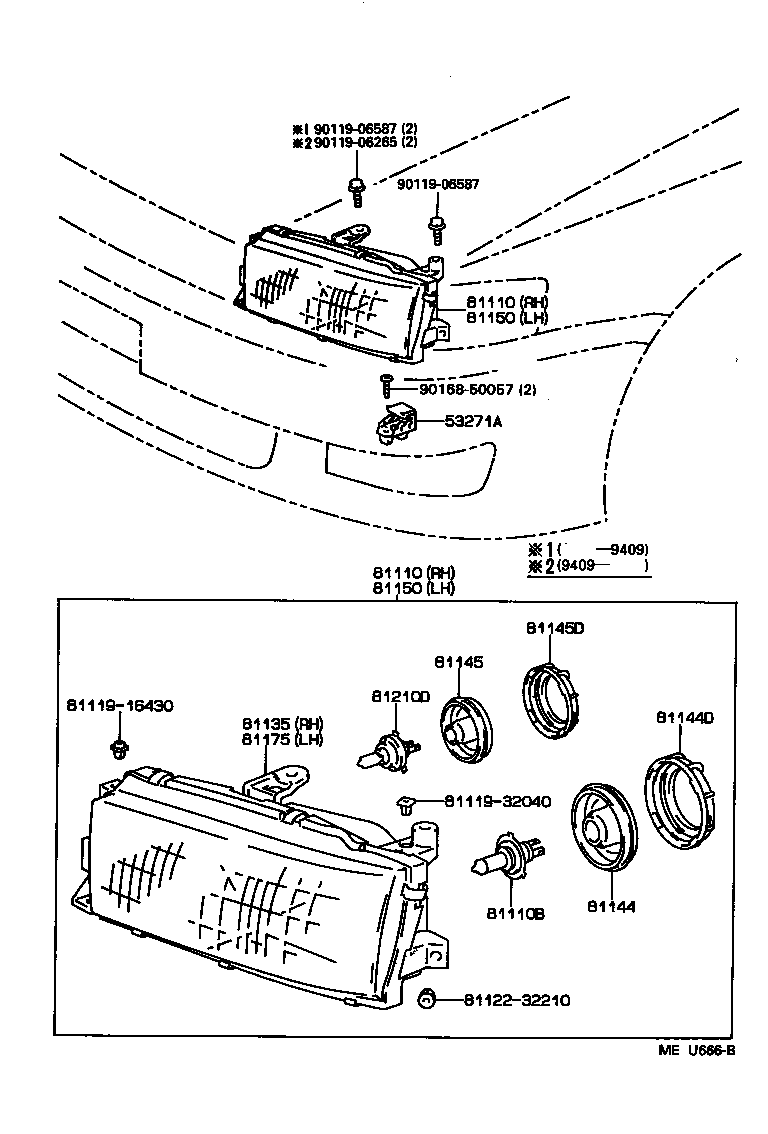

Headlamp
11 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 53271A | Bracket, Headlamp Mounting |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81135 | Unit Assy, Headlamp, RH |
| 81144 | Cover, Headlamp, NO.1 |
| 81144D | Cap, Headlamp Locking |
| 81145 | Cover, Headlamp, NO.2 |
| 81145D | Cap, Headlamp Locking NO.2 |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81210D | Bulb, Fog Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
