Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

9 part groups · 1 illustrations

Illustrations

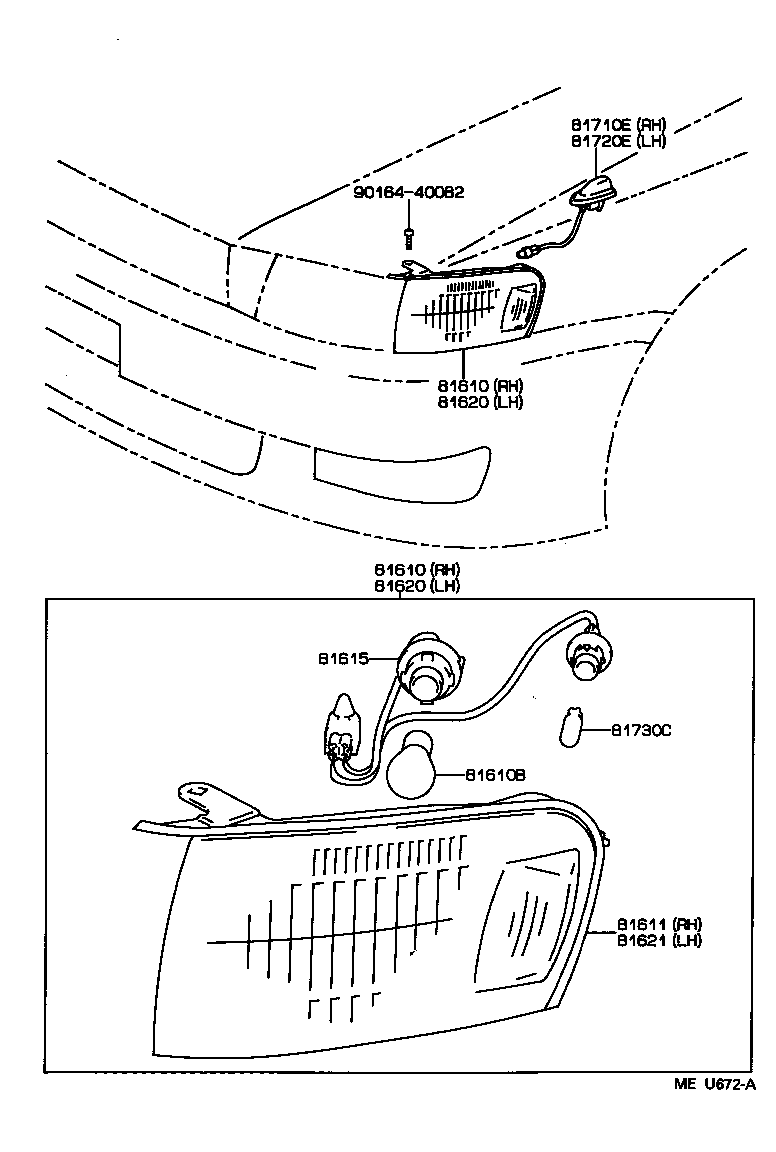

Figure MEU672A MEU672A 1992-10 → —

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81615 Socket And Wire, Clearance Lamp
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81710E Marker Assy, Fender, RH
81720E Marker Assy, Fender, LH
81730C Bulb (FOR SIDE TURN SIGNAL)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
