Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

5 part groups · 2 illustrations

Illustrations

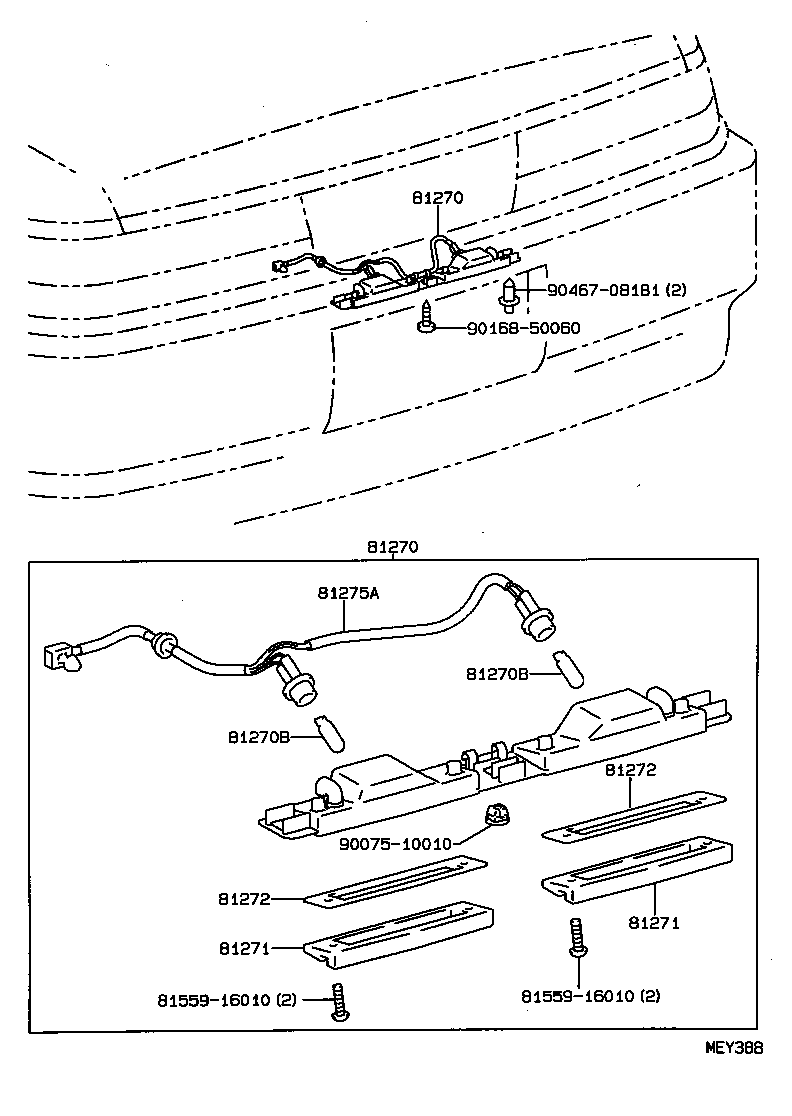

Figure MEU680C MEU680C 1992-10 → 1993-09 Figure MEY388 MEY388 1993-09 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81275A Cord, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
