Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

4 part groups · 1 illustrations

Illustrations

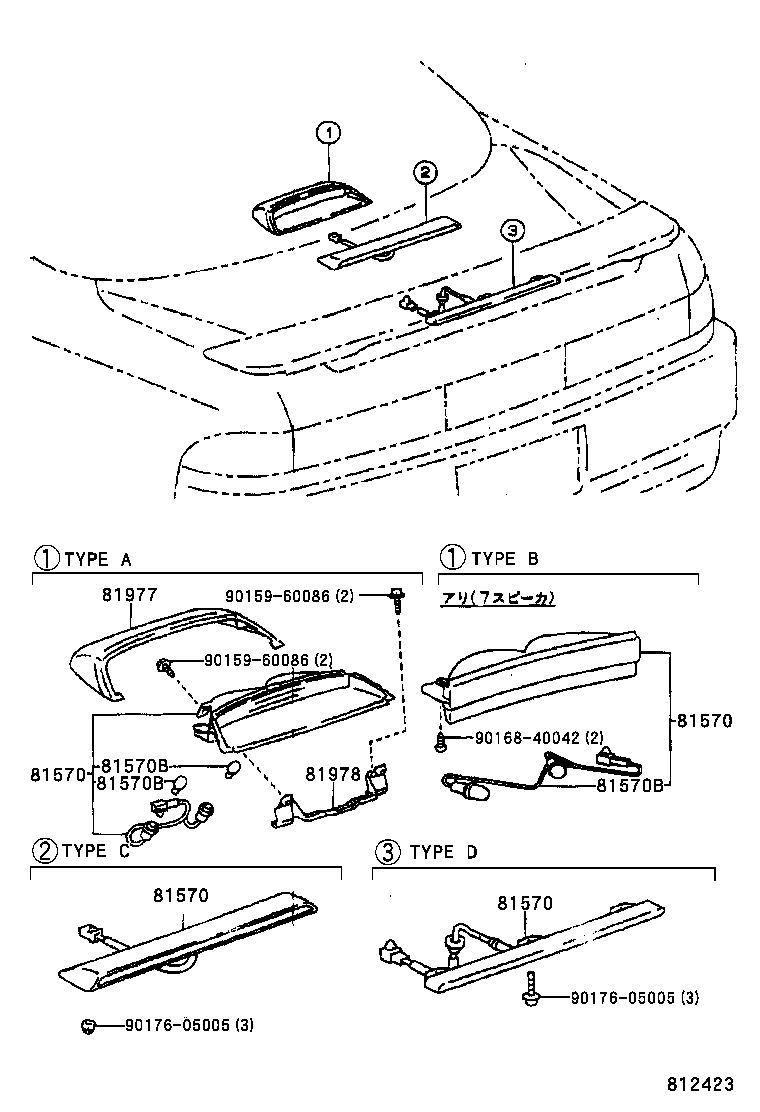

812423 1992-10 → —

Part groups

PNC	Description
81570	Lamp Assy, Center Stop
81570B	Bulb (FOR CENTER STOP LAMP)
81977	Cover, Center Stop Lamp
81978	Bracket, Stop Center

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
