Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06

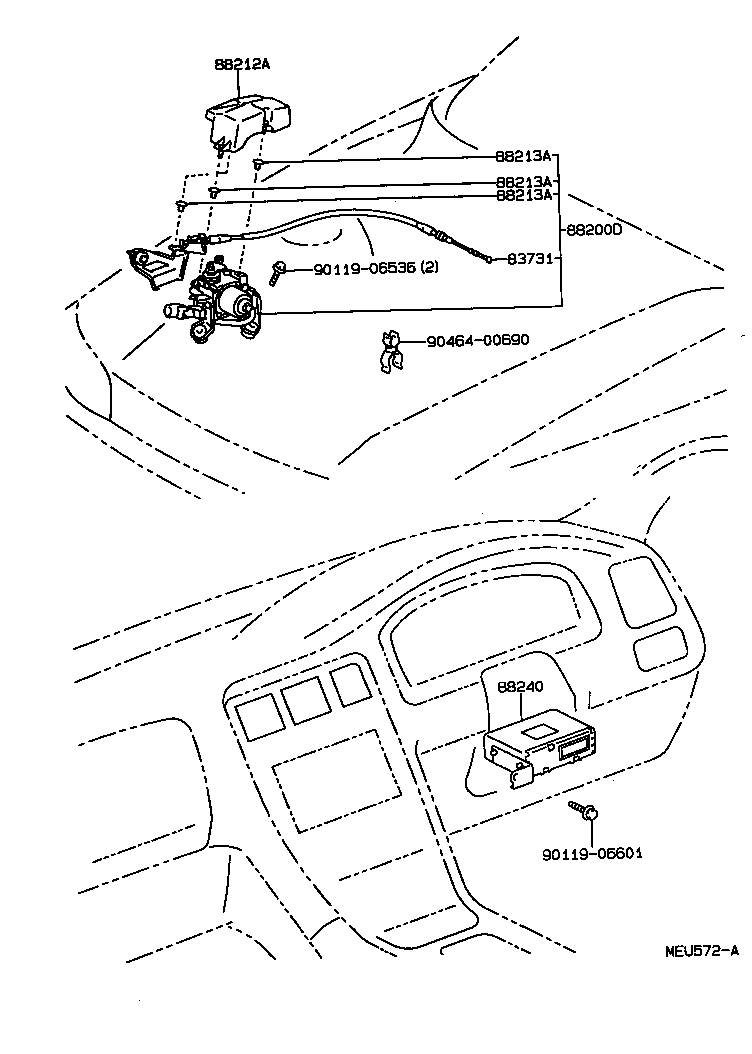

Cruise Control (AUTO DRIVE)
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83731 | Cable, Cruise Control |
| 88200D | Actuator Assy, Cruise Control |
| 88212A | Cover, Cruise Control Actuator |
| 88213A | Grommet, Cruise Control Actuator Cover |
| 88240 | Computer Assy, Cruise Control |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
