Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06

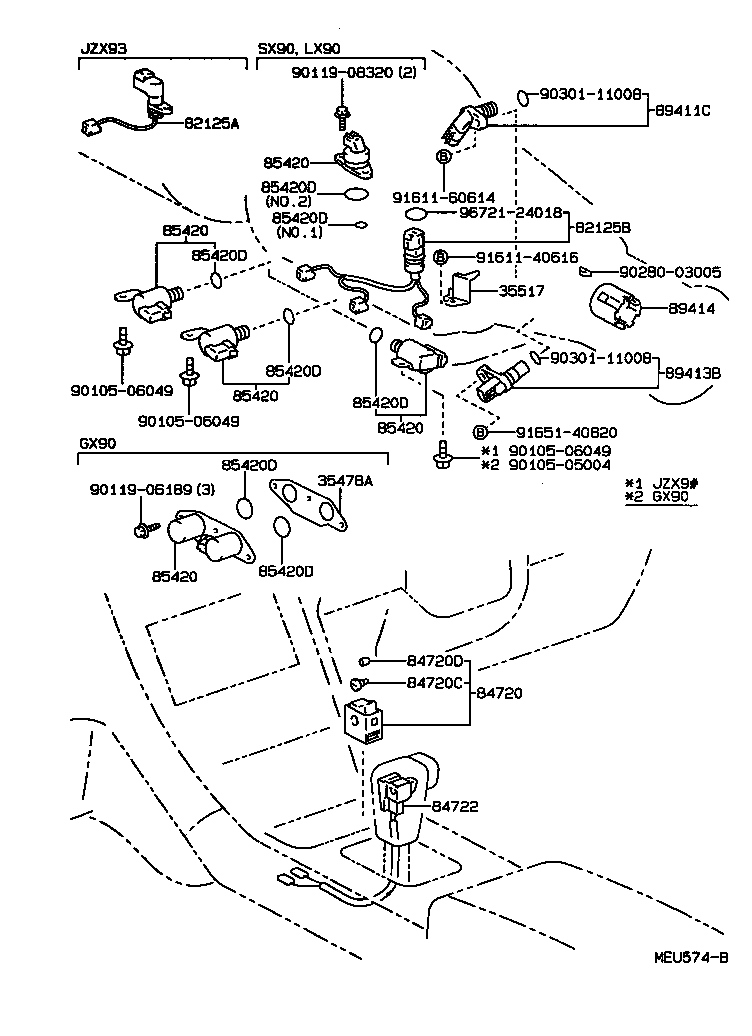

Overdrive & Electronic Controlled Transmission
13 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 35478A | Gasket, Shift Control Solenoid |
| 35517 | Plate, Transmission Wire Lock |
| 82125A | Wire, Transmission |
| 82125B | Wire, Transmission |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84720D | Cap, Pattern Select Switch |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89413B | Sensor, Transmission Revolution |
| 89414 | Rotor, Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
