Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06
Abs & Vsc
9 part groups · 1 illustrations

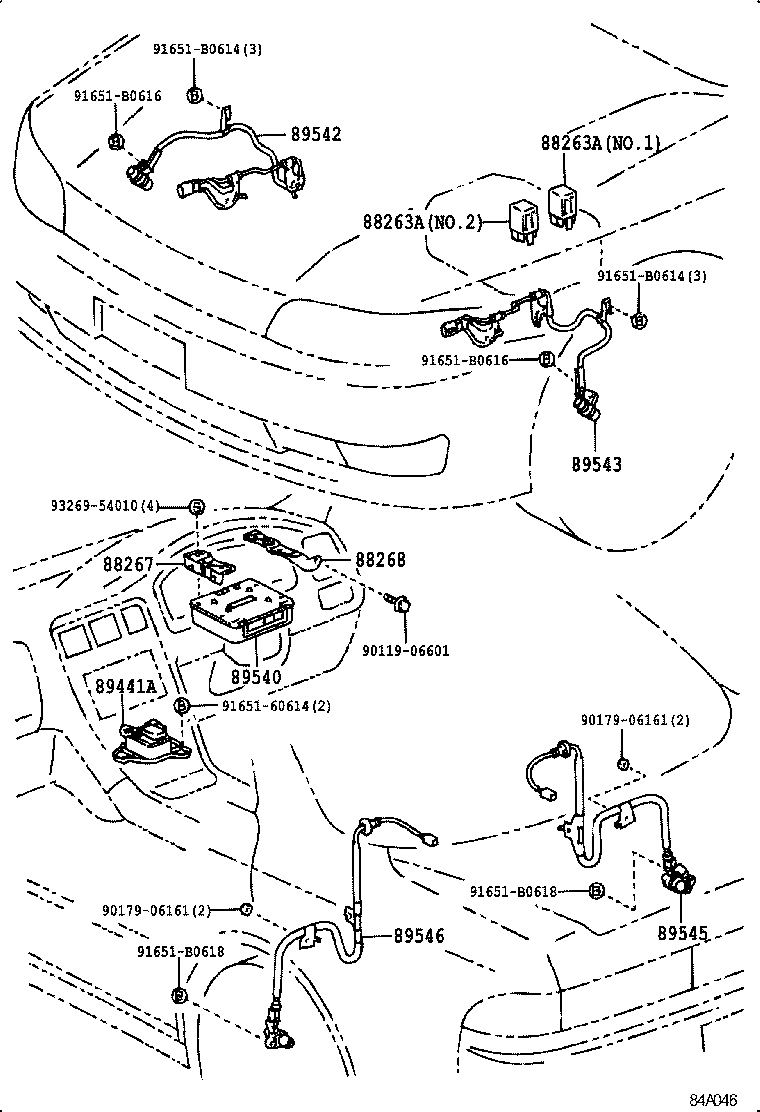

Illustrations
Part groups
| PNC | Description |
|---|---|
| 88263A | Relay, Skid Control |
| 88267 | Bracket, Skid Control Computer, NO.1 |
| 88268 | Bracket, Skid Control Computer, NO.2 |
| 89441A | Sensor, Deceleration |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
