Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06

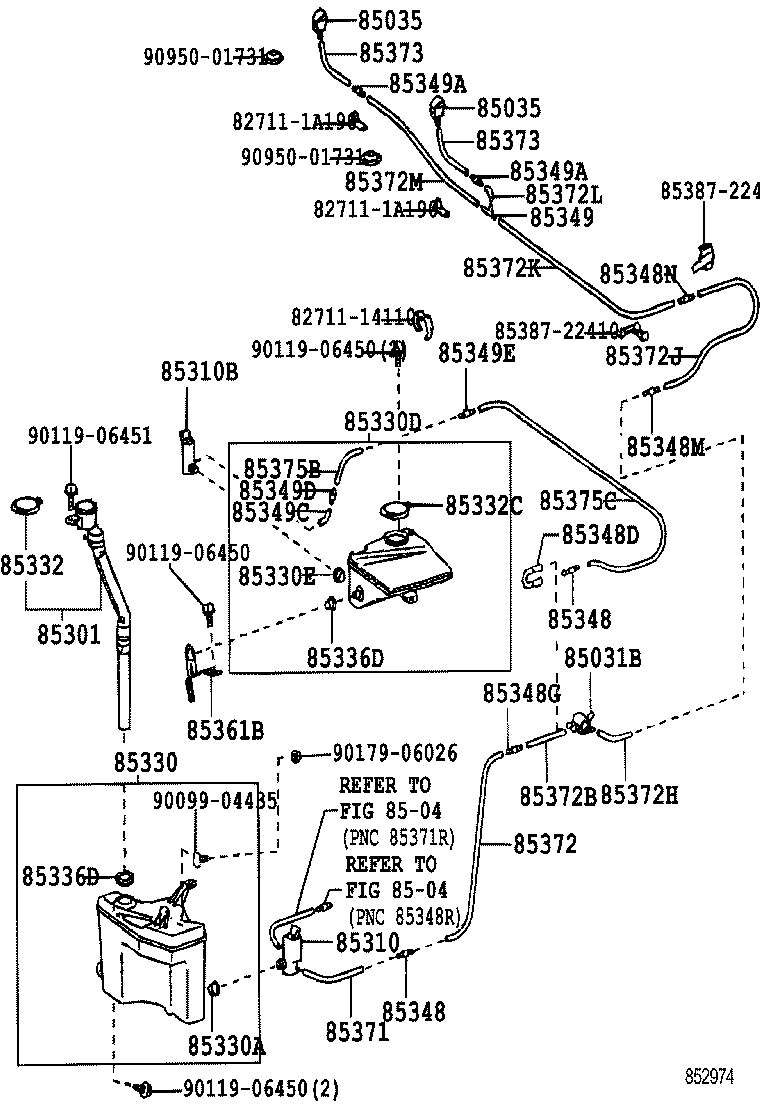

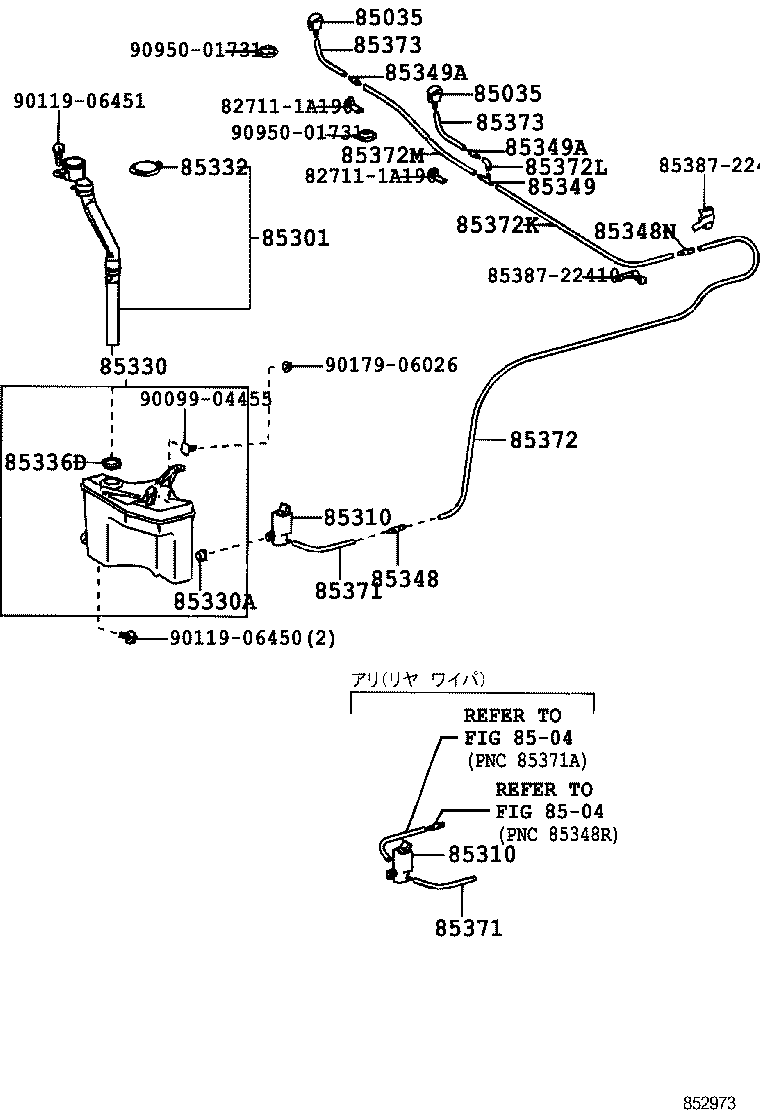

Windshield Washer

35 part groups · 3 illustrations

PNC	Description
85031B	Valve Sub-assy, Washer
85035	Nozzle Sub-assy, Washer
85301	Inlet Sub-assy, Washer
85310	Motor And Pump Assy, Windshield Washer
85310B	Motor & Pump Assy, Windshield Washer
85330	Jar Assy, Windshield Washer
85330A	Bush, Windshield Washer Jar
85330D	Jar Assy, Washer
85330E	Bush, Windshield Washer Jar
85332	Cap, Windshield Washer Jar
85332C	Cap, Front Washer Tank
85336D	Packing, Windshield Washer Jar
85348	Joint, Windshield Washer Hose, NO.1
85348D	Joint, Windshield Washer Elbow, NO.1
85348G	Joint, Windshield Washer Hose, NO.2
85348M	Joint, Windshield Washer Hose, NO.3
85348N	Joint, Windshield Washer Hose, NO.4
85349	Joint, Windshield Washer Hose, NO.1
85349A	Joint, Windshield Washer Hose, NO.2
85349C	Joint, Windshield Washer Elbow, NO.4
85349D	Joint, Windshield Washer Hose, NO.4
85349E	Joint, Windshield Washer Hose, NO.5
85361A	Bracket, Windshield Washer, NO.1
85361B	Bracket, Windshield Washer, NO.2
85371	Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85372J	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85372K	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
85372L	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.6
85372M	Hose, Windshield Washer (FROM JOINT TO JOINT), NO.7
85373	Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85375B	Hose, Windshield Washer (OIL REMOVING NO.1)
85375C	Hose, Windshield Washer (OIL REMOVING NO.2)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
