Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

8 part groups · 5 illustrations

Illustrations

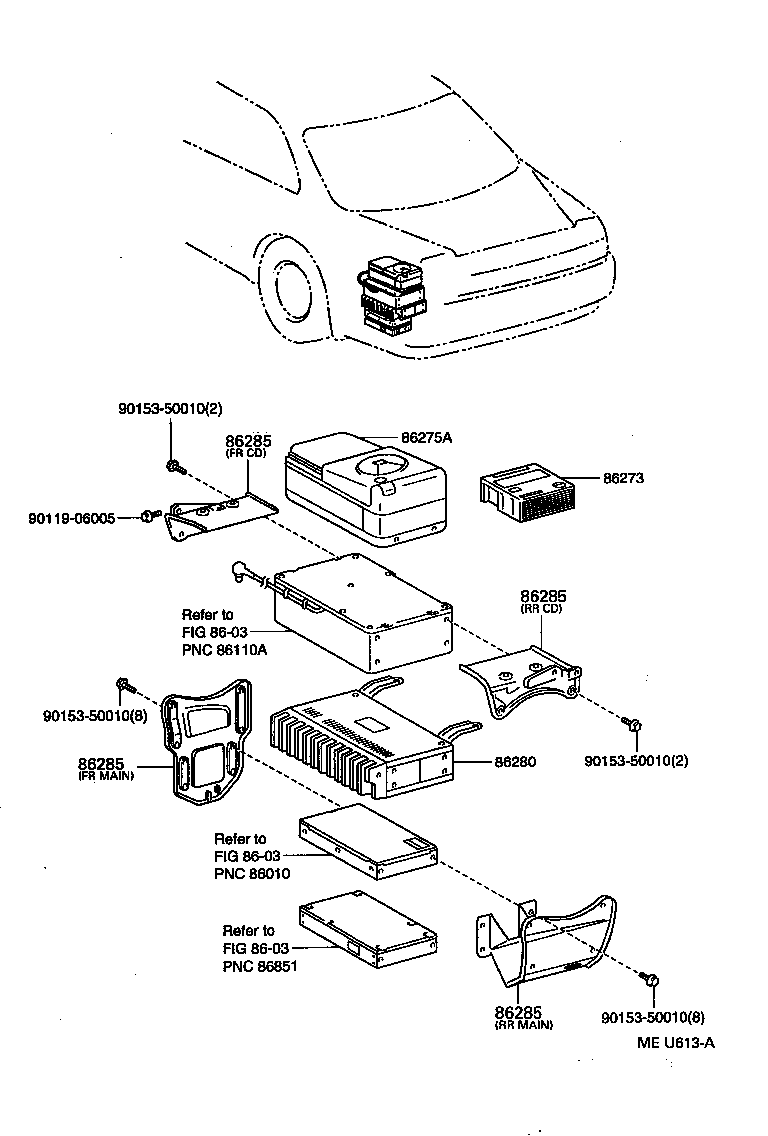

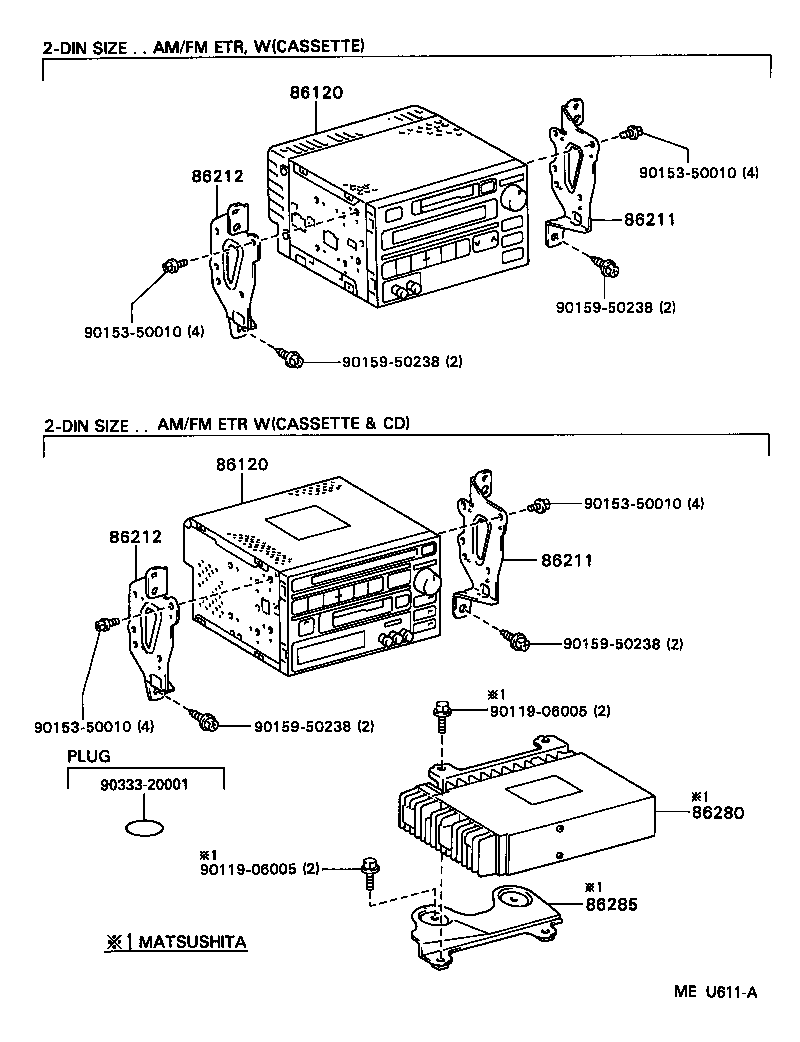

Figure MEU610A MEU610A 1992-10 → — Figure MEU611A MEU611A 1992-10 → — Figure MEZ999 MEZ999 1995-09 → — Figure MEU612 MEU612 1992-10 → — Figure MEU613A MEU613A 1992-10 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86273 Magazine, Disc Player
86275A Changer, Disc Player
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
