Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

5 part groups · 1 illustrations

Illustrations

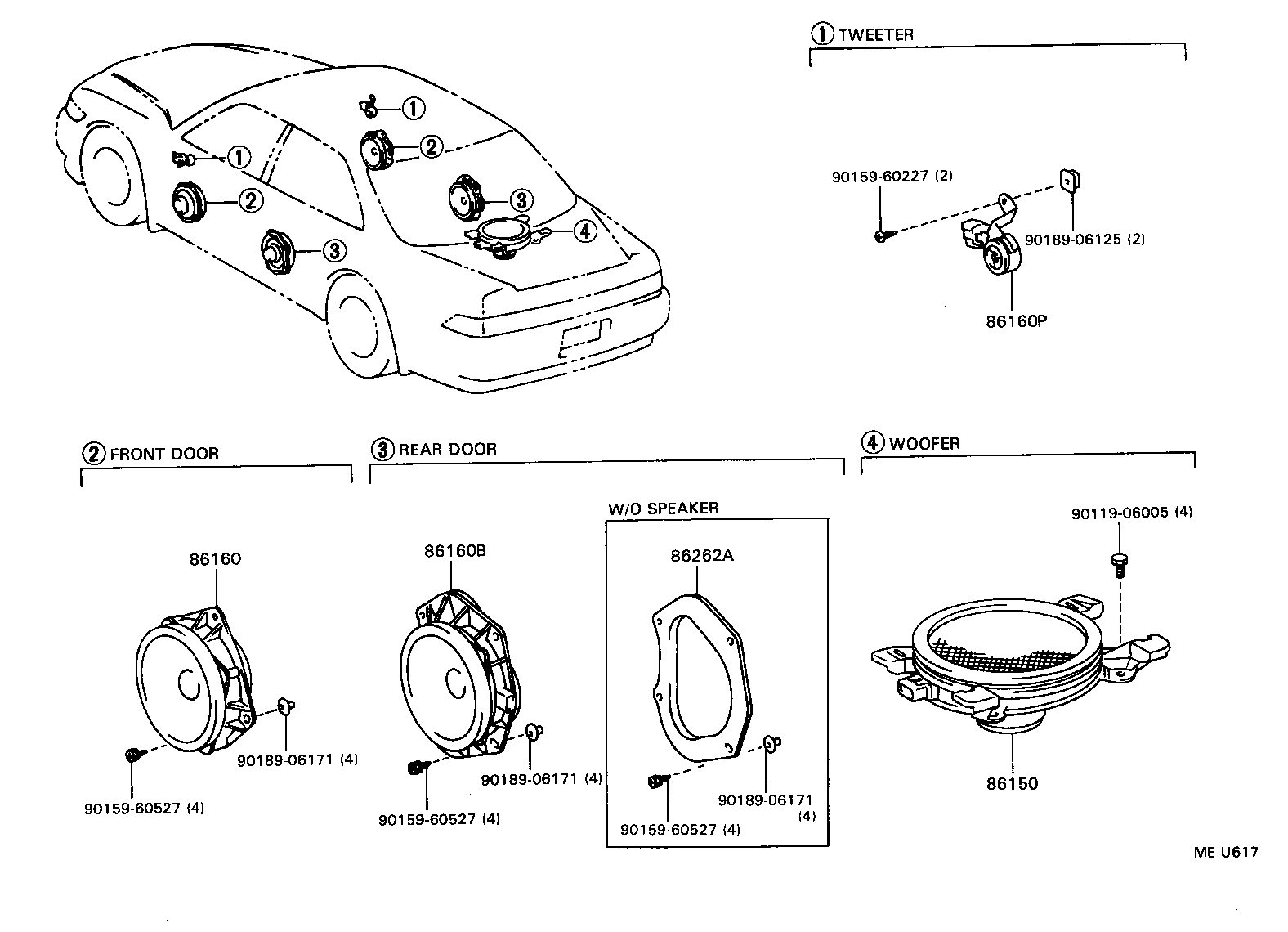

Figure MEU617

MEU617 1992-10 → —

Part groups

PNC	Description
86150	Speaker Assy, W/Box, NO.1
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160P	Speaker Assy, Front NO.2
86262A	Cover, Speaker, Front

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
