Factory parts data · Europe

Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

4 part groups · 3 illustrations

Illustrations

Figure MEU632B

MEU632B 1992-10 → —

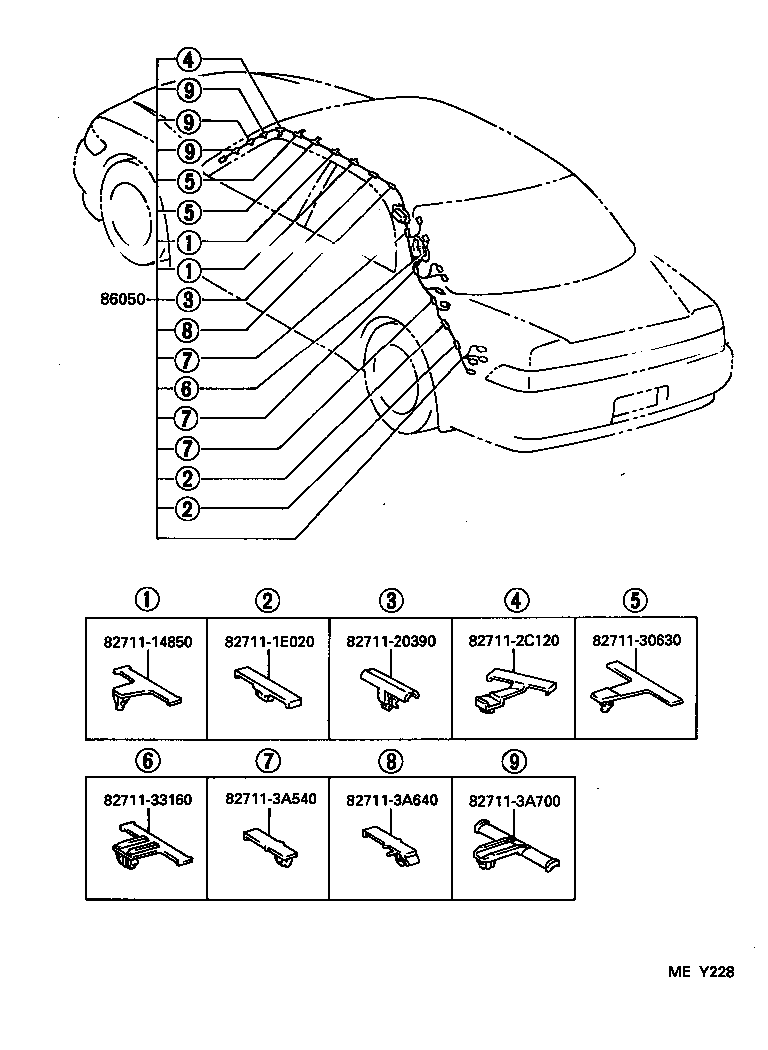

Figure MEY228

MEY228 1994-09 → —

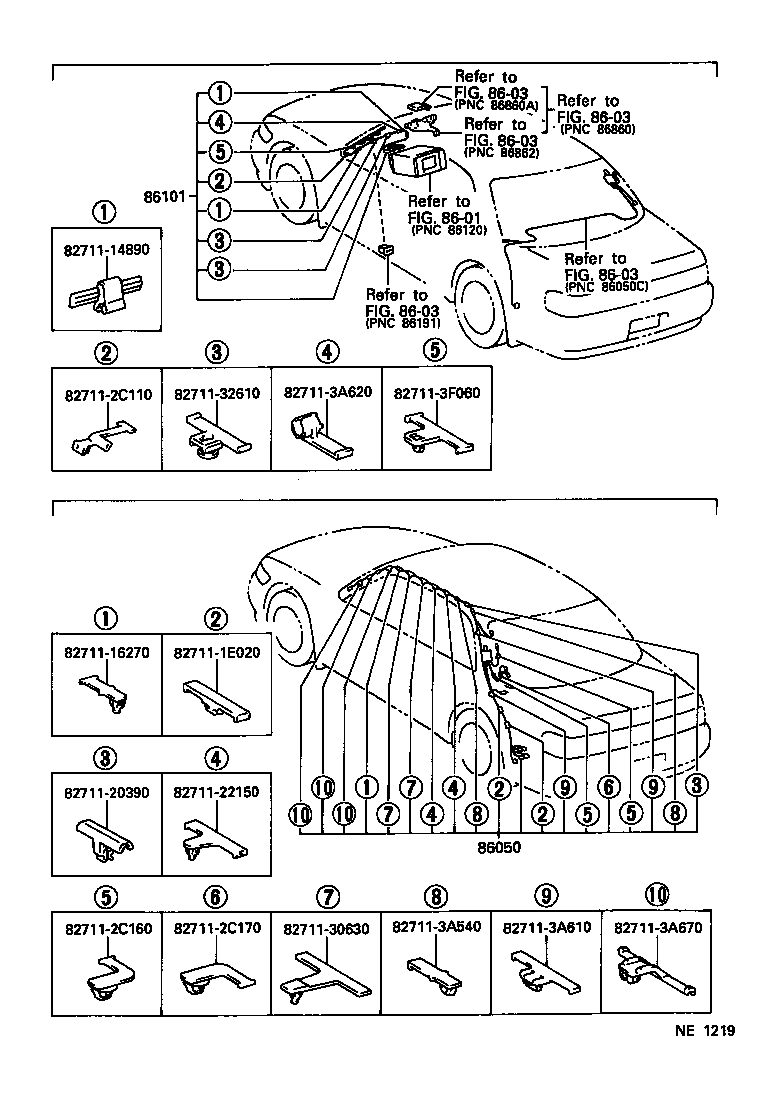

Figure NE1219

NE1219 1995-09 → —

Part groups

PNC	Description
86011M	Filter, Noise
86050	Antenna Assy, Television
86101	Cord Sub-assy, Antenna
86300C	Antenna Assy, Amplifier, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
